22.5W Multi-Protocol PD Quick Charging Power Bank Module | 2× USB-A + 2× USB Type-C | QC3.0, PD3.1, PPS | Supports 18650 & LiFePO4 Batteries
Build your own high-performance DIY power bank with this 22.5W Multi-Protocol PD Quick Charging Power Bank Module. Designed for lithium battery packs, this intelligent charging board supports USB Power Delivery (PD), Quick Charge (QC), PPS, AFC, FCP, SCP, and other popular fast-charging protocols for maximum device compatibility.
The module features 2 USB Type-A outputs and 2 USB Type-C ports, allowing simultaneous charging of multiple devices. Available in four variants for Lithium-ion (3.7V) and LiFePO4 (3.2V) batteries, with either LED indicator or digital battery percentage display.
Ideal for DIY power banks, portable battery projects, emergency backup systems, robotics, and electronics enthusiasts.
Key Features
- Supports up to 22.5W fast charging
- USB Power Delivery (PD) fast charging support
- Supports QC3.0, QC2.0, PPS, AFC, FCP, SCP, PE1.1 & PE2.0
- Dual USB-A output ports
- Dual USB Type-C ports
- Multiple device charging simultaneously
- Available with LED or digital battery display
- Compatible with Lithium-ion and LiFePO4 batteries
- Built-in battery protection circuitry
- Temperature sensor (NTC) support
- Ideal for DIY power bank projects
- Compact PCB design
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | DIY Power Bank Charging Module |
| Maximum Output Power | 22.5W |
| USB-A Ports | 2 |
| USB Type-C Ports | 2 |
| Display Options | LED Indicator / Digital Percentage Display |
| Battery Types | 3.7V Lithium-ion (18650/Li-ion Polymer), 3.2V LiFePO4 |
| Battery Connection | Parallel Only |

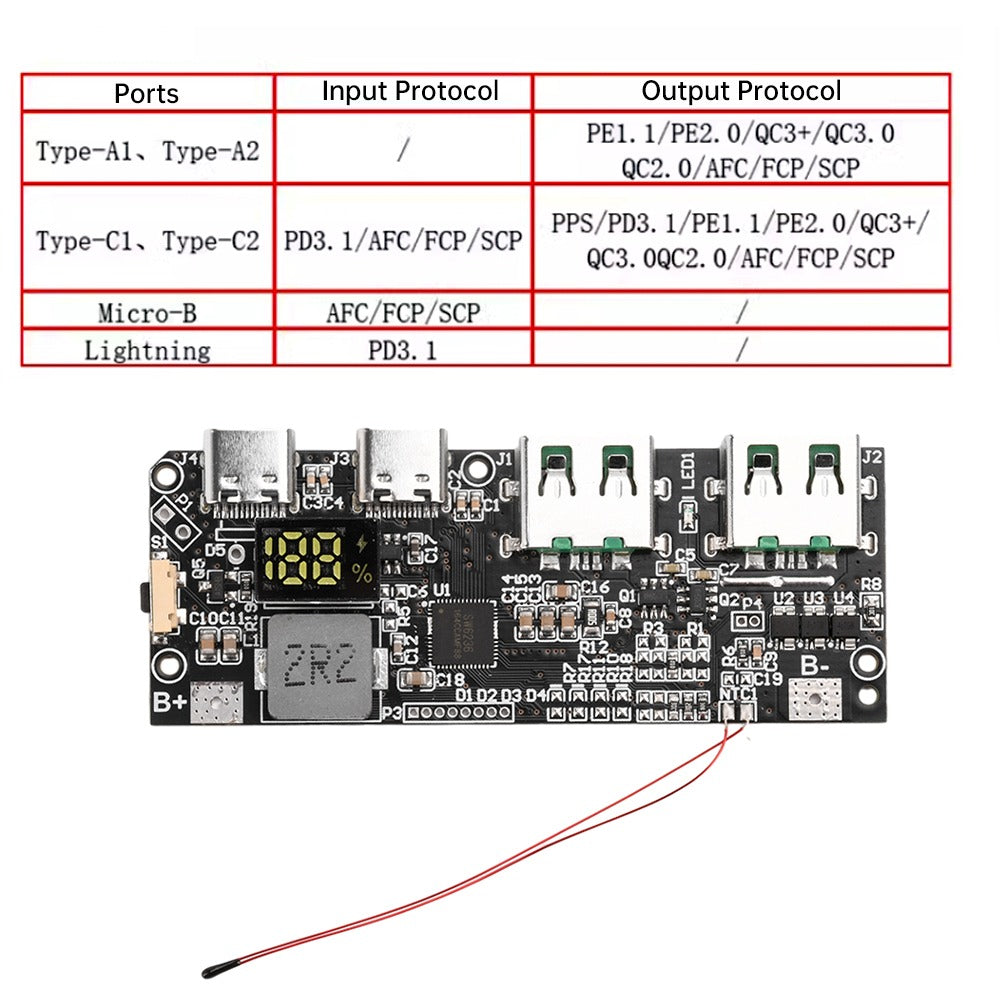

| Fast Charging Protocols | PD3.1, PPS, QC3.0, QC2.0, AFC, FCP, SCP, PE1.1, PE2.0 |
| Temperature Protection | NTC Sensor |
| PCB Mounting | Through-hole Mounting Holes |

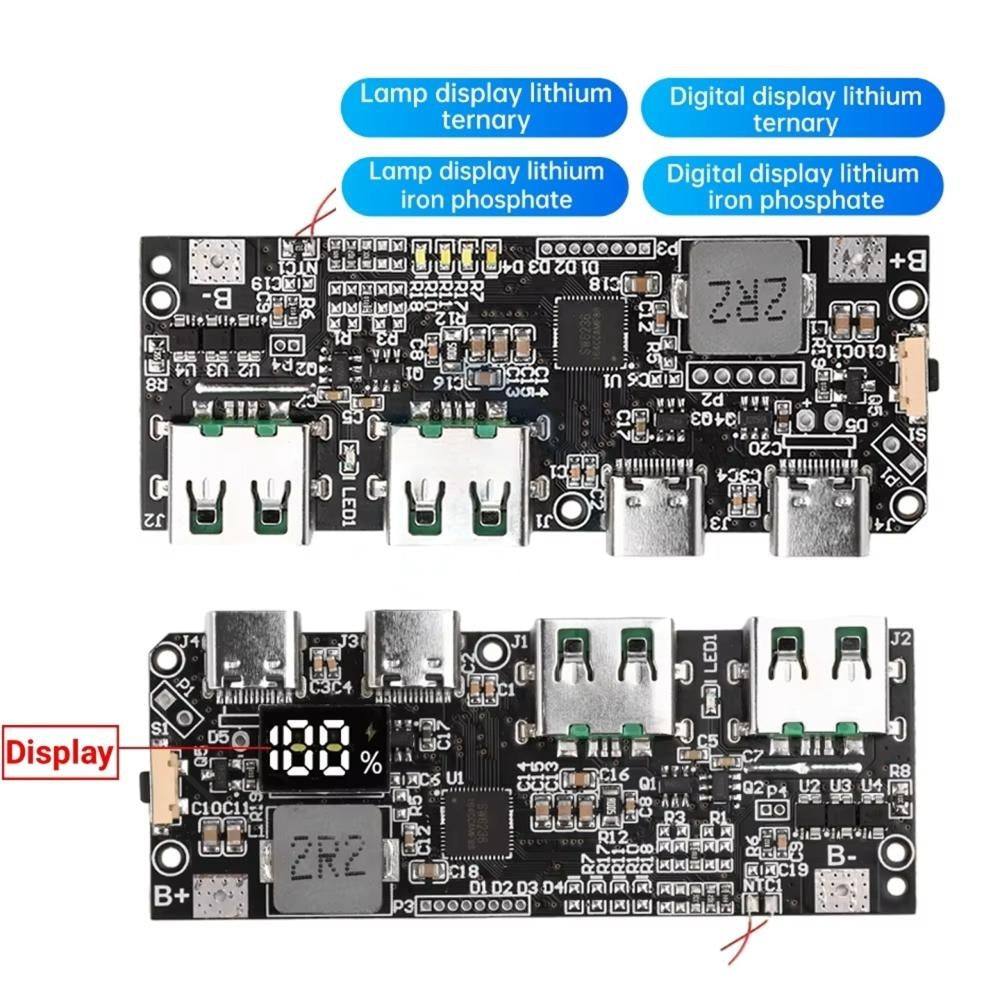

Available Variants
| Variant | Battery Type | Display |
|---|---|---|
| Lamp Display Lithium Ternary | 3.7V Lithium-ion | LED Indicator |

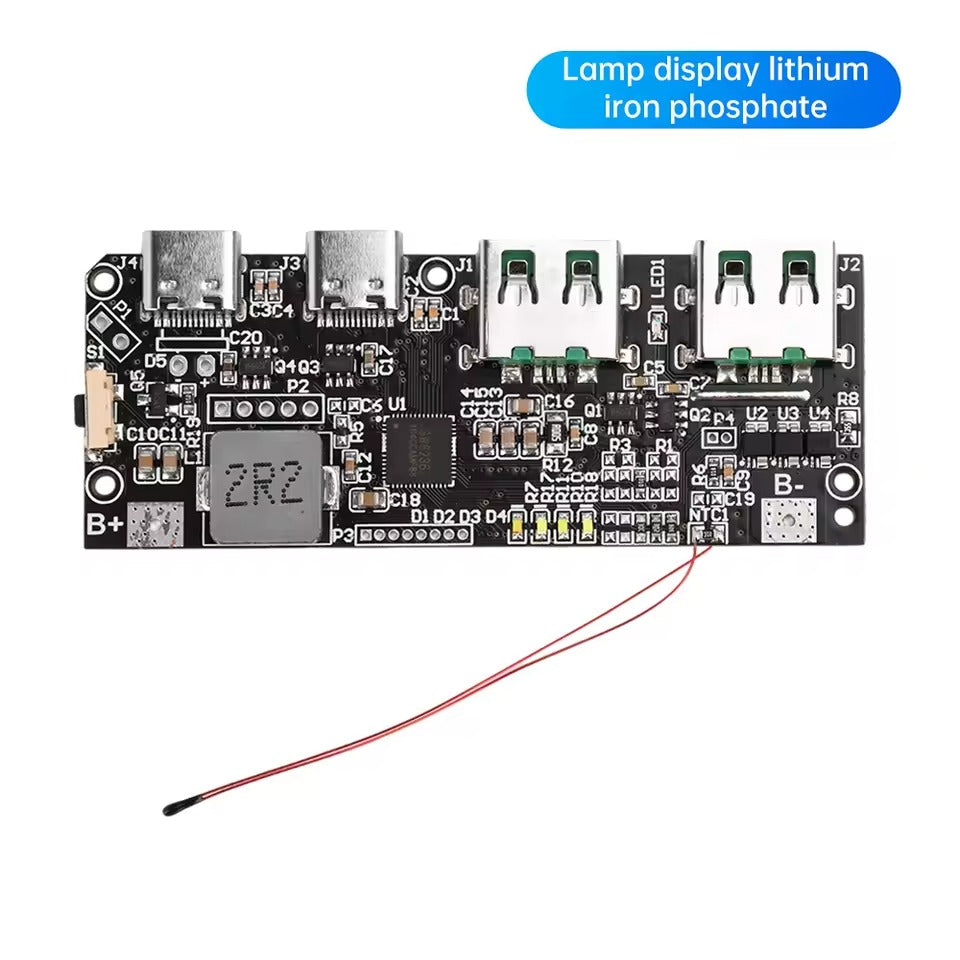

| Lamp Display Lithium Iron Phosphate | 3.2V LiFePO4 | LED Indicator |

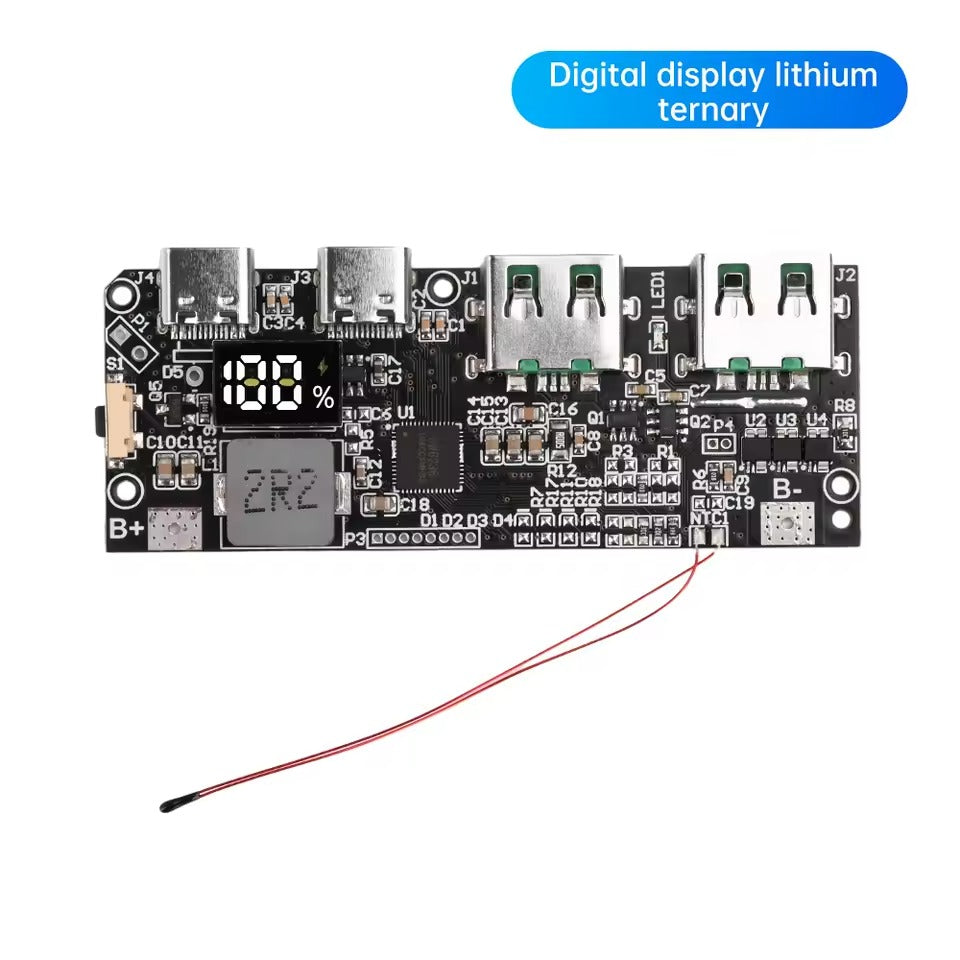

| Digital Display Lithium Ternary | 3.7V Lithium-ion | Battery Percentage Display |
| Digital Display Lithium Iron Phosphate | 3.2V LiFePO4 | Battery Percentage Display |
