Description

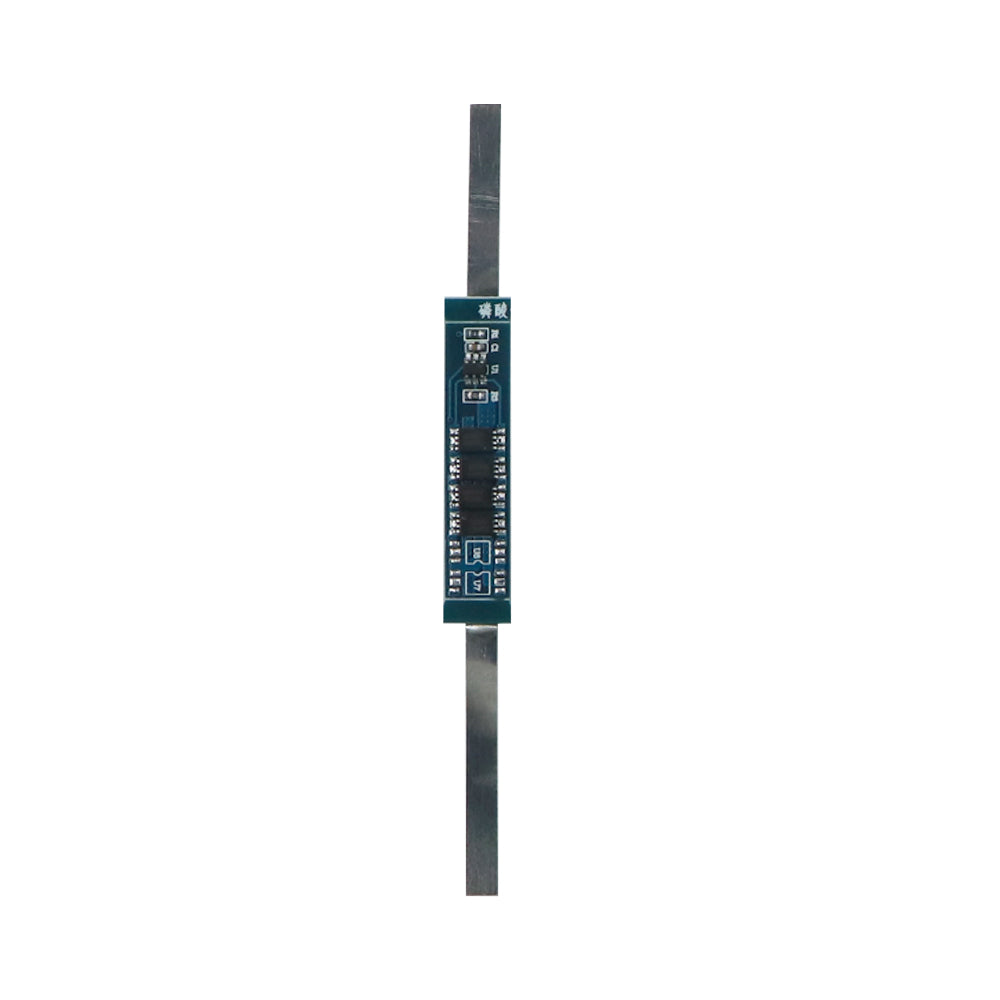

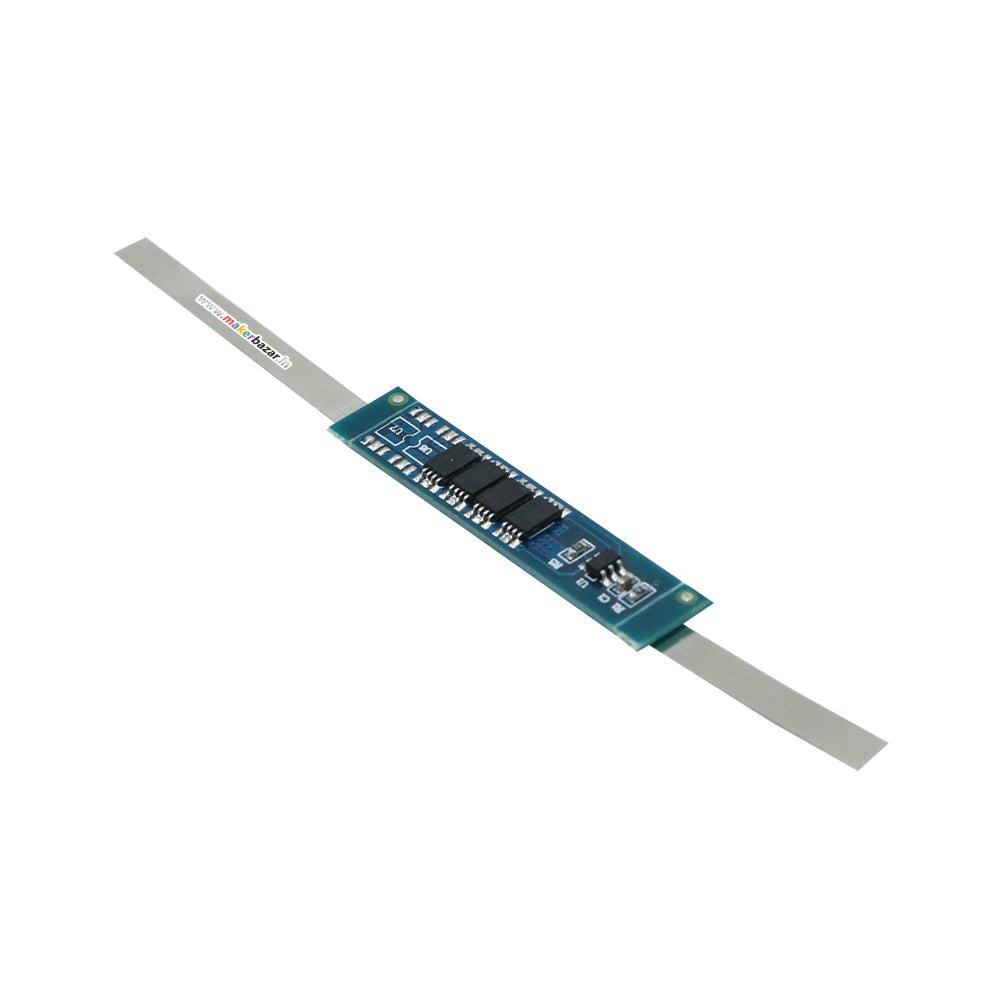

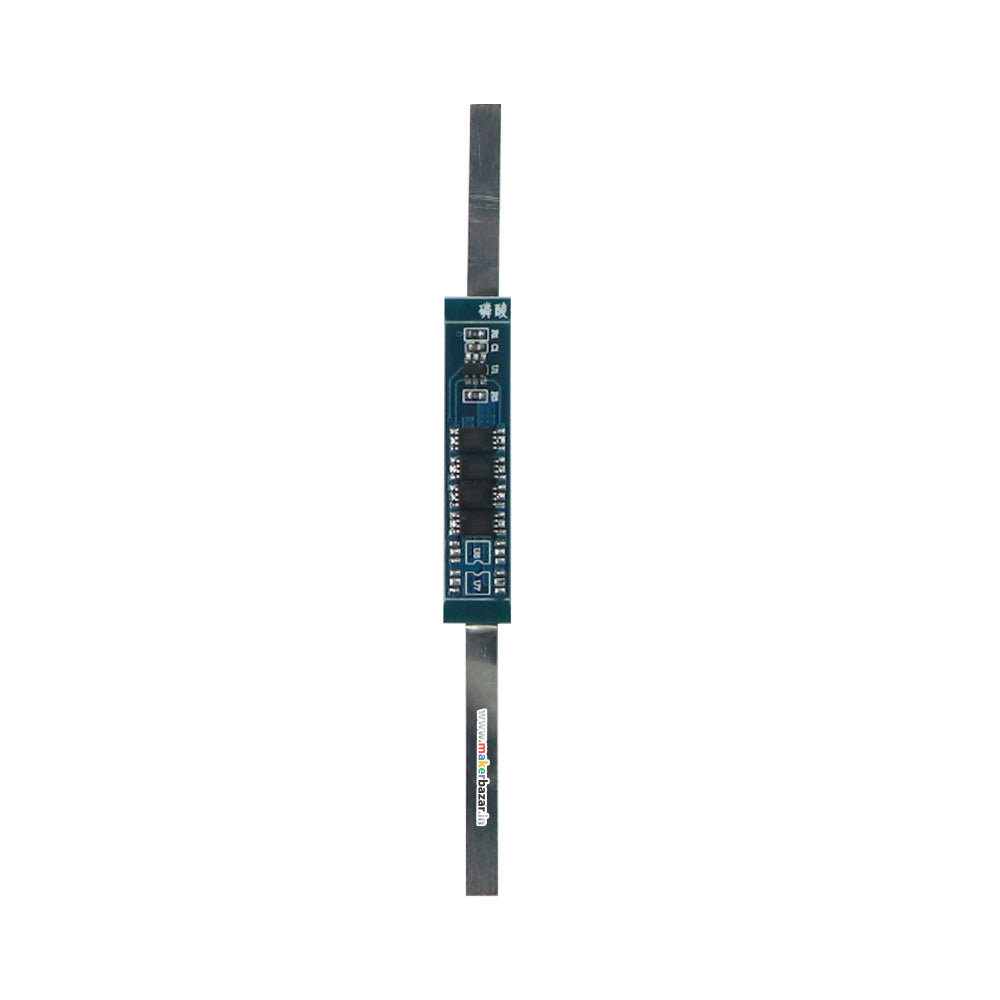

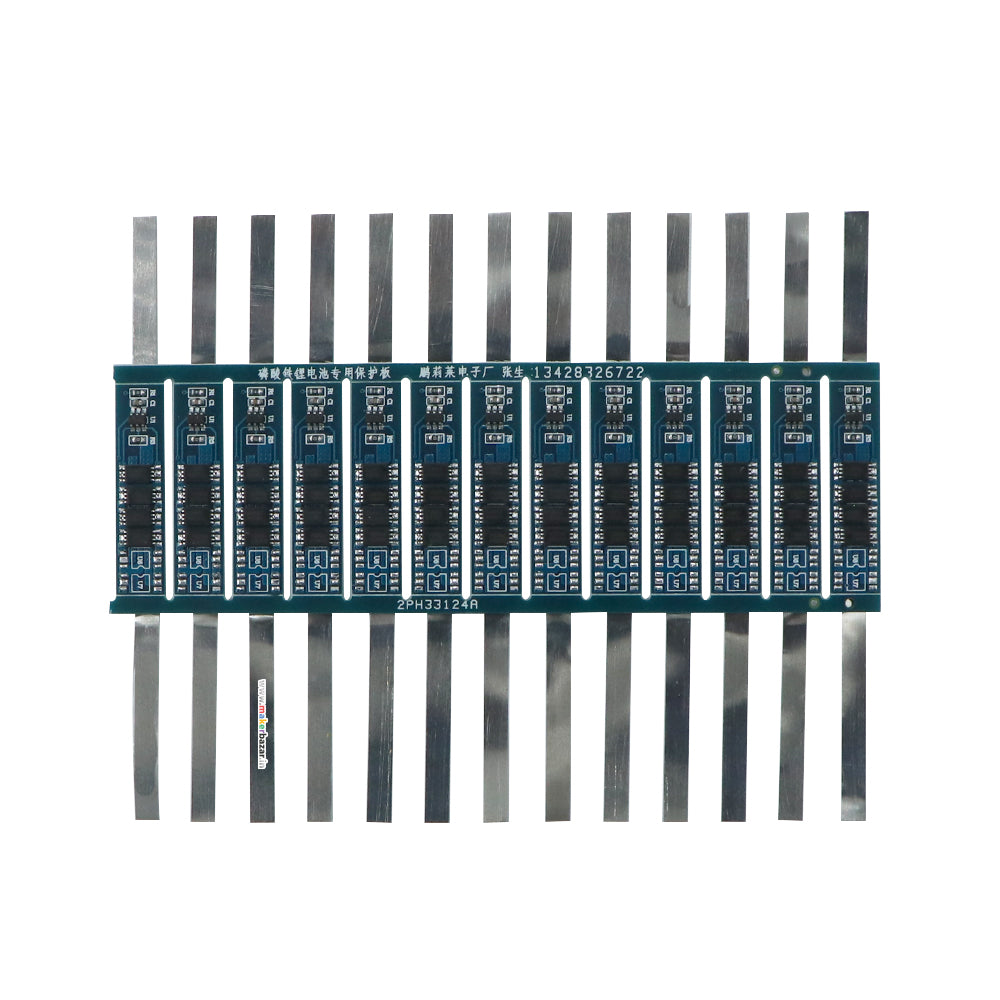

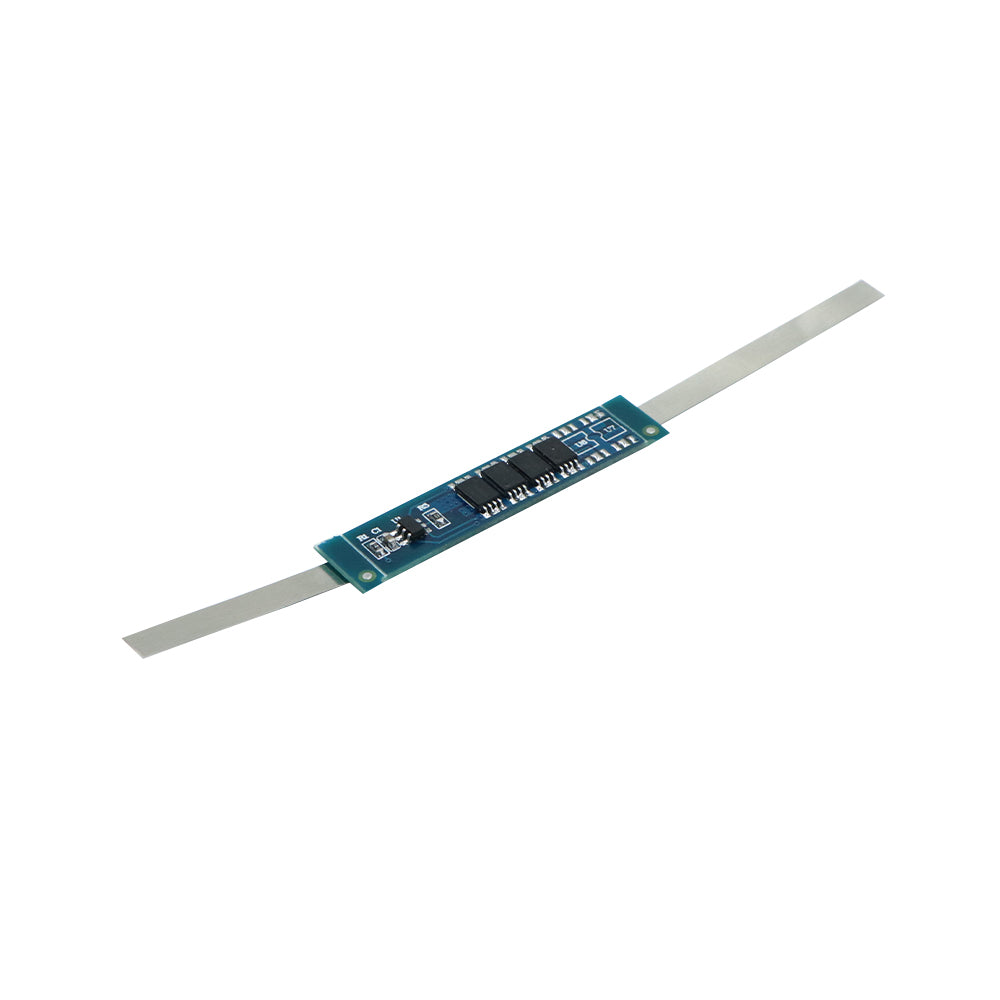

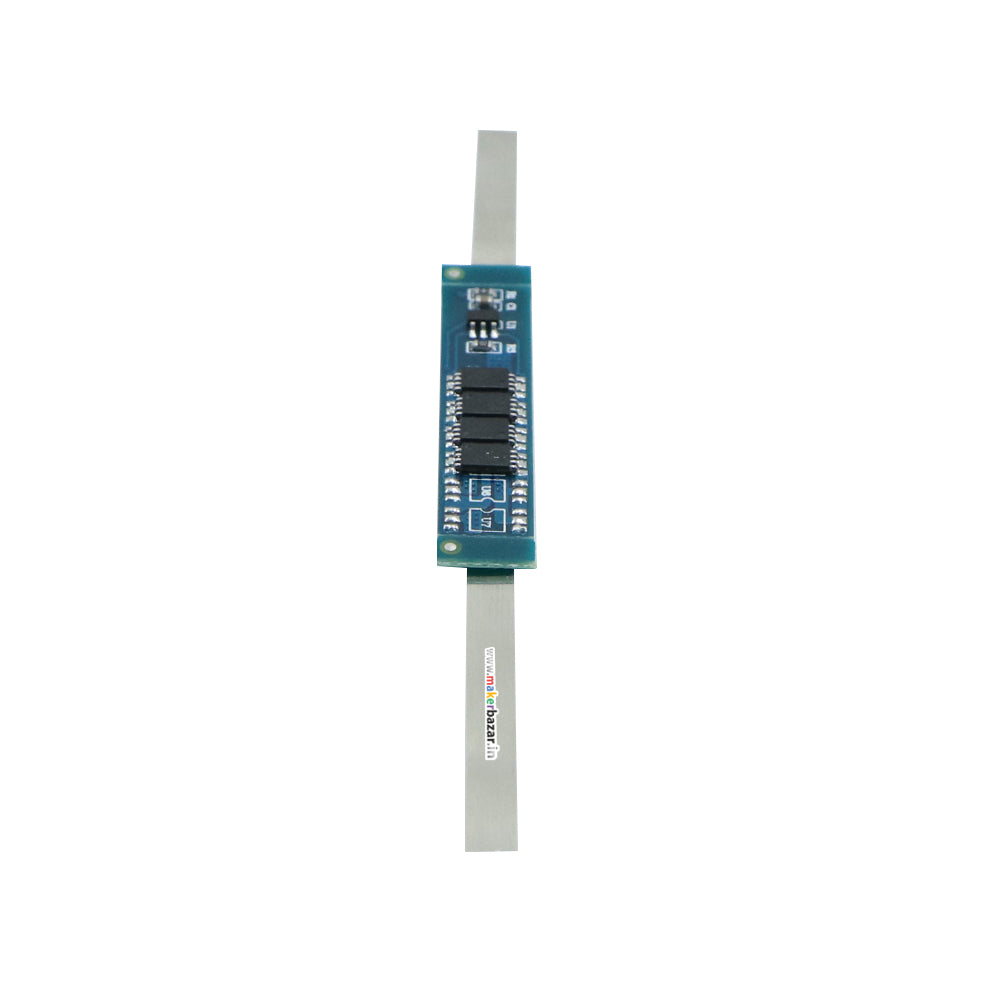

LIFEPO4 1S 6A 3.2V BMS CHARGE PROTECTION CIRCUIT
Overcharge protection, over-discharge protection and overcurrent protection.
Wiring instructions: 3.2V and 3.7V wiring methods are consistent;
B+ is connected to the positive terminal of the battery.
B- Connected to the negative pole of the battery.
P+ is the positive input of the battery pack input
P- is the negative input of battery pack output
Specification:
3.2V lithium iron phosphate battery protection board 4MOS:
Overcharge detection voltage: 3.75±0.05V
Overcharge release voltage: 3.75±0.05V
Overdischarge detection voltage: 2.1V±0.1V
Upper limit continuous current: 6A
Overcurrent detection current: 7A
Charging voltage: 3.6V
Product size: ~35 * ~8 * ~2.2MM
Package Include:
1 x 3.2V BMS 1S 6A LFP 32650 4MOS Lithium Battery Protection Board.
