Description

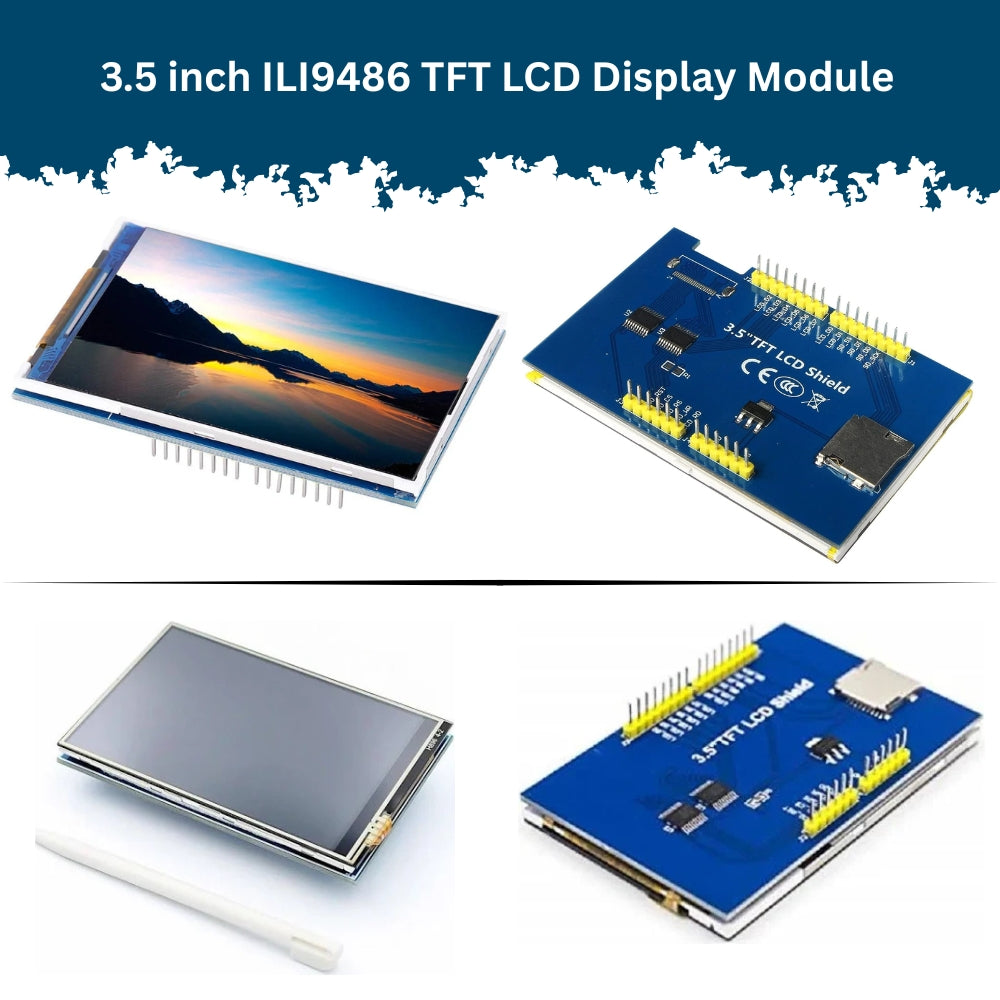

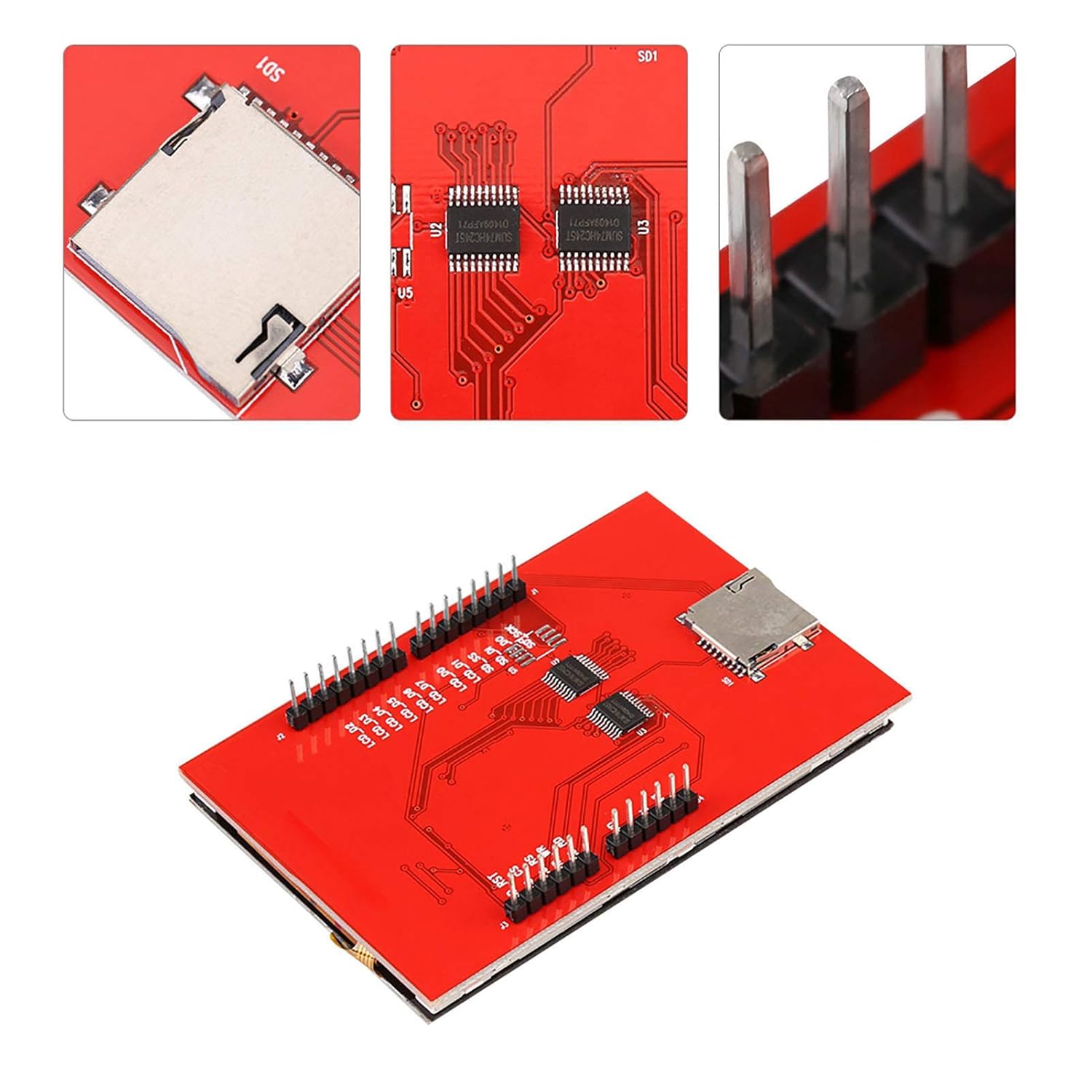

3.5" ILI9486 480x320 TFT Screen Shield for Arduino Uno Blue/Red
The 3.5 inch ILI9486 TFT LCD Display Module (480x320) is a vibrant, high-resolution screen designed for Arduino Uno and Mega2560 boards. Fully assembled and tested, this module is plug-and-play — no wiring or soldering needed. Simply plug it into your Arduino board, load the library, and you’ll have it up and running in minutes!
Featuring a bright 3.5" display with four white LED backlights and 18-bit color (262,000 shades), it offers a visually striking upgrade from standard monochrome screens. The display uses an 8-bit parallel interface for faster data transfer than SPI, and comes with a built-in microSD card slot for easy expansion. It’s perfect for adding rich visuals to your DIY electronics, embedded systems, or Arduino-based projects.
Specifications:
-
Display Type: TFT LCD
-
Driver IC: ILI9486
-
Screen Size: 3.5 inch
-
Resolution: 480 × 320 pixels
-
Color Depth: 65K RGB / 18-bit color (262,000 shades)
-
Backlight: 4 White-LED (default ON, controllable via digital pin)
-

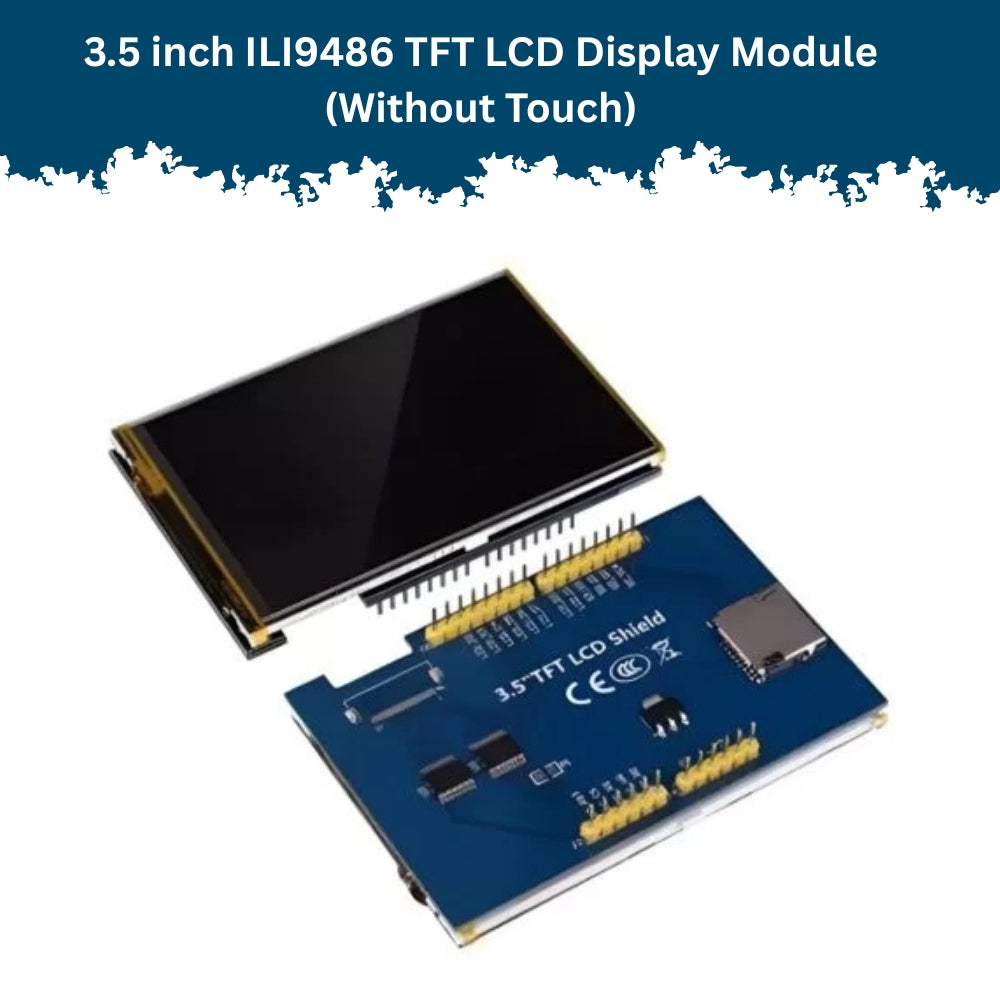

Touch Support: Not included (non-touch version)
-
Interface: 8-bit parallel + 4 control lines
-
Active Area: 73.44 × 48.96 mm
-
Module Size: 85.49 × 55.63 mm
-
Operating Voltage: 5V / 3.3V (onboard level shifting supported)
-
Compatibility: Arduino Uno, Mega2560, other 5V/3.3V microcontrollers
-
Extras: Built-in MicroSD Card Slot
-
Temperature Range:
-
Operating: -20℃ ~ 70℃
-
Storage: -40℃ ~ 70℃
-
