Description

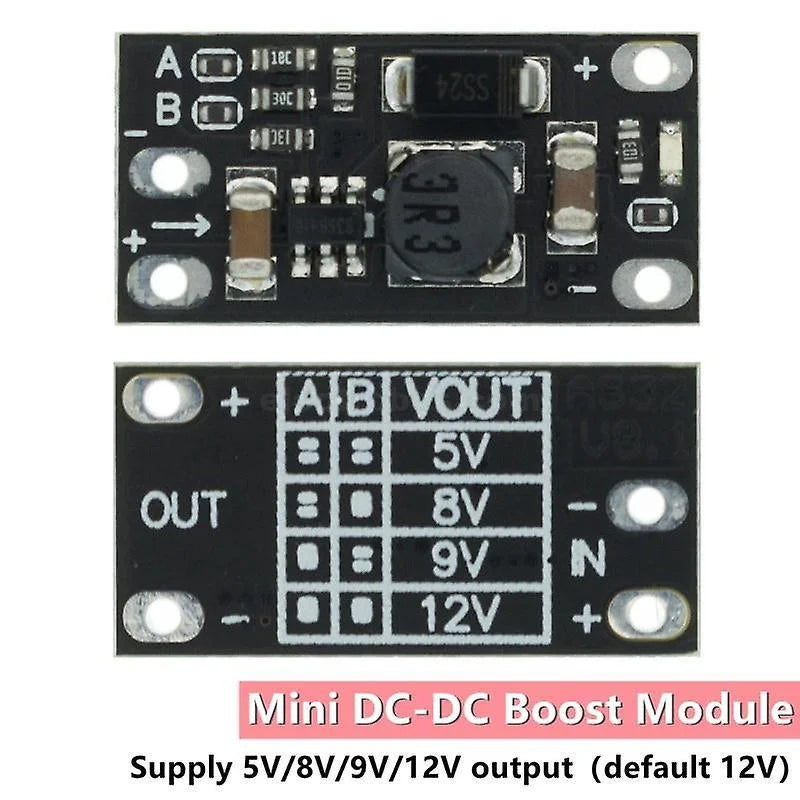

DC to DC Step-Up Booster Module
A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it “steps up” the source voltage. Since power ( ) must be conserved, the output current is lower than the source current
This is a high voltage step-up power supply module, which is commonly used in electronics experiments and demonstrations. The module can generate a voltage of up to 400KV from an input of 3-6V from a normal Li-ion battery. The high-voltage module uses the principle of the Tesla coil.
This is a DC-DC Boost step-up converter module that is used to step up the voltage. The voltage boost converter module provides 3.7V DC stable voltage output at various input ranges between 3.7V to 12V. This small tiny circuit boosts the voltage level and provides the amplified stabilized 5V/ 8V/ 9V 12V output. For the different input ranges, it consumes a different amount of current to produce a balanced output.
Features:
- Easy to use
- color: Black
- DC-DC Boost step-up converter module that is used to step up the voltag
- The maximum output current reaches 1A.
- Low power consumption.
- High-quality materials, precise craftsmanship
- The LED indicator can be turned off by the pad next to it.
Specification:
| Product Type |
DC-DC Boost Step-Up Converter |
| Input Voltage (V) |
2.5V~VOUT-0.5V |
| Operating Current (A) |
1A |
Package Includes:
1 x 3.7V to 12V Mini DC-DC Boost Step-Up Converter Board Module 5V/ 8V/ 9V 12V Output
Note: This module is not suitable for running a DC motor, as the module is not able to handle the high current requirement of a DC motor but it can run a small DC Toy motor, whose current requirement is less than 100milli amp.
