36W 3A Short Distance IR Hand Sweep ON-OFF Sensor Module

Save ₹ 71.00
SKU: 66425086
2 reviews

Price:
Sale price₹ 149.00 Regular price₹ 220.00
( ₹ 126.27 without 18% GST.)

Tax included Shipping calculated at checkout

Description

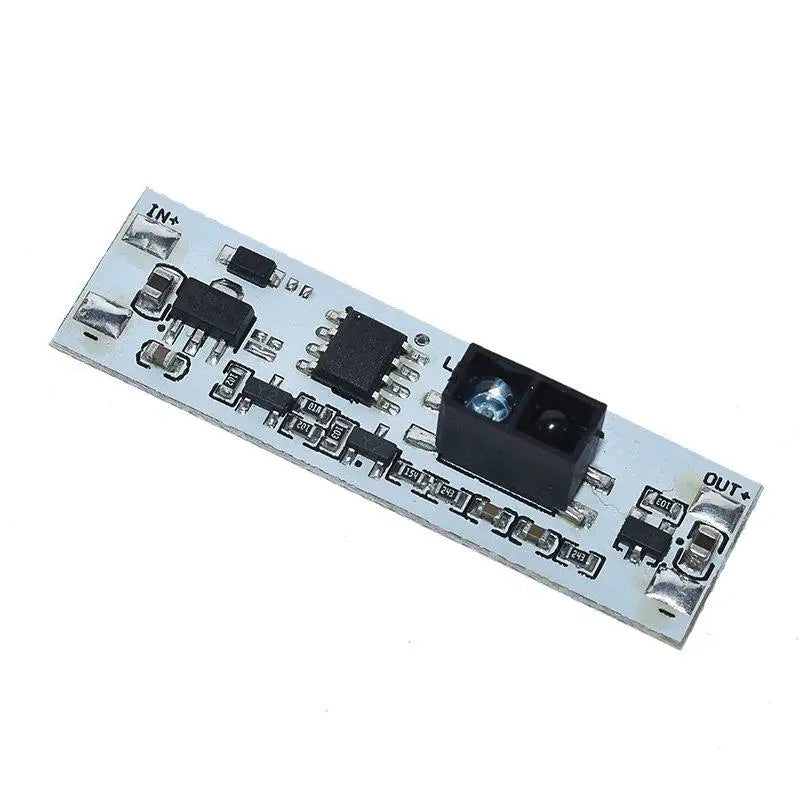

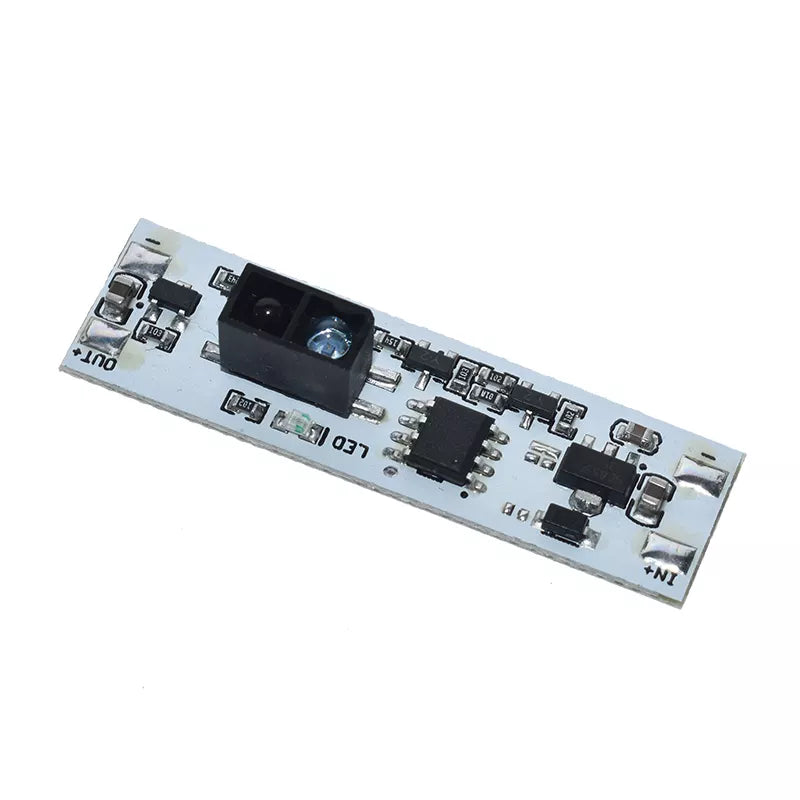

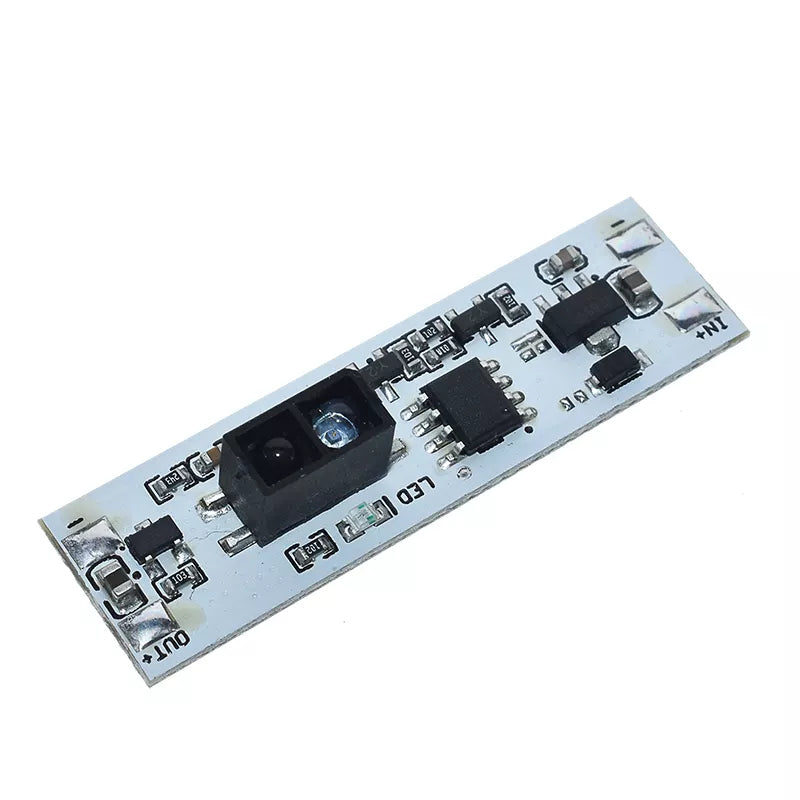

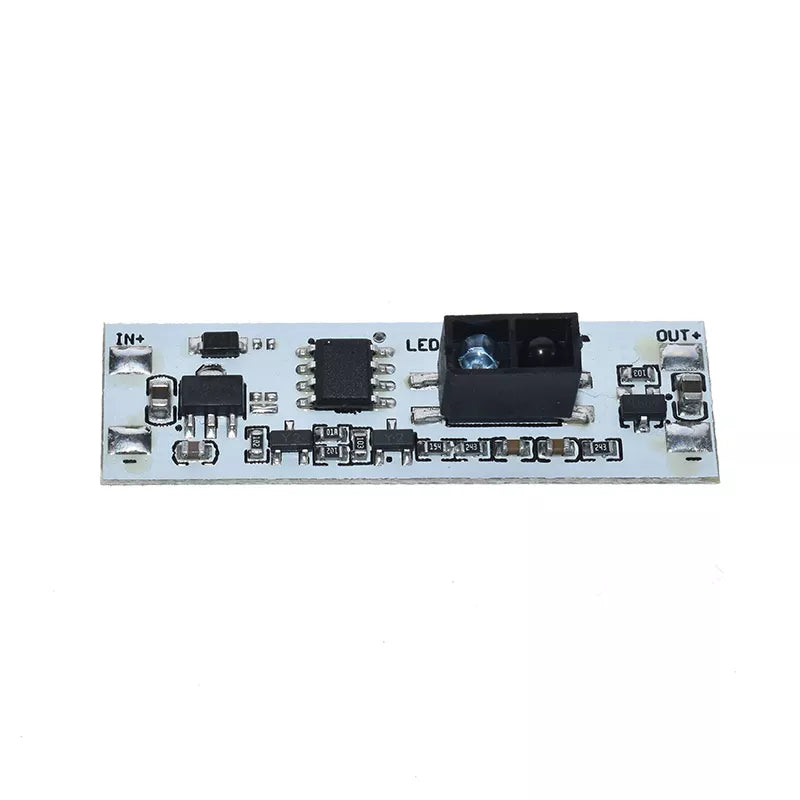

36W Short Range IR Hand Wave ON-OFF Sensor Module LZG-HW-V9

This is IR sensor-based switching module that functions ON and OFF  by sweeping palm over it from 10 to 80 mm distance.

This IR sensor can be used in a variety of applications in household appliances as well as automotive industrial applications.  The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and another non-metallic medium, stable performance!


Specifications and Features

  1. Operating voltage: 12vDC
  2. Output Voltage: 12 V
  3. Output type: Double output
  4. Detection range: adjustable 10-80 MM
  5. Max Power Load: 36 W
  6. Delayed off time: none
  7. Field of application: DC, constant pressure
  8. Load current: 3A optional
  9. Standby current: 10mA
