48V SMPS DC Power Supply -Good Quality Led Light

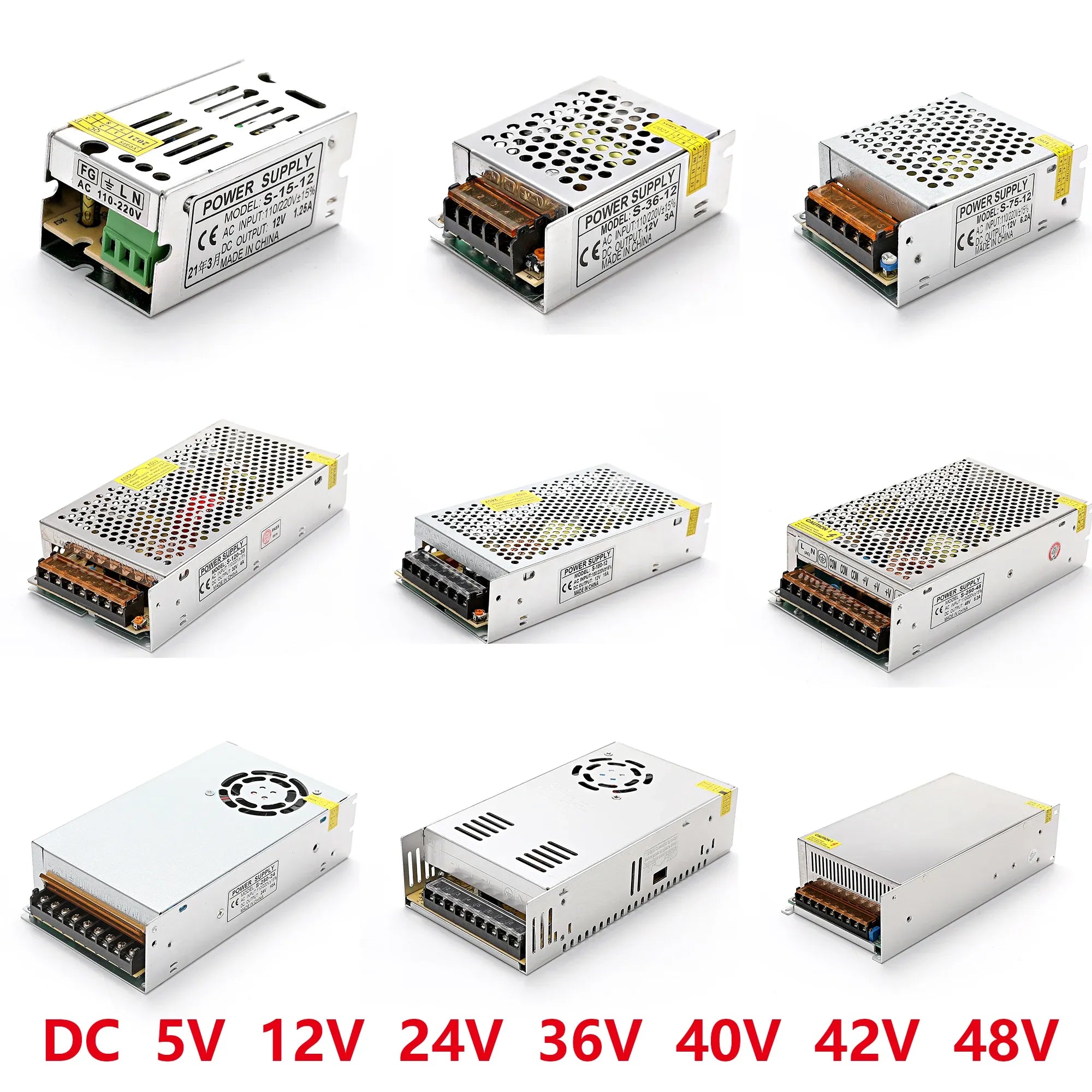

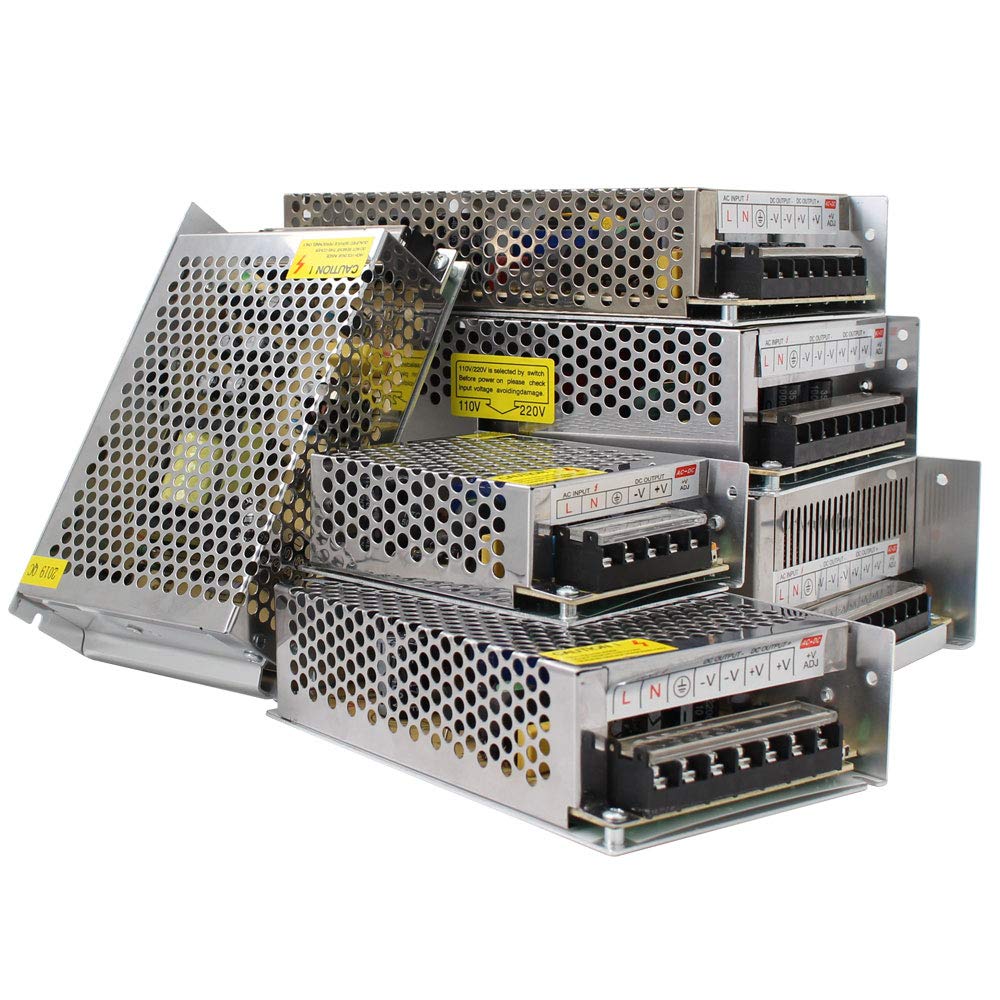

Note: Casing may vary from images shown.

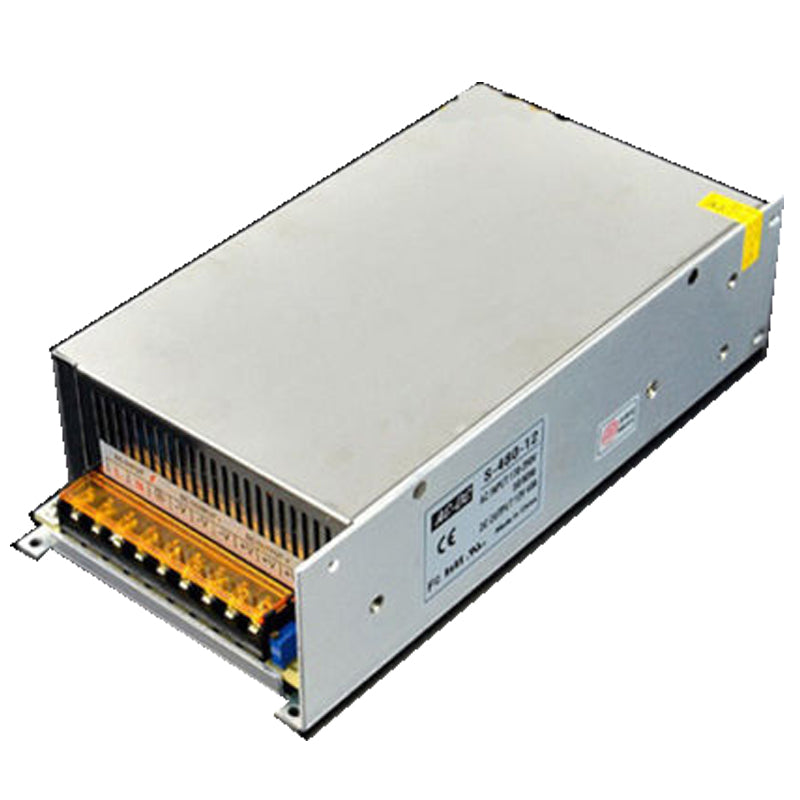

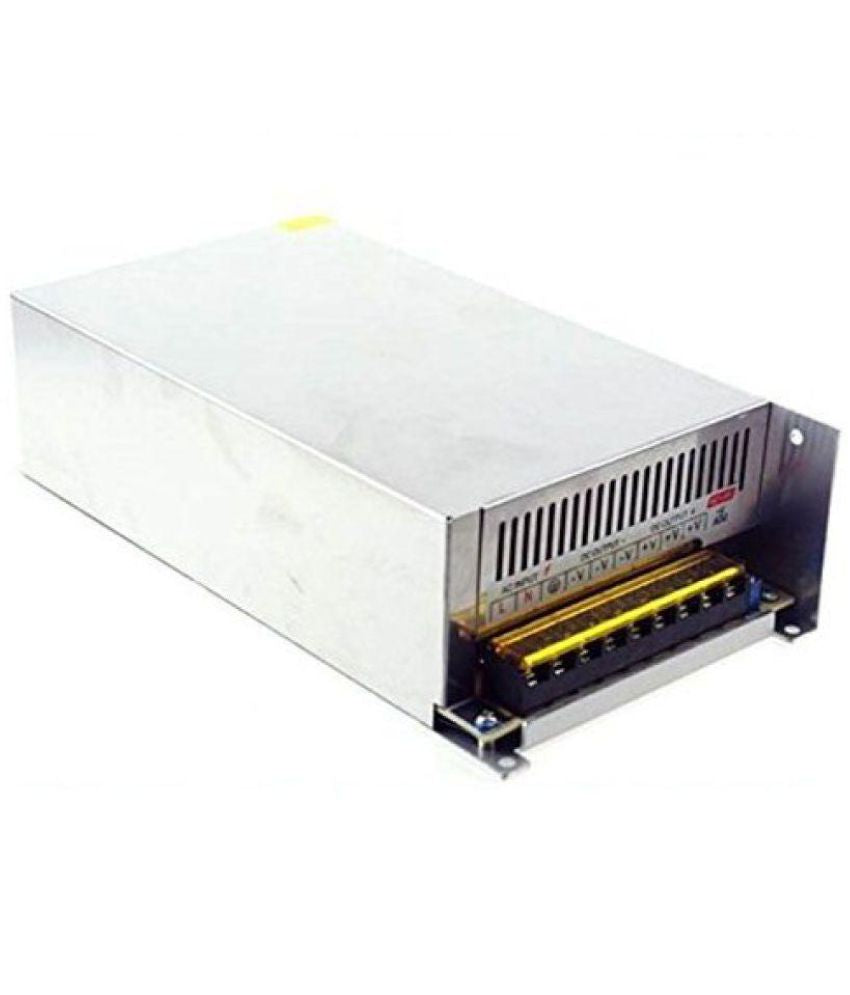

The 48V DC Switch Mode Power Supply (SMPS) in a rectangular metal casing is a high-efficiency, compact power solution ideal for industrial automation, LED lighting, CNC machinery, communications equipment, and DIY electronics. Built for continuous, reliable operation, this power supply converts AC mains voltage (100–240V) into a stable 48V DC output, available in multiple current ratings to match various power requirements.
✅ Key Features:
-
Stable 48V DC Output with regulated voltage
-
Wide AC Input Range: 100–240V AC, 50/60Hz
-
Rugged Metal Casing: Aluminum or steel chassis for durability and passive cooling
-
Safety Protections: Overvoltage, overload, short circuit, and over-temperature
-
LED Power Indicator: For real-time power status
-
High Efficiency: Typically above 85%
-
Screw Terminal Connectors: Easy and secure wiring
-
Cooling Options: Vented case with natural convection or built-in fan (for high current models)
🧩 Available Variants
| Model Variant | Output Voltage | Output Current | Output Power | Cooling Method | Dimensions (Approx.) |
|---|---|---|---|---|---|
| 48V 2A SMPS | 48V DC | 2A | 96W | Natural Convection | 160 × 98 × 38 mm |
| 48V 5A SMPS | 48V DC | 5A | 240W | Natural Convection | 200 × 110 × 50 mm |
| 48V 10A SMPS | 48V DC | 10A | 480W | Built-in Cooling Fan | 215 × 115 × 50 mm |
| 48V 15A SMPS | 48V DC | 15A | 720W | Built-in Cooling Fan | 215 × 115 × 50 mm |
| 48V 20A SMPS | 48V DC | 20A | 960W | Dual Cooling Fans | 230 × 125 × 65 mm |
🛡️ Protection & Safety Features:
-
Overload Protection: Auto-recovery after fault removal
-
Short Circuit Protection: Shutdown and auto-recovery
-
Overvoltage Protection: Limits voltage spikes
-
Thermal Protection: Fan-assisted or thermal cut-off
⚙️ Technical Specifications:
-
Voltage Adjustment: ±10% via onboard trimpot
-
Ripple & Noise: ≤150mVp-p
-
Efficiency: 85%–90% depending on load
-
Operating Temperature: -10°C to +60°C
-
Storage Temperature: -20°C to +85°C
-
Insulation Resistance: ≥100MΩ at 500VDC
-
Dielectric Withstand Voltage: 1.5kV AC (Input to Output)
📦 Applications:
-
Industrial Automation Systems
-
LED Strip Lighting Projects (especially 48V LED strips)
-
Telecommunications Equipment
-
CNC Machines and 3D Printers
-
Access Control & Security Systems
-
Battery Charging Circuits
-
Laboratory and DIY Electronics
Note: Ensure the total system current demand does not exceed the power supply’s rated output. Mount horizontally in a ventilated enclosure for best thermal performance.
Note : The Voltage and Current ratings are the approximation values so the output voltage and current ratings mentioned on the device can be plus and minus in decimal values.
