Description

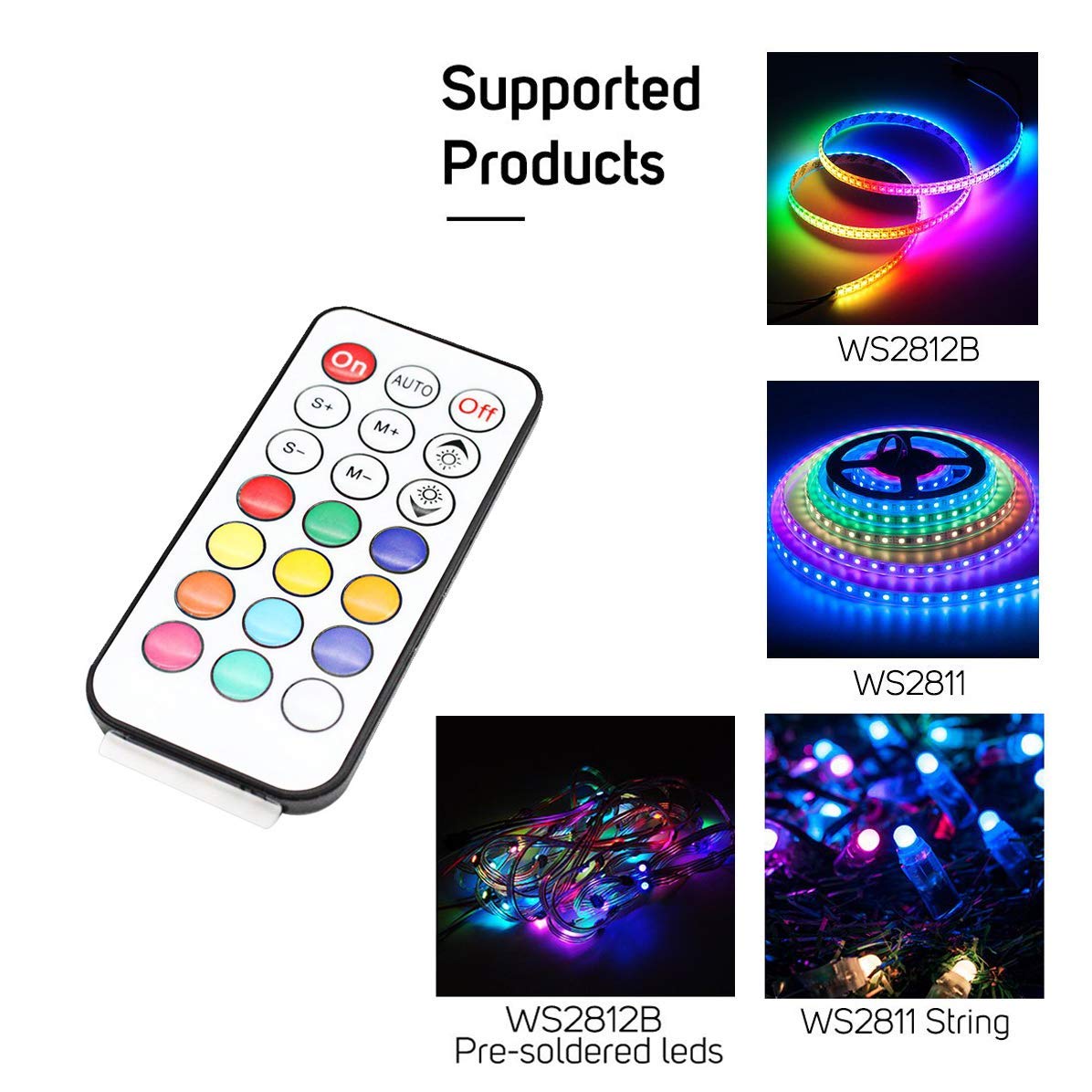

LED Dream Color Controller with radio remote for RGB LED strips (WS2811, WS2812, WS2813). Equipped with LOCK function (mode memory).
LED2017-RF is a wireless Multicolor LED controller with a radio remote control for RGB LED strips (WS2812B, WS2811).
Features
- 361 different modes
- Brightness and speed adjustment
- DIY function
- 21 keys
Technical Specifications
Voltage | 5-24 V |
Maximum number of pixels | 2048 |
Max. remote control distance | 30 m |
Current consumption | 10 mA |
Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v

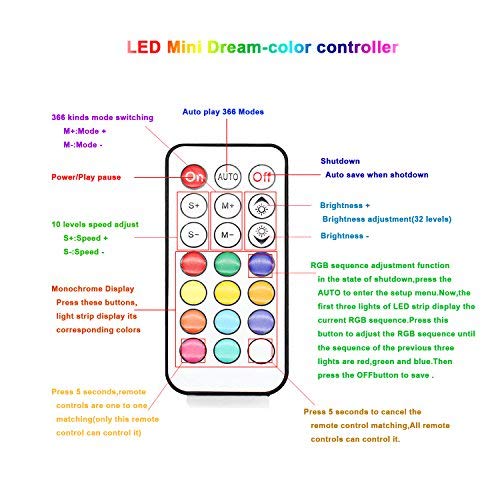

2048 PIXEL ADJUSTMENT METHOD
Maximum number of control pixels: Total 2048 pixels.
We recommend using 300 pixels (Approximately 5 meters of light strip length). Press and hold for 5 seconds to enter the setup menu and press MODE+ and MODE- to adjust the number of LED pixel points. Only adjust 32 points each time. Press the B button to adjust the RGB sequence. (Tips: If you want to adjust the pixel points from 300 to 2048, you need to press the 'MODE+' key 54 times.)
