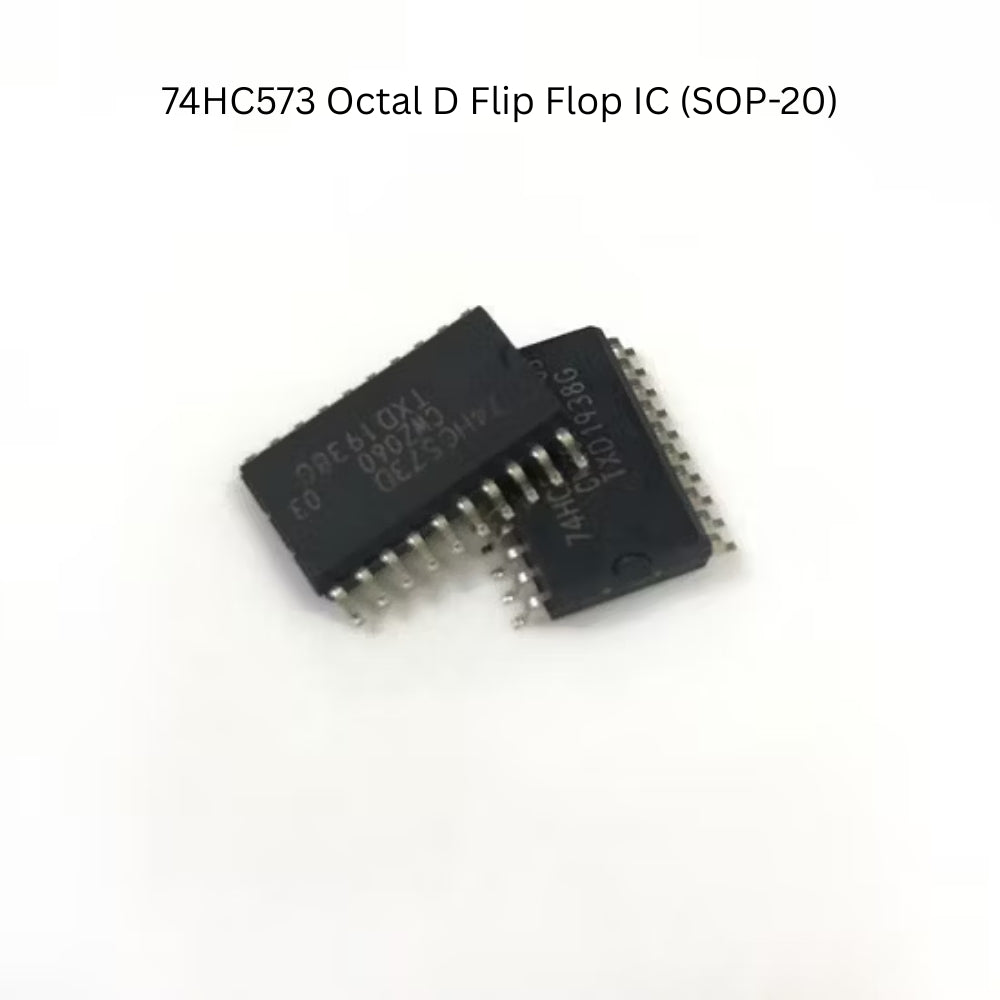

74HC Series Mosfet Based Logic ICs [SMD-Package]

74HC Series MOSFET-Based Logic ICs – SMD Package (High-Speed CMOS Gates)

Upgrade your digital circuit designs with 74HC Series MOSFET-Based Logic ICs in SMD packages. The 74HC (High-Speed CMOS) logic family delivers significant power savings, high noise immunity, and faster switching compared to standard TTL logic, thanks to their advanced MOSFET architecture.

Available in a variety of gate and functional packages—AND, OR, NAND, NOR, XOR, NOT, flip-flops, counters, multiplexers, and more—these ICs operate with wide voltage ranges (2V–6V), making them ideal for interfacing between TTL and CMOS systems.

All SMD packages feature minimal propagation delay (typically 6–9ns at 5V), low static power consumption, and a compact footprint—suitable for high-density PCB designs in robotics, automation, signal processing, and educational electronics.

Key Features:

• High-speed CMOS logic with MOSFET-based technology

• Wide operating voltage: 2V–6V (compatible with TTL & CMOS)

• Low input current: <1μA at 6V

• Ultra-low static power dissipation

• Propagation delay: 6–9ns @ 5V for fast switching

• Wide selection: Quad NAND (74HC00), Quad NOR (74HC02), Hex Inverter (74HC04), etc.

• Industry-standard SMD footprints: SOIC, TSSOP, QSOP, SOT

• Operating temperature: –40°C to +125°C

• Compatible with LSTTL output loads

• Ideal for high-speed signal processing and logic interfacing

Applications:

• Microcontroller logic expansion

• Signal processing and routing

• Digital counters, multiplexers, and memory addressing

• Robotics, automation, and embedded designs

• Educational and prototyping kits
