3.96mm Pitch Dual Row PCB Card Edge Slot Socket (805 Series)

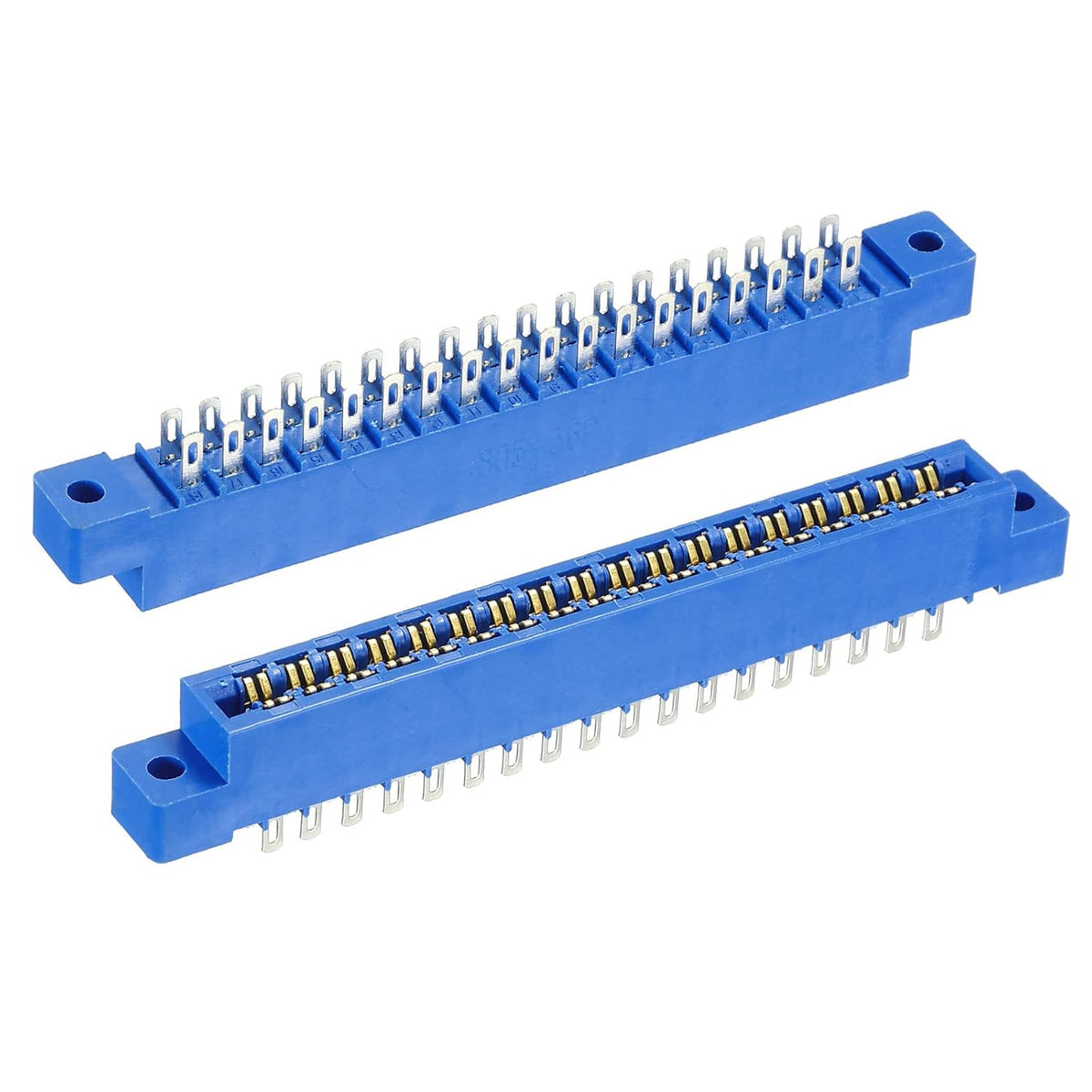

The 805 Strip Connector is a card edge socket with 3.96mm pitch. It holds a PCB's gold-finger edge and makes a firm electrical connection on both sides of the board. You often find it on control panels, industrial machine boards, power supplies, and older computer and arcade boards.
Features
- Series: 805 card edge connector
- Pitch: 3.96mm
- Dual row: contacts on both sides of the slot

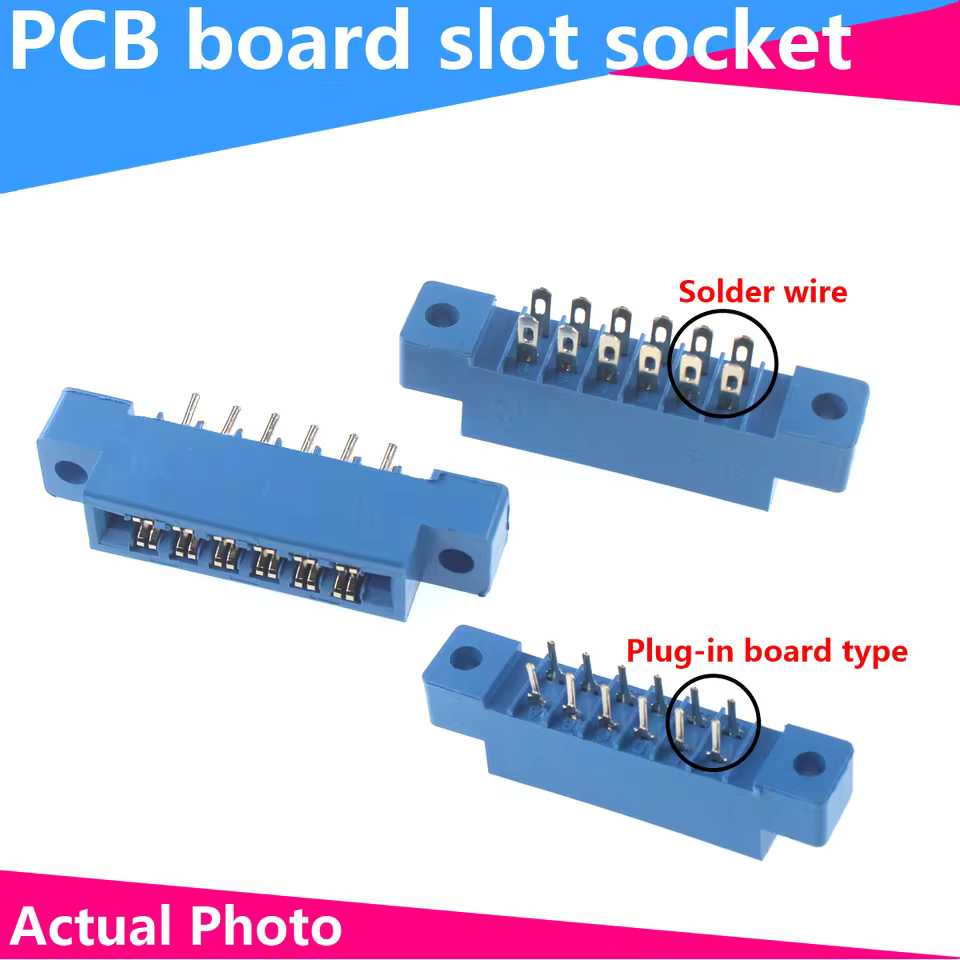

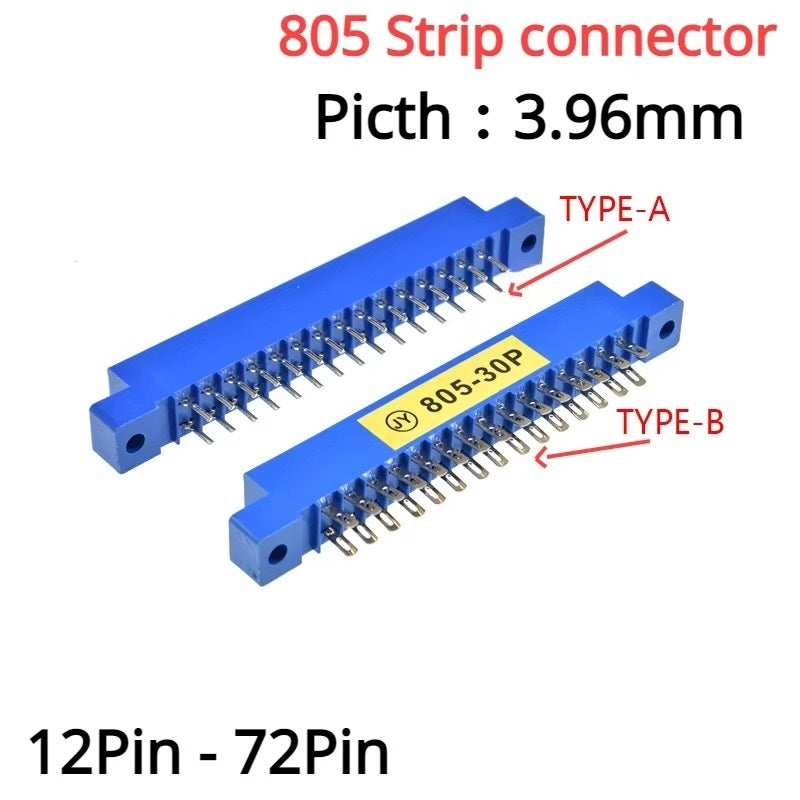

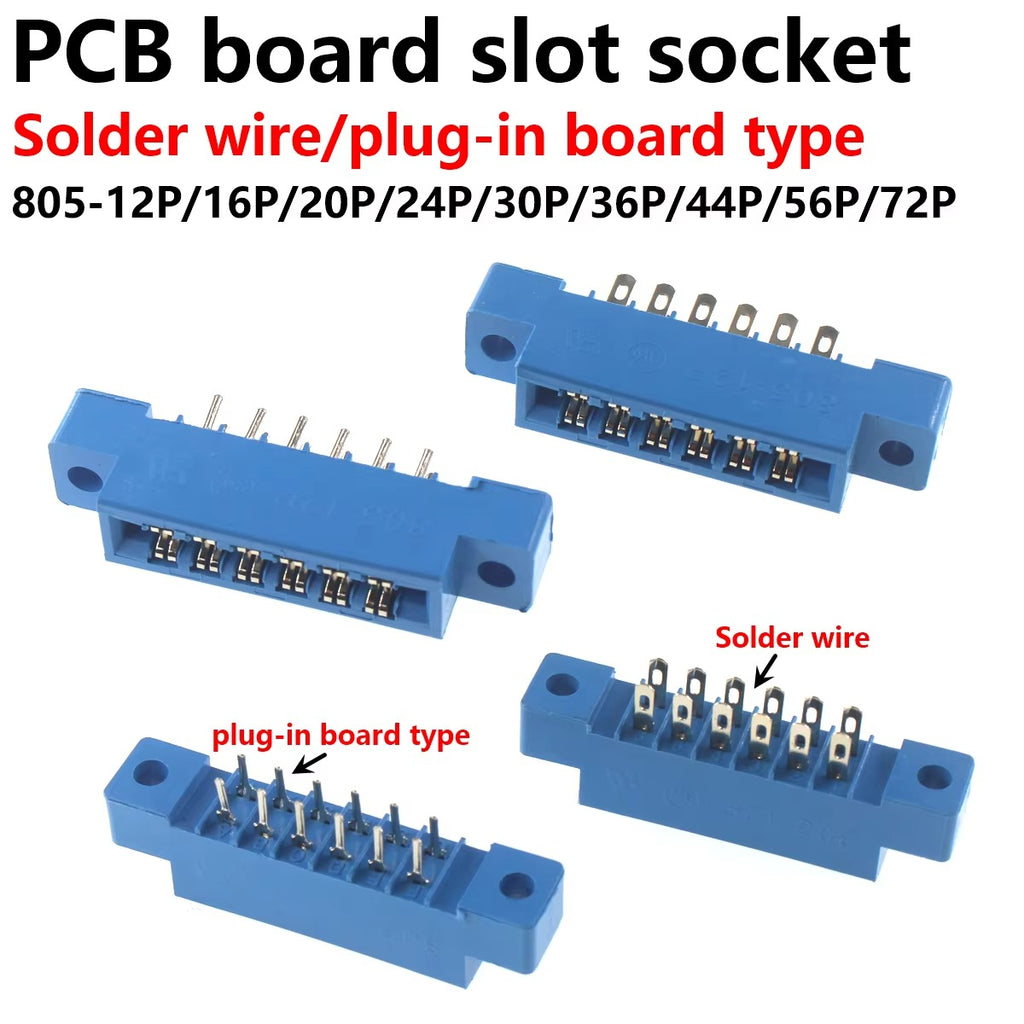

- Type A, solder-wire terminals: solder wires straight to the terminals
- Strong spring contacts give a firm grip and reliable connection
- Insulated body housing
Specifications

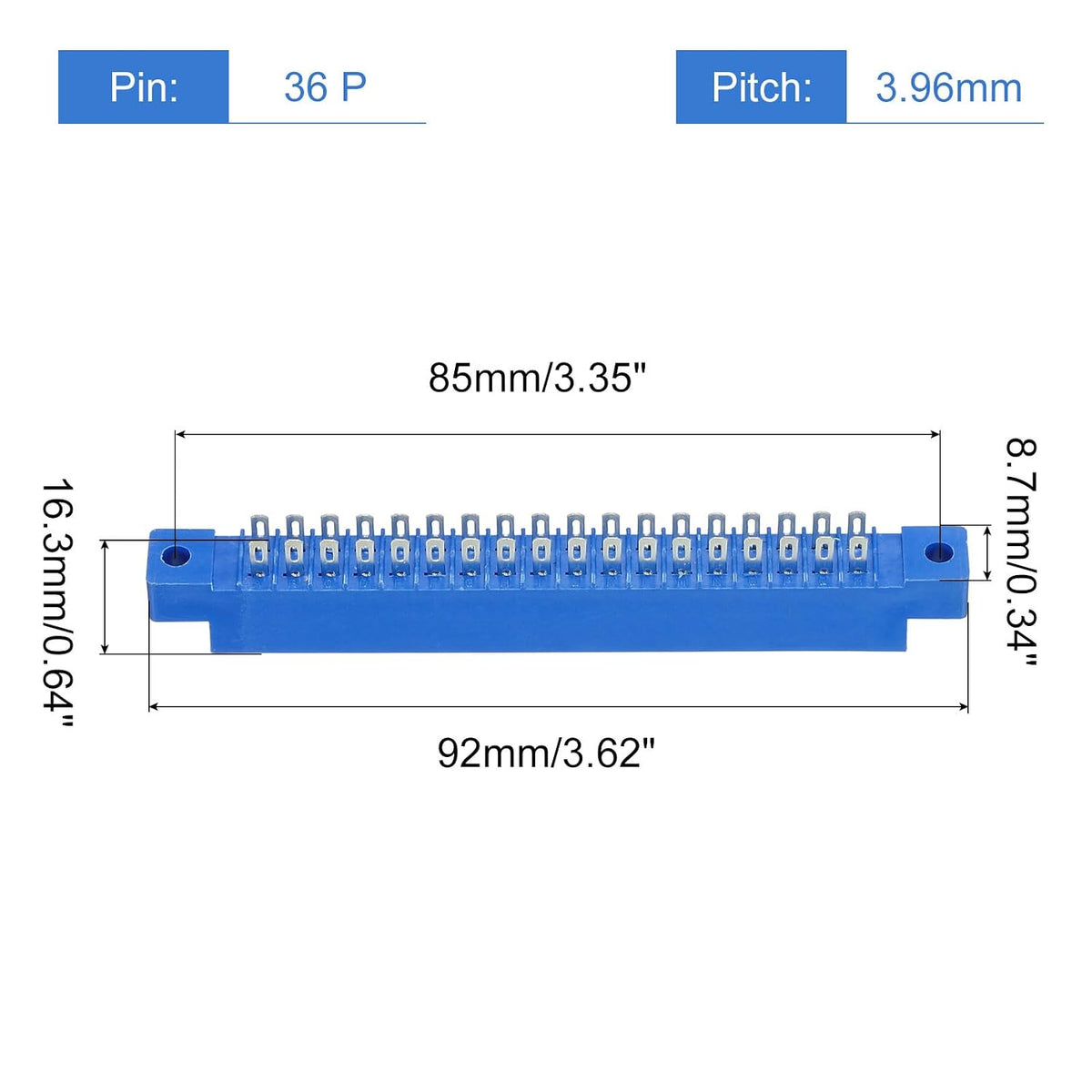

| Connector type | PCB card edge / slot socket |
| Pitch | 3.96mm |
| Rows | 2 |
| Termination | Solder wire (Type A) |
| Color | Blue |
Applications
- Replacing a damaged edge connector on machine, CNC and control boards
- Connecting gold-finger PCBs to wiring harnesses
- DIY electronics and repair work
Important Note
Before ordering, check the pin count and pitch (3.96mm) against your board. Connectors with a different pitch, such as 2.54mm, will not fit.
Package Includes
- 1 x 805 Strip Card Edge Connector (as per selected variant)
