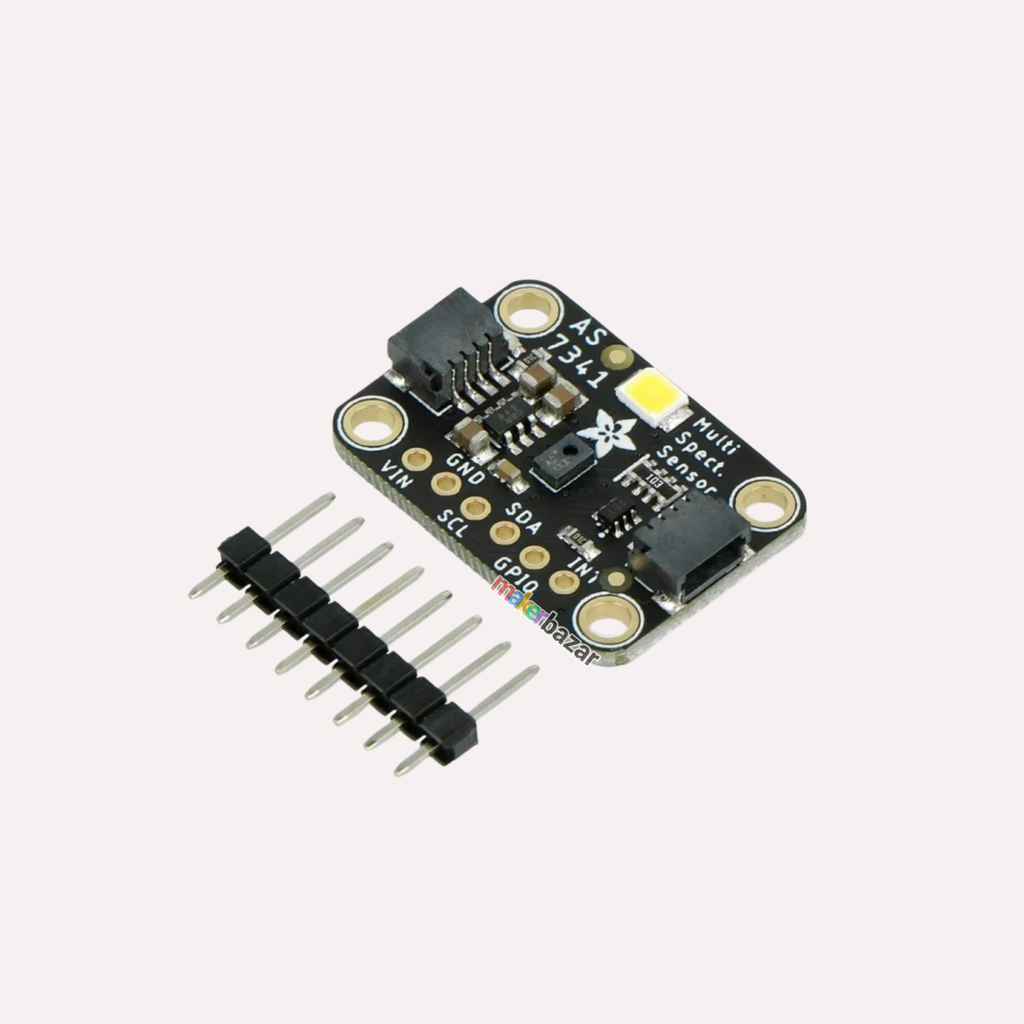

Adafruit AS7341 Spectral Light & Color Sensor Breakout – 10-Channel I2C Module
The Adafruit AS7341 10-Channel Light / Color Sensor Breakout is a powerful multi-channel spectrometer sensor designed for precise color detection, spectral analysis, and light measurement. Unlike standard light sensors, this module can detect specific wavelengths across the visible spectrum, along with near-infrared (NIR) and flicker detection, offering highly accurate color analysis beyond human vision.
Featuring 10 individual light channels, including 8 visible spectrum bands (415nm to 680nm), clear light, and NIR, the AS7341 provides detailed spectral data using a 16-bit ADC and advanced SMUX (super multiplexer) technology.
Designed with STEMMA QT / Qwiic connectors, it enables plug-and-play I2C connectivity with popular platforms like Arduino, Raspberry Pi, and CircuitPython boards, without the need for soldering.
With additional features like flicker detection, GPIO interrupt support, and low power consumption, this sensor is ideal for scientific, industrial, and creative applications requiring precise color measurement.

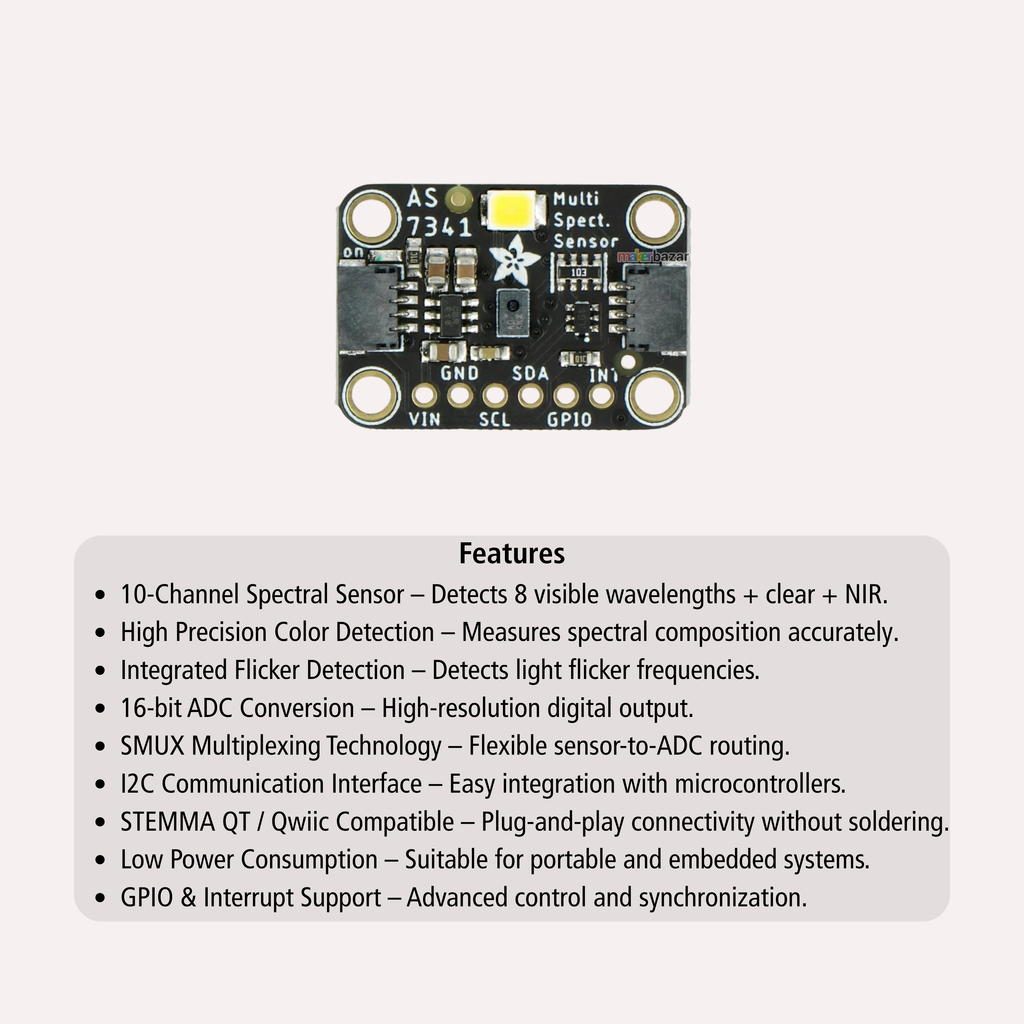

Key Features
- 10-Channel Spectral Sensor – Detects 8 visible wavelengths + clear + NIR.
- High Precision Color Detection – Measures spectral composition accurately.
- Integrated Flicker Detection – Detects light flicker frequencies.
- 16-bit ADC Conversion – High-resolution digital output.
- SMUX Multiplexing Technology – Flexible sensor-to-ADC routing.
- I2C Communication Interface – Easy integration with microcontrollers.
- STEMMA QT / Qwiic Compatible – Plug-and-play connectivity without soldering.
- Low Power Consumption – Suitable for portable and embedded systems.
- GPIO & Interrupt Support – Advanced control and synchronization.

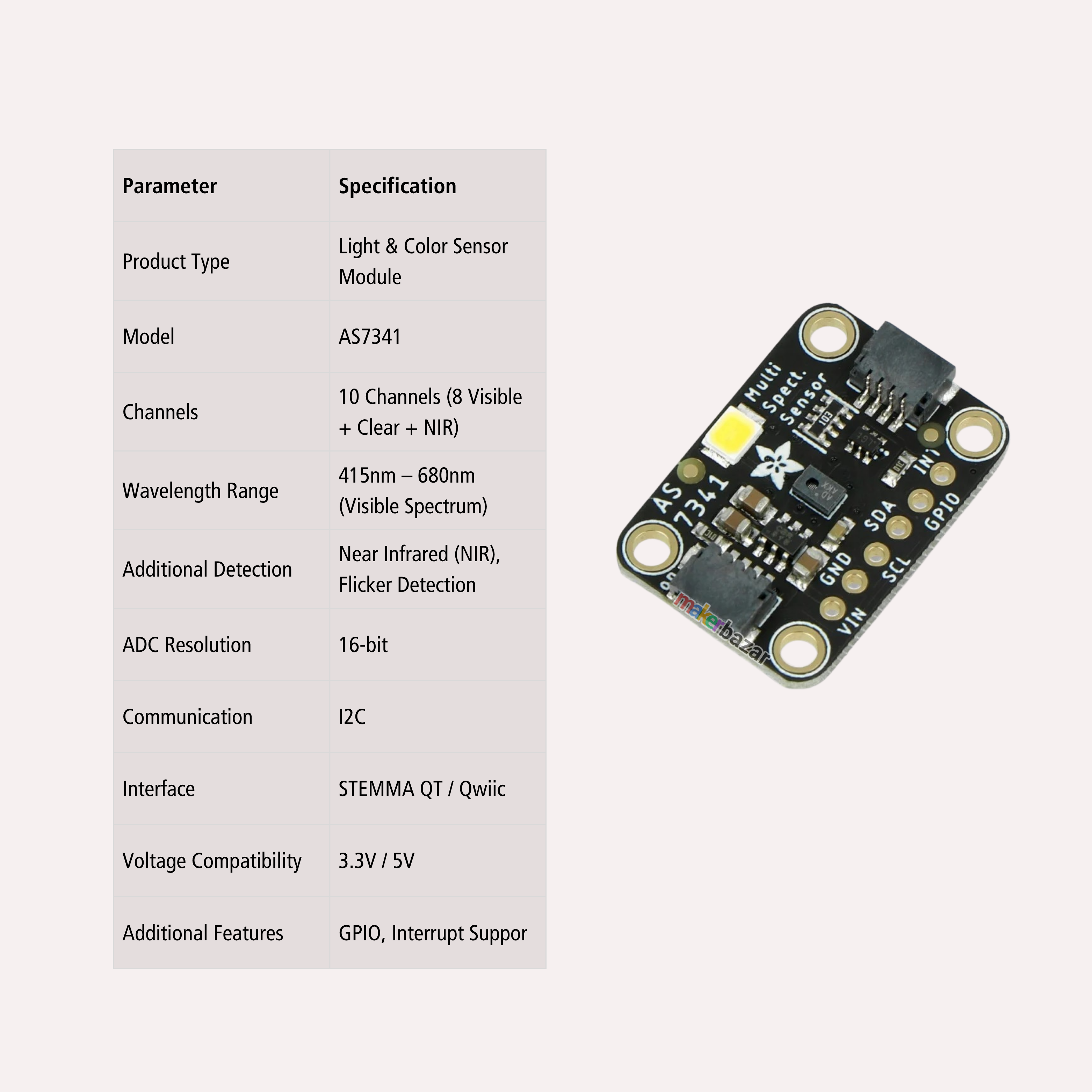

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Light & Color Sensor Module |
| Model | AS7341 |
| Channels | 10 Channels (8 Visible + Clear + NIR) |
| Wavelength Range | 415nm – 680nm (Visible Spectrum) |
| Additional Detection | Near Infrared (NIR), Flicker Detection |
| ADC Resolution | 16-bit |
| Communication | I2C |
| Interface | STEMMA QT / Qwiic |
| Voltage Compatibility | 3.3V / 5V |
| Additional Features | GPIO, Interrupt Support |

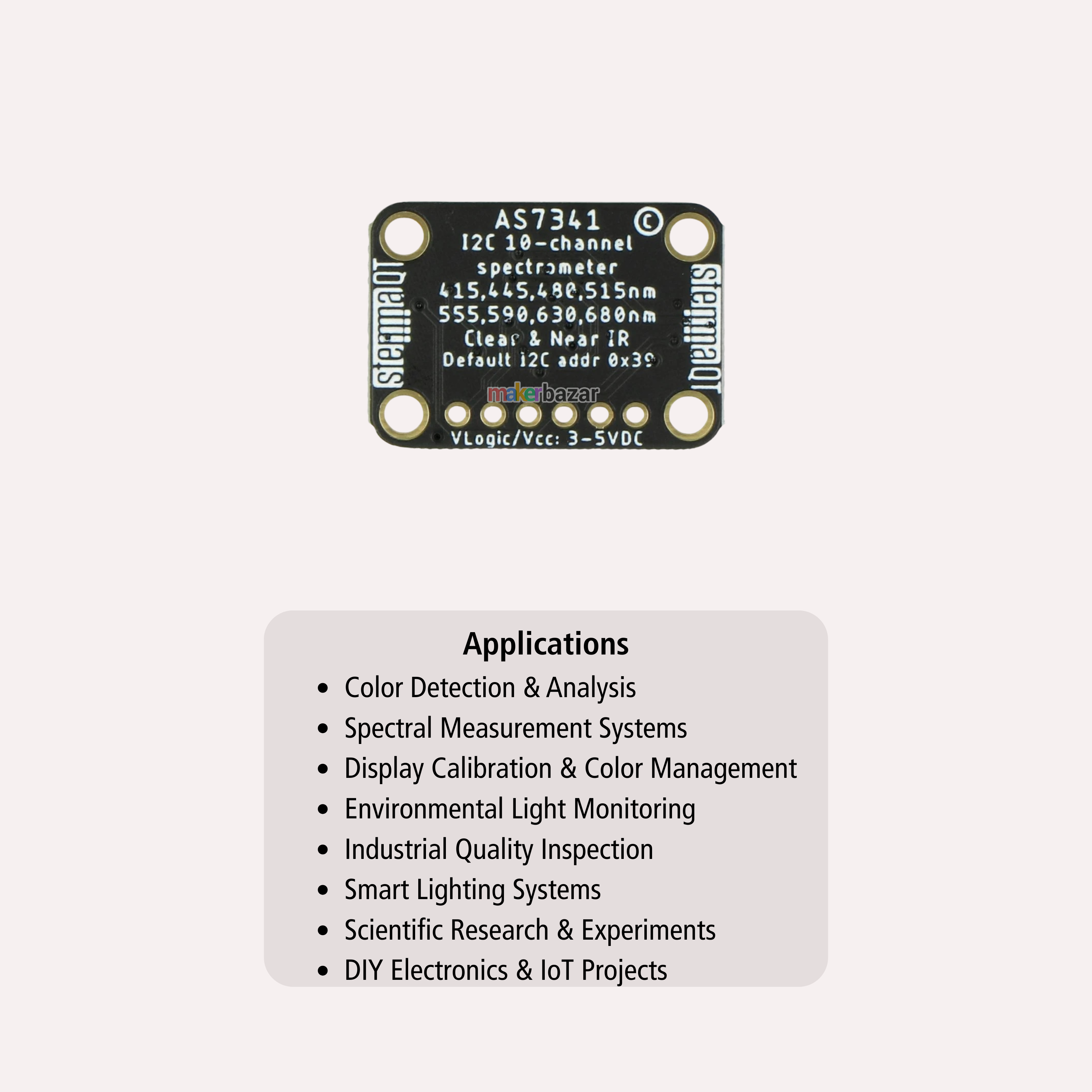

Applications
- Color Detection & Analysis
- Spectral Measurement Systems
- Display Calibration & Color Management
- Environmental Light Monitoring
- Industrial Quality Inspection
- Smart Lighting Systems
- Scientific Research & Experiments
- DIY Electronics & IoT Projects
Here is the datasheet
Precautions
- Avoid direct exposure to extremely bright light sources.
- Use proper I2C voltage levels (3.3V/5V compatible).
- Ensure correct wiring of SDA and SCL pins.
- Handle carefully to avoid sensor surface damage.
- Keep the sensor clean for accurate readings.
