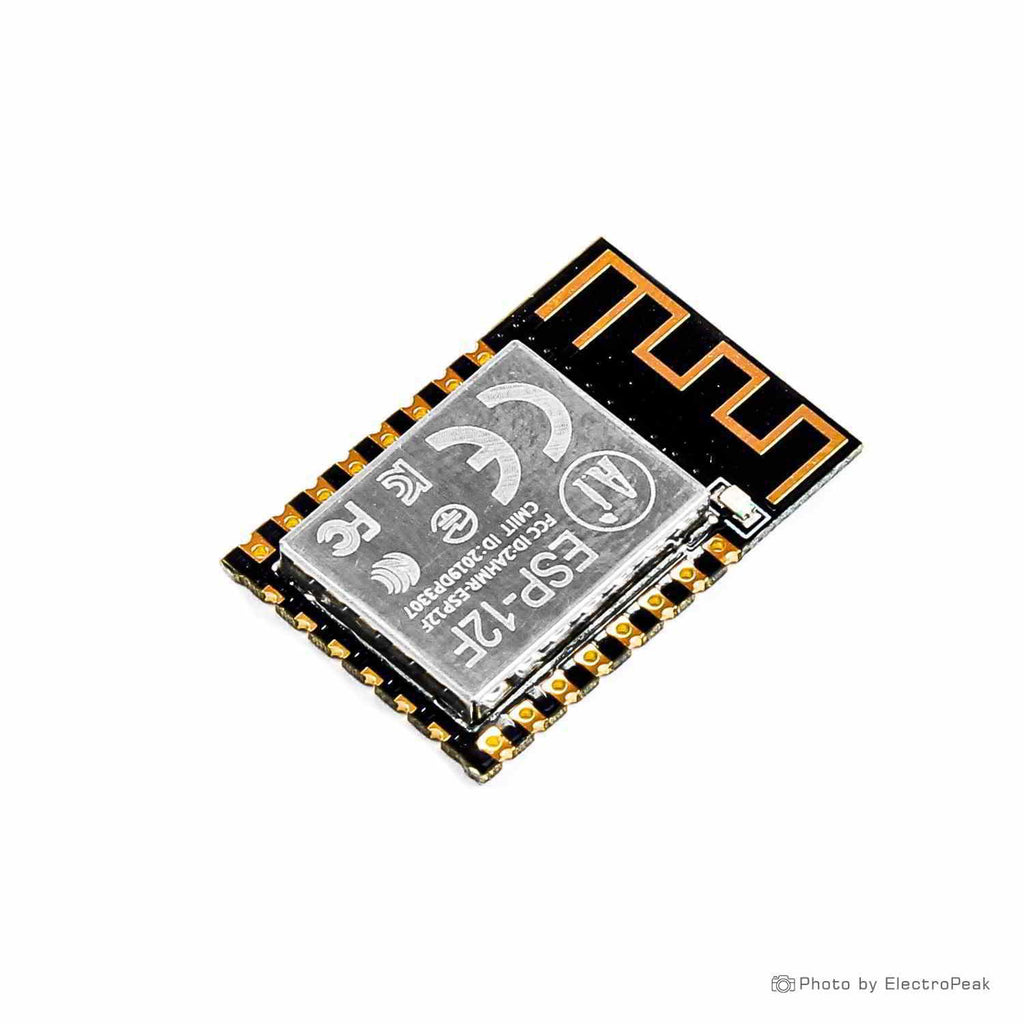

Ai Thinker ESP-12F ESP8266 Serial WiFi Module
The Ai Thinker ESP-12F is a compact, low-power WiFi module based on Espressif's ESP8266EX SoC. It packs a 32-bit Tensilica processor, 4MB SPI flash and an onboard PCB antenna into a small shielded SMD package, making it a popular choice for adding WiFi to IoT devices, sensors and home automation products.
The module ships with AT command firmware, so it can be used as a serial (UART) WiFi adapter with any microcontroller such as Arduino, or programmed directly as a standalone controller using the Arduino IDE, ESP8266 SDK, NodeMCU Lua or MicroPython.
Key Features:
ESP8266EX SoC with 32-bit Tensilica L106 core (80 / 160 MHz)
802.11 b/g/n WiFi at 2.4 GHz with onboard PCB antenna
4MB (32Mbit) SPI flash
Station, SoftAP and SoftAP + Station modes
UART, SPI, I2C, PWM, GPIO and 1 x 10-bit ADC
Supports WPA / WPA2 security
Low-power deep sleep mode for battery-powered projects
Metal shield cover and castellated edge pads for easy soldering
Specifications:
| Parameter | Details |
|---|---|
| Model | Ai Thinker ESP-12F |
| Chipset | ESP8266EX |
| Clock Speed | 80 MHz / 160 MHz |
| Flash Memory | 4MB |
| WiFi Standard | IEEE 802.11 b/g/n, 2.4 GHz |
| Antenna | Onboard PCB antenna |
| Operating Voltage | 3.0V – 3.6V (3.3V recommended) |
| Interfaces | UART, SPI, I2C, PWM, GPIO, ADC |
| Operating Temperature | -40°C to 85°C |
| Dimensions | Approx. 24 x 16 x 3 mm |
Applications:
IoT devices and smart home automation
Wireless sensor nodes and data logging
Smart plugs, switches and lighting control
Adding WiFi to Arduino / microcontroller projects
Custom PCB and product development
Note: The module runs on 3.3V logic. Do not connect it directly to 5V supply or 5V logic pins. A stable 3.3V supply capable of at least 300 mA is recommended.
Package Includes:
1 x Ai Thinker ESP-12F ESP8266 WiFi Module
