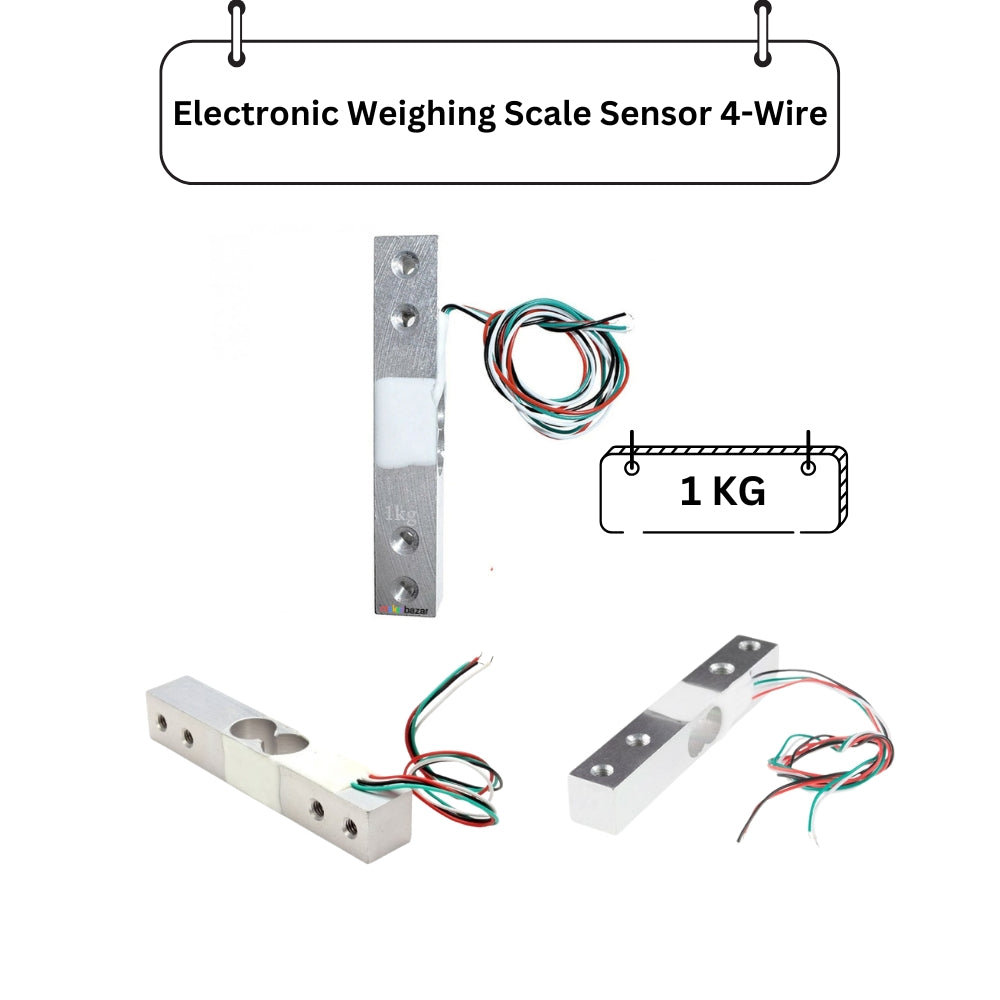

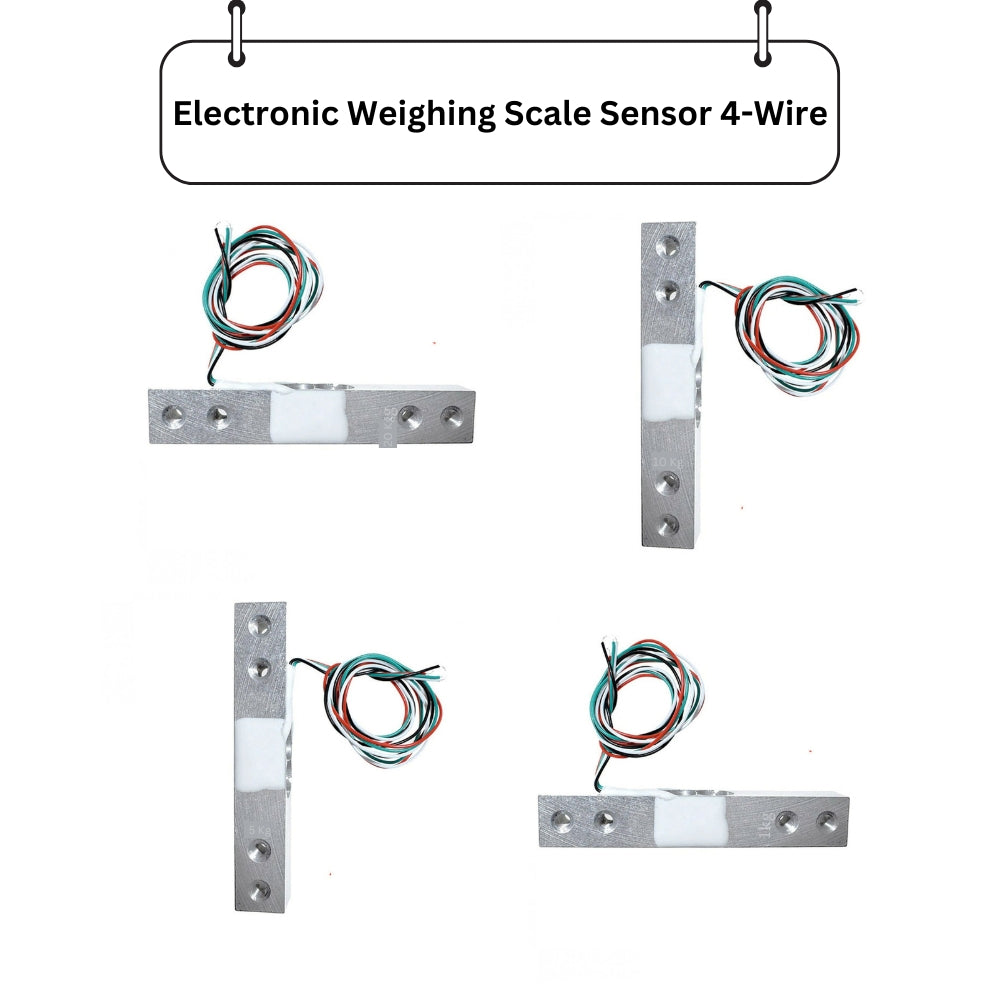

Precision Load Cell Sensor (1KG - 20KG) | Strain Gauge Weight Sensor for Digital Scales & Arduino
This high-precision strain gauge load cell sensor is perfect for measuring weight in electronic weighing systems. Available in 1KG, 5KG, 10KG, and 20KG capacities, it is made from high-strength aluminum alloy and features an easy-to-mount design. Widely used in digital kitchen scales, platform balances, and Arduino-based DIY projects, the sensor offers stable performance and accurate output when paired with an amplifier like HX711.
Specifications:
| Parameter | Details |
|---|---|
| Material | Aluminum Alloy |
| Measurement Range | 1KG / 5KG / 10KG / 20KG (selectable) |
| Output Type | Analog (Strain Gauge) |
| Wiring Type | 4-Wire (Red, Black, Green, White) |
| Accuracy | High sensitivity, linear output |
| Excitation Voltage | 5V DC (recommended) |
| Compatibility | Arduino, Raspberry Pi, HX711 Module |
| Mounting Holes | Pre-drilled for easy installation |
| Usage | Electronic Weighing Scales, IoT Projects, Robotics, Smart Shelves, Industrial Balances |
