Alvik Robotics Kit – Nano ESP32-Powered Educational Robot with Sensors & Block Coding
Alvik is an advanced, compact educational robot designed to make robotics and programming accessible for learners of all levels. Powered by the Arduino Nano ESP32, it supports block-based coding, MicroPython, and Arduino—ideal for primary to high school education. Alvik features a rich set of sensors (ToF, RGB, gyroscope, line follower), Wi-Fi/Bluetooth connectivity, and is expandable via LEGO® Technic™, M3 screws, Servo, Grove, and Qwiic connectors. Its rechargeable, replaceable 18650 battery ensures extended use, making it perfect for classrooms, makerspaces, and home learning.
Key Specifications:
-

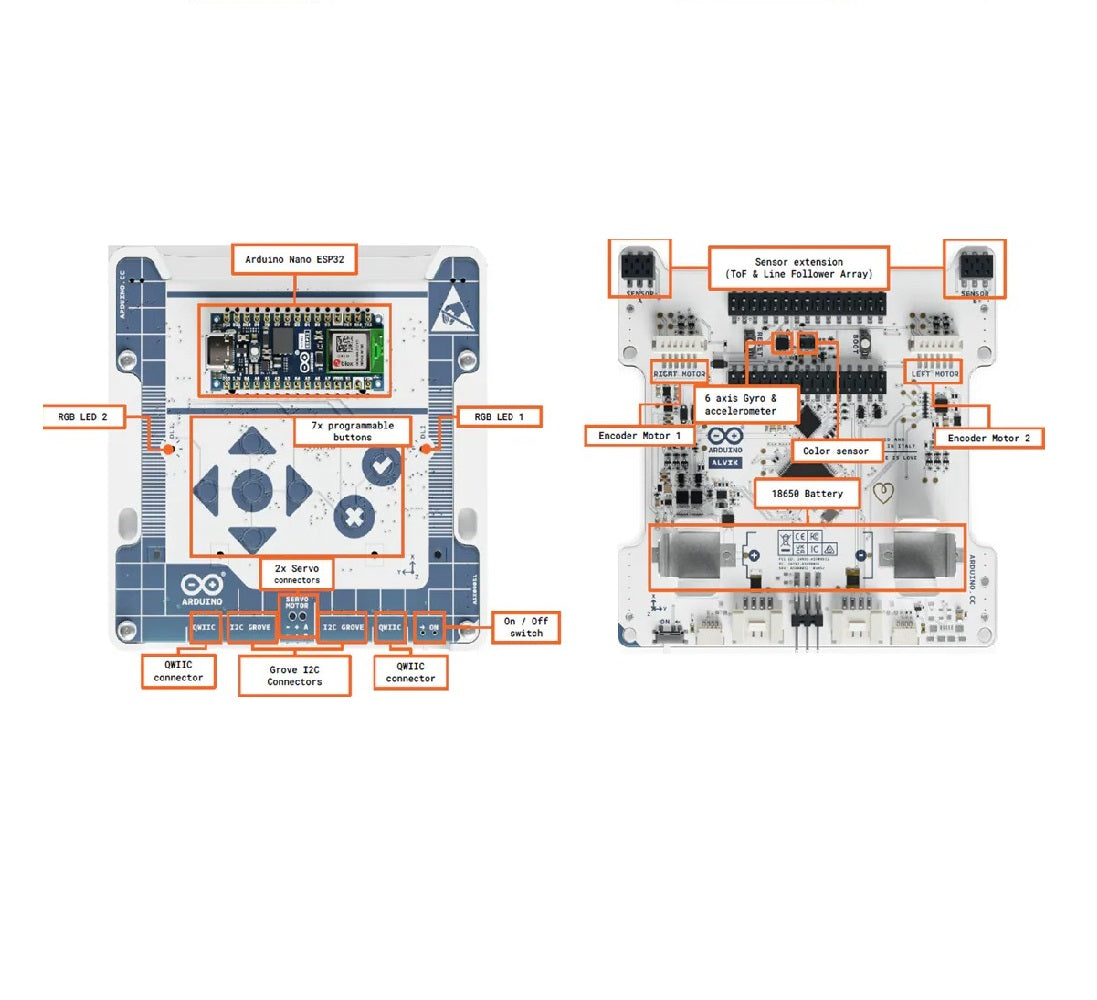

Main Controller: Arduino Nano ESP32 (u-blox® NORA-W106, 240 MHz, 8 MB RAM, 16 MB Flash)
-
Onboard Core: STM32 Arm® Cortex®-M4
-
Programming: Block-Based, MicroPython, Arduino
-
Connectivity: Wi-Fi®, Bluetooth® LE
-
Sensors: Time-of-Flight (350 cm), RGB Color Sensor, 6-axis Gyroscope, Line Follower (x3), Touch Buttons (x7)
-
Outputs: 2x RGB LEDs, Dual 6V Motors
-
Expansion Ports: LEGO® Technic™ (x4), M3 Screws (x8), Servo, I2C Grove & Qwiic
-
Power: USB-C®, 18650 Li-Ion Rechargeable & Replaceable Battery (Included)
-
Curriculum: NGSS & CSTA-Aligned Lessons with Real-World Activities
