Description

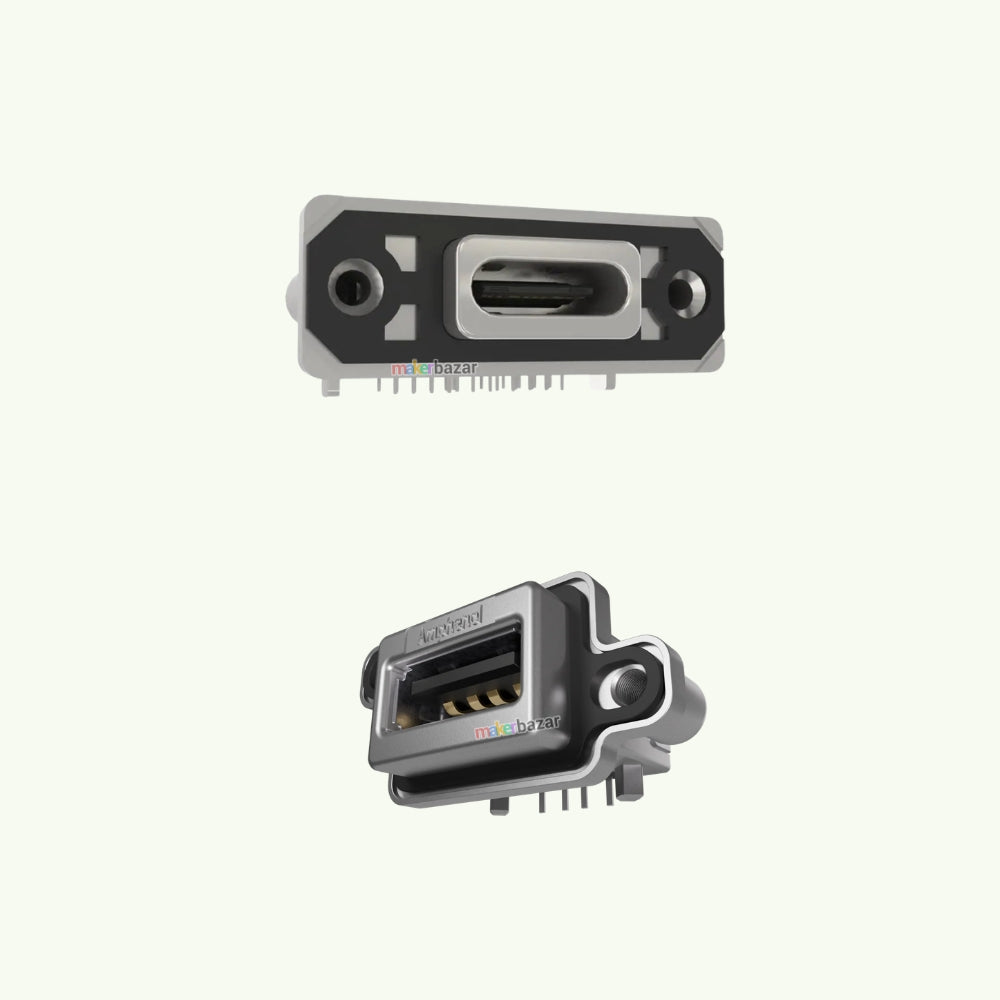

Amphenol MUSBR Rugged USB Through-Hole Connectors with IP67 Sealing
The Amphenol MUSBR-Series Rugged USB Connectors are engineered for reliable performance in harsh environments. Designed with a robust metal housing and environmental sealing, these connectors provide protection against dust, moisture, shock, and vibration.
Supporting multiple interface types such as USB Type-A, Type-C, Mini-B, and Mini-AB, the MUSBR series ensures compatibility with a wide range of devices while maintaining rugged durability. The through-hole termination provides strong mechanical anchoring on PCBs, making them suitable for industrial and high-reliability applications.
These connectors are widely used in industrial automation, automotive systems, medical devices, telecom equipment, and outdoor electronics, where durability and consistent connectivity are essential.
Key Features
- IP67-rated sealing for dust and water resistance
- Rugged die-cast metal housing for mechanical strength
- Through-hole mounting for secure PCB installation
- Compatible with standard USB interfaces
- Wide operating temperature range suitable for industrial use
- Resistant to shock and vibration
Variants – Common Configurations
| Variant | USB Type | Mounting | Contacts | Typical Use |
|---|---|---|---|---|

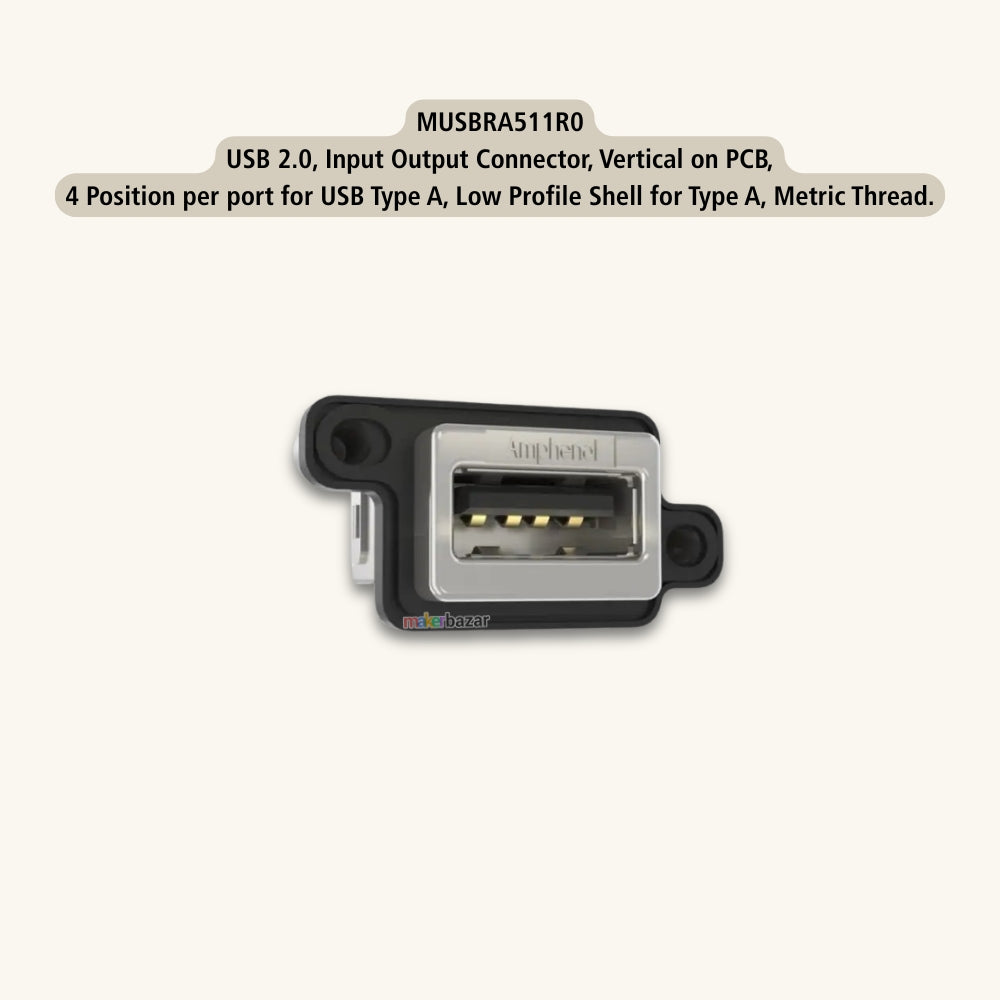

| MUSBR Type-A | USB 2.0 / 3.0 Type-A | Through-hole PCB | 4 / 9 | Industrial and legacy USB |
| MUSBR Type-C | USB Type-C | Through-hole / panel | 24 | High-speed modern devices |
| MUSBR Mini-B | USB Mini-B | Through-hole | 5 | Compact embedded systems |
| MUSBR Mini-AB | USB Mini-AB | Through-hole | 5 | Dual-role USB devices |
Specifications (typical, varies by model)
- Series: MUSBR
- Connector Type: Rugged USB
- Mounting: Through-hole
- IP Rating: IP67
- Housing: Die-cast metal
- Contact Material: Copper alloy with gold plating
- Data Support: USB 2.0 and USB 3.x (model dependent)
- Operating Temperature: -40°C to +105°C
- Compliance: RoHS
Applications
- Industrial automation and control systems
- Automotive and EV electronics
- Medical devices and instrumentation
- Telecom and networking equipment
- Outdoor and rugged electronics
