AMS1117 SOT-223 Voltage Regulator IC

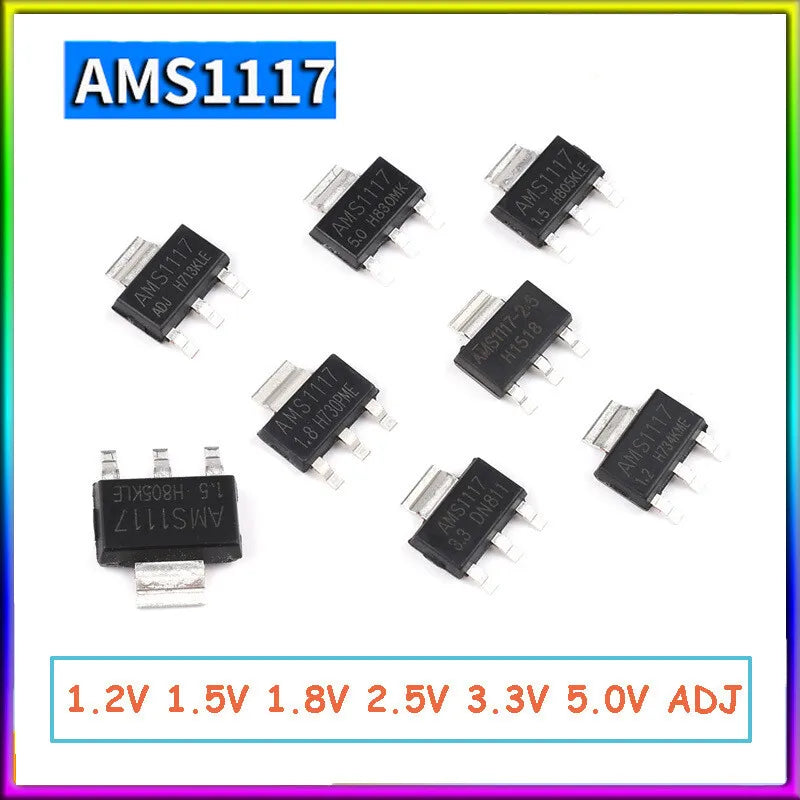

AMS 1117 1.2/1.5/1.8/2.5/3.3/5V ADJ SMD SOT-23 Package

The AMS1117 is a series of low dropout voltage regulators with a dropout voltage of 1.2 volts at a maximum current of 1 ampere. They are commonly used to regulate voltage in electronic circuits. The variants you mentioned (1.2/1.5/1.8/2.5/3.3/5V) refer to the output voltage options available for the AMS1117 series. They come in the SMD (Surface Mount Device) SOT-23 package, which is a small, surface-mount package commonly used in integrated circuits.

These voltage regulators are adjustable, meaning you can set the output voltage to any desired value within their specified range using external resistors. They are often used in applications where a stable voltage supply is required, such as in power supplies for microcontrollers, sensors, and other electronic components.

Schematics:

Features:

1. Low dropout voltage
2. Load regulation: 0.2% typical
3. Optimized for Low Voltage
4. On-chip thermal limiting
5. Built-in thermal shutdown
6. Good noise rejection
7. Standard SOT-223 and TO-252 packages
8. Three-terminal adjustable or fixed low dropout

Application:

1. High-Efficiency Linear Regulators
2. Post Regulators for Switching Supplies
3. 5V to x.xV Linear Regulator
4. Battery Chargers
5. Active SCSI Terminators
6. Power Management for Notebook
7. Battery Powered Instrumentation
