Description
Analog Sound Sensor Microphone Module | Adjustable Audio Detection Sensor for Arduino, ESP32, Raspberry Pi & DIY Electronics

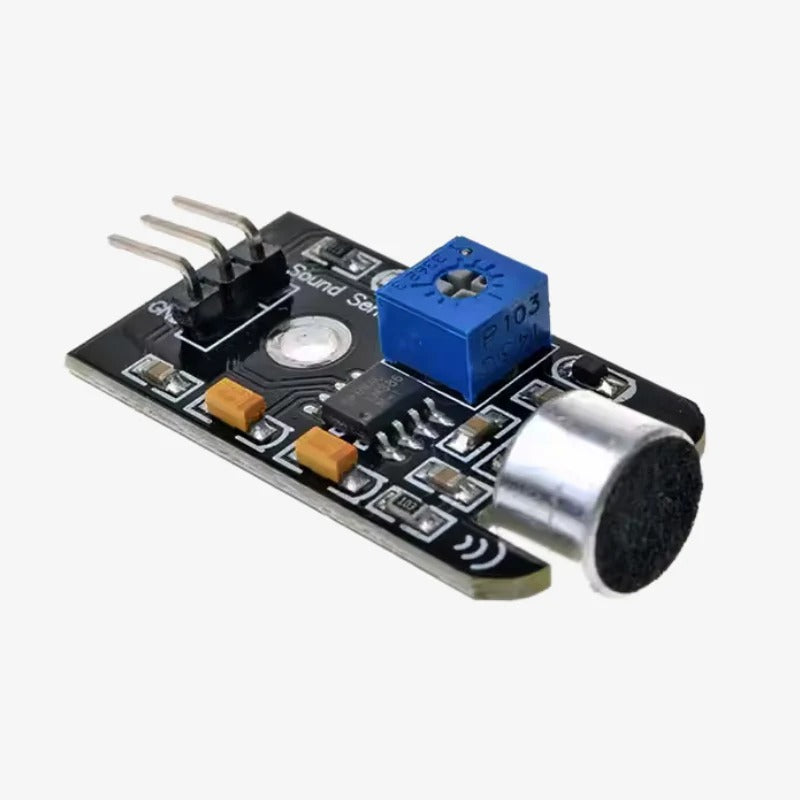

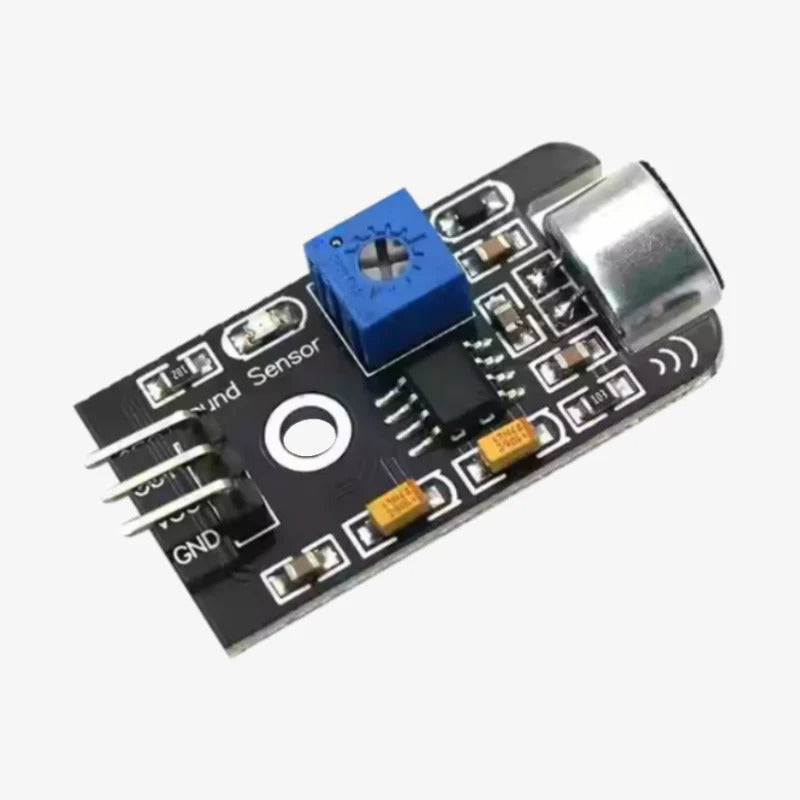

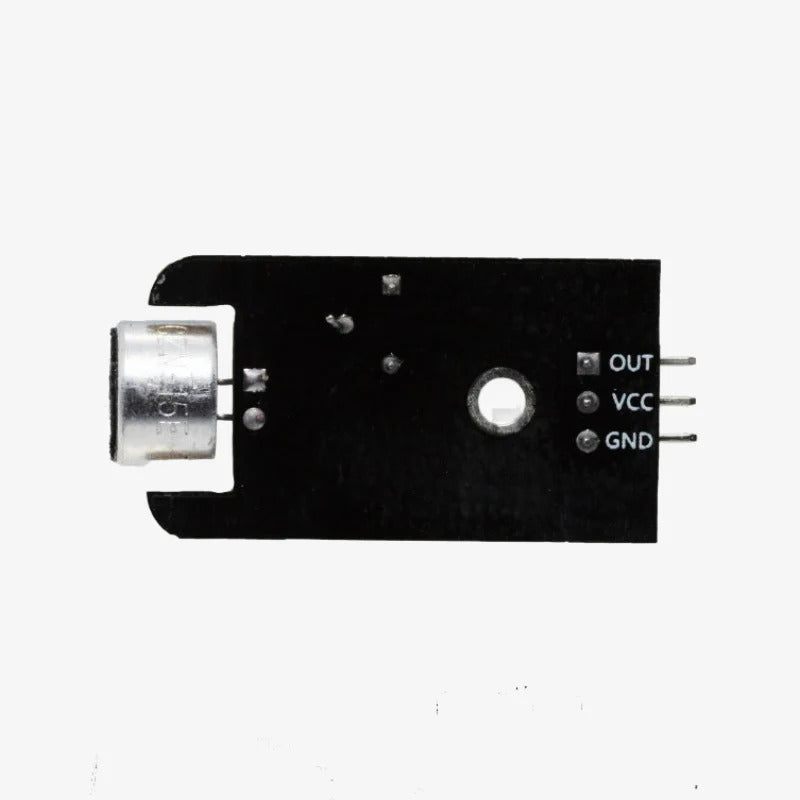

The Analog Sound Sensor Microphone Module is a compact sound detection module designed to detect ambient sound levels and interface easily with microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, and PIC. Equipped with a high-sensitivity electret microphone and an onboard LM393 comparator, the module provides an analog output representing sound intensity and a digital output that triggers when the sound level exceeds an adjustable threshold.
An onboard potentiometer allows users to fine-tune the sensitivity according to the application. The module is ideal for clap switches, sound-activated lighting, noise monitoring, alarm systems, robotics, smart home automation, and educational electronics projects.
Key Features
- High-sensitivity electret microphone
- Analog and digital output signals
- Adjustable sensitivity using onboard potentiometer
- LM393 voltage comparator onboard
- LED power indicator
- Digital output status LED
- Operates on 3.3V–5V DC
- Easy interface with popular microcontrollers
- Compact PCB design
- Suitable for sound detection and audio-trigger applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Sound Sensor Module |
| Microphone Type | Electret Condenser Microphone |
| Comparator IC | LM393 |
| Operating Voltage | 3.3V – 5V DC |
| Analog Output | Yes (AO) |
| Digital Output | Yes (DO) |
| Sensitivity Adjustment | Onboard Potentiometer |
| Output Signal | TTL Compatible |
| Mounting Holes | Yes |
| PCB Material | FR4 |
