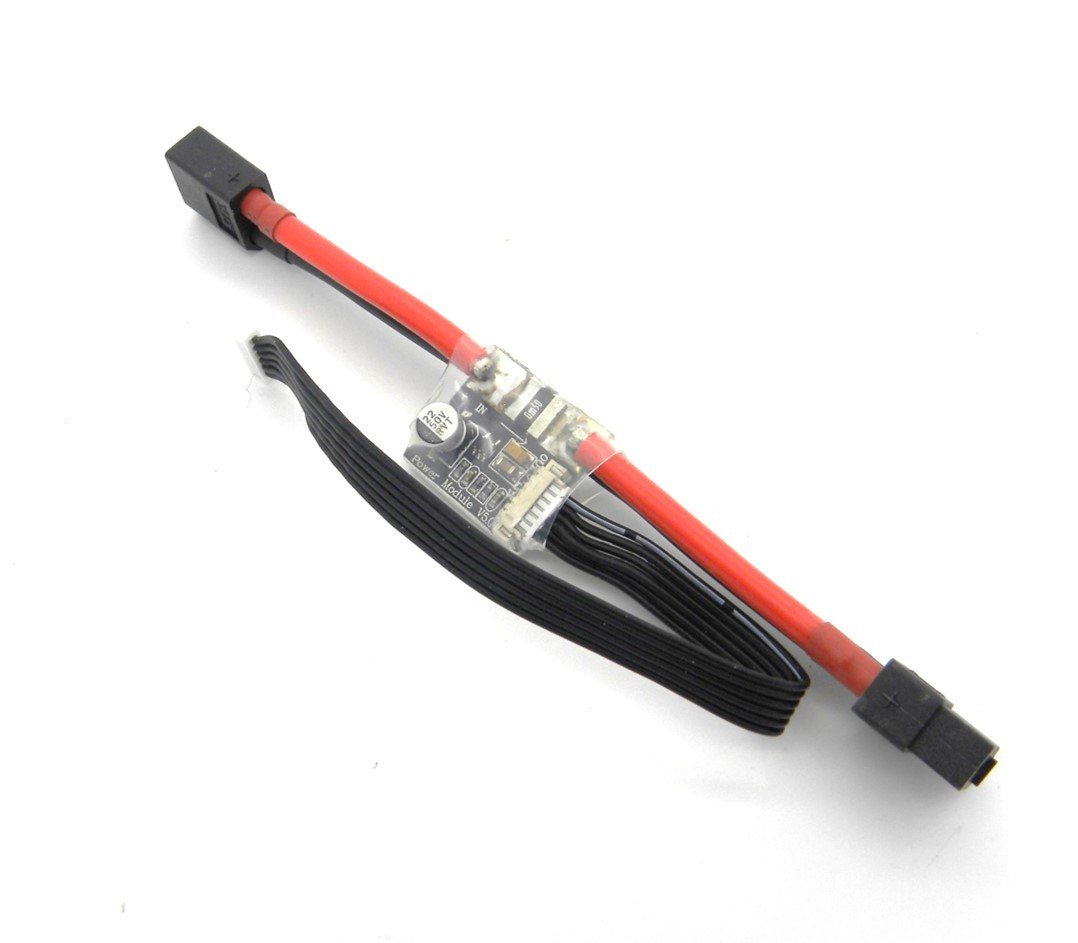

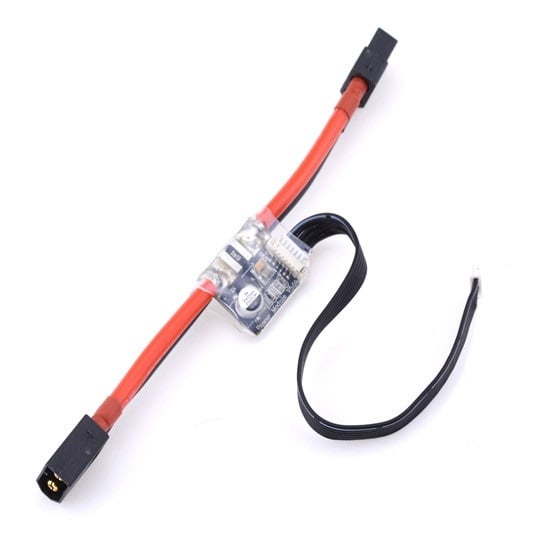

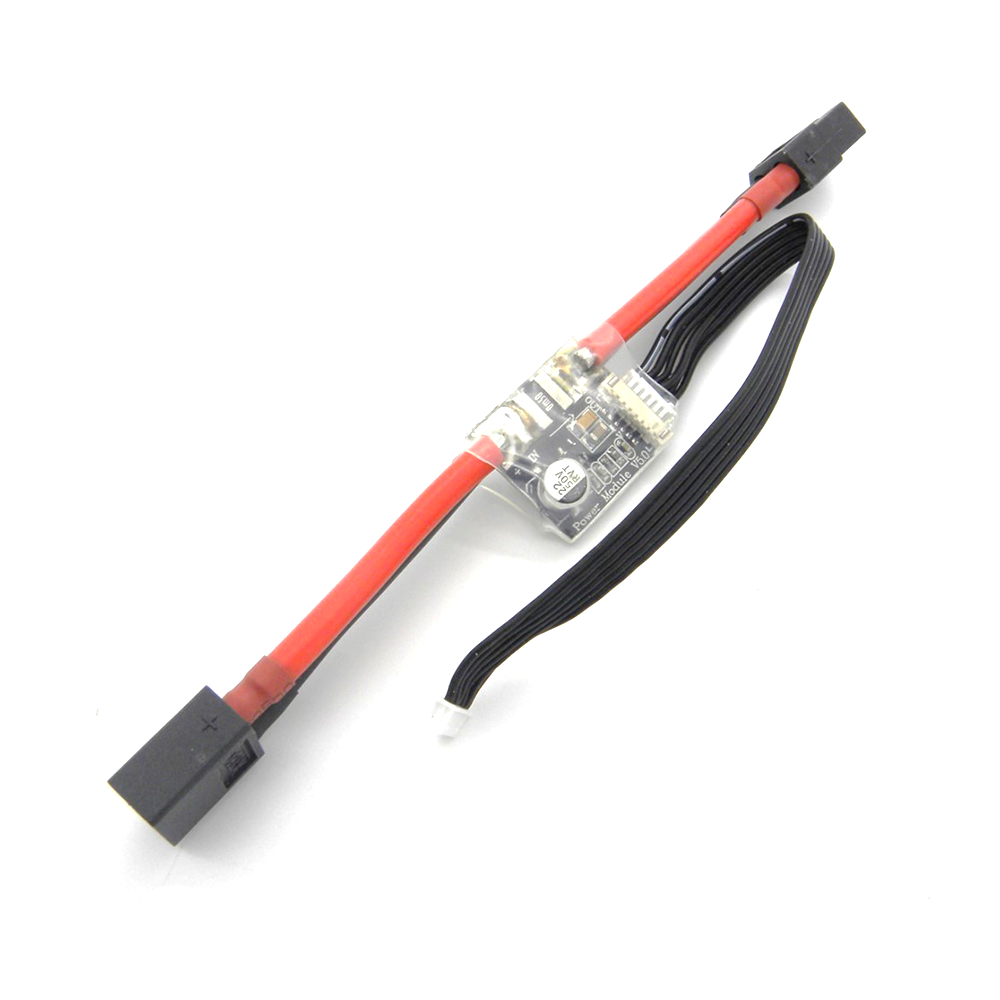

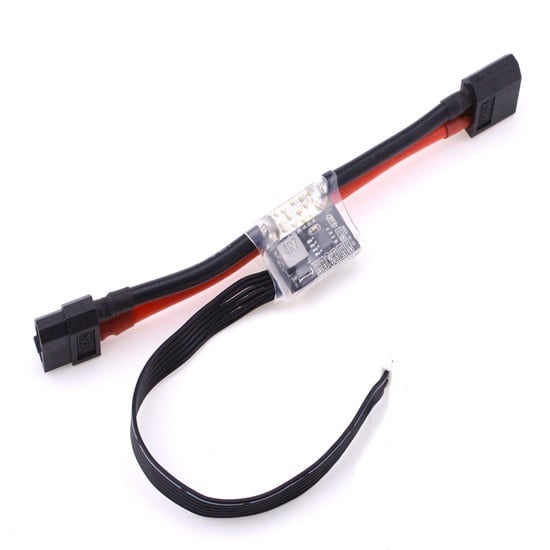

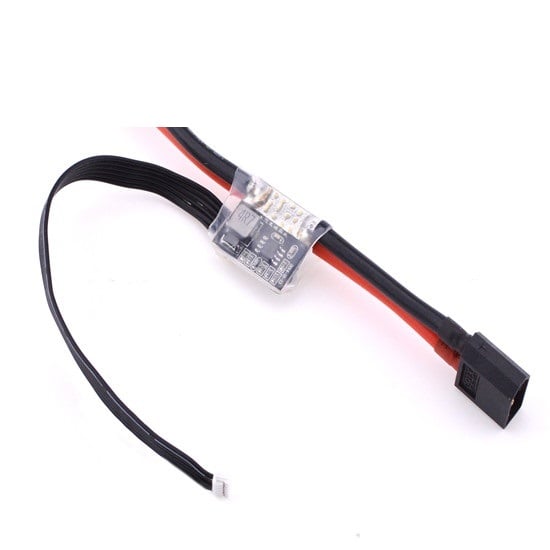

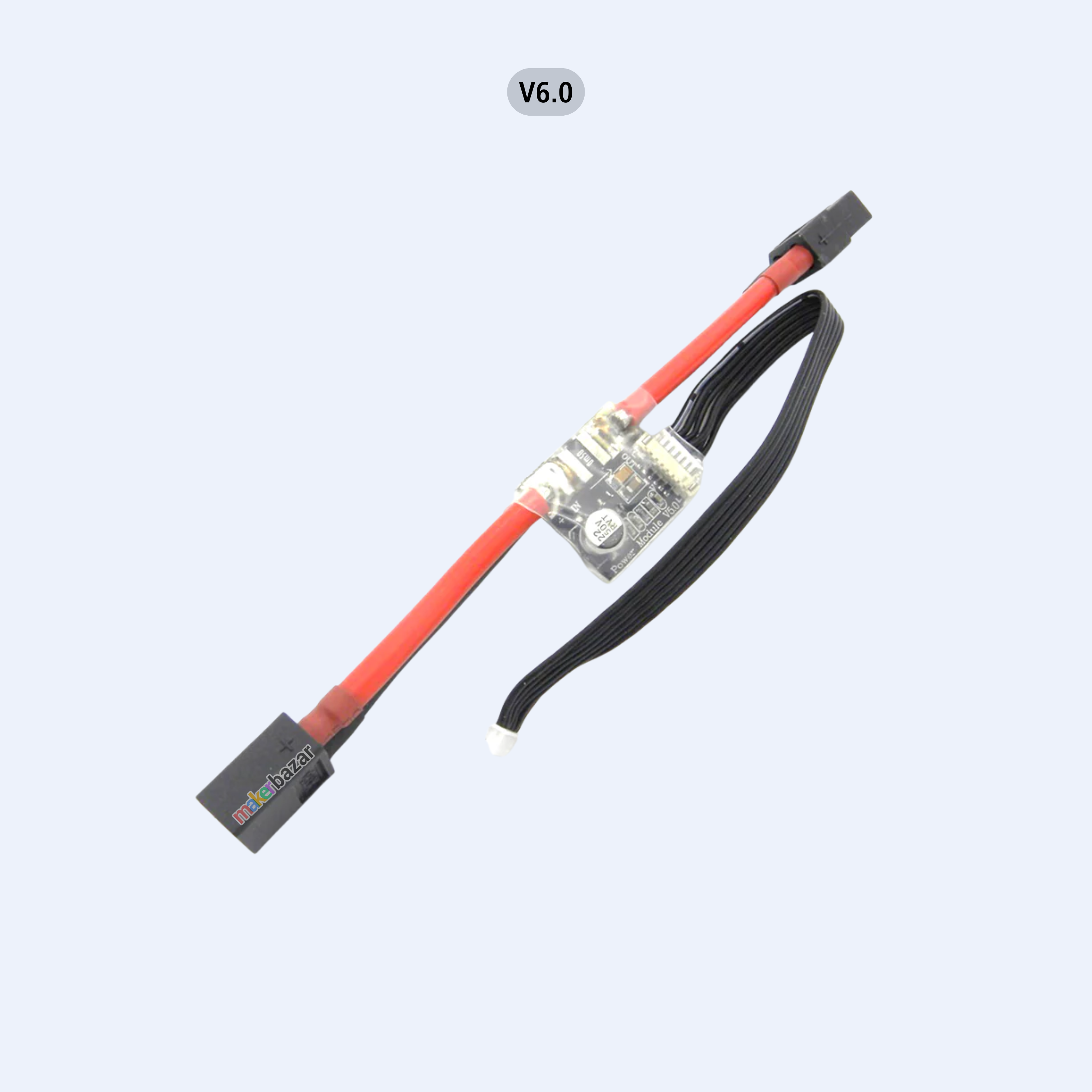

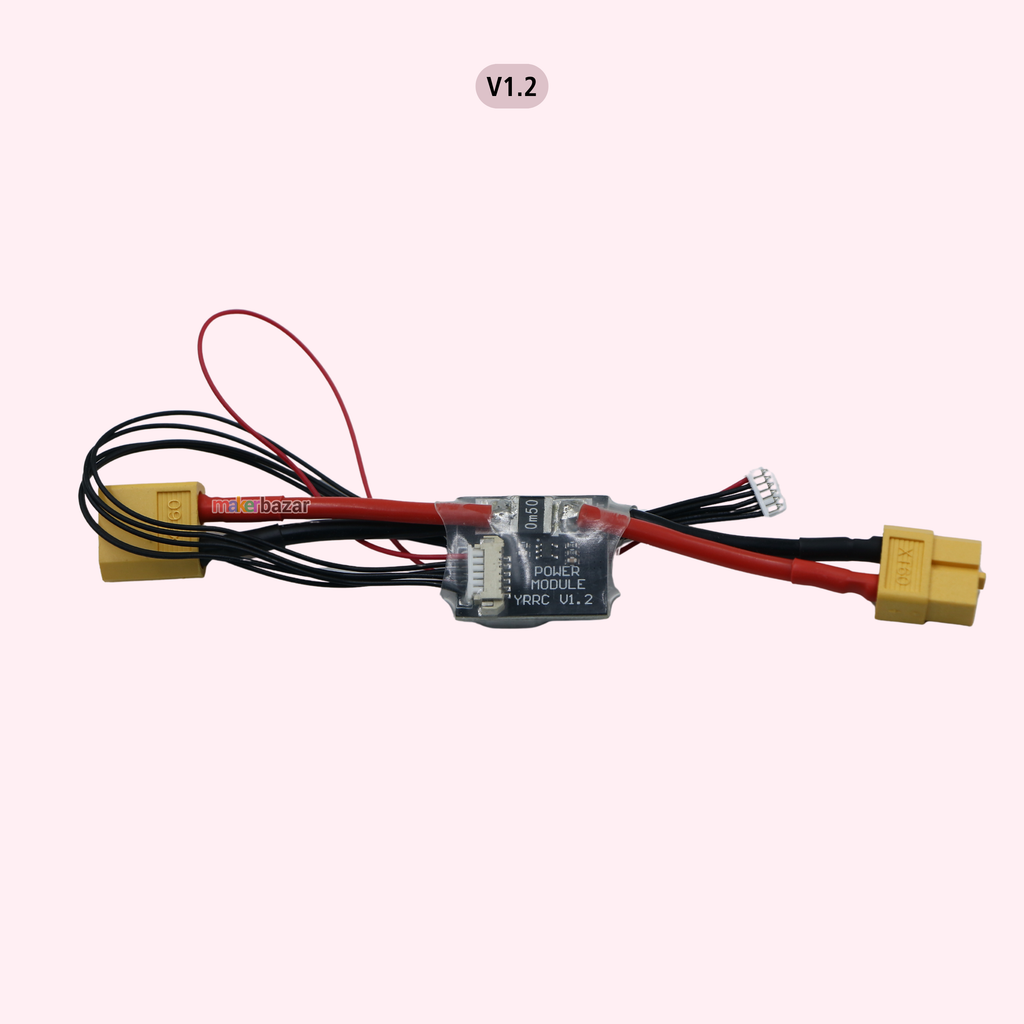

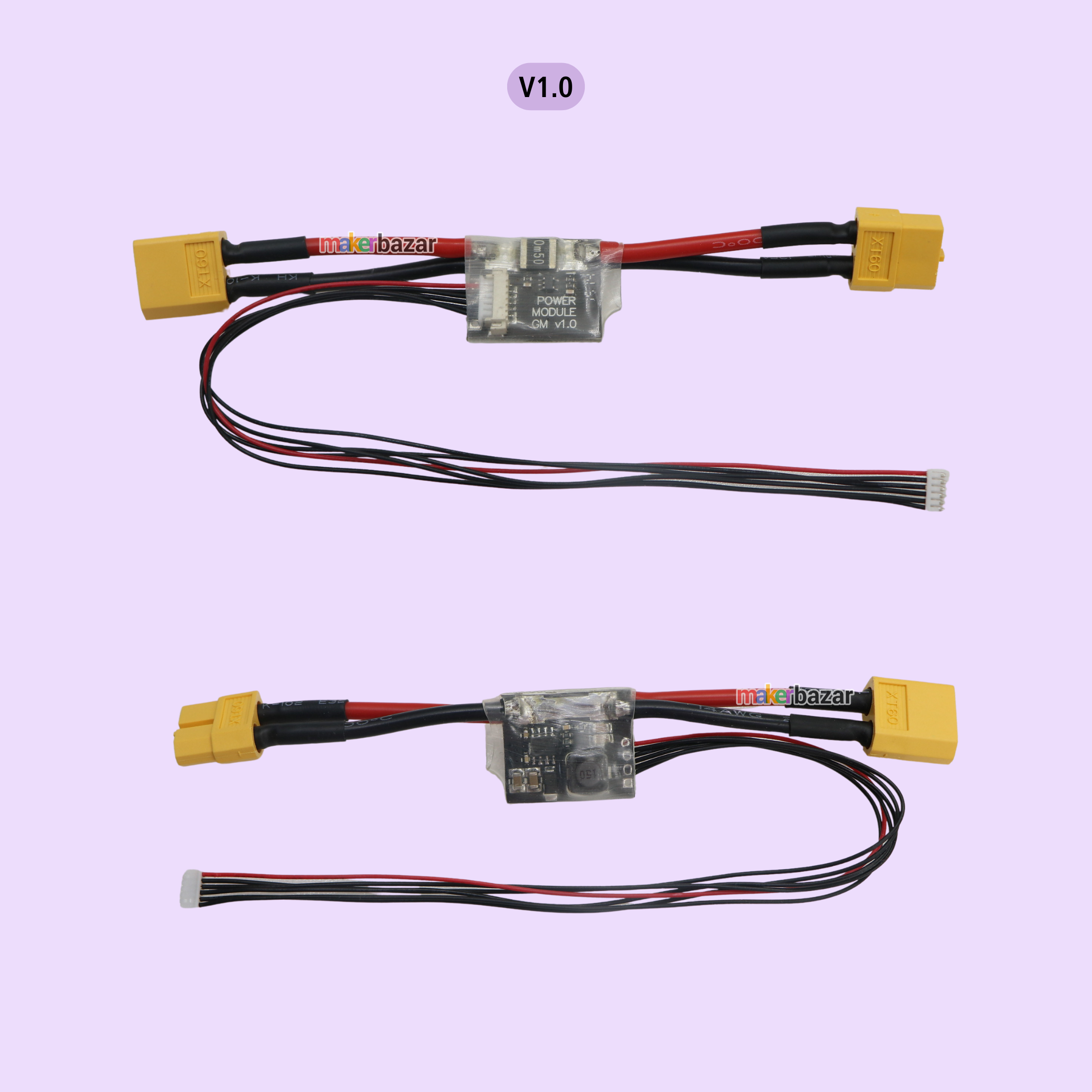

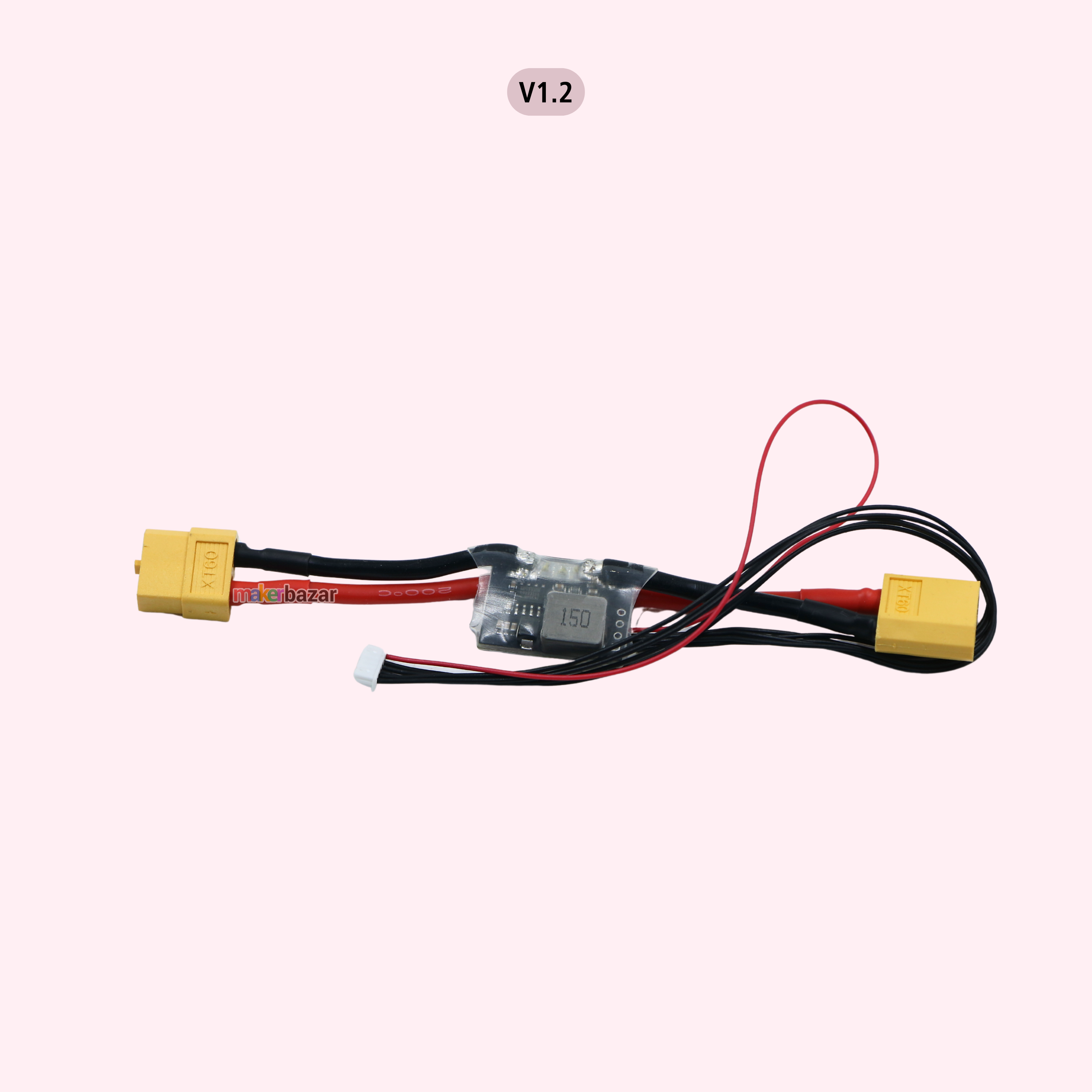

APM/Pixhawk Power Module – 3A BEC with XT60 Connector for Drone Flight Controllers
The APM/Pixhawk Power Module Output BEC 3A XT60 Plug 28V 90A is a reliable power management solution designed for APM and Pixhawk flight controllers. It provides clean and stable power from a LiPo battery while simultaneously monitoring battery voltage and current consumption.
Equipped with a built-in Battery Eliminator Circuit (BEC), this module converts high battery voltage into a stable 5.3V output required for powering flight controllers, GPS modules, telemetry radios, and RC receivers. The module supports 2S to 6S LiPo batteries and includes an XT60 connector for secure and efficient power delivery.
The integrated current and voltage sensing system allows real-time monitoring of battery status, improving flight safety and power management in drones and RC aircraft.
Designed with protective shrink wrapping and compact construction, this module is widely used in multirotors, UAVs, fixed-wing aircraft, and robotics applications.
Key Features
- Stable 5.3V BEC Output – Clean power supply for APM/Pixhawk systems.
- 3A Maximum Output Current – Reliable accessory power delivery.
- Supports 2S–6S LiPo Batteries – Wide input voltage compatibility.
- 90A Current Sensing – Real-time current monitoring capability.
- Integrated Voltage Monitoring – Battery voltage feedback to flight controller.

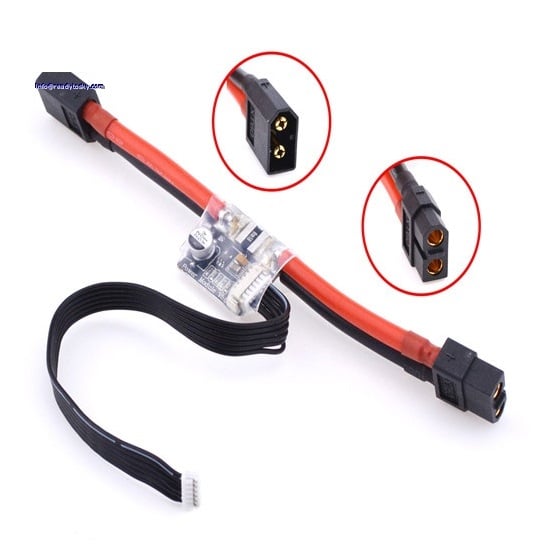

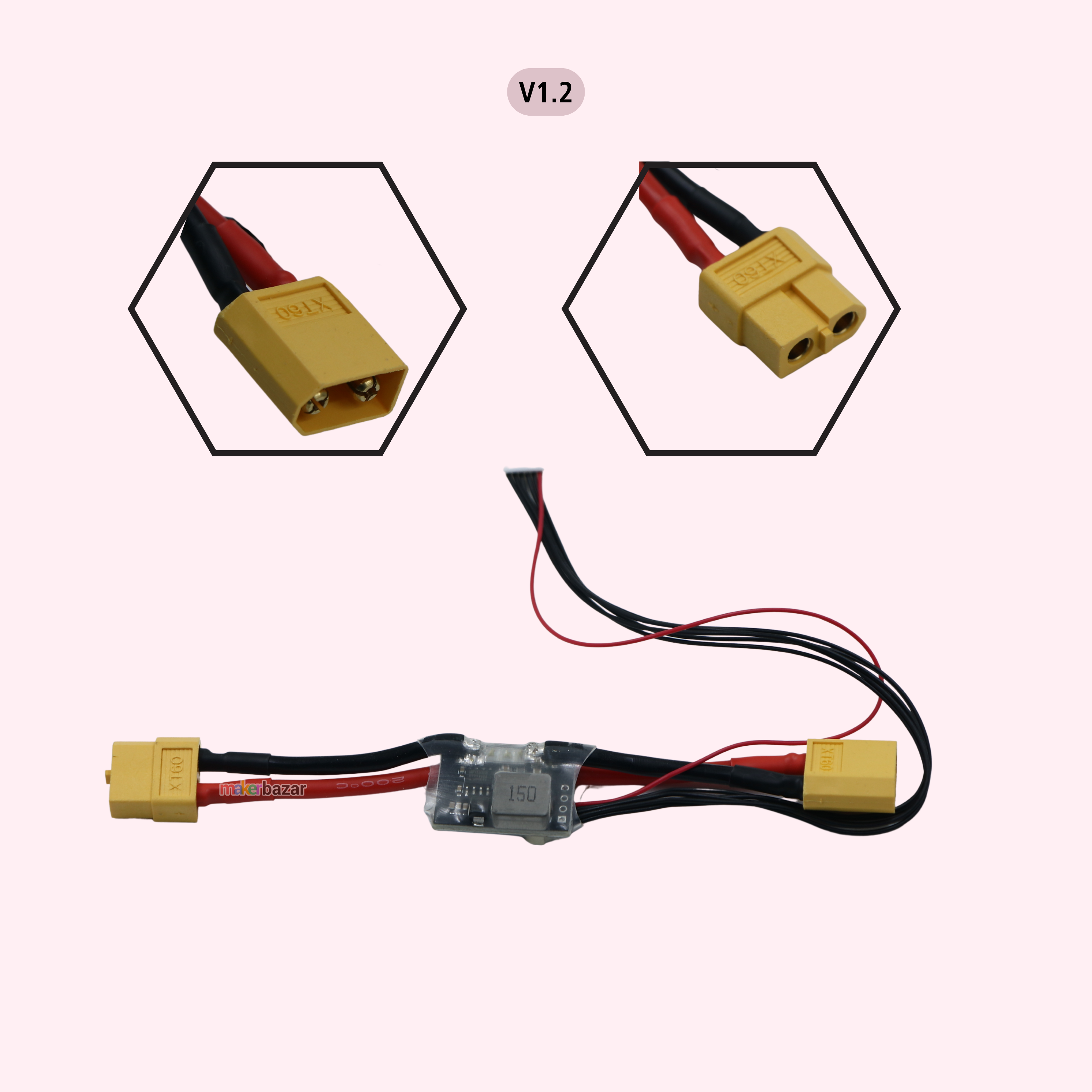

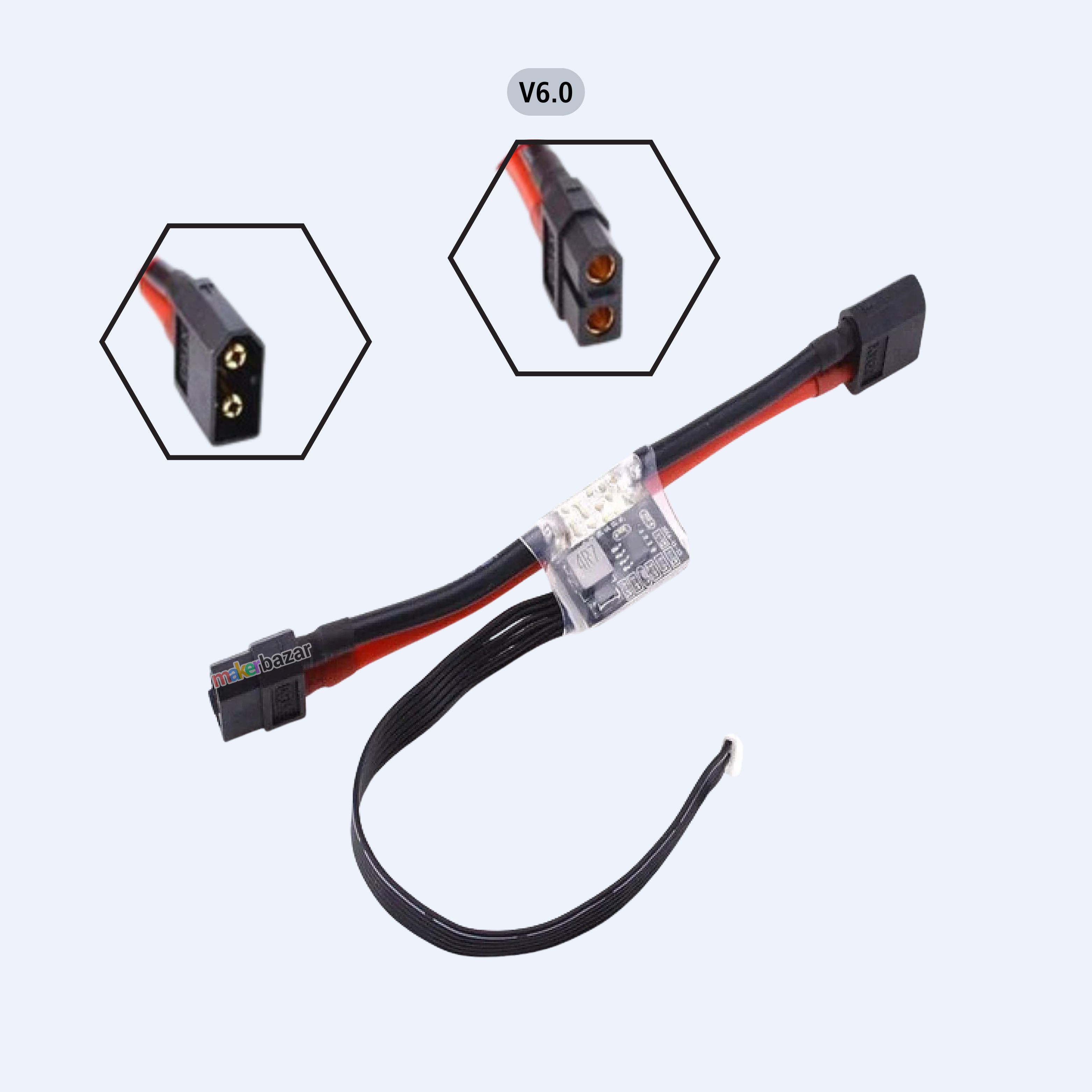

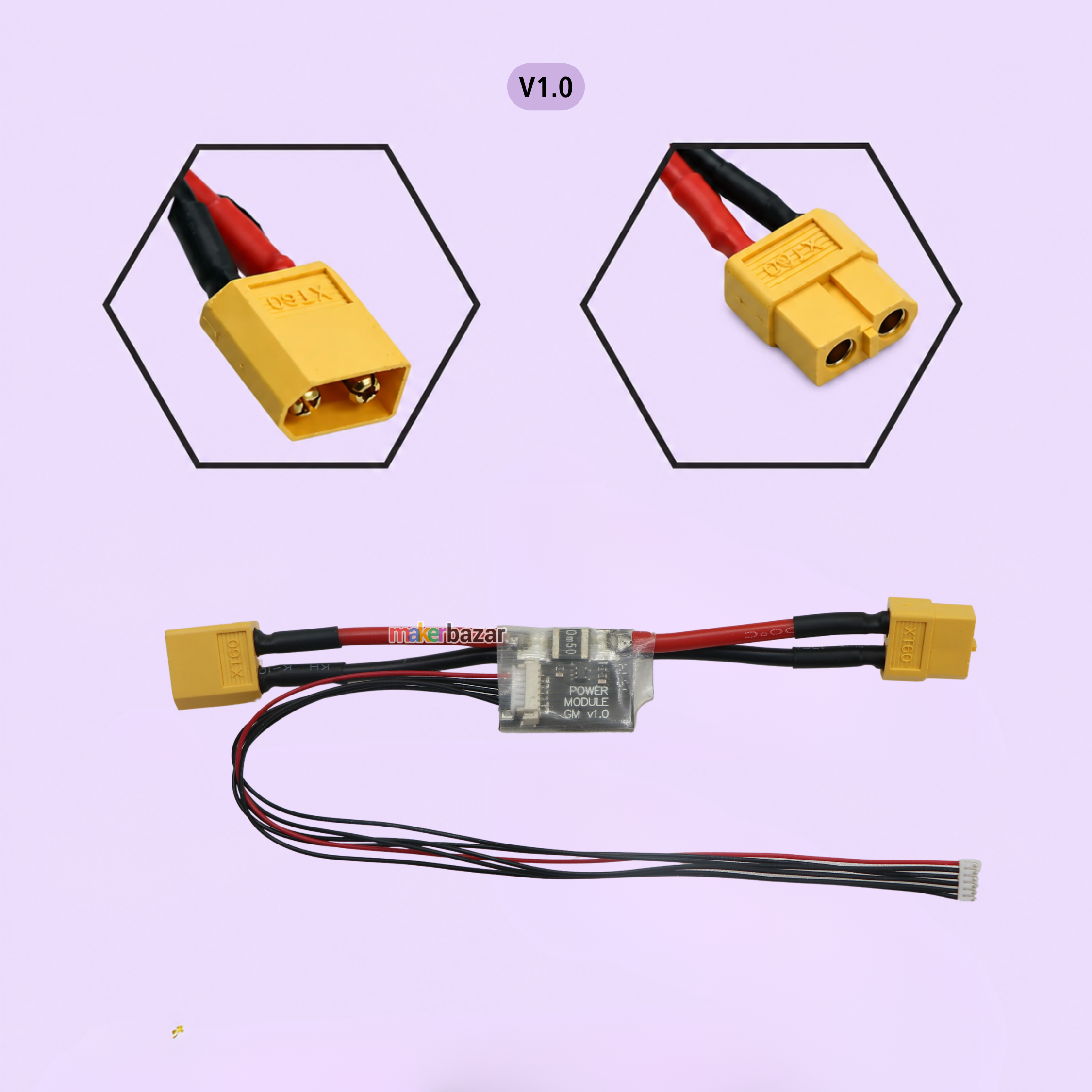

- XT60 Connector – Secure and efficient power connection.

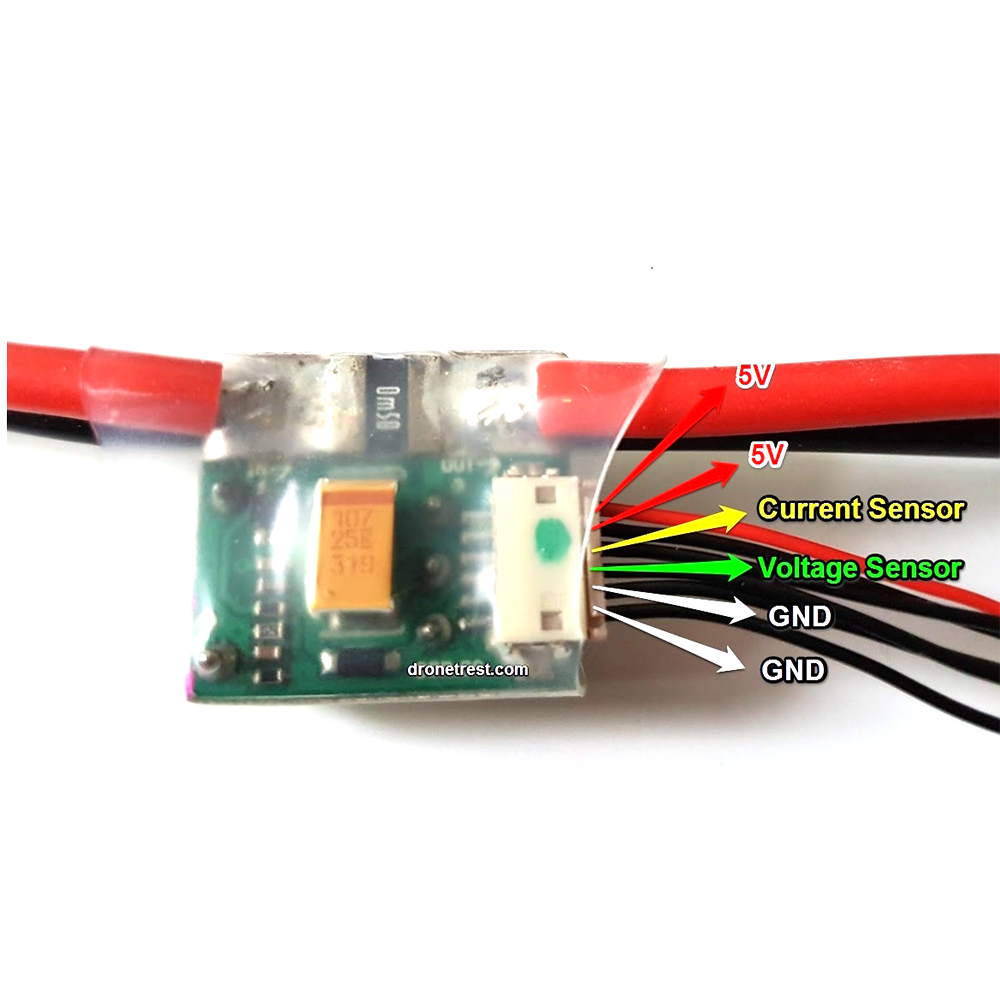

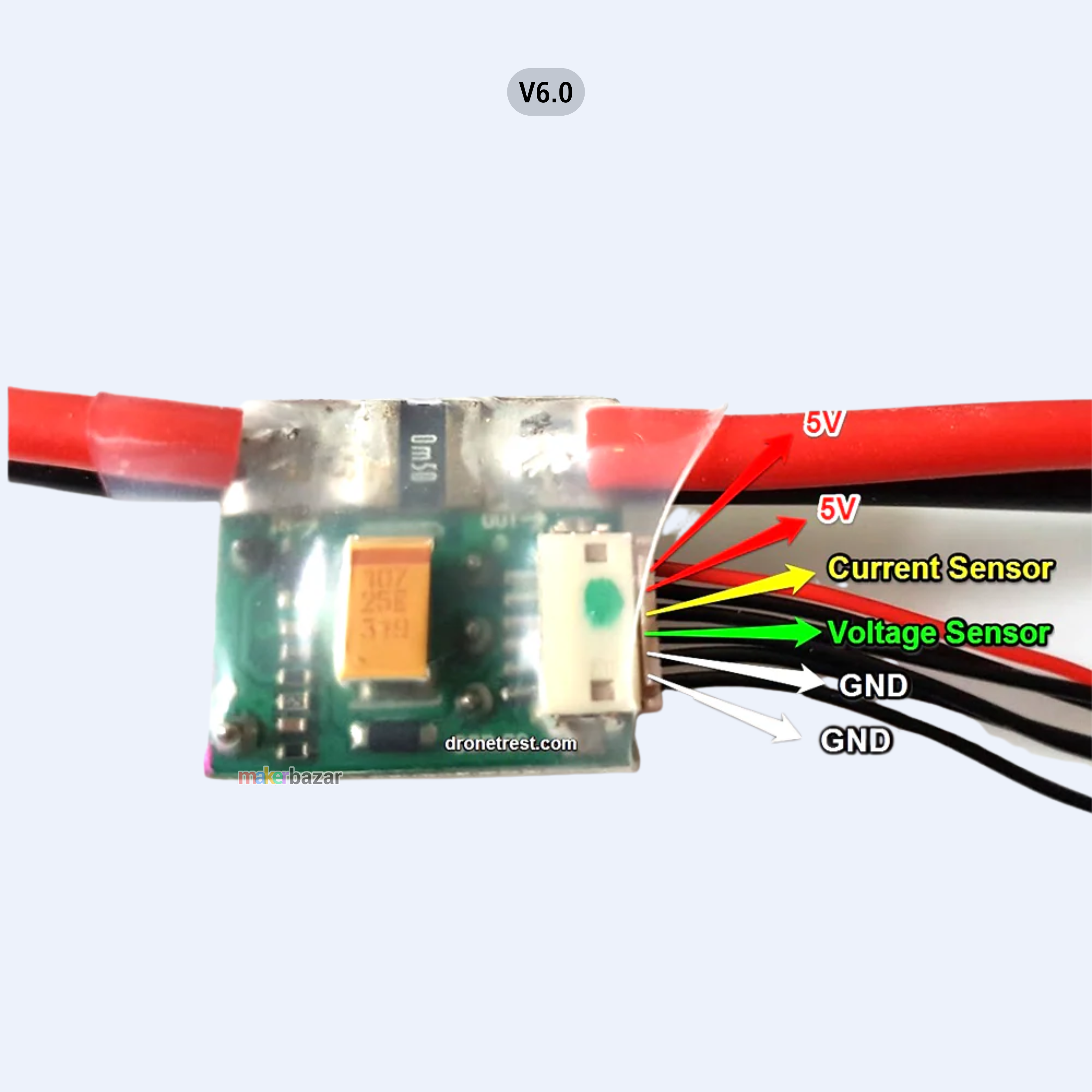

- DF13 6-Pin Cable Included – Direct connection to APM/Pixhawk PM port.
- Compact & Lightweight Design – Ideal for drone applications.
- Protective Shrink Tube Covering – Enhanced durability and insulation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Module / BEC |
| Compatibility | APM 2.5 / 2.6 / 2.8 / Pixhawk |
| Connector Type | XT60 |
| Input Voltage | 6V – 28V DC |
| Battery Support | 2S – 6S LiPo |
| Output Voltage | 5.3V |
| Maximum Output Current | 3A |
| Current Sensing | Up to 90A |
| ADC Output | 5V ADC Configured |
| Cable Type | 6-Pin DF13 Cable |
Applications
- Drone Flight Controllers
- Pixhawk & APM Systems
- RC Airplanes & Multirotors
- UAV Power Management
- Battery Voltage Monitoring
- Robotics Power Systems
- Telemetry & GPS Power Supply
Precautions
- Designed for powering APM/Pixhawk accessories only, not servos.
- Use proper ESC/BEC for servo power requirements.
- Ensure correct polarity before connecting battery.
- Avoid exceeding maximum voltage and current ratings.
- Keep module properly ventilated during operation.
Note:
The Power Module is only designed to power APM, an RC receiver, and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircraft’s own ESC/BEC for that.
