Description
Arducam 5MP OV5647 Ultra Wide Angle Fisheye Camera for Raspberry Pi

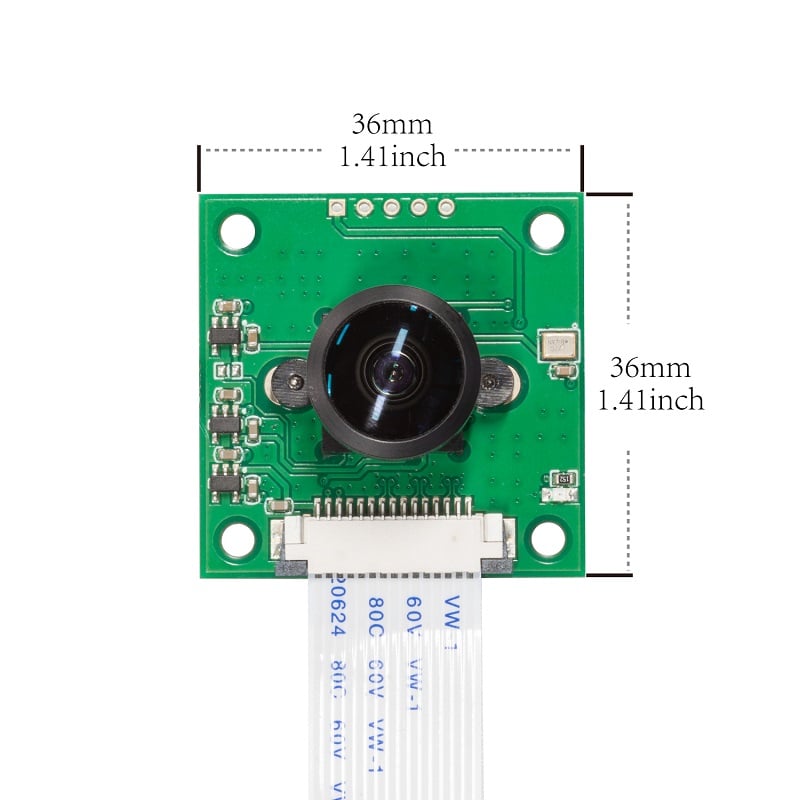

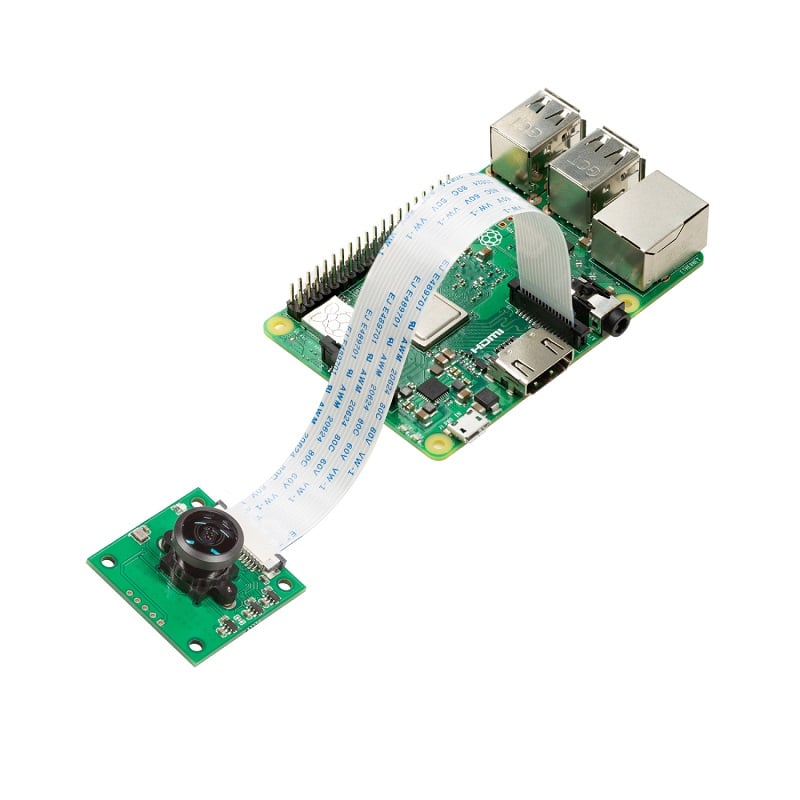

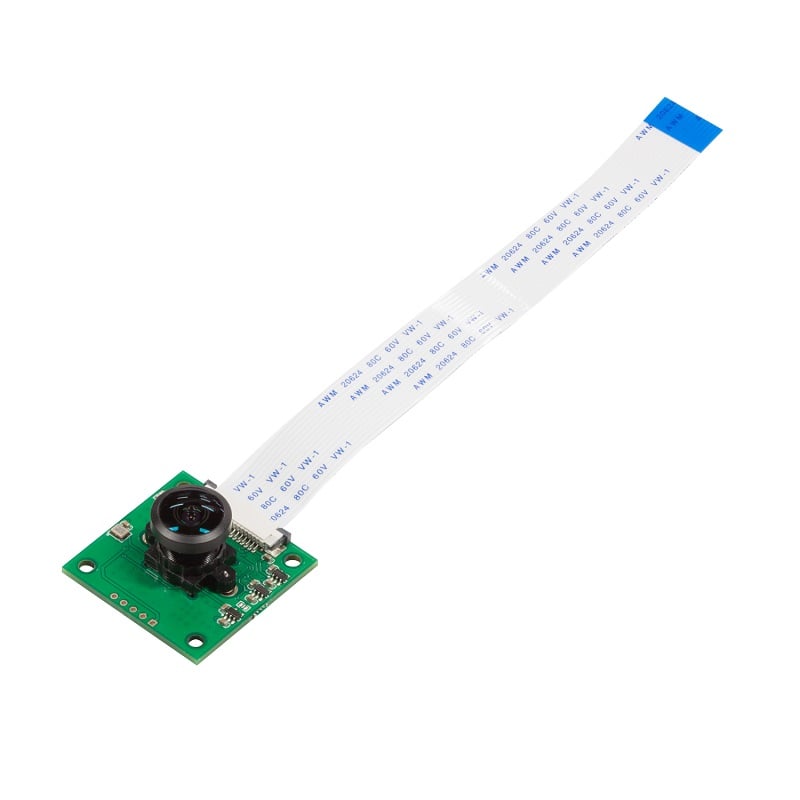

The board itself is tiny, at around 36mm x 36mm highlight of our module is that the Lens is replaceable compared to official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The Arducam Ultra Wide Angle Camera has a fisheye M12 lens with 220° horizontal field of view which allows you to apply it in various special scenes. The camera is supported by the latest version of Raspberry Pi OS, which supports using libcamera apps to capture images.
Applications:
- Cellular phones,PDAs,Toys
- Other battery-powered products
- PC multimedia
- Wildlife photograph
- Home security system
- Digital still cameras,etc.
Features:
- Ultra Wide Angle: A fisheye camera with 220 HFOV for Raspberry Pi. (The lens is LN010)
- Lens Options: Replaceable M12 lens for your various requirement
- Native to Raspberry Pi: No need to install additional driver
- System Compatibility: Support the lastest Raspberry Pi OS and libcamera apps
- Support for LED and Flash Strobe Mode
- On-chip phase lock loop(PLL)
- Support for Video and Snapshot operation
- Support for Output format: 8/10 raw RGB data
- Image quality control: lens correction defective pixel canceling
