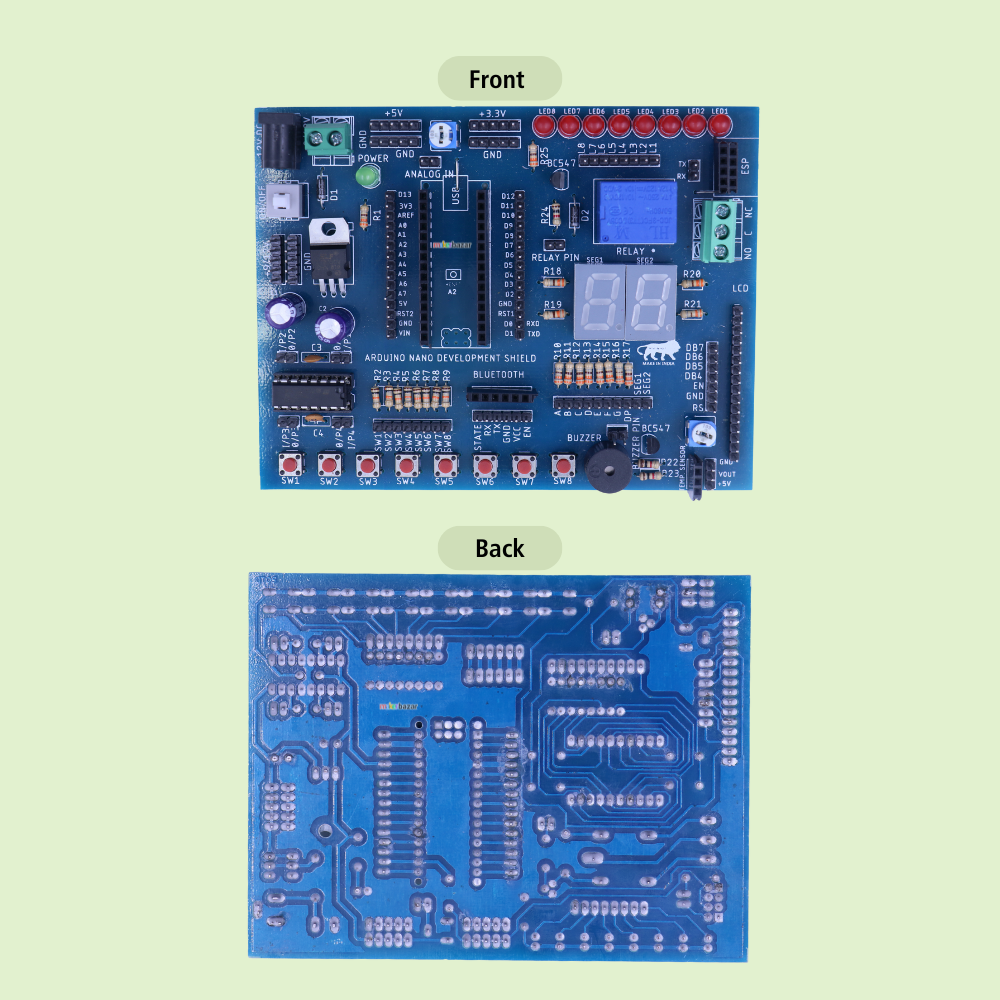

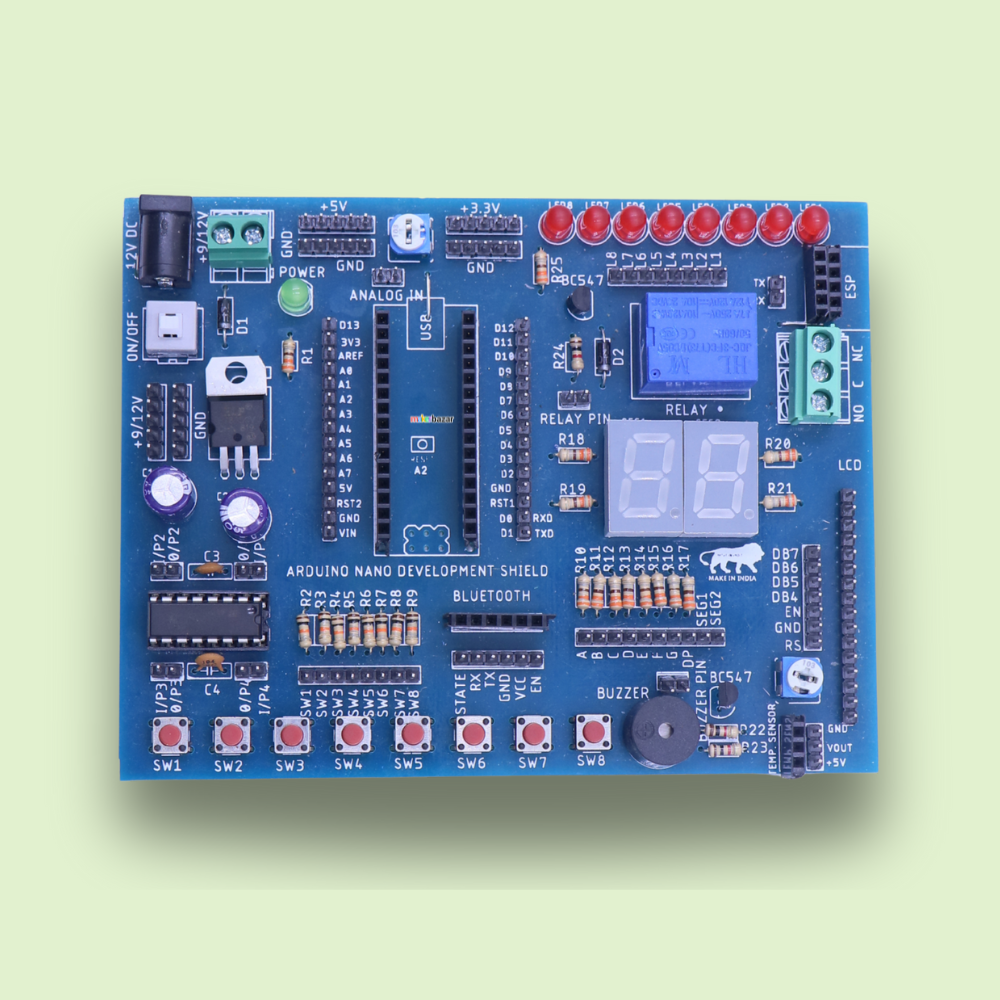

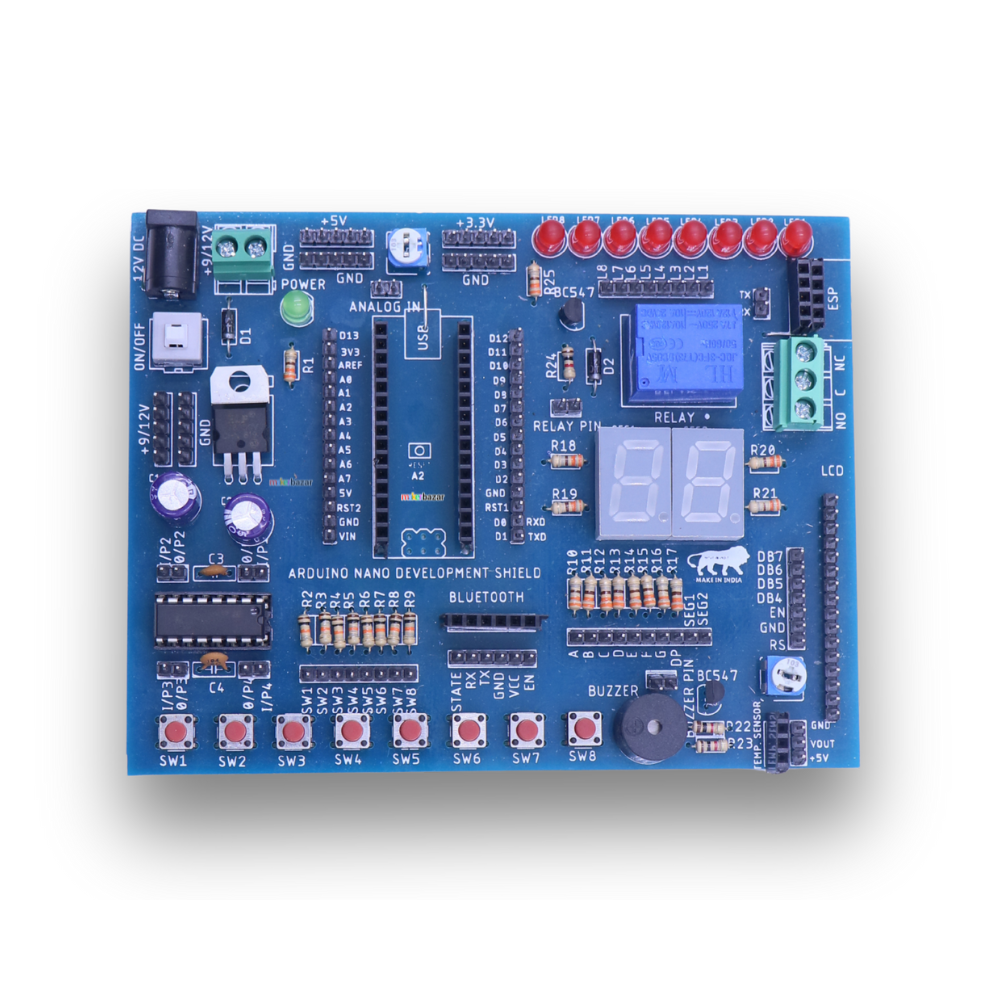

Nano Development Shield – With Relay, LEDs, Buzzer & 7-Segment Display
The Arduino Nano Development Shield is a feature-packed prototyping expansion board designed for makers, students, and electronics enthusiasts. With built-in relay, 7-segment display, buzzer, LEDs, switches, and Bluetooth header, it simplifies circuit building and testing by reducing external wiring.
Perfect for STEM education, DIY projects, robotics, and embedded systems, this shield offers a complete solution for learning microcontroller programming and electronics.

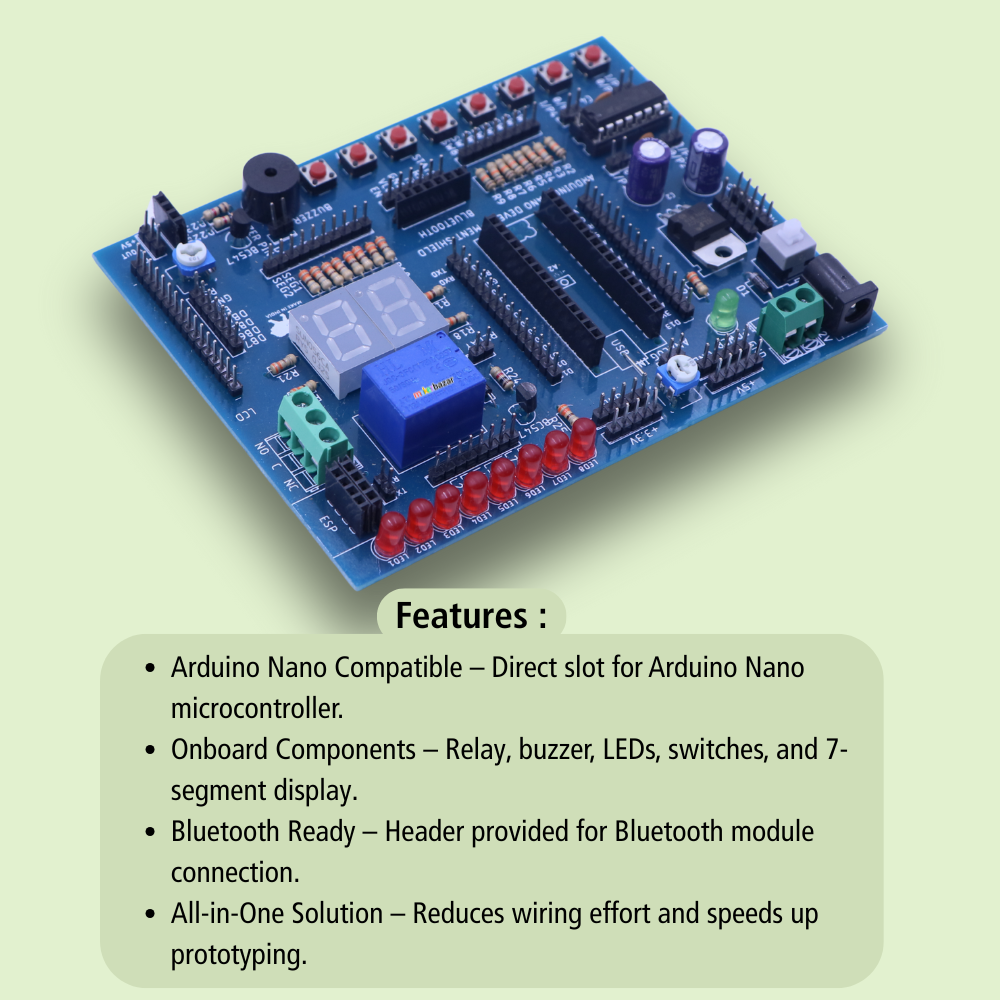

Key Features
-
🔌 Arduino Nano Compatible – Direct slot for Arduino Nano microcontroller.
-
⚡ Onboard Components – Relay, buzzer, LEDs, switches, and 7-segment display.
-
📶 Bluetooth Ready – Header provided for Bluetooth module connection.
-
🧩 All-in-One Solution – Reduces wiring effort and speeds up prototyping.
-
🎓 Perfect for Education – Great for STEM students and DIY electronics.
-
🛡️ Durable PCB – High-quality FR4 board with pre-soldered components.
Technical Specifications
-
Board Type: Arduino Nano Development Shield
-
Compatible With: Arduino Nano
-

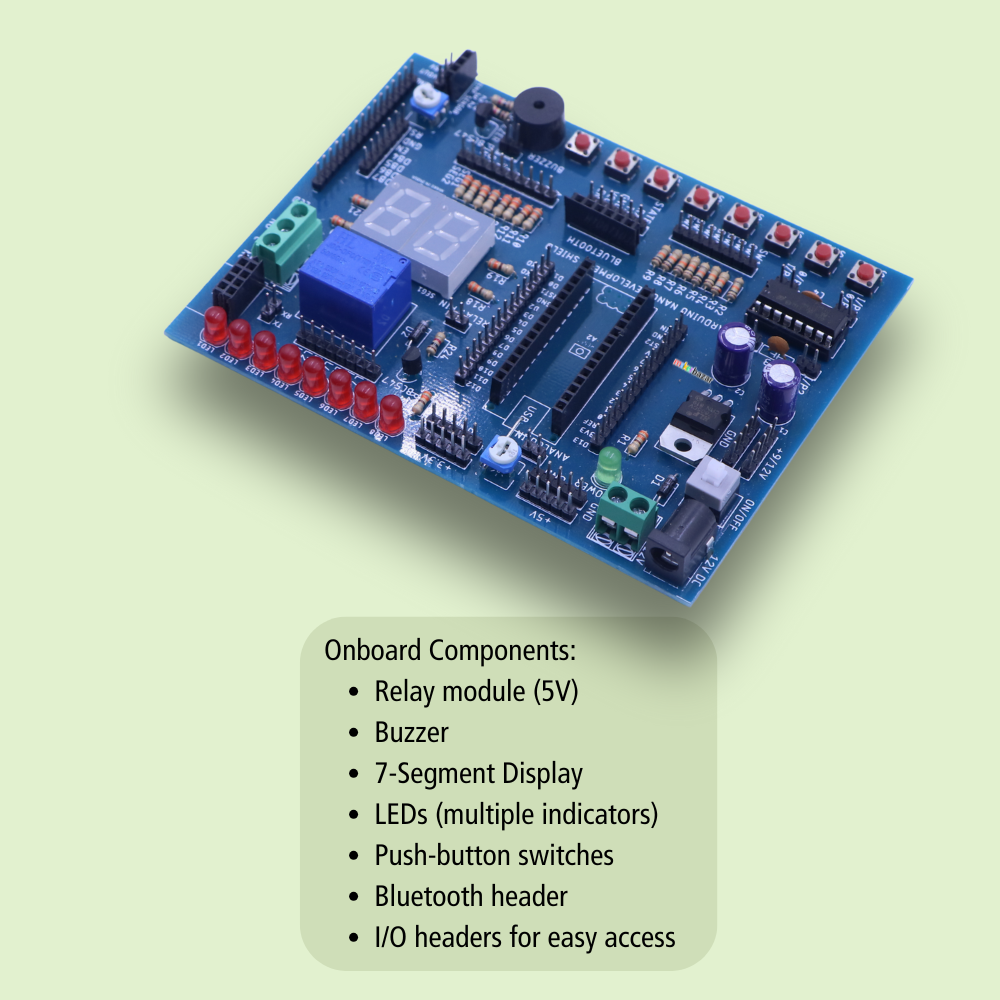

Onboard Components:
-
Relay module (5V)
-
Buzzer
-
7-Segment Display
-
LEDs (multiple indicators)
-
Push-button switches
-
Bluetooth header
-
I/O headers for easy access
-
-
Power Supply: Supports external +12V / regulated +5V
-
Material: High-quality PCB with pre-soldered components
-
Applications: DIY prototyping, STEM education, robotics, embedded systems
