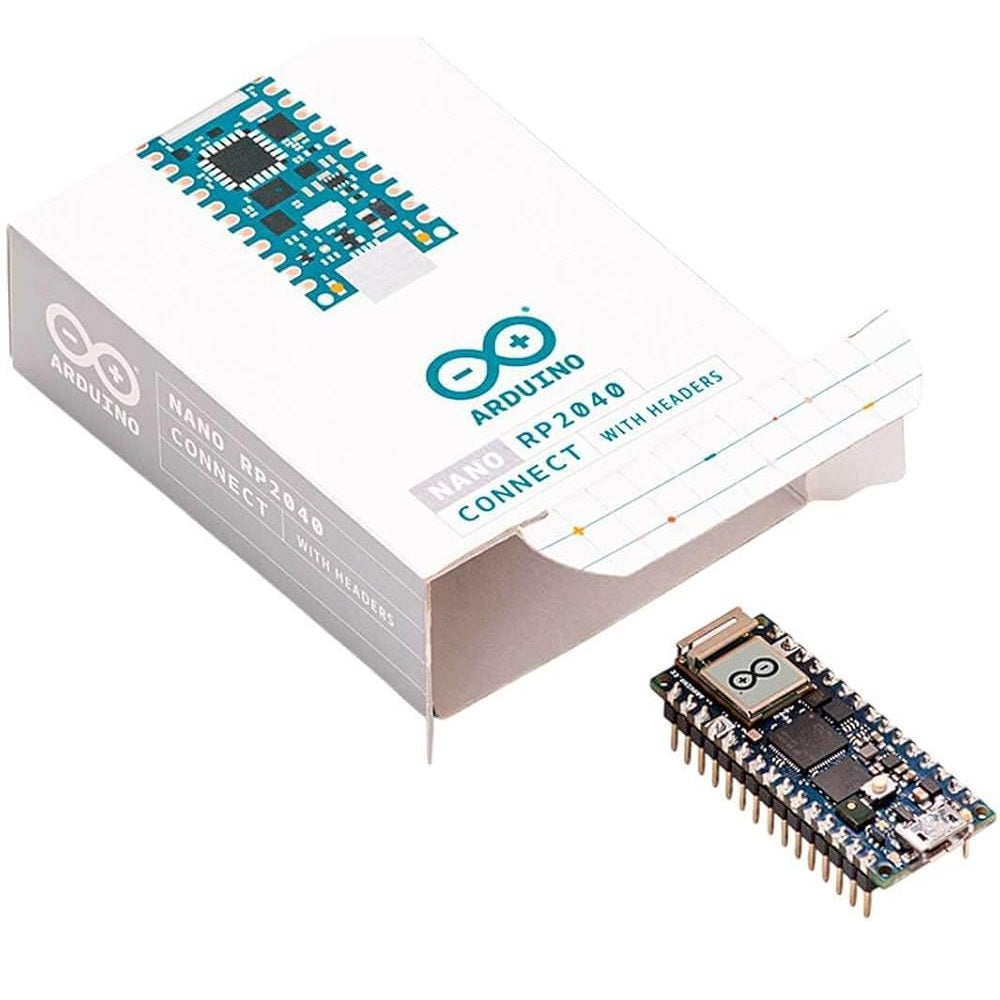

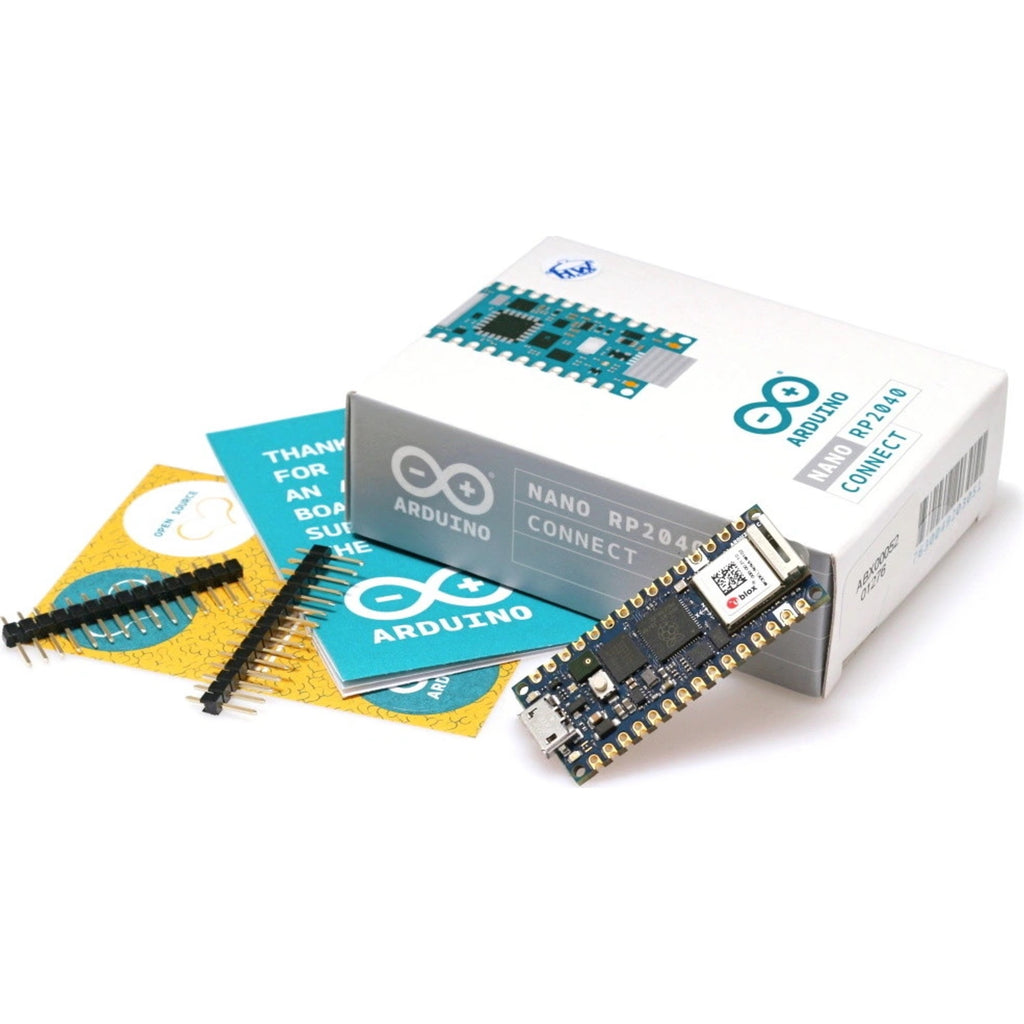

Arduino Nano RP2040 Connect – Wi-Fi & Bluetooth Enabled IoT Board with Sensors

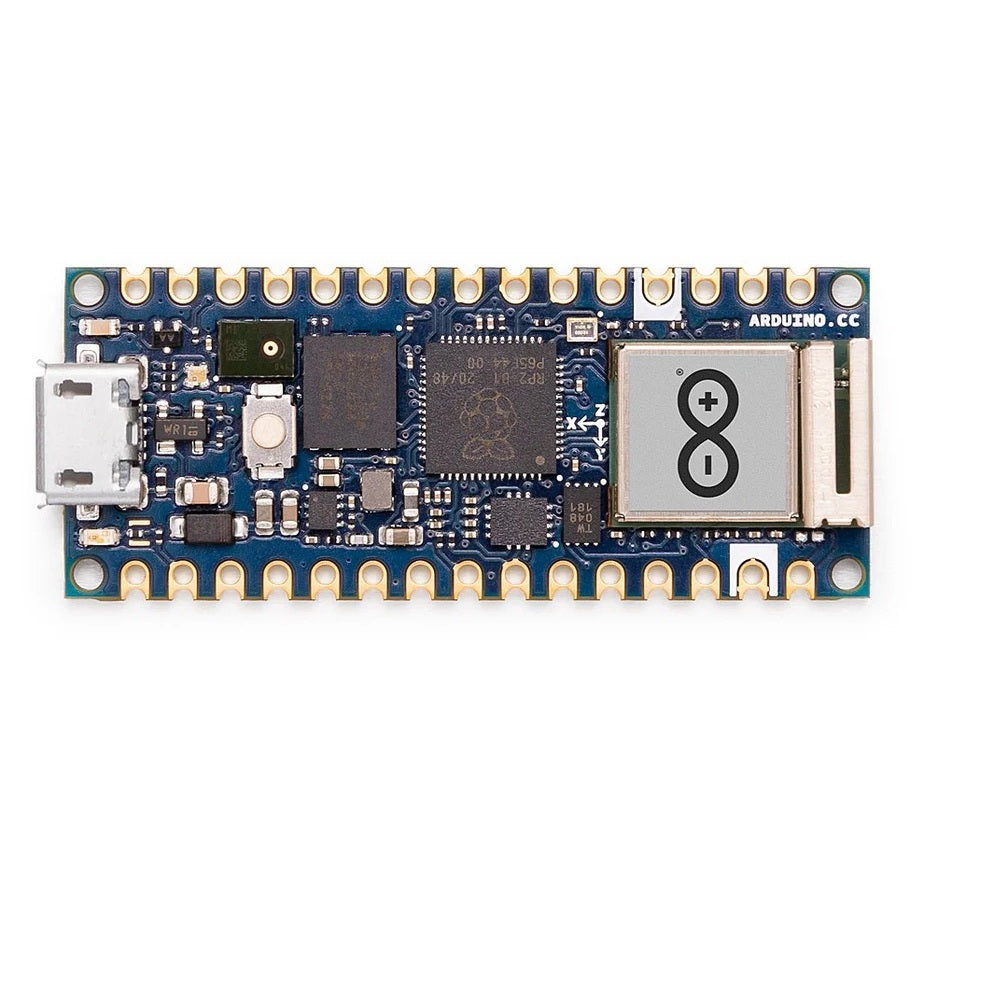

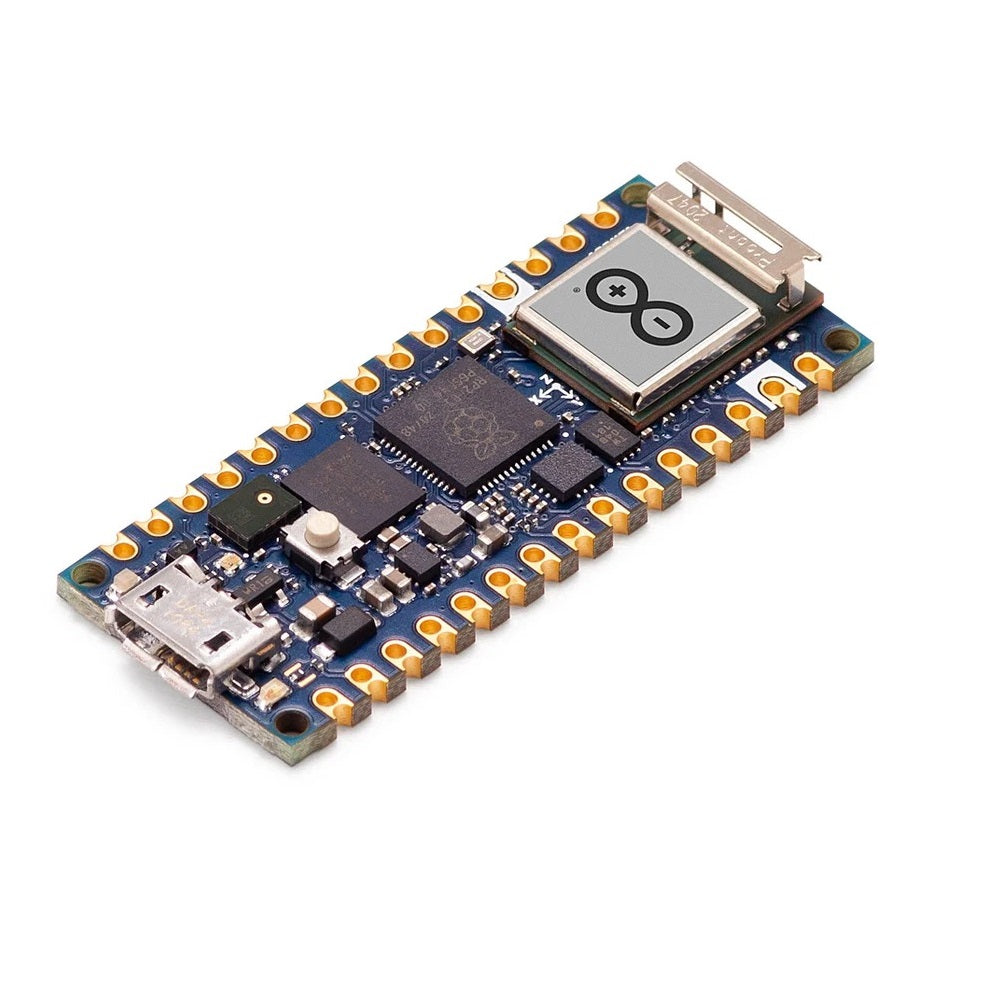

The Arduino Nano RP2040 Connect combines the power of Raspberry Pi’s RP2040 chip with the connectivity of the u-blox NINA-W102 module, offering Wi-Fi 802.11b/g/n and Bluetooth 4.2 support. It features a dual-core Arm Cortex M0+ processor at 133 MHz, 264KB SRAM, and 16MB external flash memory for storage. Onboard sensors include a 6-axis IMU (LSM6DSOXTR) for motion tracking and a microphone (MP3DT06JTR) for audio-based applications. It supports Arduino IDE 2.0, MicroPython, and is fully compatible with the Arduino IoT Cloud.

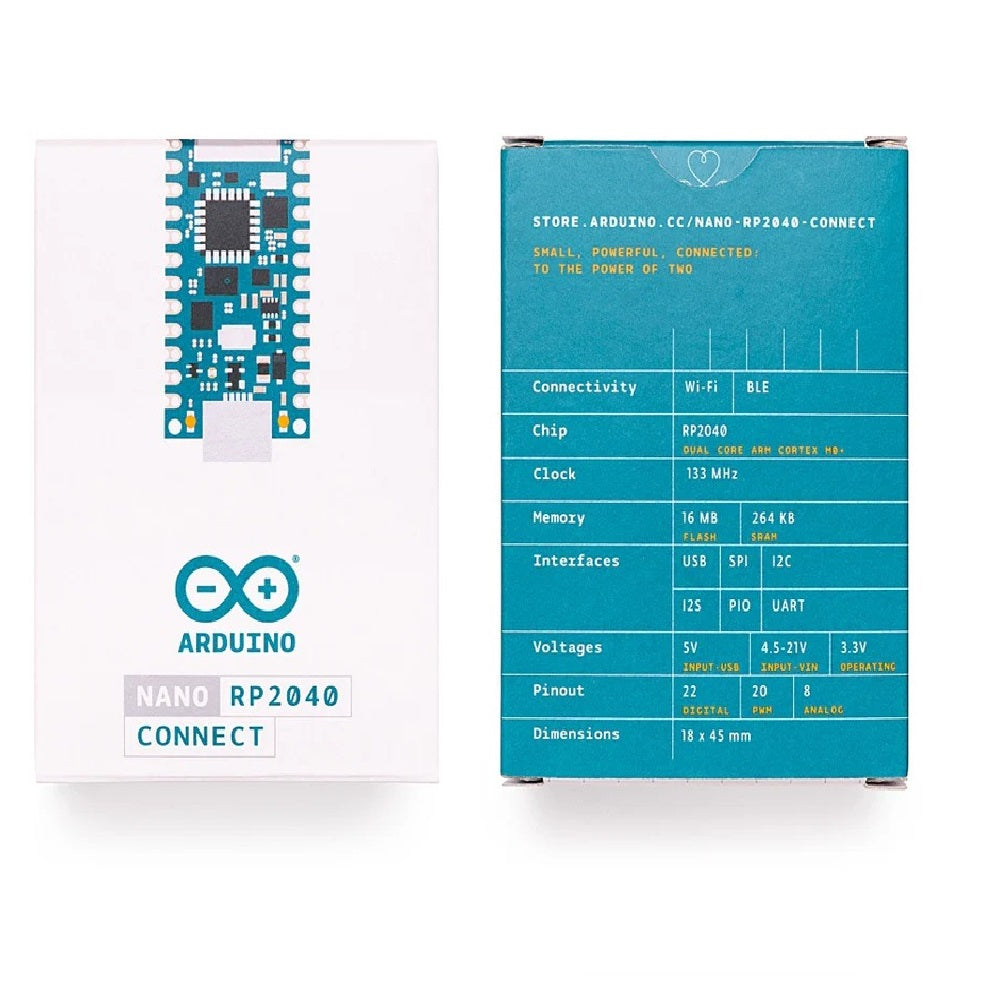

Key Specifications:
-
Microcontroller: Raspberry Pi RP2040
-
Connectivity: Wi-Fi & Bluetooth (u-blox NINA-W102), Secure Element (ATECC608A)
-
Sensors: 6-axis IMU, Built-in Microphone
-

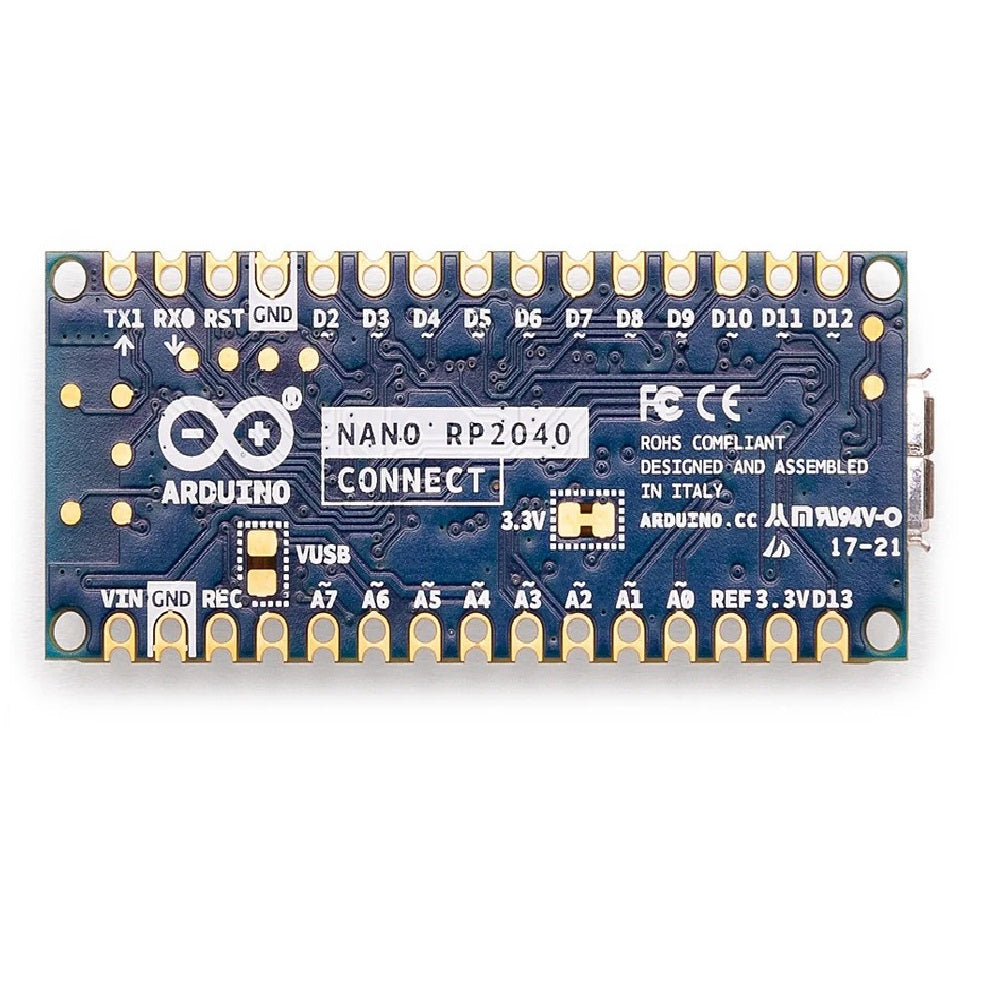

I/O: 20 Digital I/O (22 total), 8 Analog inputs, 20 PWM pins
-
Memory: 16MB Flash (external), 264KB SRAM
-
Programming Support: Arduino IDE 2.0, MicroPython, OpenMV (license included)
-
Power: 3.3V operating voltage, 4-20V input (VIN), 8mA per I/O pin
-
Dimensions: 45mm x 18mm, Weight: 6g
-
Compatibility: Arduino Nano form factor, Raspberry Pi Pico ecosystem
