Official Arduino PLC Starter Kit (AKX00051)

Teach PLC with Arduino – Starter Kit for Ladder, ST, and FBD Programming

Master Industrial Automation with the Arduino PLC Starter Kit
The Arduino PLC Starter Kit is a comprehensive educational solution designed to bridge the gap between industrial automation training and real-world application. Built around the powerful Arduino Opta WiFi PLC, this kit supports five PLC programming languages compliant with IEC 61131-3 standards, including Ladder, Structured Text, and Function Block Diagrams. With 20+ hours of curriculum through the Explore PLC course, it empowers high school and college students to understand PLC programming, Modbus communication, and remote control via Arduino Cloud.

Core Features:

• Learn PLC programming with 20+ hours of guided lessons

• Explore automation through hands-on projects and simulations

• Ideal for classrooms, technical colleges, and industry-aligned training

• Compatible with Arduino Cloud for remote control and IoT integration

• Supports Ladder, FBD, ST, IL, and SFC programming via Arduino PLC IDE

• Easily programmable with Arduino IDE 2 (with debugger, autocomplete, cloud sync)

Technical Specifications:

Arduino Opta WiFi PLC:

• Processor: STM32H747XI Dual Arm® Cortex®

• Inputs: 8x configurable digital/analog (0–10V)

• Outputs: 4x 10A Relays (250V AC)

• Communication: RS485 half duplex, Ethernet 10/100 (TCP/IP & Modbus TCP)

• Connectivity: Wi-Fi®, Bluetooth® Low Energy

• Ports: USB-C®

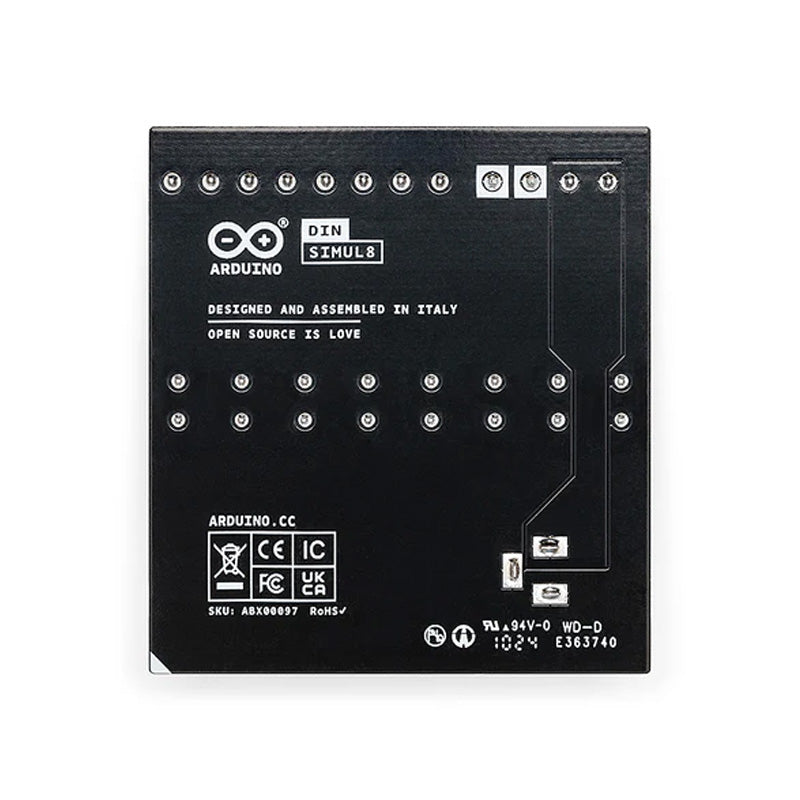

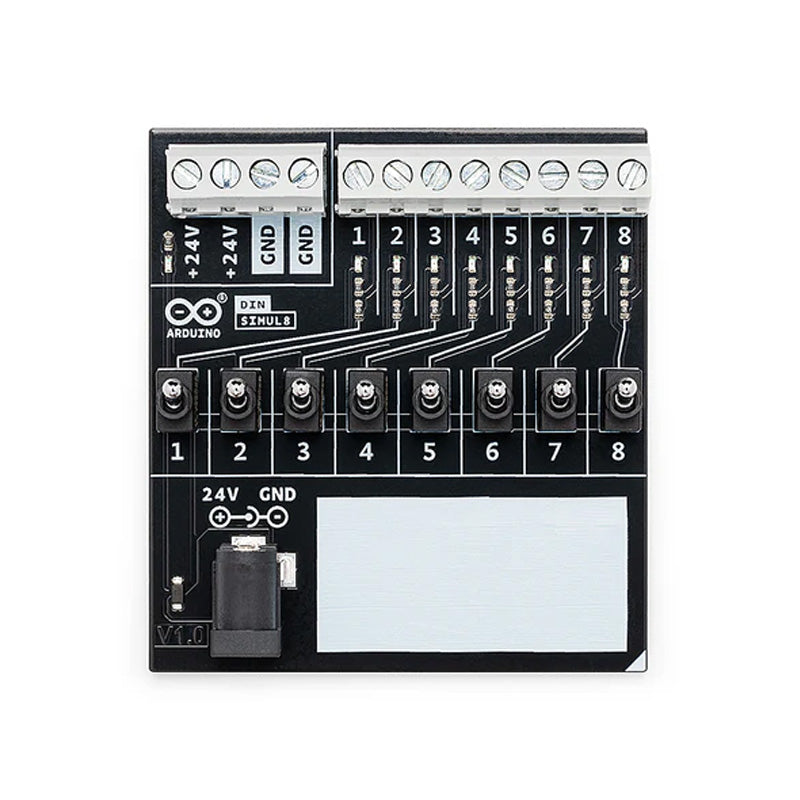

DIN Simul8 Module:

• 8 SPST Toggle Switches with signal lines

• Barrel Plug power connector

• Input protection: reverse polarity & +24V miswiring

• DIN bar mount

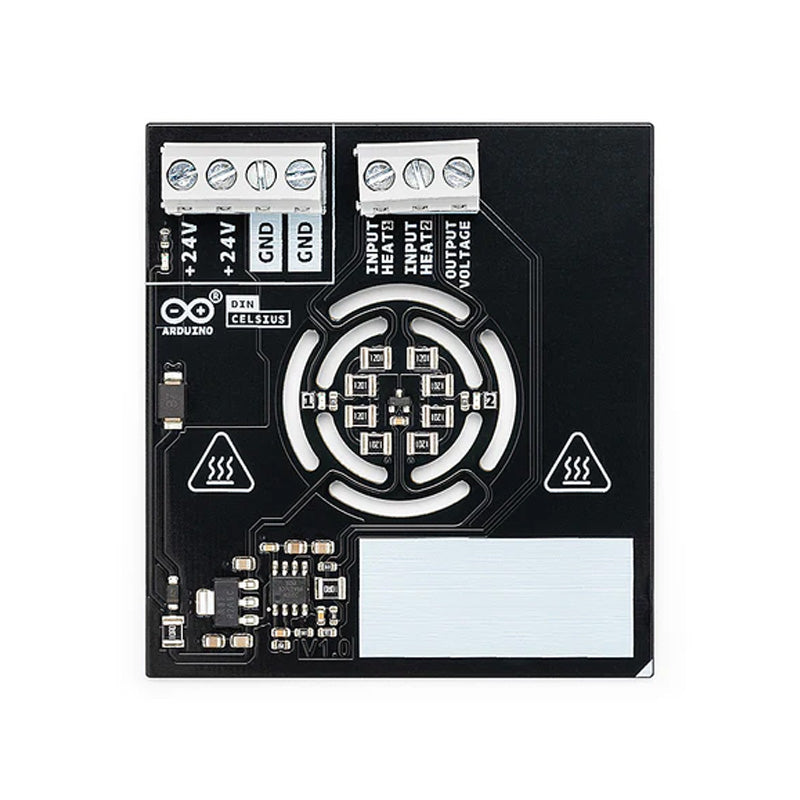

DIN Celsius Module:

• TMP236A2DBZR Temperature Sensor

• 24V power for dual independent heater arrays

• Safety protections on all screw terminals

• DIN bar mount

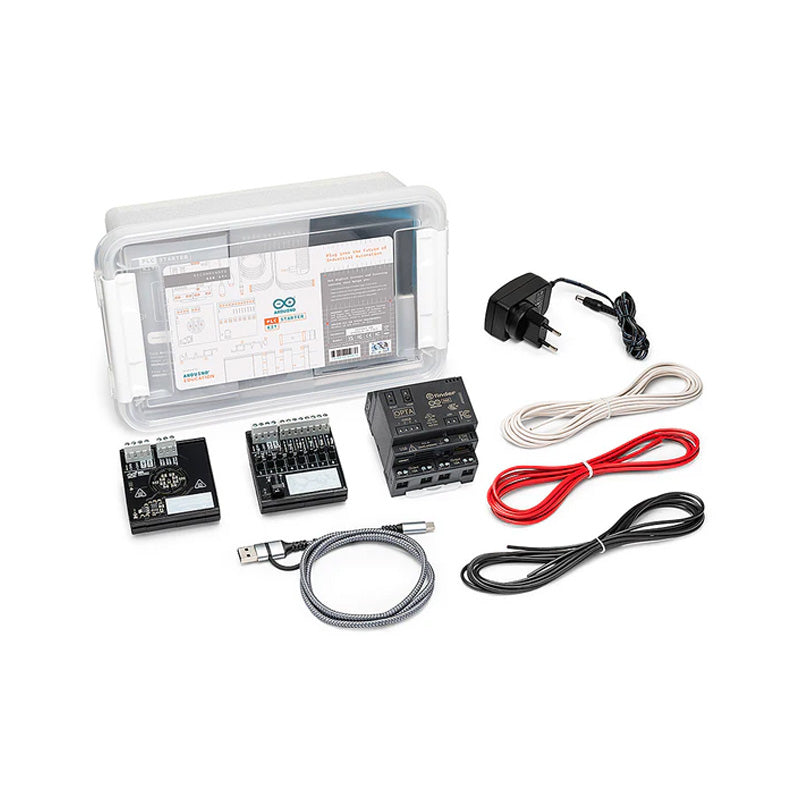

Included Accessories:

• USB-C® Cable

• 24V 1A Power Supply

• (3) 20 cm double-ended jumper cables (white, black, red)

Programming Languages Supported:

• Arduino Language (C/C++ based)

• IEC 61131-3 PLC languages:

  • Ladder Diagram (LD)

  • Function Block Diagram (FBD)

  • Sequential Function Chart (SFC)

  • Structured Text (ST)

  • Instruction List (IL)
