AS5600-ASOM AMS 0°–360° Magnetic Rotary Position Sensor – SOIC-8 Package (ROHS Compliant)
The AS5600-ASOM is a non-contact magnetic rotary position sensor IC that provides precise angular measurement over a full 360° range. Manufactured by AMS (Austria Microsystems), this sensor converts magnetic field orientation into a proportional analog or digital output, making it ideal for position detection in motors, knobs, and control systems.
This SOIC-8 package version is ROHS compliant and designed for high reliability, offering smooth and accurate rotational tracking without physical wear and tear.
Perfect for robotics, servo motors, control panels, and automation systems, the AS5600 offers easy integration with both analog (voltage) and digital (PWM or I2C) outputs.

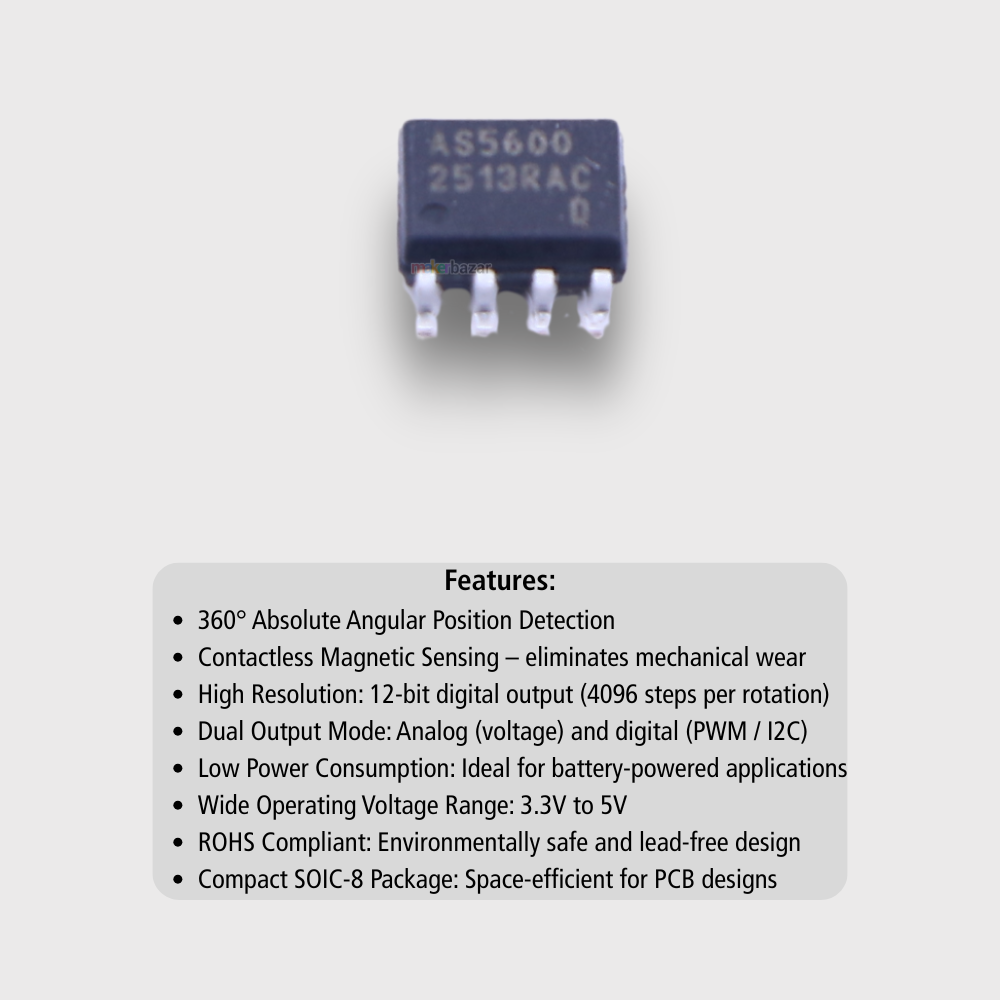

Features:
-
360° Absolute Angular Position Detection
-
Contactless Magnetic Sensing – eliminates mechanical wear
-
High Resolution: 12-bit digital output (4096 steps per rotation)
-
Dual Output Mode: Analog (voltage) and digital (PWM / I2C)
-
Low Power Consumption: Ideal for battery-powered applications
-
Wide Operating Voltage Range: 3.3V to 5V
-
ROHS Compliant: Environmentally safe and lead-free design
-
Compact SOIC-8 Package: Space-efficient for PCB designs
Technical Specifications:

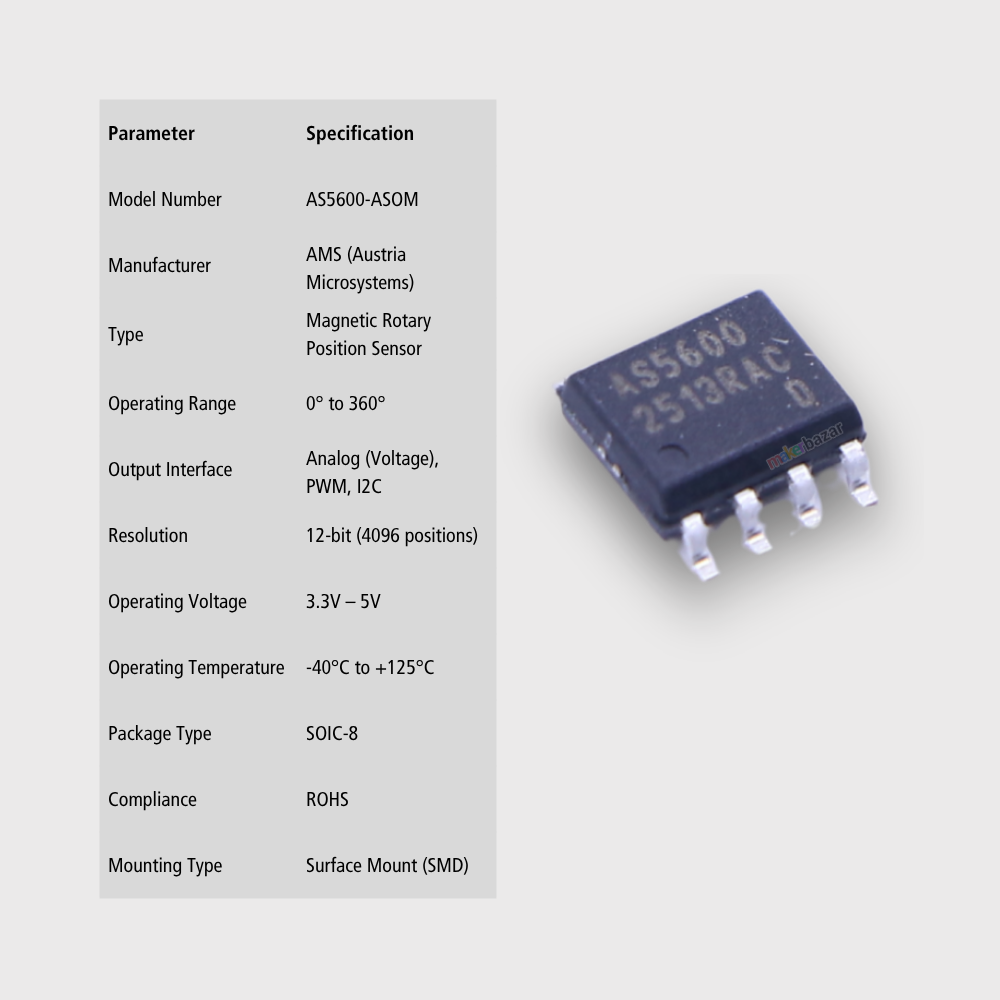

| Parameter | Specification |
|---|---|
| Model Number | AS5600-ASOM |
| Manufacturer | AMS (Austria Microsystems) |
| Type | Magnetic Rotary Position Sensor |
| Operating Range | 0° to 360° |
| Output Interface | Analog (Voltage), PWM, I2C |
| Resolution | 12-bit (4096 positions) |
| Operating Voltage | 3.3V – 5V |
| Operating Temperature | -40°C to +125°C |
| Package Type | SOIC-8 |
| Compliance | ROHS |
| Mounting Type | Surface Mount (SMD) |
Applications:

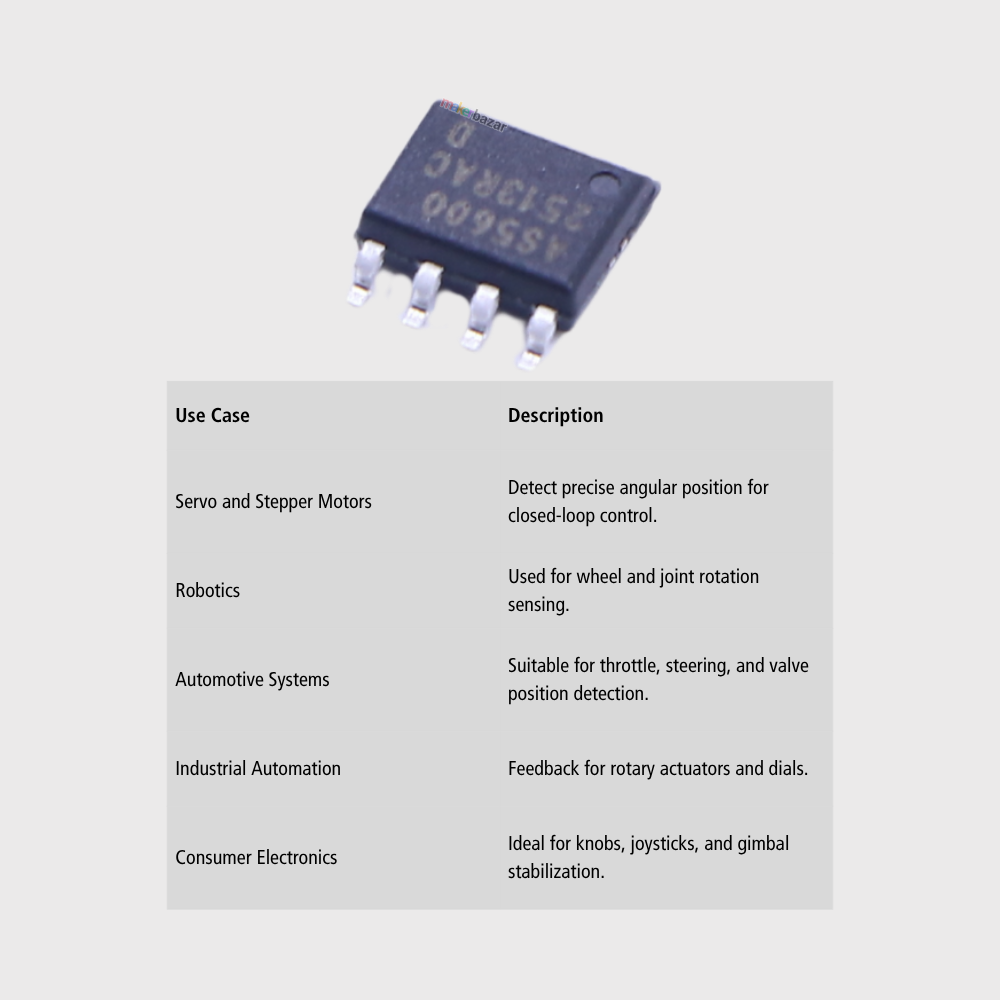

| Use Case | Description |
|---|---|
| Servo and Stepper Motors | Detect precise angular position for closed-loop control. |
| Robotics | Used for wheel and joint rotation sensing. |
| Automotive Systems | Suitable for throttle, steering, and valve position detection. |
| Industrial Automation | Feedback for rotary actuators and dials. |
| Consumer Electronics | Ideal for knobs, joysticks, and gimbal stabilization. |
Package Includes:
-
1 × AS5600-ASOM Magnetic Rotary Position Sensor (SOIC-8 Package)
Note:
-
Requires an external magnet for operation (not included).
-
Compatible with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi.
