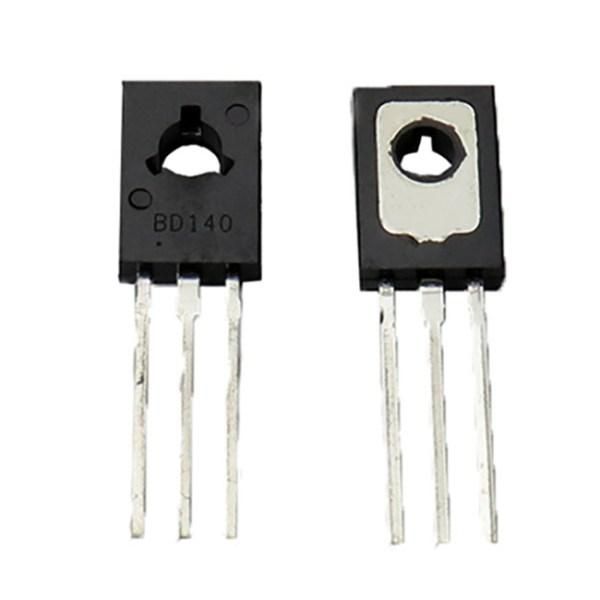

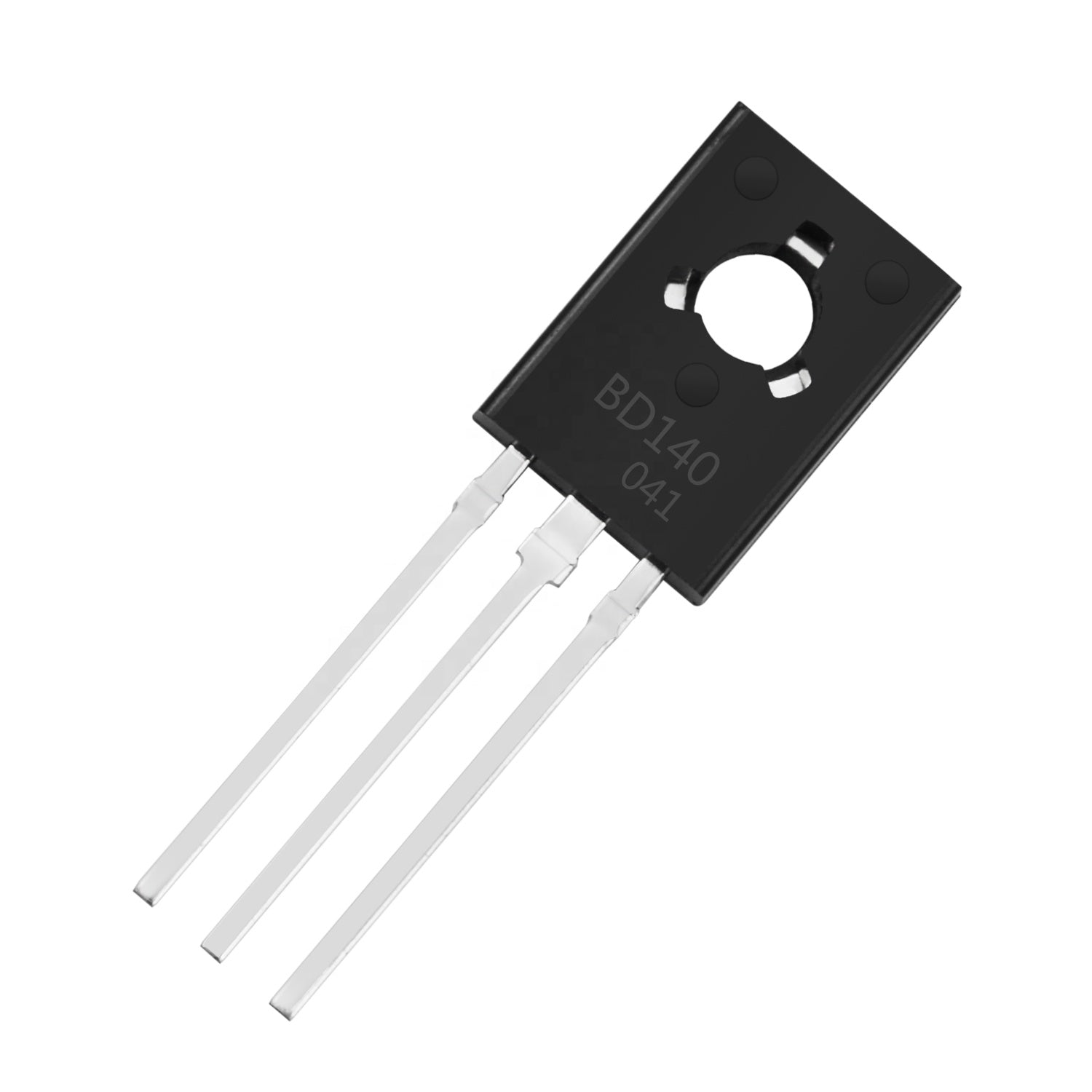

BD140 General Purpose BJT PNP Transistor of TO-126 Package
BD140 is a general purpose PNP Bipolar Transistor designed for use as audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. It comes in TO-126 Package which is a series of medium power transistors.
Specification
- Collector-emitter voltage: 80vdc
- collector-base : 100vdc
- Emitter-base voltage: 5vdc
- Collector current: 1.5A
- Base current: 0.5A
- Operating temperature: -55 to 150°C
Application
- Motor driver
- Can handle load up to 1.5A
- Battery charger
- Darlington pair
- Power supplies
- Amplification
Product details
- IC Number: BD140
- Type: General purpose PNP transistor
- Pin counts: 3
- Pin type: through hole
- Package: TO-126
- Package contains: 1 x BD140 PNP Transistor
| Collector-Base Voltage (Vcb) (V) |
80 |
| Collector-Emitter Voltage (Vce) (V) |
80 |
| Emitter-Base Voltage (Veb) (V) |
5 |
| Collector Current (DC) (A) |
1.5 |
| Junction Temperature (°C) |
150 |
| Storage condition (℃) |
-55 to 150 |
| Length (mm) |
7.6 |
| Width (mm) |
2.5 |
| Height (mm) |
25.2 |
| Weight (gm) |
1 (approx.) (each) |
| Shipment Weight |
0.01 kg |
| Shipment Dimensions |
5 × 8 × 2 cm |
