Description

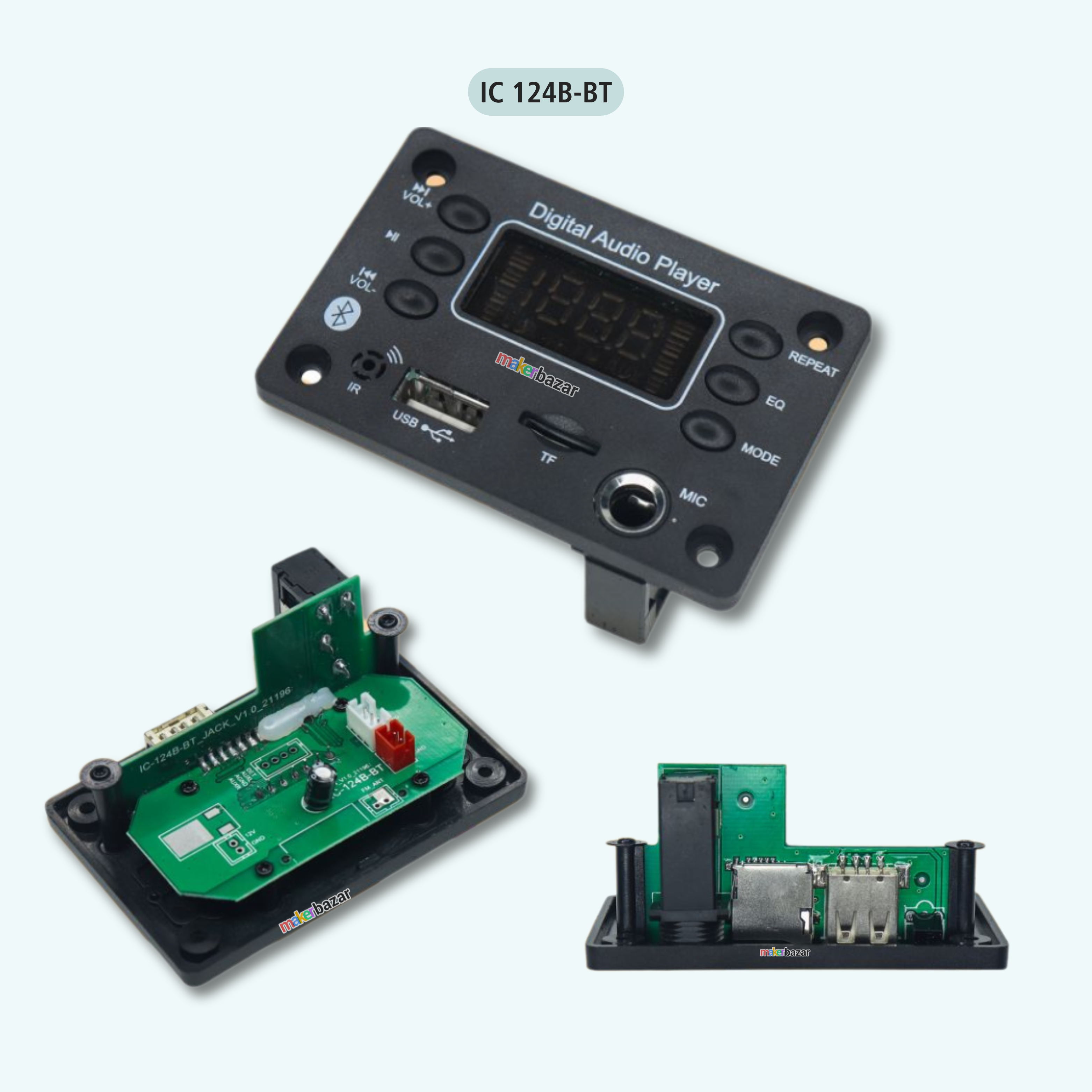

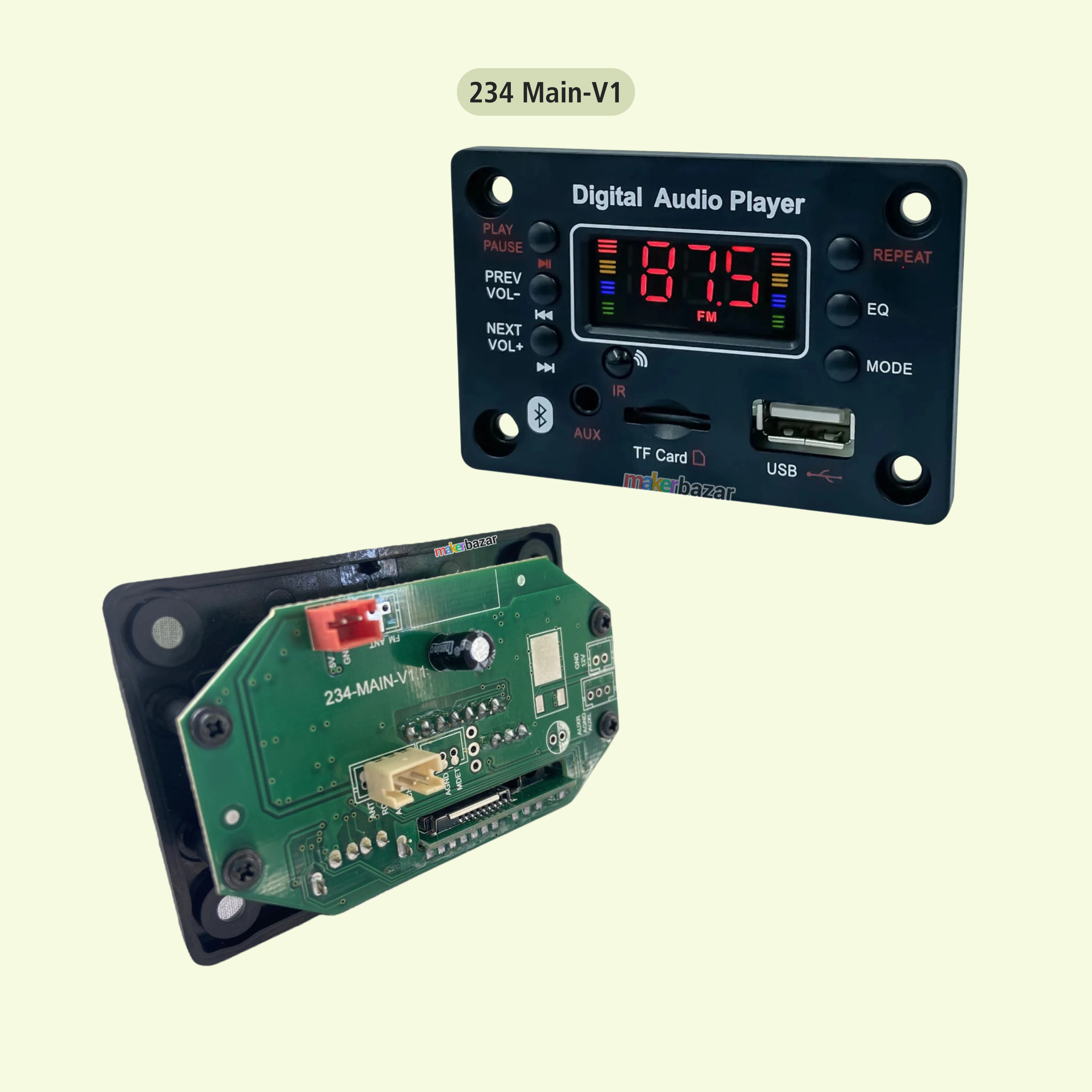

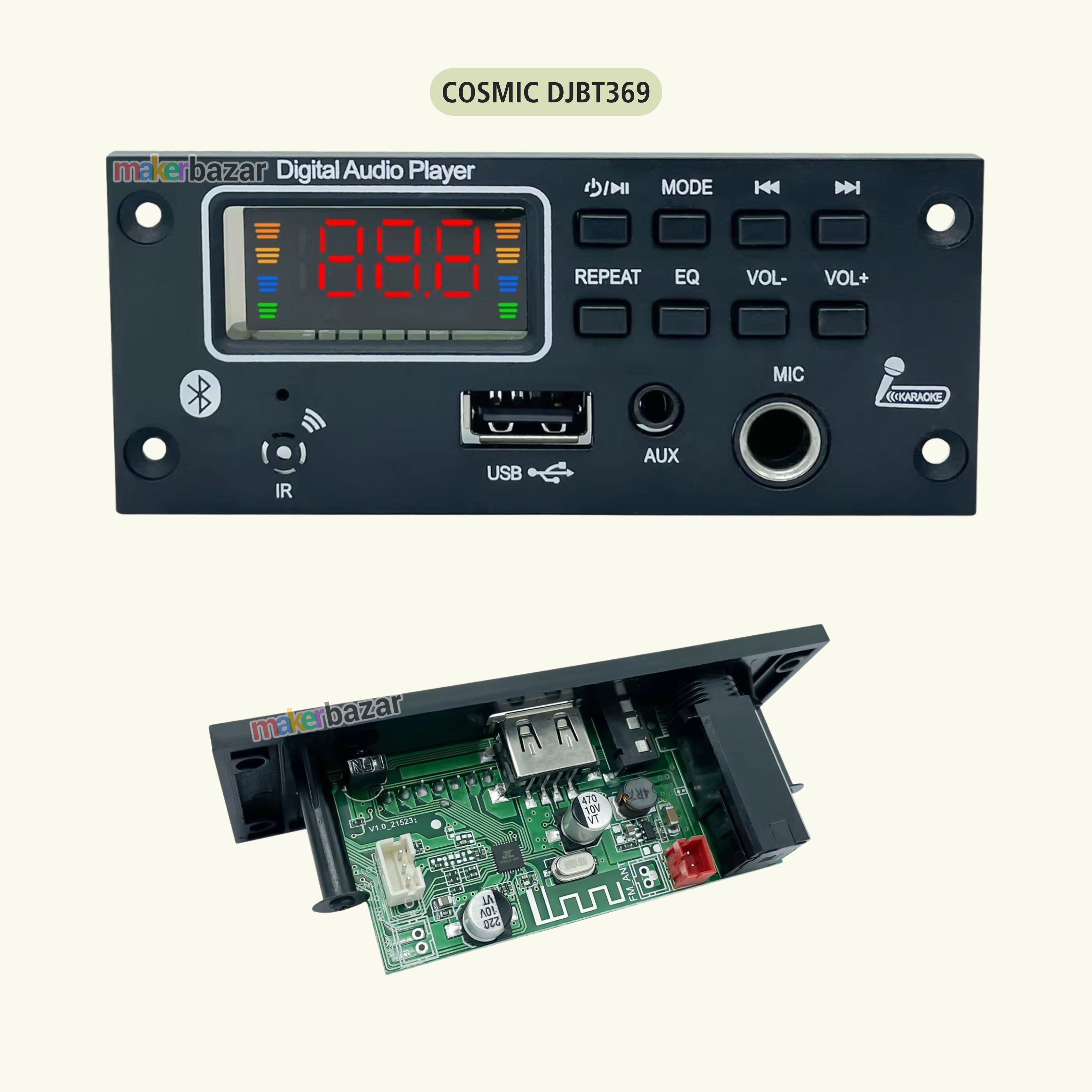

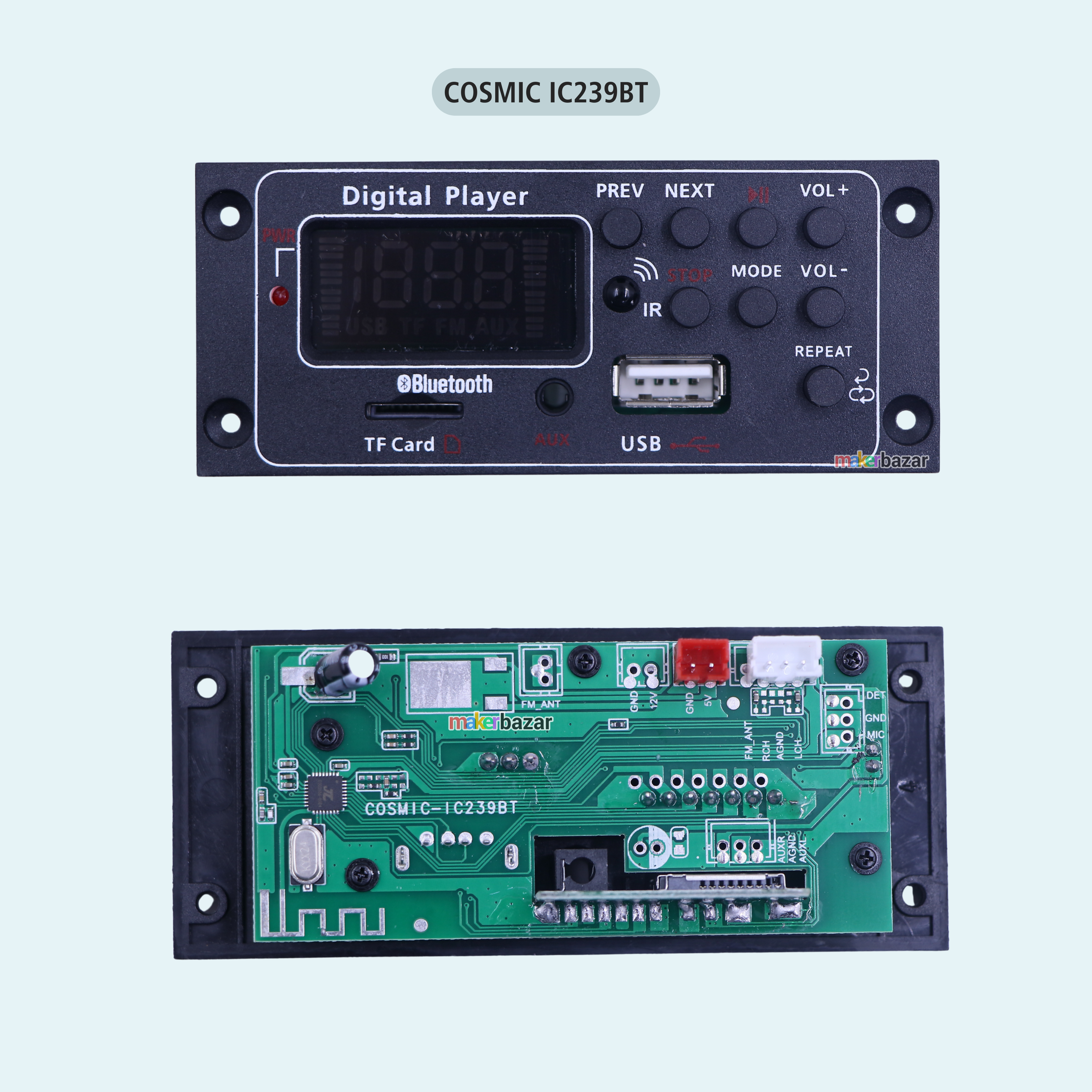

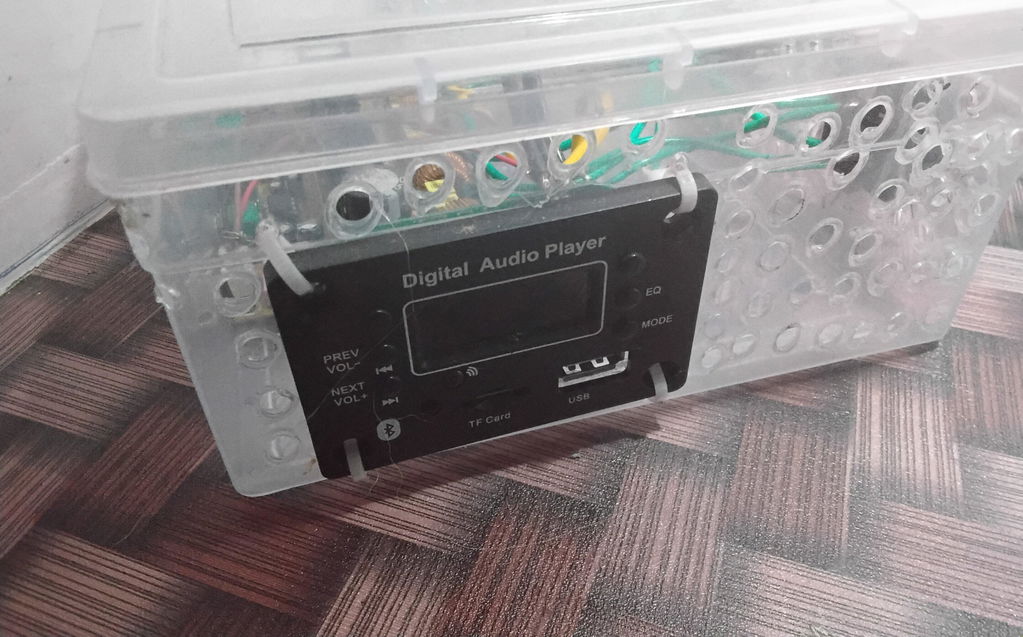

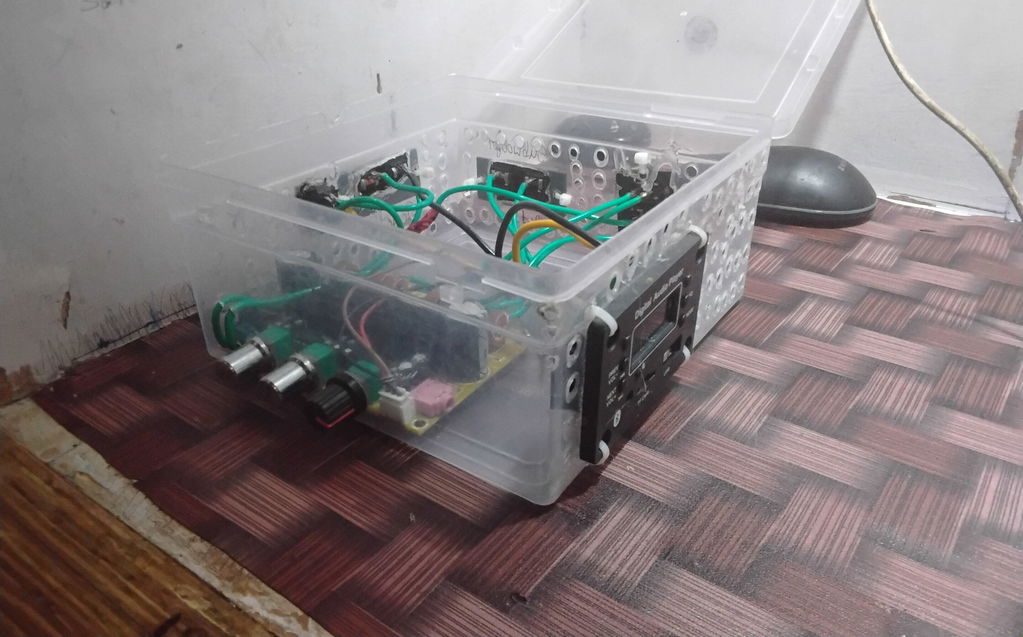

Bluetooth Audio Music Player Module with Display – MP Board / Stereo / Mono
The Bluetooth Audio Music Player Module with Display is a versatile DIY audio decoder board designed for custom speaker systems, home audio setups, and electronic audio projects. This module integrates multiple playback options including Bluetooth connectivity, FM radio, AUX input, and TF/SD card support, allowing seamless audio playback from various sources.
Available in MP3, Stereo, and Mono board configurations, the module is suitable for both compact audio systems and enhanced stereo sound setups. Select variants also include IR remote functionality and built-in amplifier support, giving users flexibility depending on their project requirements.
Equipped with a digital display, the module allows easy control and monitoring of playback modes, track information, and system status. The integrated TF decoder module and Hi-Fi audio design ensure clear and high-quality sound output for a variety of DIY audio applications.
Ideal for DIY speaker builds, custom music systems, home theater projects, and modified car audio systems, this audio player module offers a compact and feature-rich solution for modern audio playback.
Note: PCB layout, component placement, and board design may vary between batches. Please refer to product images before purchasing.
Key Features:
-
Multi-Source Audio Playback – Supports Bluetooth, FM radio, AUX input, and TF/SD card.
-
Digital Display Interface – Displays playback status, modes, and track information.
-

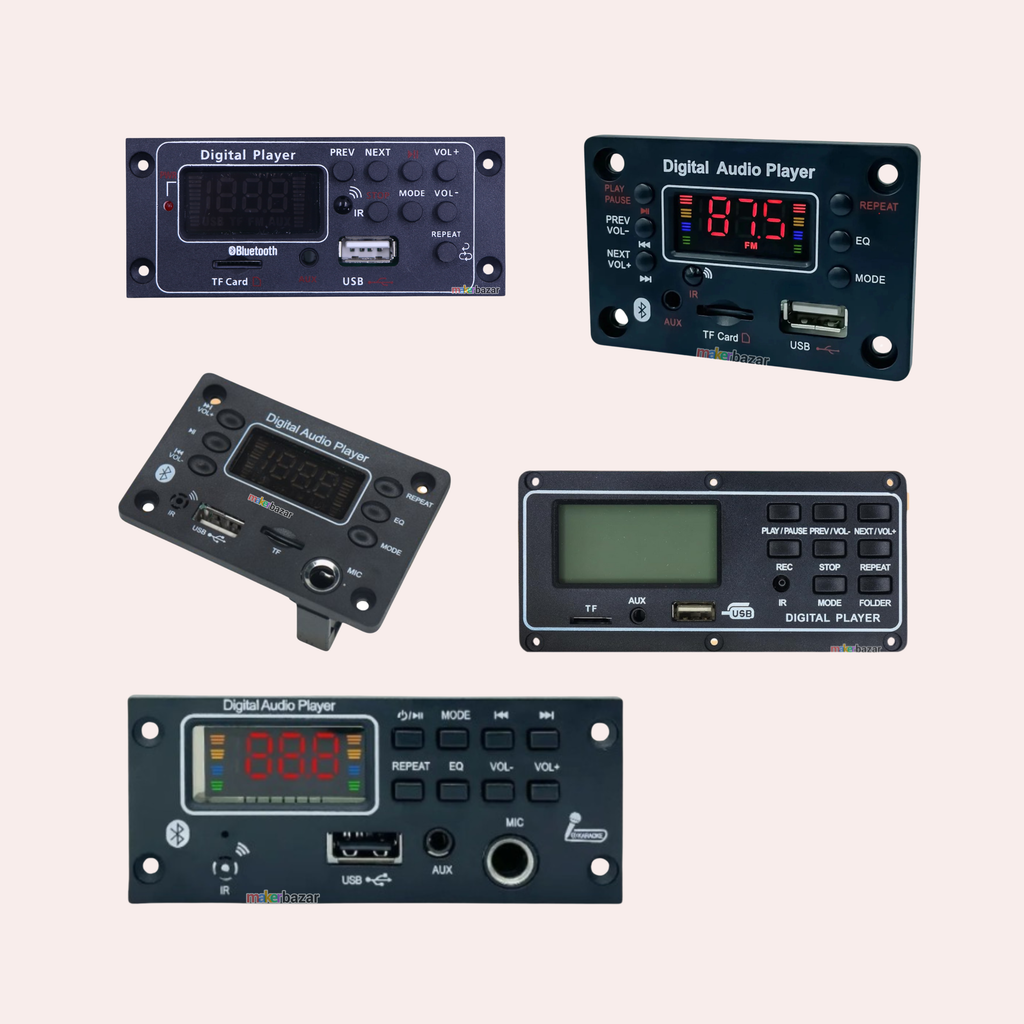

Multiple Board Configurations – Available in MP3 board, stereo board, and mono board versions.
-
Optional IR Remote Support – Select models support IR remote functionality.
-

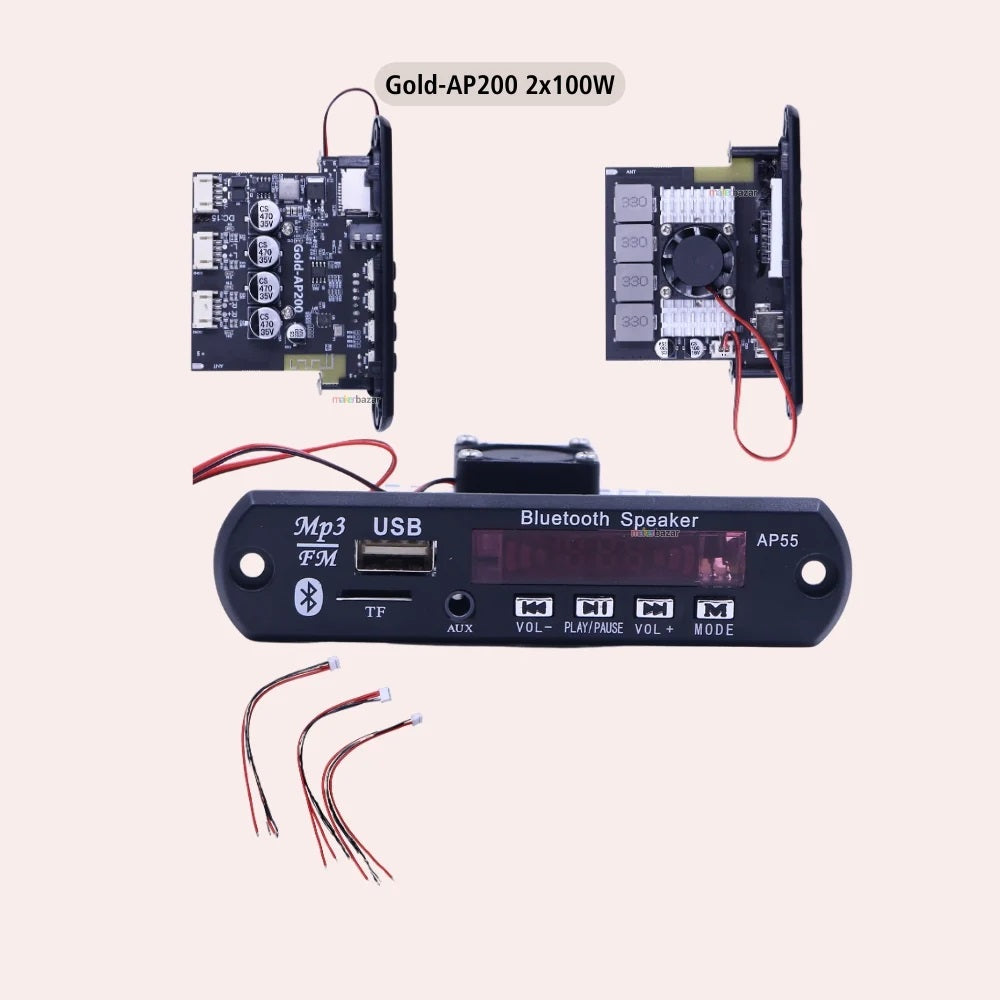

Built-in Amplifier (Select Versions) – Some variants include integrated audio amplifier.
-
TF Decoder Module – Enables direct music playback from TF or SD memory cards.
-
Hi-Fi Sound Output – Designed for clear and stable audio performance.
-
DIY Friendly Module – Ideal for custom audio electronics and speaker projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Bluetooth Audio Music Player Module |
| Board Types | MP3 Board, Stereo Board, Mono Board |
| Connectivity | Bluetooth, FM, AUX (Optional), TF/SD Card |
| Display | Digital LED Display |
| Remote Control | IR Support (Optional) |
| Amplifier | Available in select variants |
| Audio Decoder | TF Decoder Module |
| Audio Output | Mono / Stereo (Variant Dependent) |
| Supported Audio Formats | MP3 and other common formats |
| Application Type | DIY Audio Systems & Speaker Projects |
Applications
-
DIY Bluetooth Speaker Projects
-
Custom Home Audio Systems
-
Car Audio Modification Projects
-
Portable Music Player Systems
-
DIY Amplifier and Speaker Builds
-
Home Theater DIY Electronics
-
Audio Electronics Prototyping
Precautions
-
Verify the board configuration (Mono/Stereo/MP) before purchasing.
-
Check whether the board includes IR support or amplifier as variants may differ.
-
Ensure proper voltage supply and wiring during installation.
-
Avoid short circuits when connecting speakers or power supply.
-
Refer to product images for PCB layout and connector positions as they may vary.
