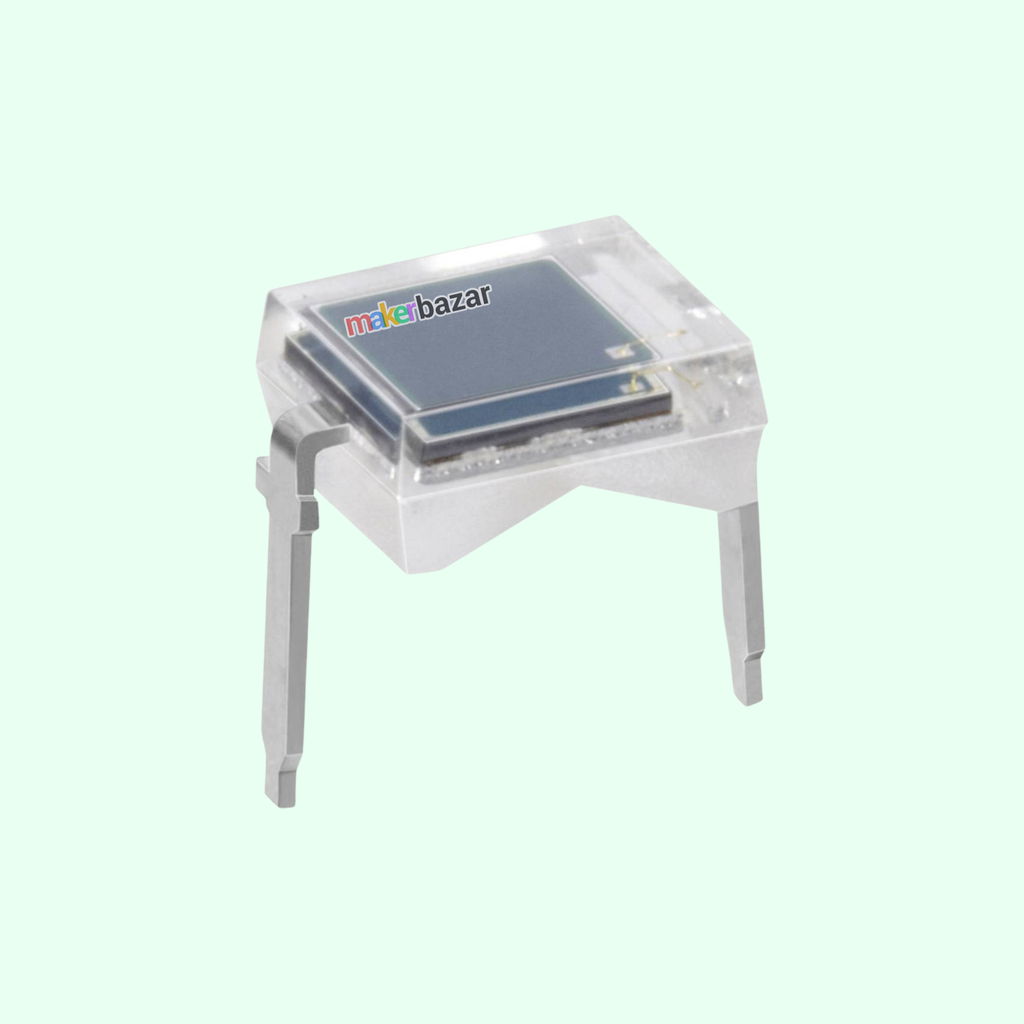

BPW34 High-Speed PIN Photodiode Sensor for Visible & Infrared Light Detection
The BPW34 PIN Photodiode is a high-speed, high-sensitivity silicon photodiode designed for precise detection of visible and near-infrared (NIR) light. Housed in a compact DIP-2 package, it offers excellent linearity, low dark current, and fast response time, making it ideal for optical sensing, light measurement, IR communication, and scientific instrumentation.
With a peak sensitivity at 900nm and a spectral response ranging from 430nm to 1100nm, the BPW34 is suitable for applications involving infrared emitters, optical switches, laser detection, ambient light sensing, and optical encoders. Its ±65° reception angle provides a wide field of view, while the low 2nA dark current ensures accurate light detection with minimal noise.
Manufactured by Semiconductors, the BPW34 is widely used in industrial automation, educational projects, robotics, medical devices, and embedded systems where reliable optical sensing is essential.
Note: Refer to the official datasheet for detailed electrical characteristics and application circuits.

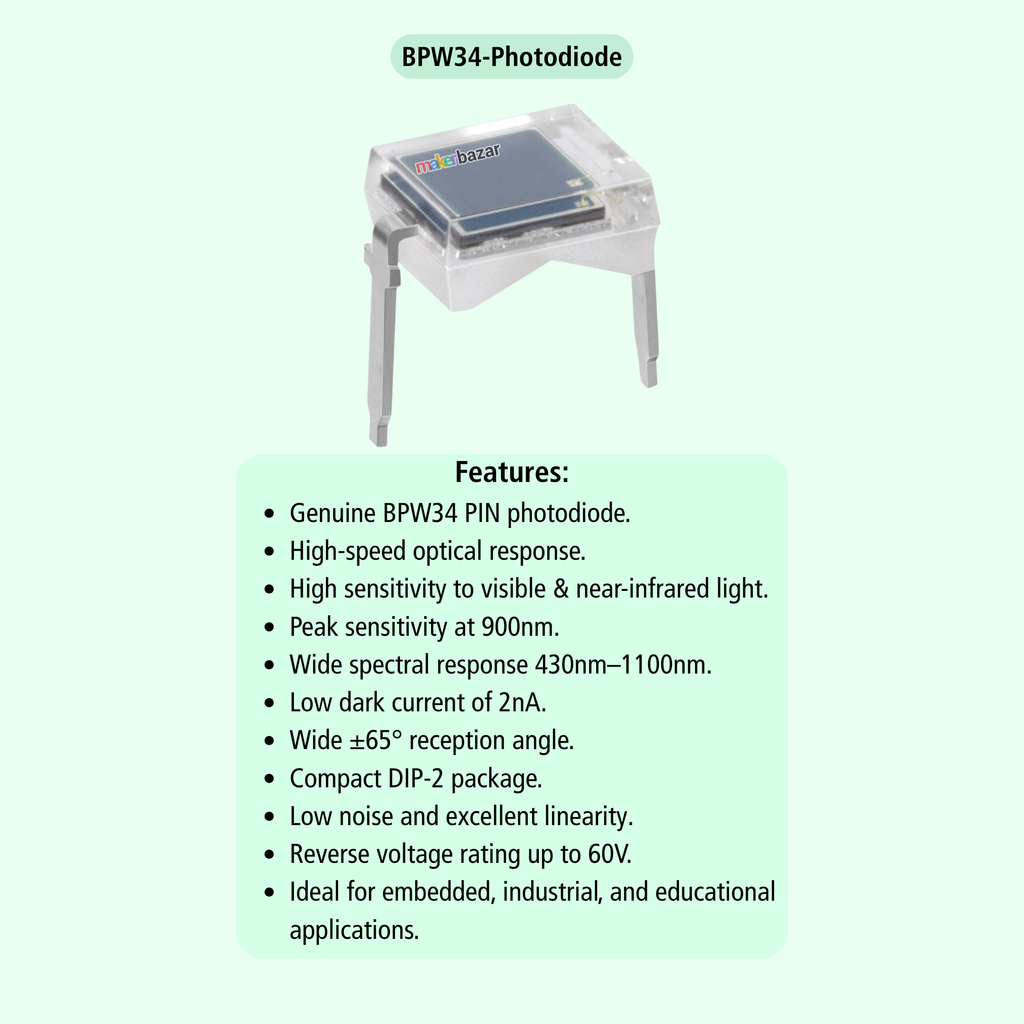

Key Features
- Genuine BPW34 PIN photodiode.
- High-speed optical response.
- High sensitivity to visible and near-infrared light.
- Peak sensitivity at 900nm.
- Wide spectral response 430nm–1100nm.
- Low dark current of 2nA.
- Wide ±65° reception angle.
- Compact DIP-2 package.
- Low noise and excellent linearity.
- Reverse voltage rating up to 60V.
- Suitable for analog and digital optical sensing.
- Reliable performance over a wide temperature range.
- Ideal for embedded, industrial, and educational applications.

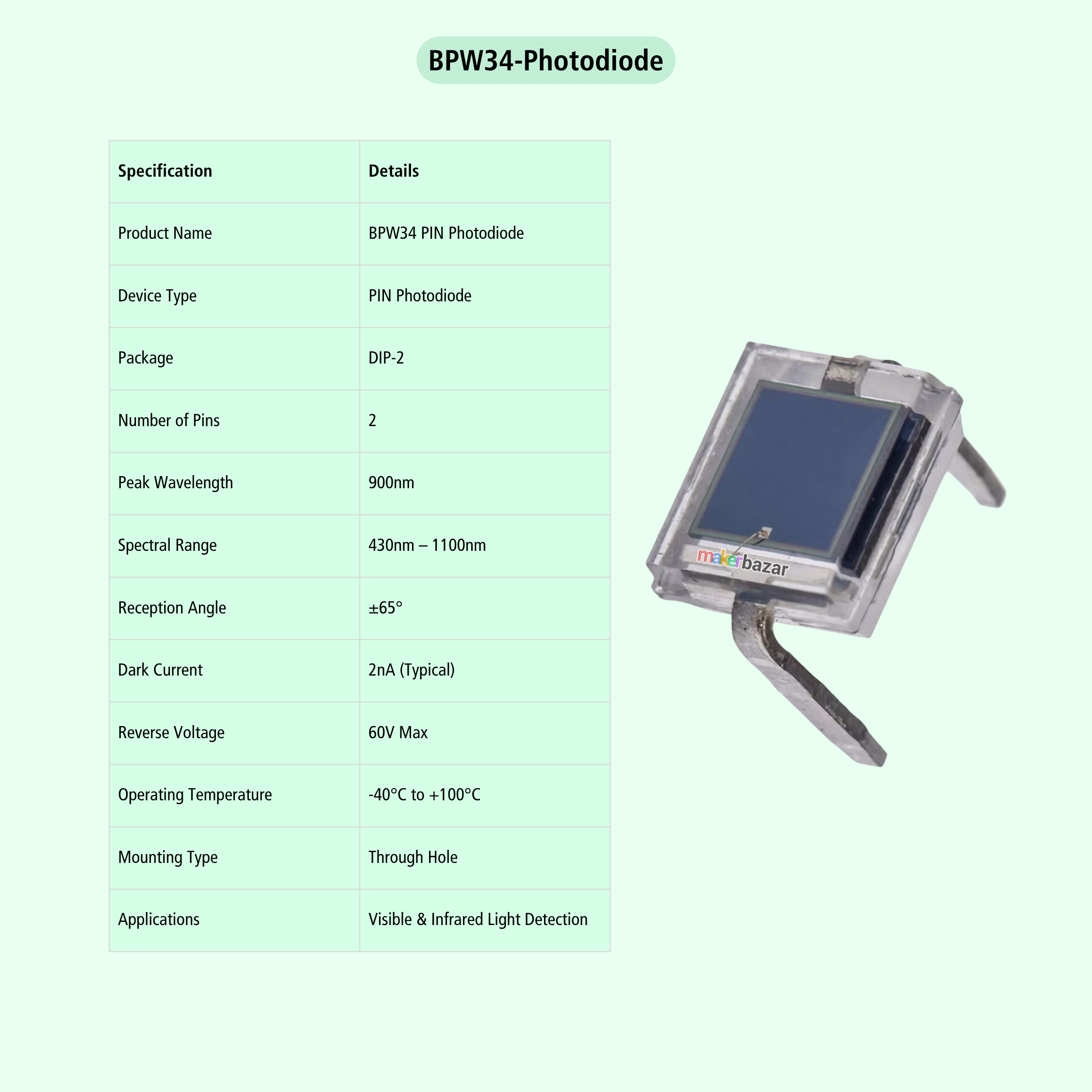

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BPW34 PIN Photodiode |
| Device Type | PIN Photodiode |
| Package | DIP-2 |
| Number of Pins | 2 |
| Peak Wavelength | 900nm |
| Spectral Range | 430nm – 1100nm |
| Reception Angle | ±65° |
| Dark Current | 2nA (Typical) |
| Reverse Voltage | 60V Max |
| Operating Temperature | -40°C to +100°C |
| Mounting Type | Through Hole |
| Applications | Visible & Infrared Light Detection |

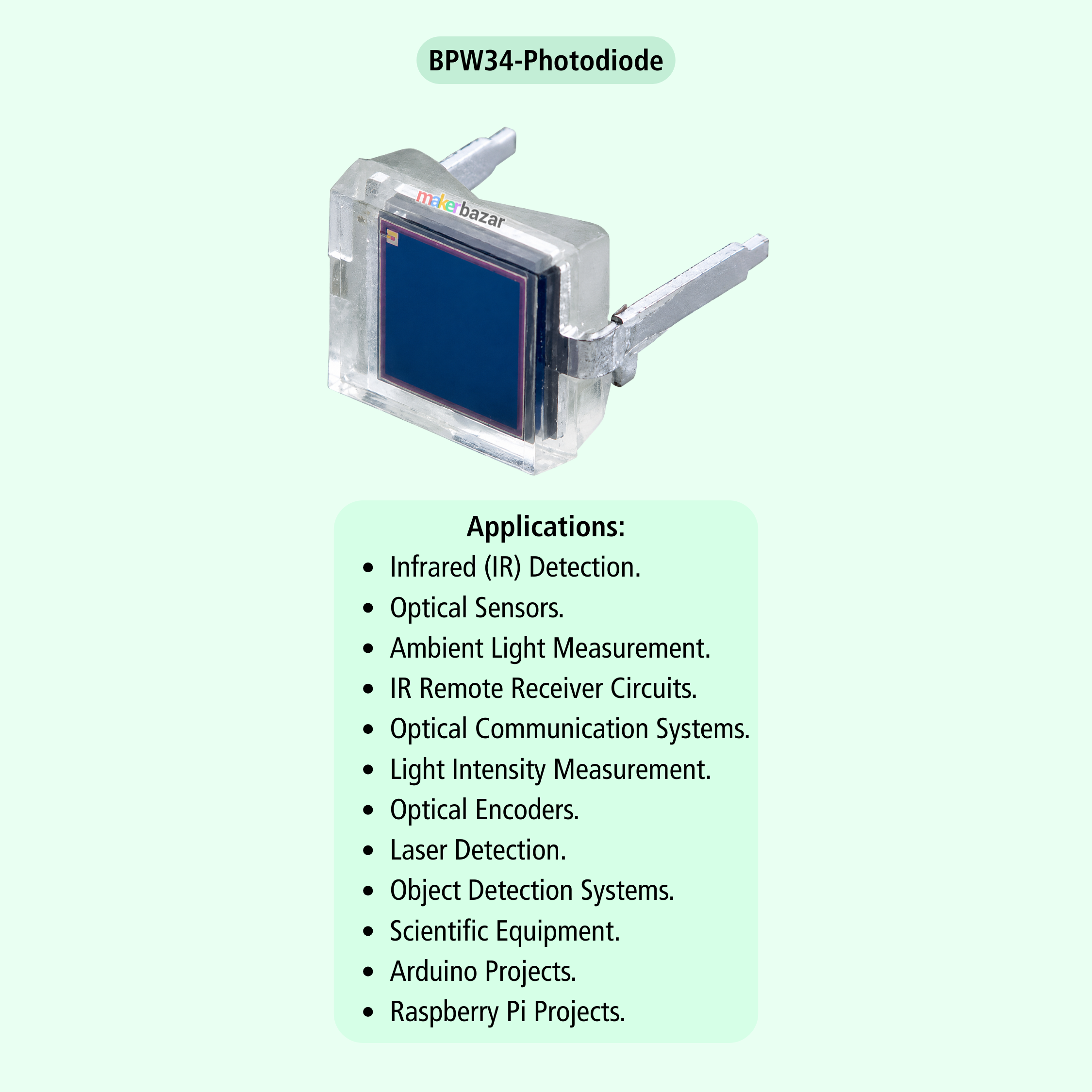

Applications
- Infrared (IR) Detection.
- Optical Sensors.
- Ambient Light Measurement.
- IR Remote Receiver Circuits.
- Optical Communication Systems.
- Light Intensity Measurement.
- Optical Encoders.
- Laser Detection.
- Object Detection Systems.
- Robotics.
- Industrial Automation.
- Medical Instruments.
- Scientific Equipment.
- Arduino Projects.
- Raspberry Pi Projects.
Precautions
- Observe the correct polarity during installation.
- Do not exceed the maximum reverse voltage of 60V.
- Protect the sensor window from scratches and dust.
- Avoid prolonged exposure to excessive humidity or corrosive environments.
- Handle using ESD-safe practices to prevent electrostatic damage.
- Store in anti-static packaging when not in use.
- Refer to the datasheet for recommended operating conditions.
- Avoid direct exposure to high-intensity laser sources beyond the device's rating.
