Description

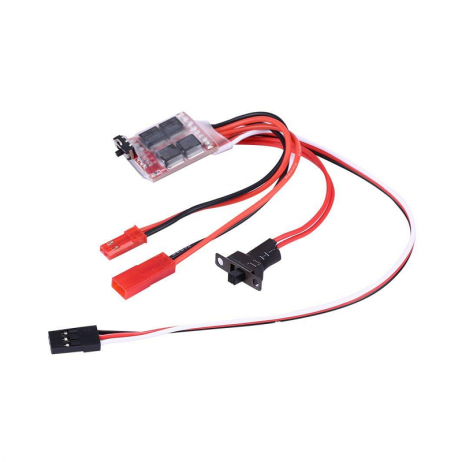

20A 3-9V Mini Brushed Electric Speed Controller ESC Brush Electronic Motor Speed Controller For RC Car
This 20A Brushed Electronic Speed Controller is a small-sized ESC that can supply a current up to 20A by using a 2S lipo battery as an input. The ESC accepts a standard RC signal as input and offers functions such as forward, reverse, and breaking. This ESC has high-quality silicone cables for the battery input and the motor output.
Features:
- Continuous Current :20A
- Battery Input: 2S Lipo
- Can be used with 130/180/260/380 brushed motor
- Three Functions: Forward/Reverse/Breaking
Specifications:
| Operating Voltage (VDC) |
3 ~ 9 |
| Constant Current |
20A |
| Maximum Current |
25A |
| Battery Input |
Li-Po 2S |
| Driver Frequency |
2KHz |
| Length (mm) |
35 |
| Width (mm) |
22 |
| Height (mm) |
6 |
| Weight (gm) |
13 |
Package Includes:
1 x Brushless Motor Speed Controller ESC 20A
