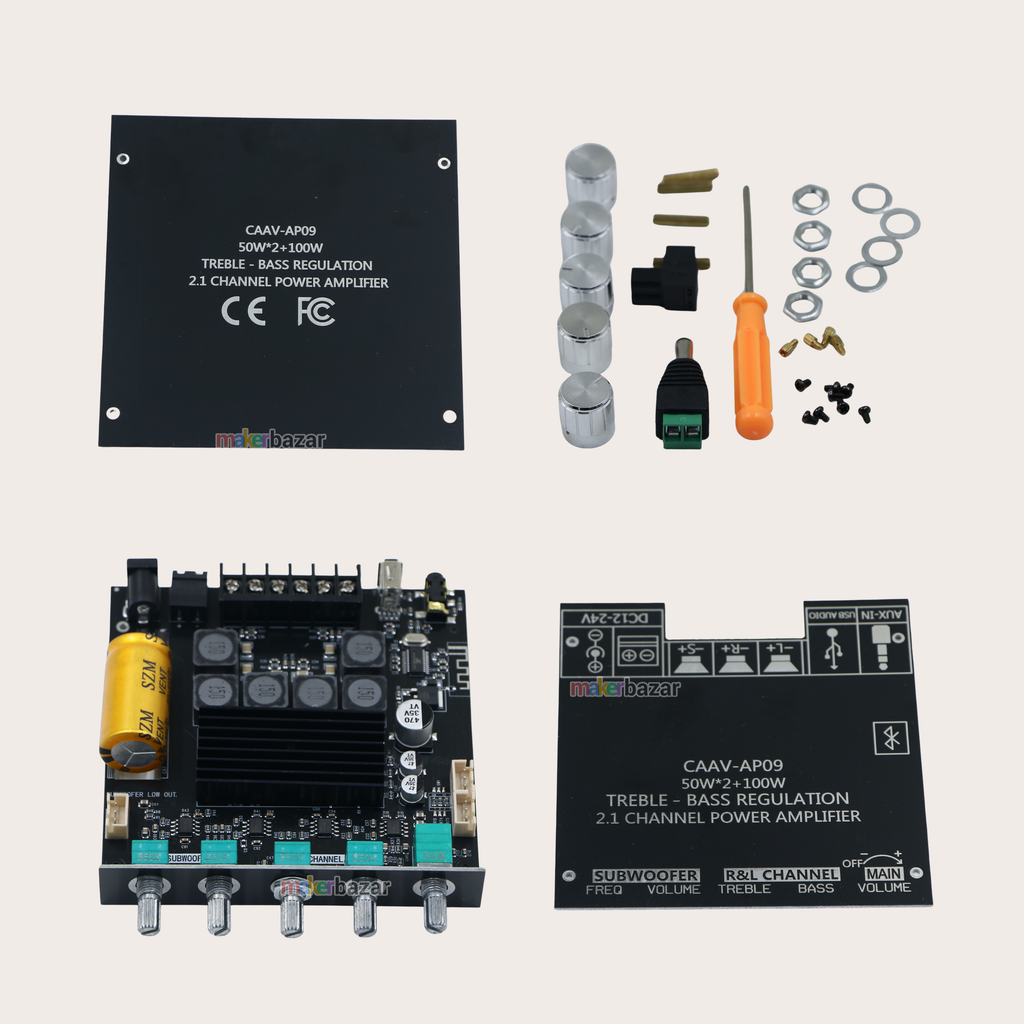

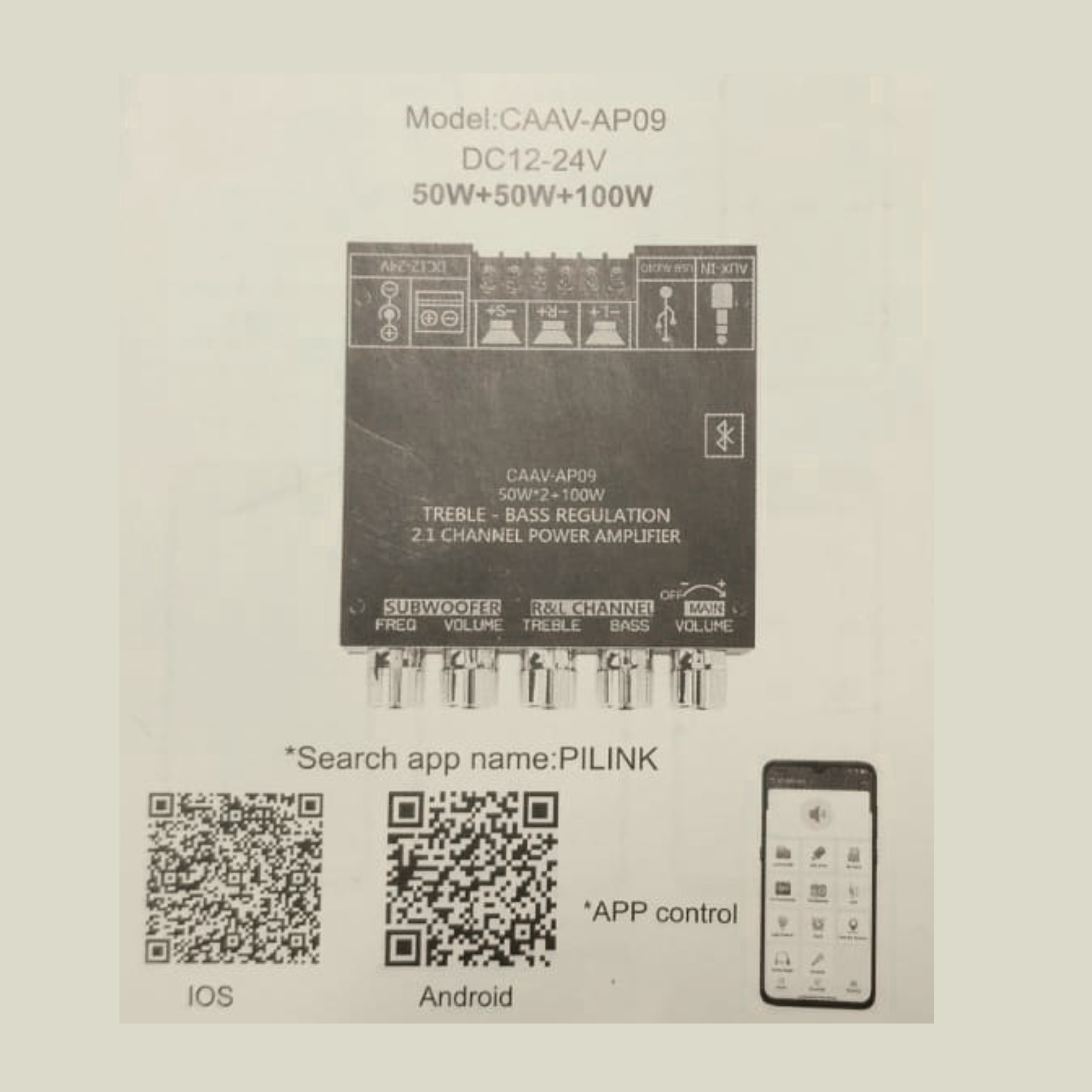

CAAV-AP09 Bluetooth 5.1 Audio Amplifier Board – Powerful 2.1 Channel Stereo & Subwoofer Amplifier
The CAAV-AP09 2.1 Channel Bluetooth Audio Amplifier Board is a high-performance digital amplifier module designed for powerful and clear audio output. Powered by the TPA3116 amplifier IC, this board delivers up to 2x50W stereo output plus 100W subwoofer output, making it ideal for DIY speaker systems, home audio setups, and multimedia applications.
Featuring Bluetooth 5.1, AUX input, and USB playback support, the amplifier offers flexible connectivity for smartphones, PCs, TVs, and music players. The board supports a wide voltage range from DC 12V to 24V, ensuring compatibility with various power sources.
Built-in protection mechanisms including reverse polarity protection, overheating protection, overcurrent protection, and short-circuit protection ensure safe and stable operation.
Perfect for DIY enthusiasts, audio projects, and custom speaker systems, the CAAV-AP09 provides impressive sound quality with efficient Class-D amplification technology.

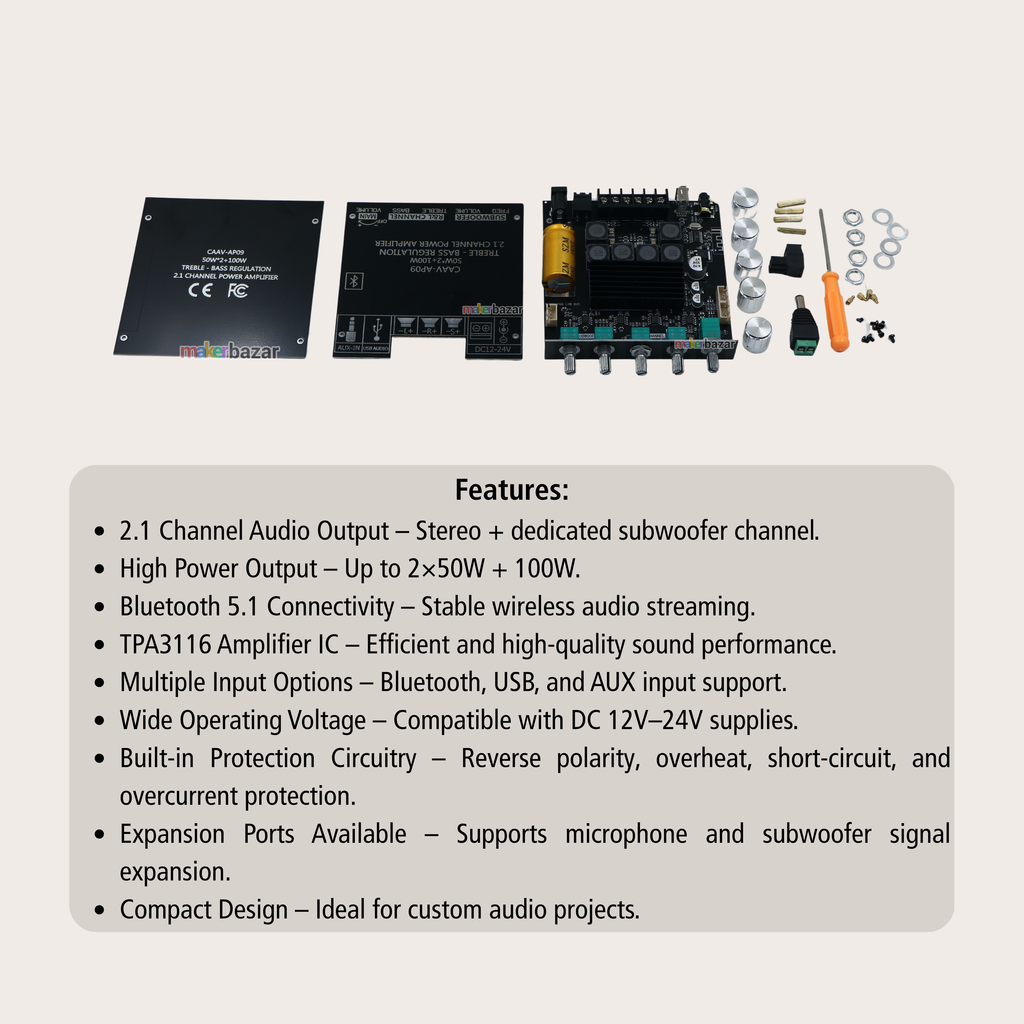

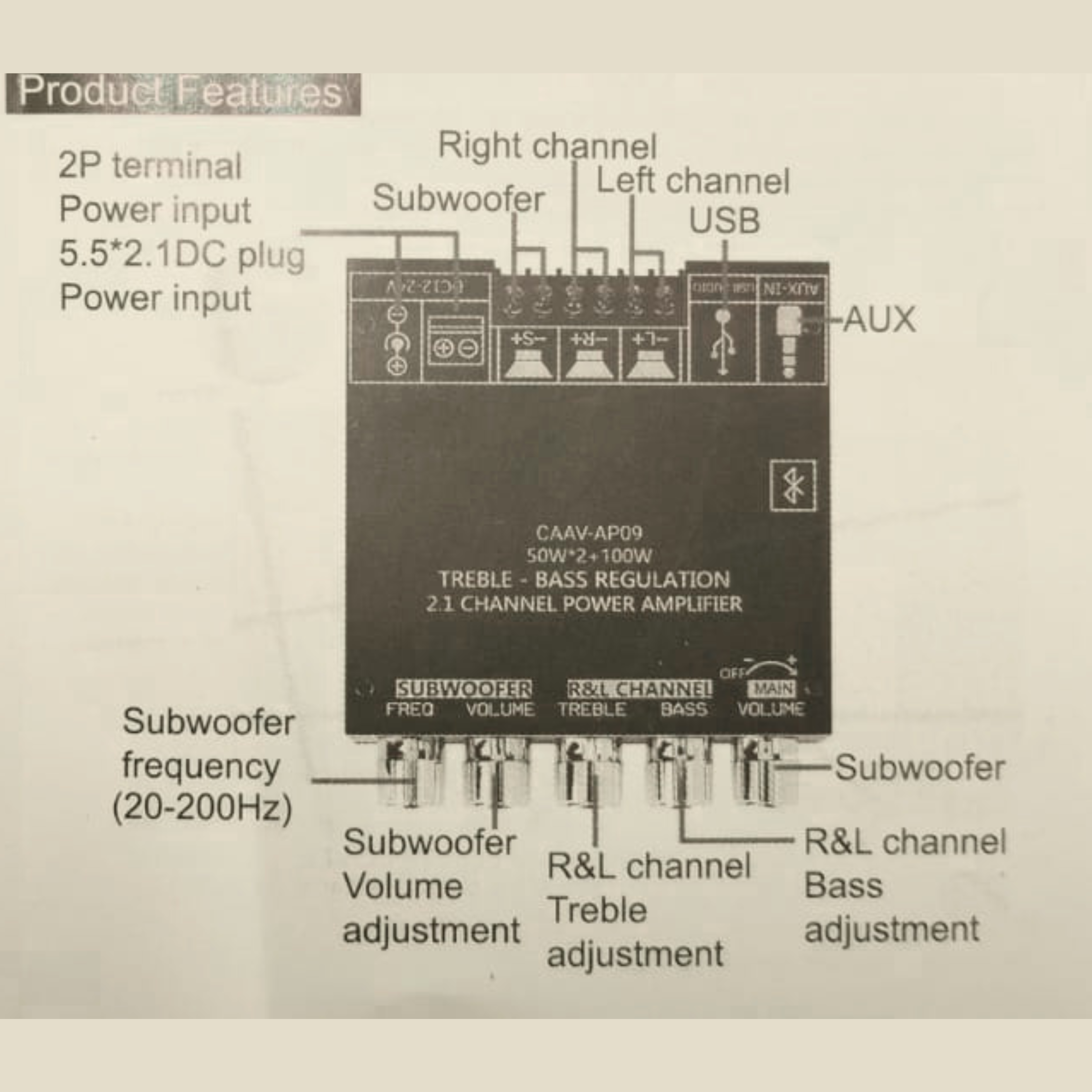

Key Features
- 2.1 Channel Audio Output – Stereo + dedicated subwoofer channel.
- High Power Output – Up to 2×50W + 100W.
- Bluetooth 5.1 Connectivity – Stable wireless audio streaming.
- TPA3116 Amplifier IC – Efficient and high-quality sound performance.
- Multiple Input Options – Bluetooth, USB, and AUX input support.
- Wide Operating Voltage – Compatible with DC 12V–24V supplies.
- Built-in Protection Circuitry – Reverse polarity, overheat, short-circuit, and overcurrent protection.

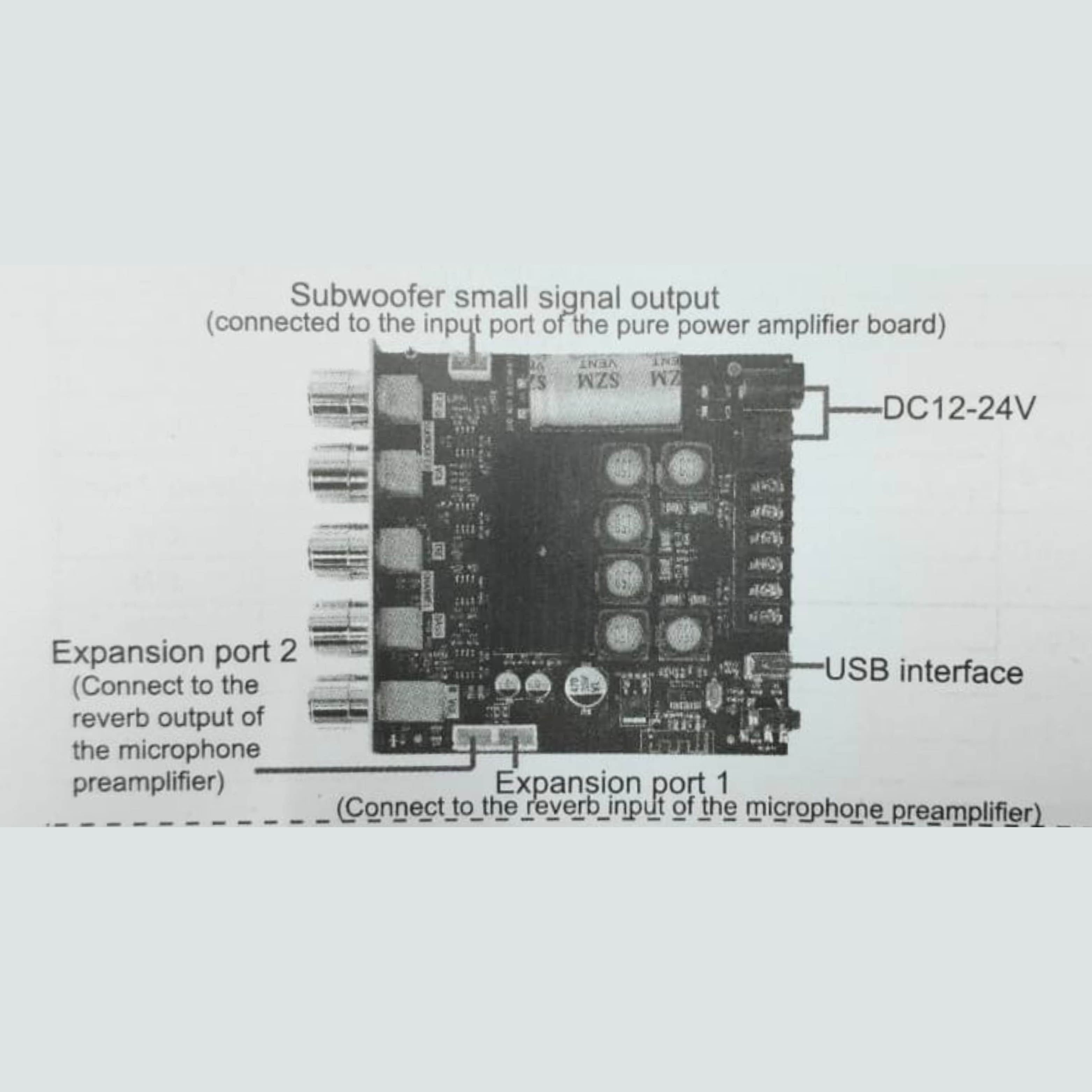

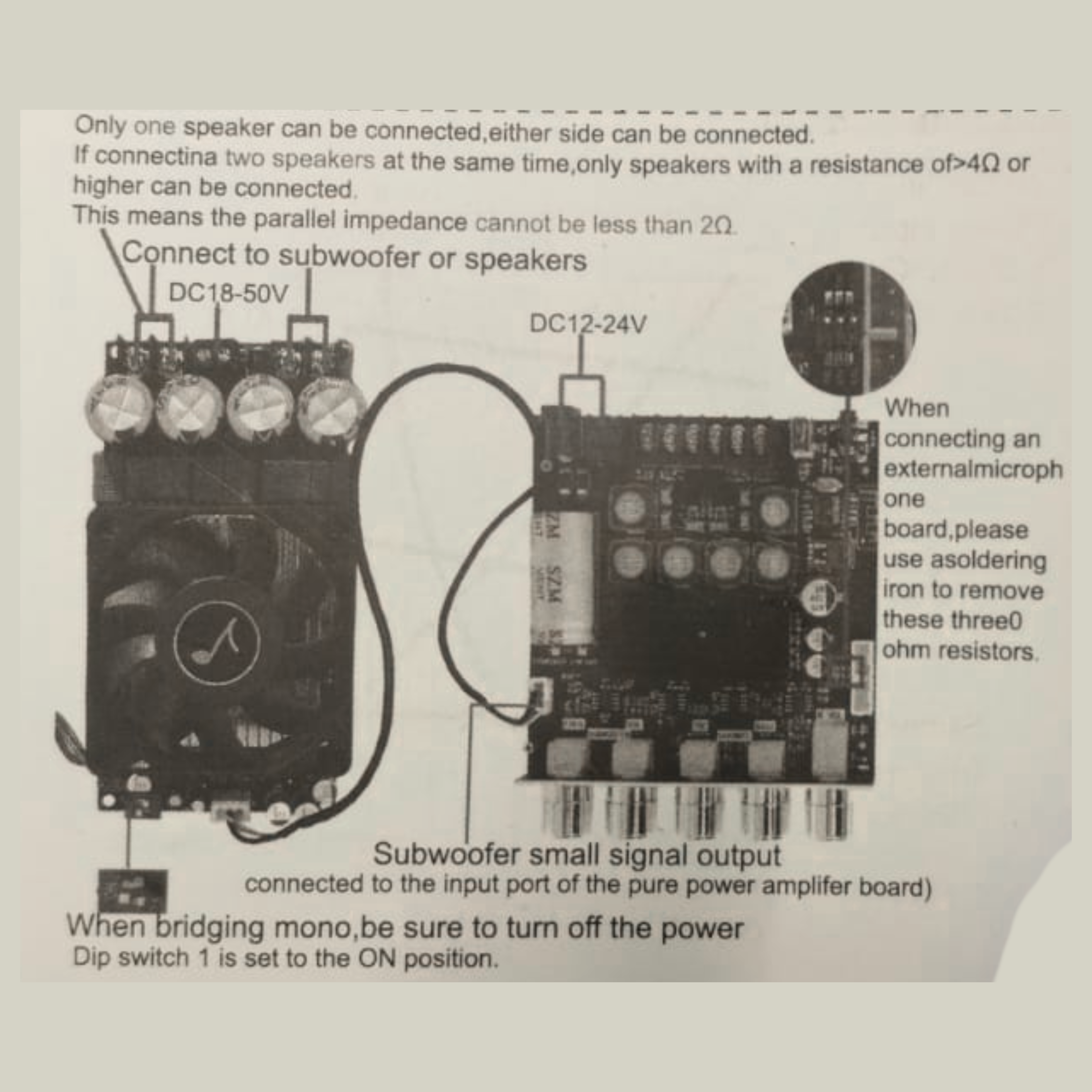

- Expansion Ports Available – Supports microphone and subwoofer signal expansion.
- Compact Design – Ideal for custom audio projects.

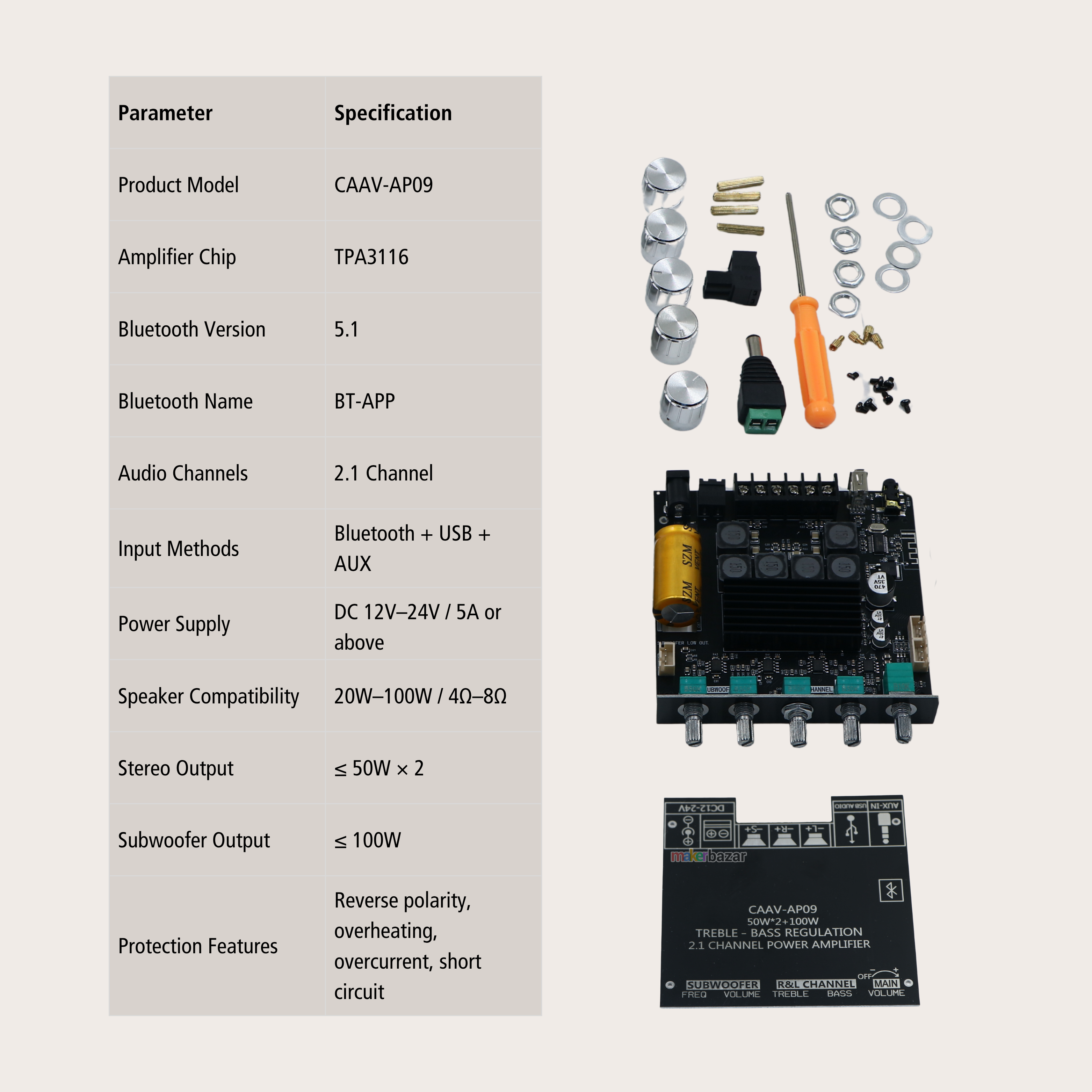

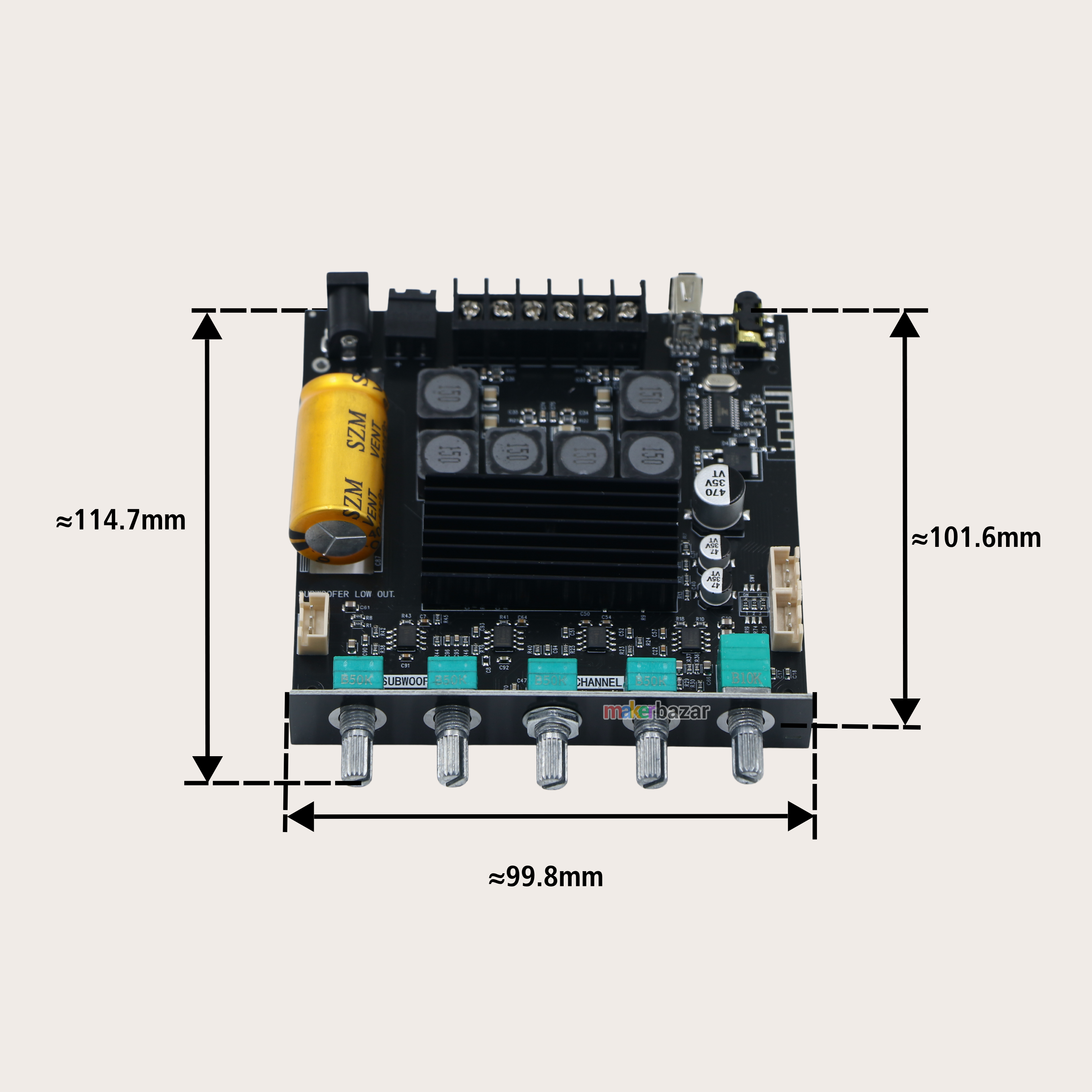

Technical Specifications

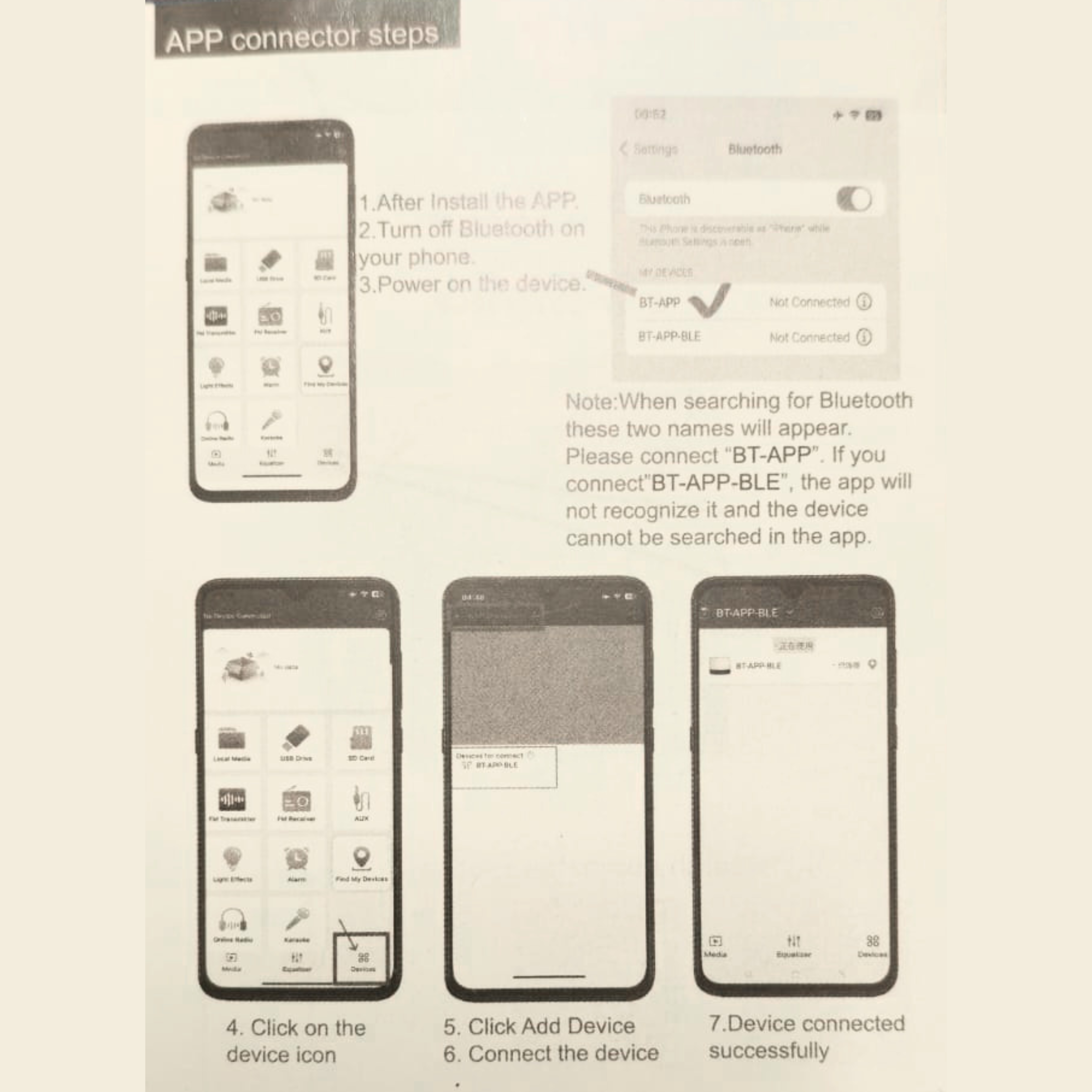

| Parameter | Specification |
|---|---|
| Product Model | CAAV-AP09 |
| Amplifier Chip | TPA3116 |
| Bluetooth Version | 5.1 |
| Bluetooth Name | BT-APP |
| Audio Channels | 2.1 Channel |
| Input Methods | Bluetooth + USB + AUX |
| Power Supply | DC 12V–24V / 5A or above |
| Speaker Compatibility | 20W–100W / 4Ω–8Ω |
| Stereo Output | ≤ 50W × 2 |
| Subwoofer Output | ≤ 100W |
| Protection Features | Reverse polarity, overheating, overcurrent, short circuit |
Power Output Table
| Input Voltage | Speaker Impedance | Stereo Output | Subwoofer Output |
|---|---|---|---|
| 12V | 8Ω | 15W | 20W |
| 12V | 4Ω | 30W | 35W |
| 19V | 8Ω | 20W | 35W |
| 19V | 4Ω | 40W | 60W |
| 24V | 8Ω | 30W | 50W |
| 24V | 4Ω | 50W | 100W |

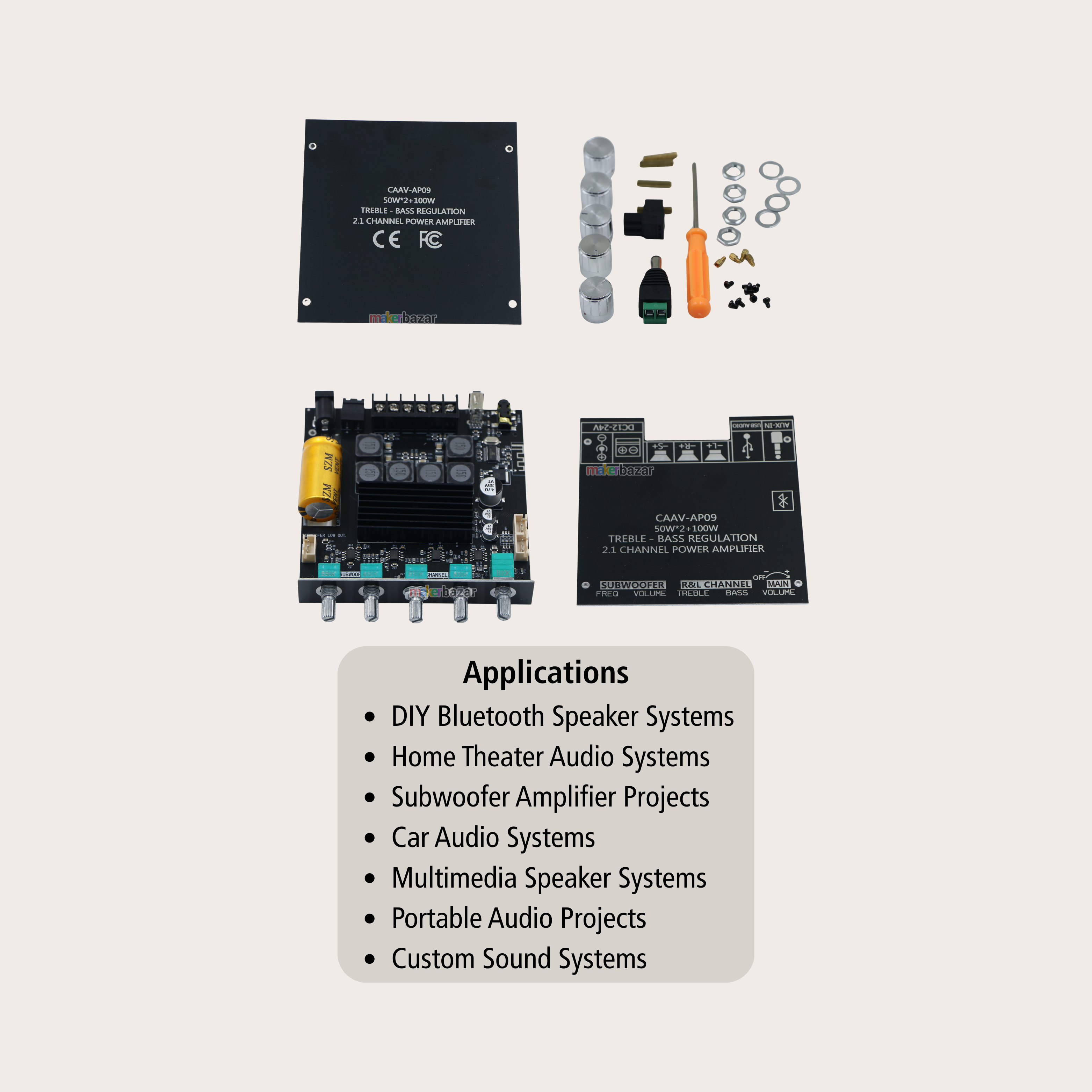

Applications
- DIY Bluetooth Speaker Systems
- Home Theatre Audio Systems
- Subwoofer Amplifier Projects
- Car Audio Systems
- Multimedia Speaker Systems
- Portable Audio Projects
- Custom Sound Systems
Precautions
- Use a DC 12V–24V regulated power supply.
- Ensure correct speaker impedance before connection.
- Avoid short-circuiting speaker outputs.
- Provide proper ventilation for heat dissipation.
- Do not exceed recommended voltage limits.
Note: This module may or may not include the original TPA3116D2 IC chip. We sell it as we received it from the vendors, make your buying decision accordingly.
You may also like
Recently viewed
good product I am ordered Ap09 but I received Tb 21
this board is new tb 21 with original IC
2 board difference is ap 09 has a low sub output & Mic in output. but Tb 21 have not.
but I start the board on a 12 v 2 amp small charger sounds very good. it's 30 to40 % It's required a 24 volt 5 amp minimum to full potential .
l ordered a SMPS when is delivered to me then i take its full potential

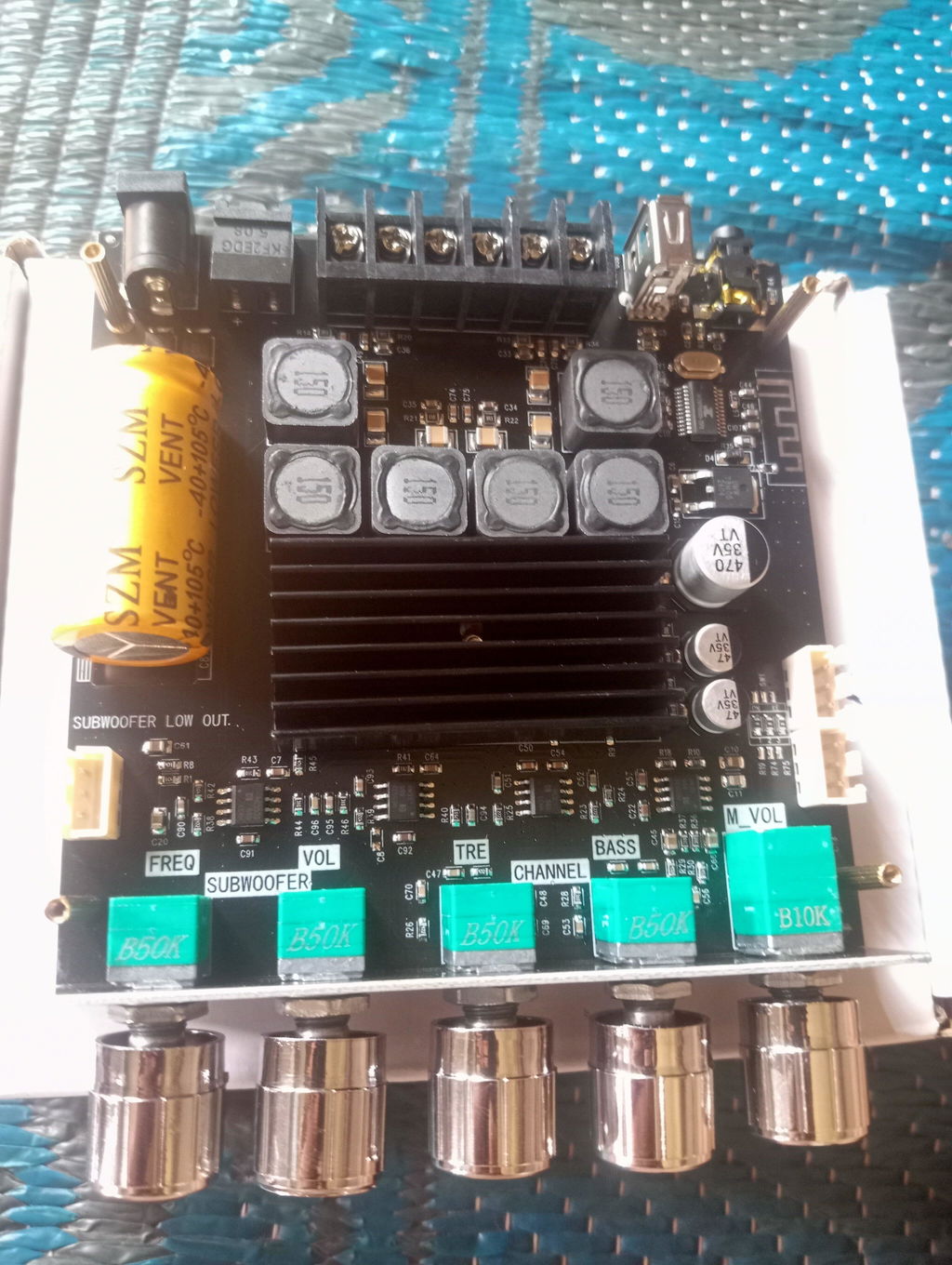

I am attaching 2 pictures Tb21 and Ap 09 .
I think Ap 09 is Stop manufacturing .
How I know it's Tb 21 ?
It's very simple Bluetooth name is Tb 21
This is a original board , very clear and deep bass , I use 12v 1.5amp but sound like a 3-4k sound bar . Build quality aslo topnotch,
Same board on other platforms just dubble the price,
You trust this website, the packaging was very good, not a single scratch on the box , I am very happy with this amplifier,

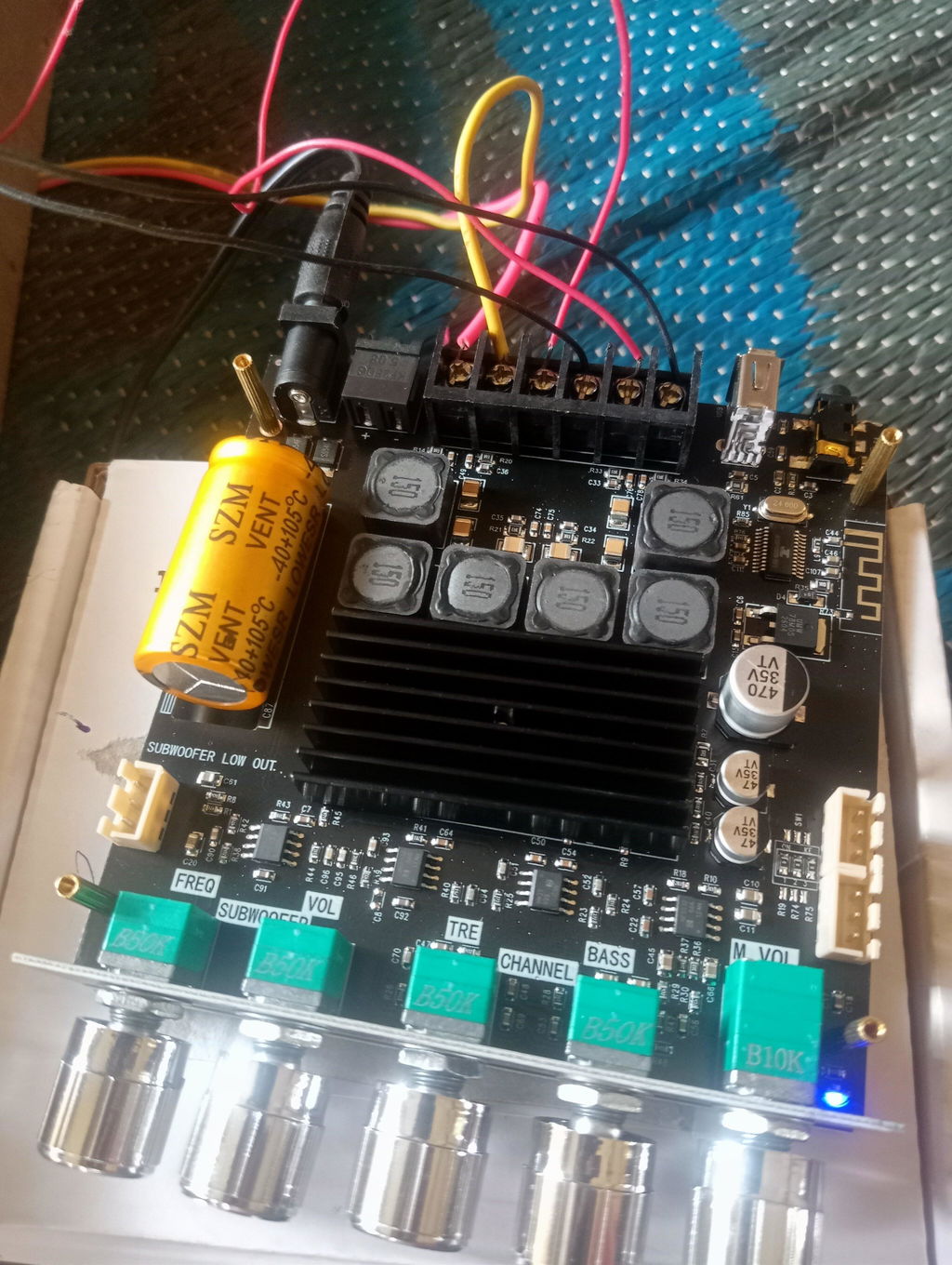

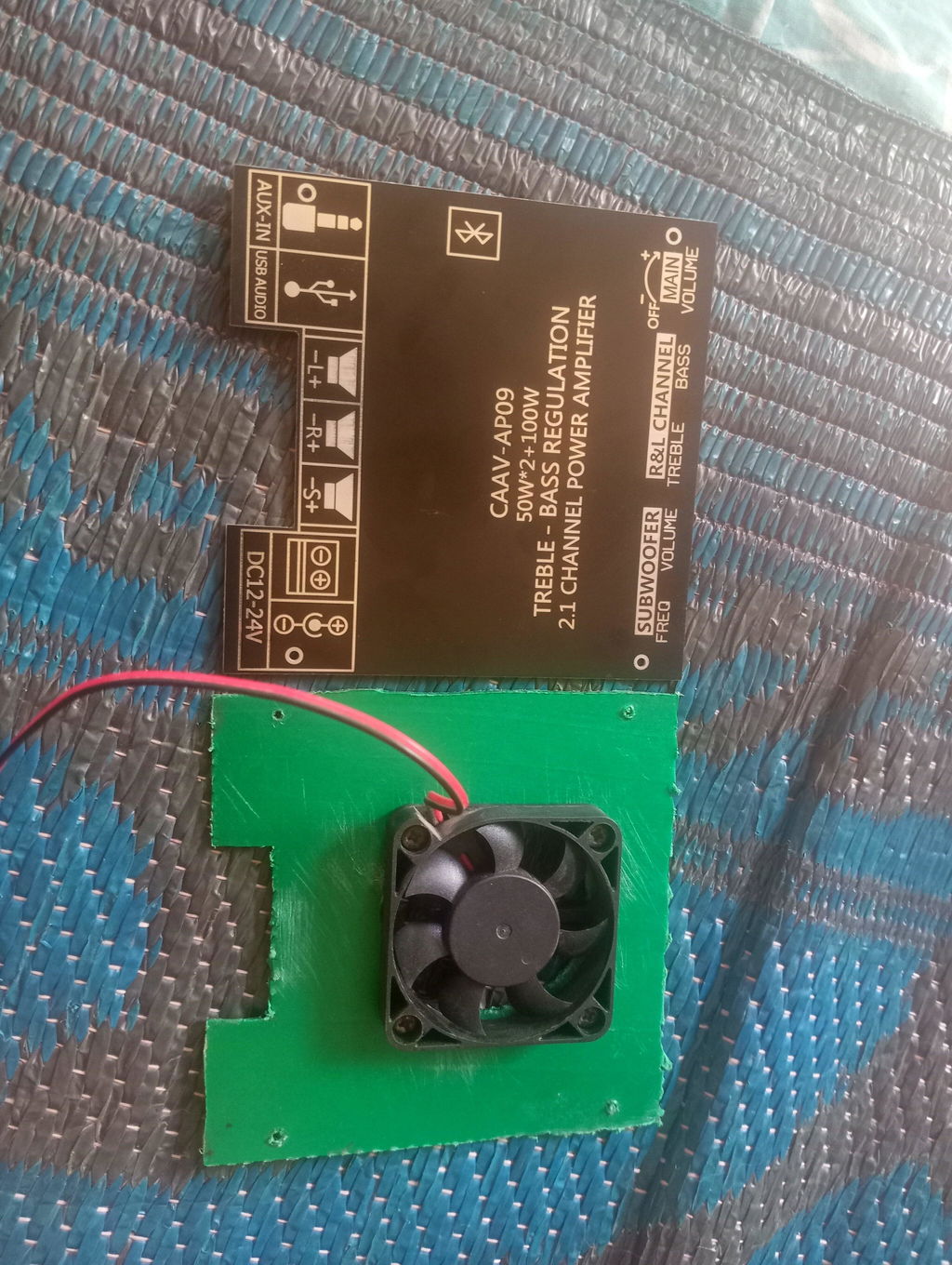

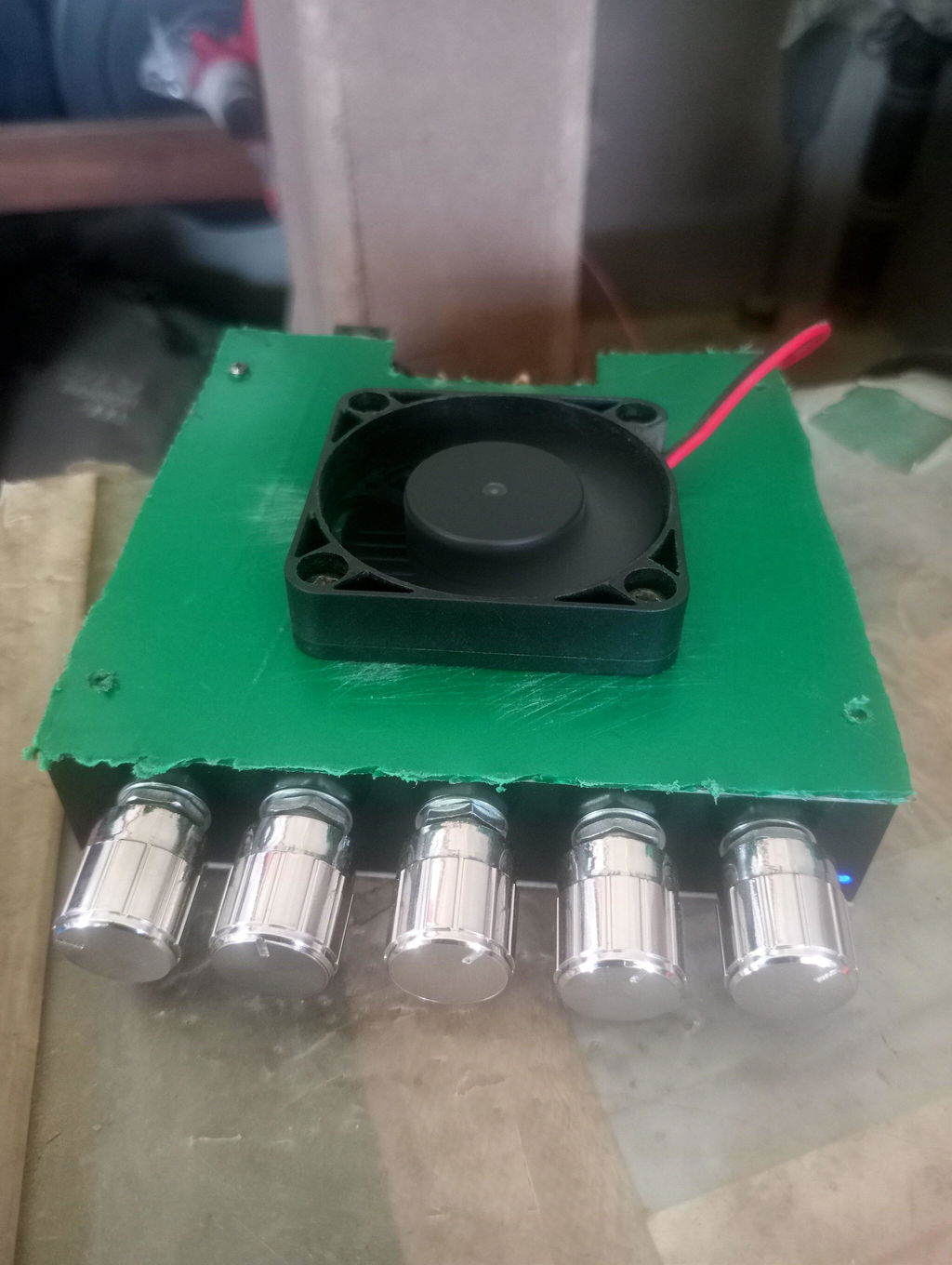

If you play heavy bass for long time, the heatsink get hot according to your atmosphere, but don't panic, you just install a little fan on it , then you can use it very roughly without any tensions, just go for it .
