Description
CAAV-AP09 Bluetooth 5.1 Audio Amplifier Board – Powerful 2.1 Channel Stereo & Subwoofer Amplifier
The CAAV-AP09 2.1 Channel Bluetooth Audio Amplifier Board is a high-performance digital amplifier module designed for powerful and clear audio output. Powered by the reliable TPA3116 amplifier IC, this board delivers up to 2x50W stereo output plus 100W subwoofer output, making it ideal for DIY speaker systems, home audio setups, and multimedia applications.
Featuring Bluetooth 5.1, AUX input, and USB playback support, the amplifier offers flexible connectivity for smartphones, PCs, TVs, and music players. The board supports a wide voltage range from DC 12V to 24V, ensuring compatibility with various power sources.
Built-in protection mechanisms including reverse polarity protection, overheating protection, overcurrent protection, and short-circuit protection ensure safe and stable operation.
Perfect for DIY enthusiasts, audio projects, and custom speaker systems, the CAAV-AP09 provides impressive sound quality with efficient Class-D amplification technology.
Key Features
- 2.1 Channel Audio Output – Stereo + dedicated subwoofer channel.
- High Power Output – Up to 2×50W + 100W.
- Bluetooth 5.1 Connectivity – Stable wireless audio streaming.
- TPA3116 Amplifier IC – Efficient and high-quality sound performance.
- Multiple Input Options – Bluetooth, USB, and AUX input support.
- Wide Operating Voltage – Compatible with DC 12V–24V supplies.
- Built-in Protection Circuitry – Reverse polarity, overheat, short-circuit, and overcurrent protection.
- Expansion Ports Available – Supports microphone and subwoofer signal expansion.
- Compact Design – Ideal for custom audio projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CAAV-AP09 |
| Amplifier Chip | TPA3116 |
| Bluetooth Version | 5.1 |
| Bluetooth Name | BT-APP |
| Audio Channels | 2.1 Channel |
| Input Methods | Bluetooth + USB + AUX |
| Power Supply | DC 12V–24V / 5A or above |
| Speaker Compatibility | 20W–100W / 4Ω–8Ω |
| Stereo Output | ≤ 50W × 2 |
| Subwoofer Output | ≤ 100W |
| Protection Features | Reverse polarity, overheating, overcurrent, short circuit |
Power Output Table
| Input Voltage | Speaker Impedance | Stereo Output | Subwoofer Output |
|---|---|---|---|
| 12V | 8Ω | 15W | 20W |
| 12V | 4Ω | 30W | 35W |
| 19V | 8Ω | 20W | 35W |
| 19V | 4Ω | 40W | 60W |
| 24V | 8Ω | 30W | 50W |
| 24V | 4Ω | 50W | 100W |
Applications
- DIY Bluetooth Speaker Systems
- Home Theater Audio Systems
- Subwoofer Amplifier Projects
- Car Audio Systems
- Multimedia Speaker Systems
- Portable Audio Projects
- Custom Sound Systems
Precautions
- Use a DC 12V–24V regulated power supply.
- Ensure correct speaker impedance before connection.
- Avoid short-circuiting speaker outputs.
- Provide proper ventilation for heat dissipation.
- Do not exceed recommended voltage limits.
You may also like
Recently viewed
I have both the **TB21 and this amplifier**, and honestly, I don't notice any significant difference between them in terms of sound quality. The **bass and treble controls work really well** and give you good control over the sound. Another advantage is that you don't need to attach a separate bass/treble tone-control board.
For the power supply, I recommend using a **24V 10A power supply** with this amplifier. I would recommend **at least 6A**, especially if you plan to run the amplifier at higher volumes.

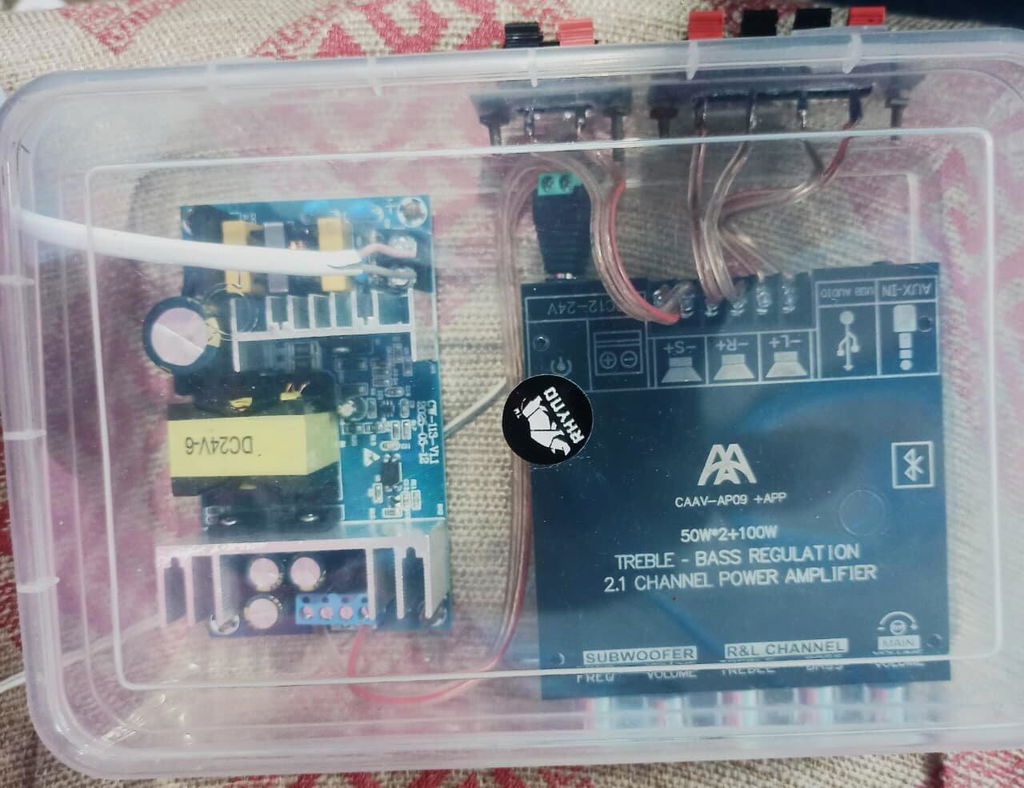

I'm currently using it with **two 50W speakers and one 80W subwoofer**, all rated at **4 ohms**, and the performance has been excellent.
