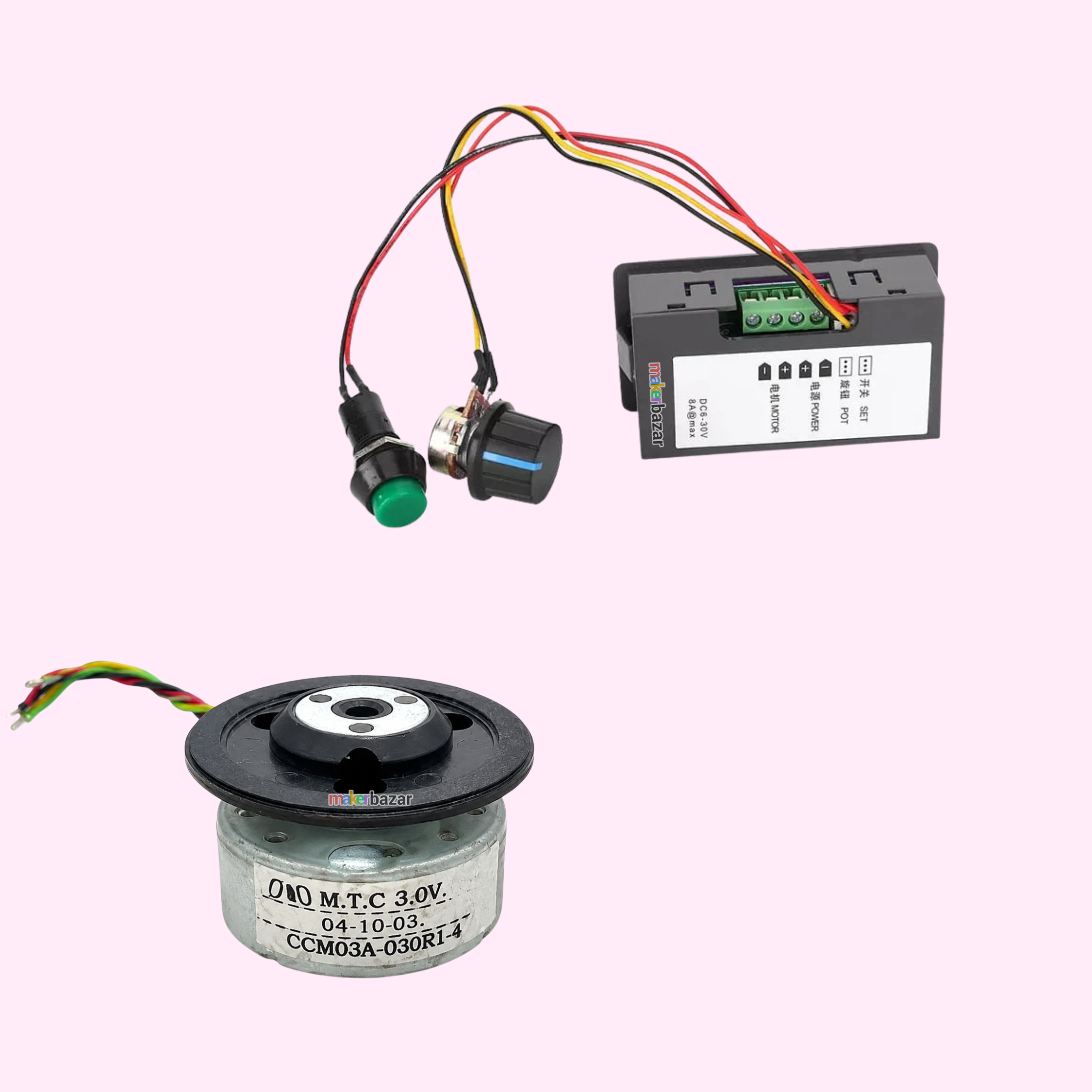

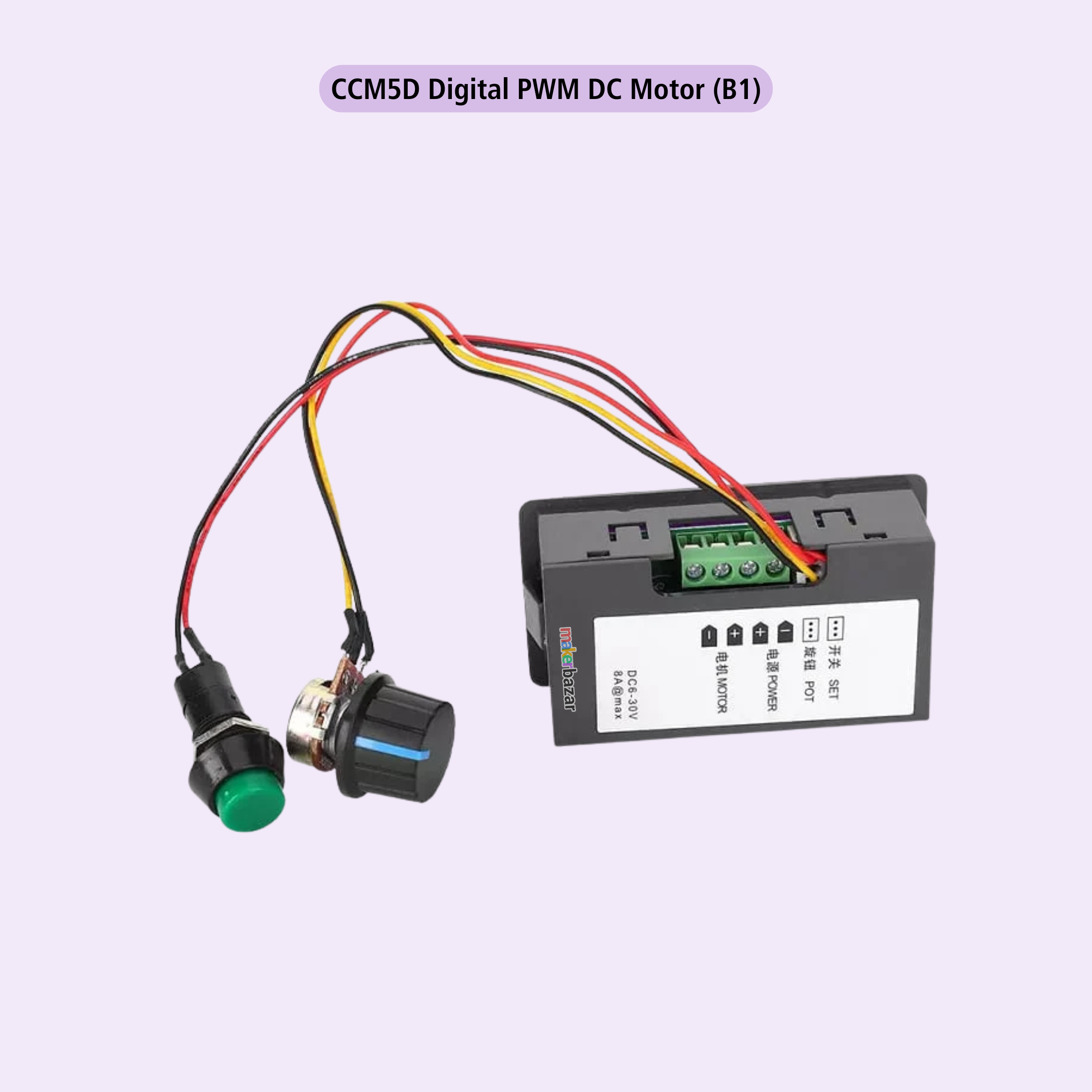

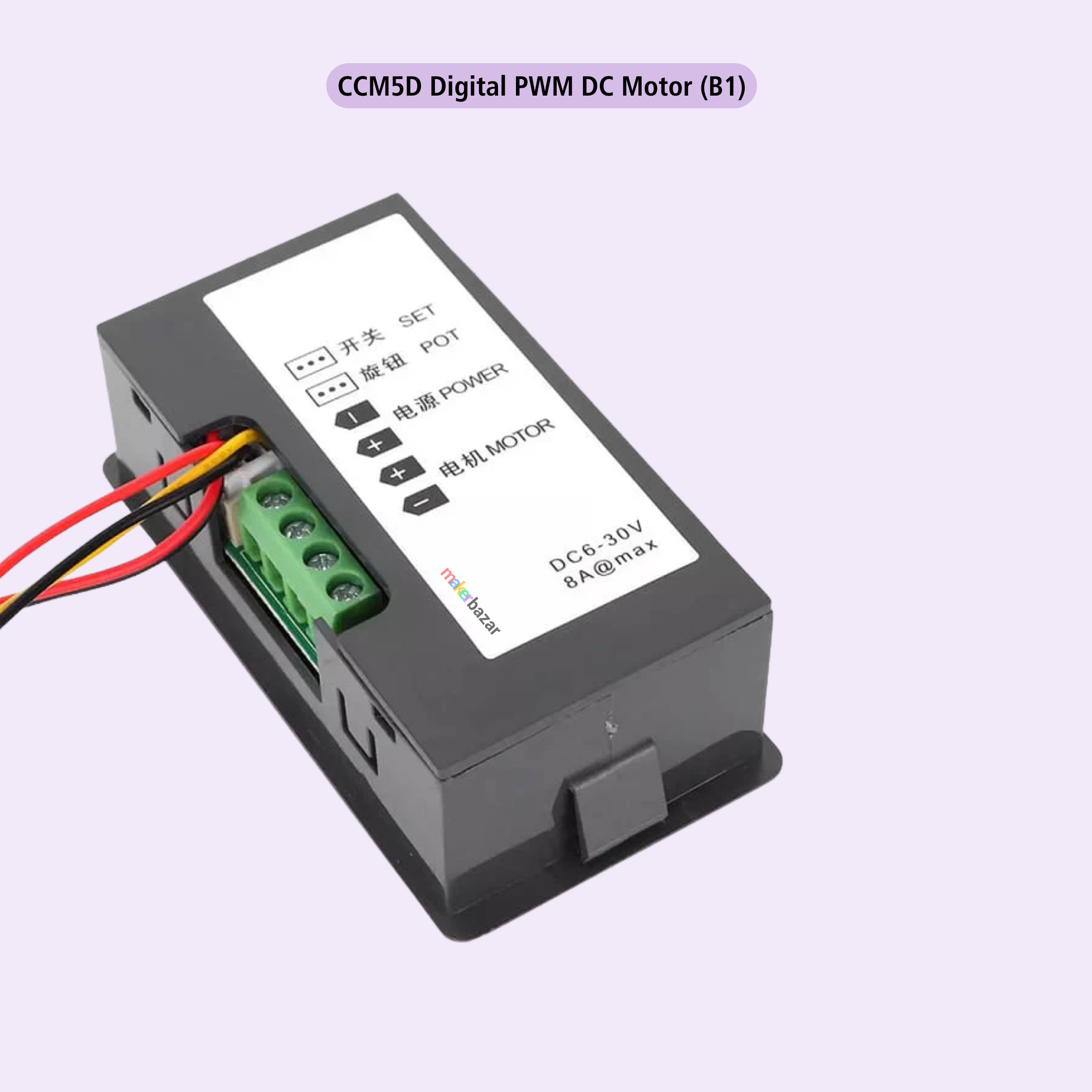

CCM5D PWM DC Motor Speed Controller with Digital Display | 6V-30V 8A 240W (Type 1 / Type 2)
The CCM5D PWM DC Motor Speed Controller is a high-performance digital motor speed regulator designed for precise control of brushed DC motors. Operating from 6V to 30V DC, it supports up to 8A continuous current and 240W maximum output power. The controller features a 3-digit LED digital display for real-time PWM duty cycle indication (0–100%) and a rotary encoder for smooth, stepless speed adjustment. Available in Type 1 and Type 2 variants, this controller is ideal for robotics, conveyor systems, DIY electronics, industrial automation, fans, pumps, and various DC motor applications.
Connection Diagram
CCM5D Digital PWM DC Motor Speed Controller Connection Diagram (PDF)
Key Features
- Wide operating voltage range 6V–30V DC
- Maximum output power 240W
- Maximum output current 8A
- PWM (Pulse Width Modulation) motor speed control

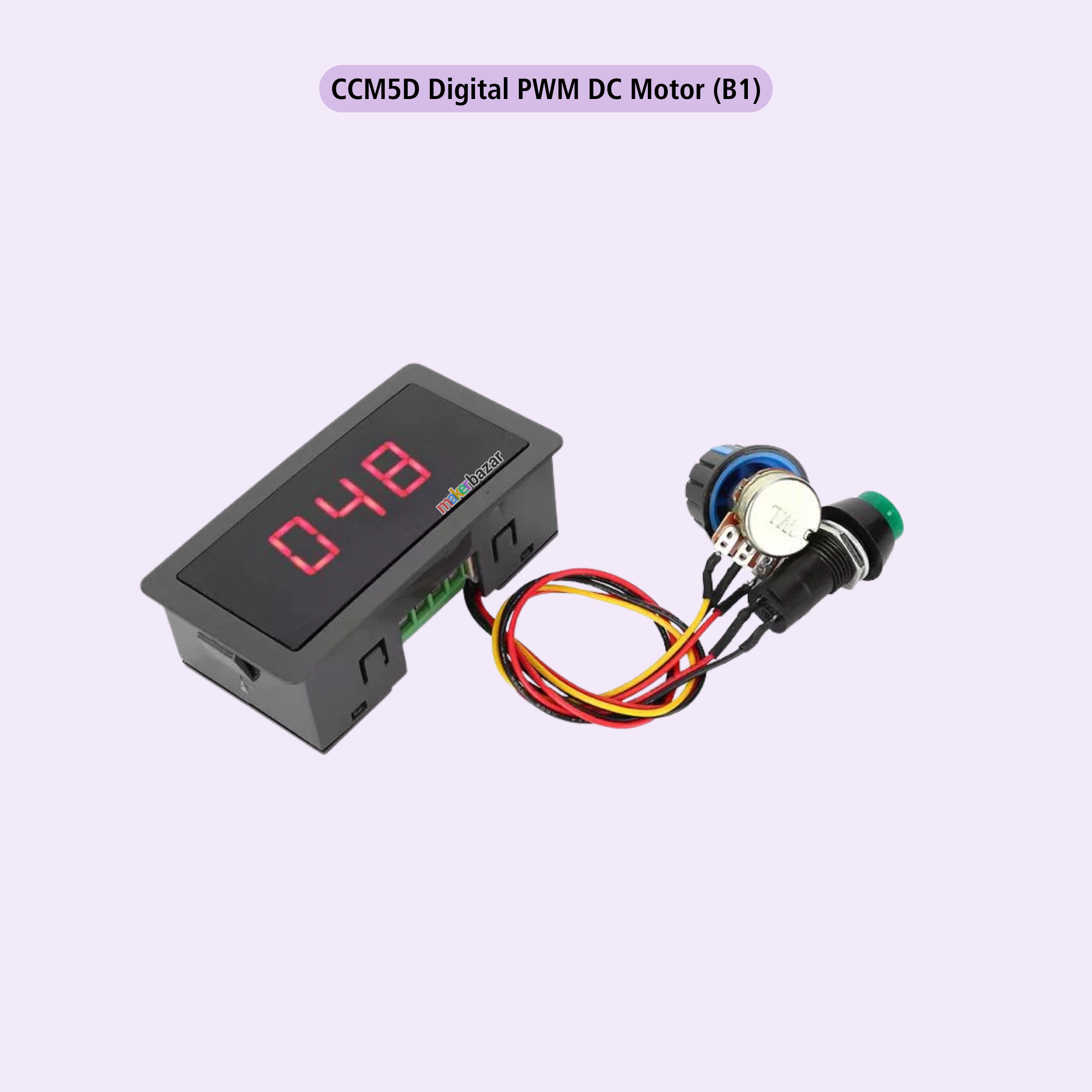

- 3-digit LED digital display
- Displays PWM duty cycle from 0–100%
- Stepless speed adjustment
- Industrial-grade rotary encoder
- One-touch sleep and wake-up function
- Stable and efficient motor control
- Compact ABS enclosure
- Reverse polarity protection (variant dependent)
- Suitable for brushed DC motors
- Easy wiring and installation
- Available in Type 1 and Type 2 variants
Technical Specifications (Comparison Table)
| Parameter | Type 1 | Type 2 |
|---|---|---|
| Product Type | PWM DC Motor Speed Controller | PWM DC Motor Speed Controller |
| Model | CCM5D | CCM5D |
| Operating Voltage | 6V – 30V DC | 6V – 30V DC |
| Maximum Output Power | 240W | 240W |
| Maximum Output Current | 8A | 8A |
| Motor Type | Brushed DC Motor | Brushed DC Motor |
| Speed Control Method | PWM | PWM |
| PWM Duty Cycle | 0–100% | 0–100% |
| Display | 3-Digit Red LED | 3-Digit Red LED |
| Adjustment Method | Rotary Encoder + Push Button | Remote Rotary Potentiometer + Push Button |
| Speed Adjustment | Stepless | Stepless |
| Sleep Function | Yes | Yes |
| Housing Material | ABS Plastic | ABS Plastic |
| Controller Body | Integrated Knob | Remote Mounted Knob |
| Display Type | Digital LED | Digital LED |
| Mounting | Panel Mount | Panel Mount |
| Cooling Method | Natural Air Cooling | Natural Air Cooling |
| Suitable Motor | Brushed DC Motor | Brushed DC Motor |
Note: The electrical specifications are identical. The only difference is the control knob configuration. Type 1 has an integrated front-panel rotary knob, while Type 2 uses a remote-mounted rotary potentiometer connected by wires.
Applications
- DC Motor Speed Control
- Robotics Projects
- DIY Electronics
- Conveyor Belt Systems
- Mini CNC Machines
- Cooling Fans
- Exhaust Fans
- Blowers
- Water Pumps
- Air Pumps
- Electric Drill Speed Control
- Polishing Machines
- Mini Lathe Machines
- Engraving Machines
- Industrial Automation
- Laboratory Equipment
- Textile Machines
- Packaging Machines
- Battery Powered Equipment
- Agricultural Equipment
- Motion Control Systems
- Educational Projects
- Automation Controllers
- Maker Projects
- Prototype Development
Precautions
- Use only with brushed DC motors.
- Do not use for AC motors or brushless DC (BLDC) motors.
- Ensure the supply voltage is between 6V and 30V DC.
- Do not exceed 8A output current.
- Provide adequate ventilation during continuous high-load operation.
- Verify correct polarity before powering the module.
- Avoid short-circuiting the motor output terminals.
- Disconnect power before wiring or maintenance.
- Mount the controller securely in a dry environment.
