Description
CIXIKEJI CXB7530B12H 12V DC Brushless Cooling Fan with Adjustable 3V–12V Speed Regulator Adapter for Electronics & Ventilation Applications

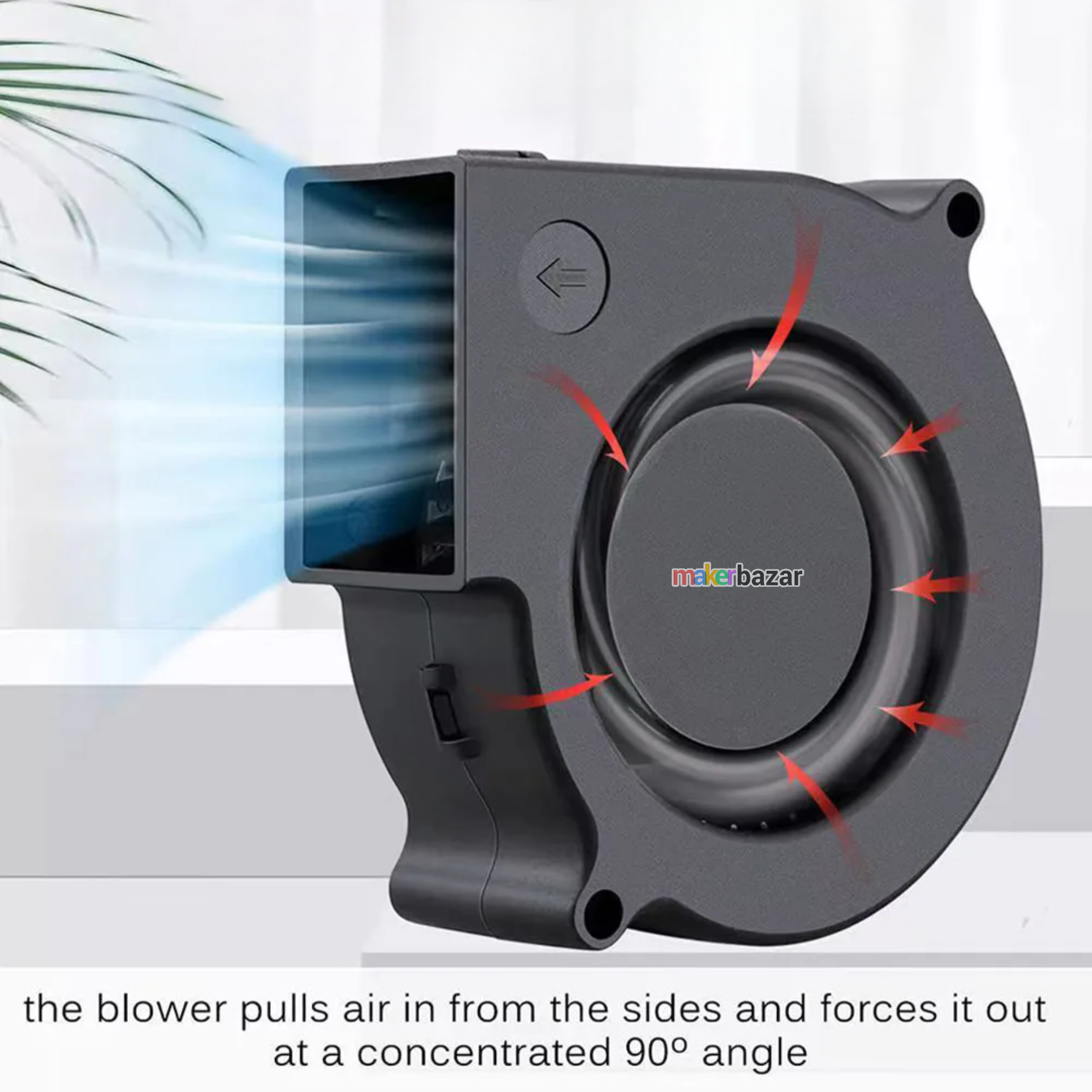

The CIXIKEJI CXB7530B12H DC Brushless Cooling Fan is a reliable, energy-efficient cooling solution for electronic equipment, DIY projects, control panels, networking devices, and ventilation applications. Featuring a high-quality brushless motor, the fan delivers stable airflow, low noise operation, and extended service life compared to conventional brushed fans.
Included with the fan is a variable DC power adapter (3V–12V output), allowing users to adjust fan speed according to cooling requirements. Its compact design and durable construction make it suitable for continuous operation in electronic enclosures, power supplies, amplifiers, 3D printers, and other heat-sensitive devices.
Key Features
- High-performance DC brushless cooling fan.
- Operates on 12V DC power.
- Low noise and energy-efficient operation.
- Long-life brushless motor technology.
- Adjustable speed using the included variable adapter.
- Stable airflow for effective cooling.
- Compact and lightweight design.
- Suitable for continuous operation.
- Easy installation in electronic systems.
- Ideal for DIY and industrial applications.

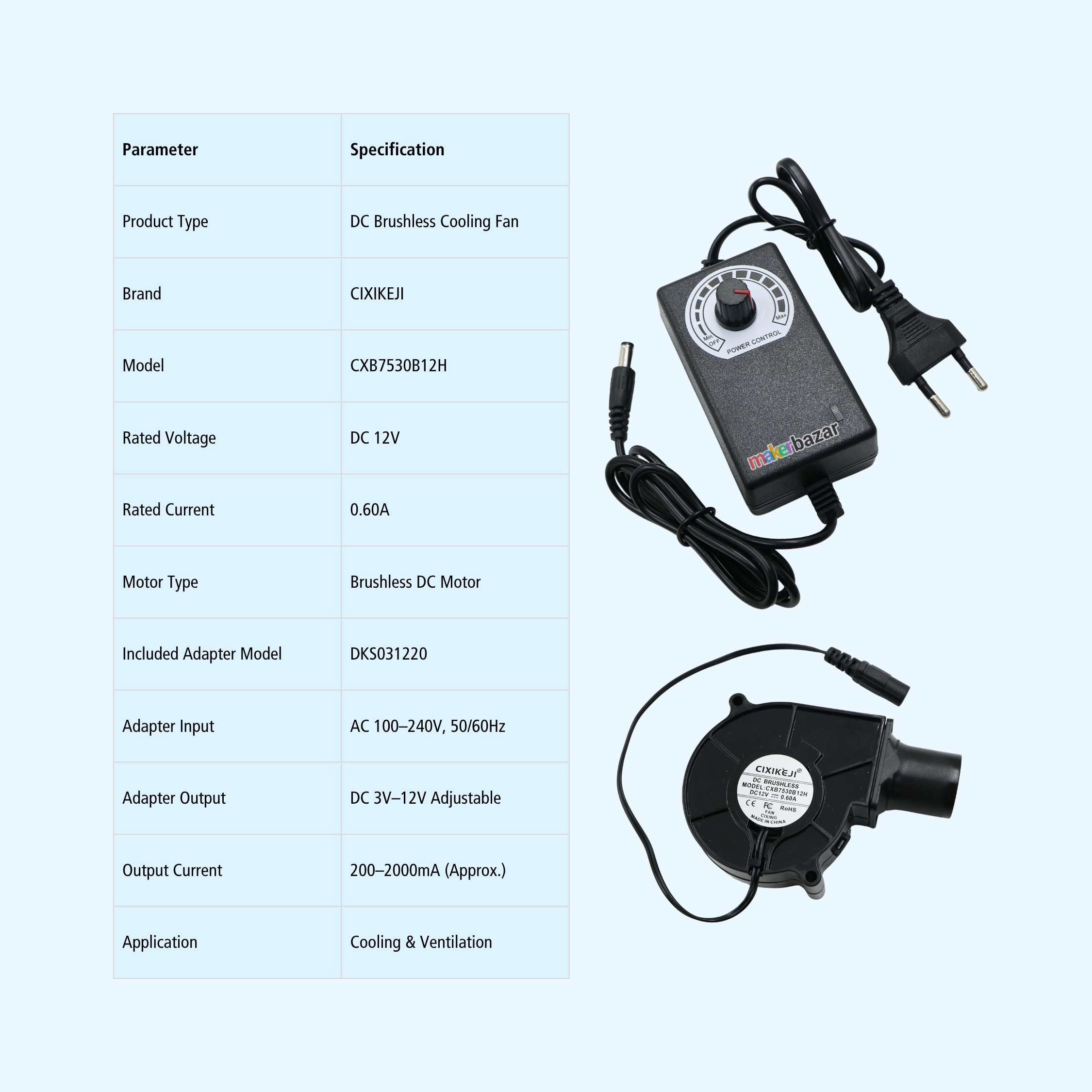

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC Brushless Cooling Fan |
| Brand | CIXIKEJI |
| Model | CXB7530B12H |
| Rated Voltage | DC 12V |
| Rated Current | 0.60A |
| Motor Type | Brushless DC Motor |

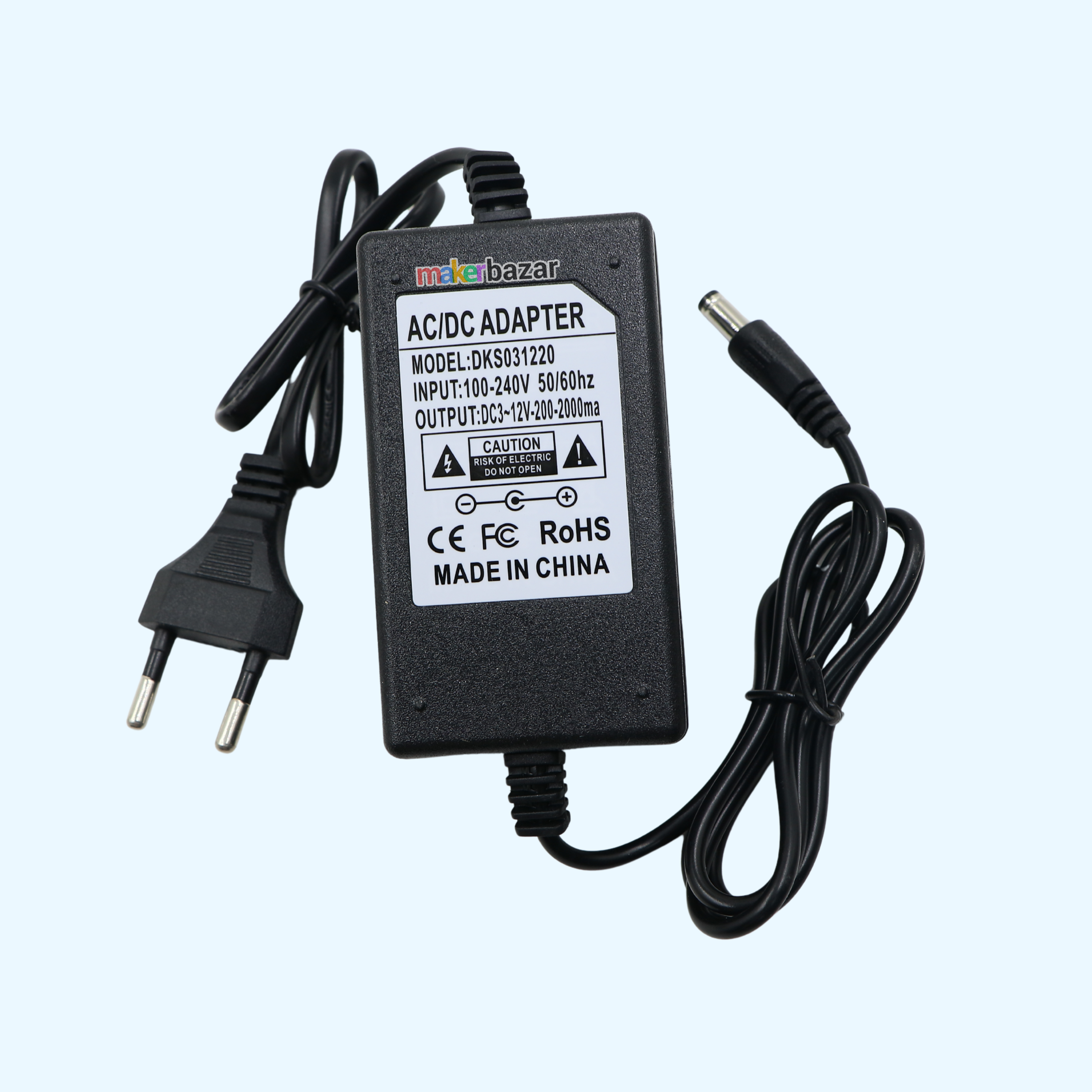

| Included Adapter Model | DKS031220 |
| Adapter Input | AC 100–240V, 50/60Hz |
| Adapter Output | DC 3V–12V Adjustable |
| Output Current | 200–2000mA (Approx.) |
| Application | Cooling & Ventilation |

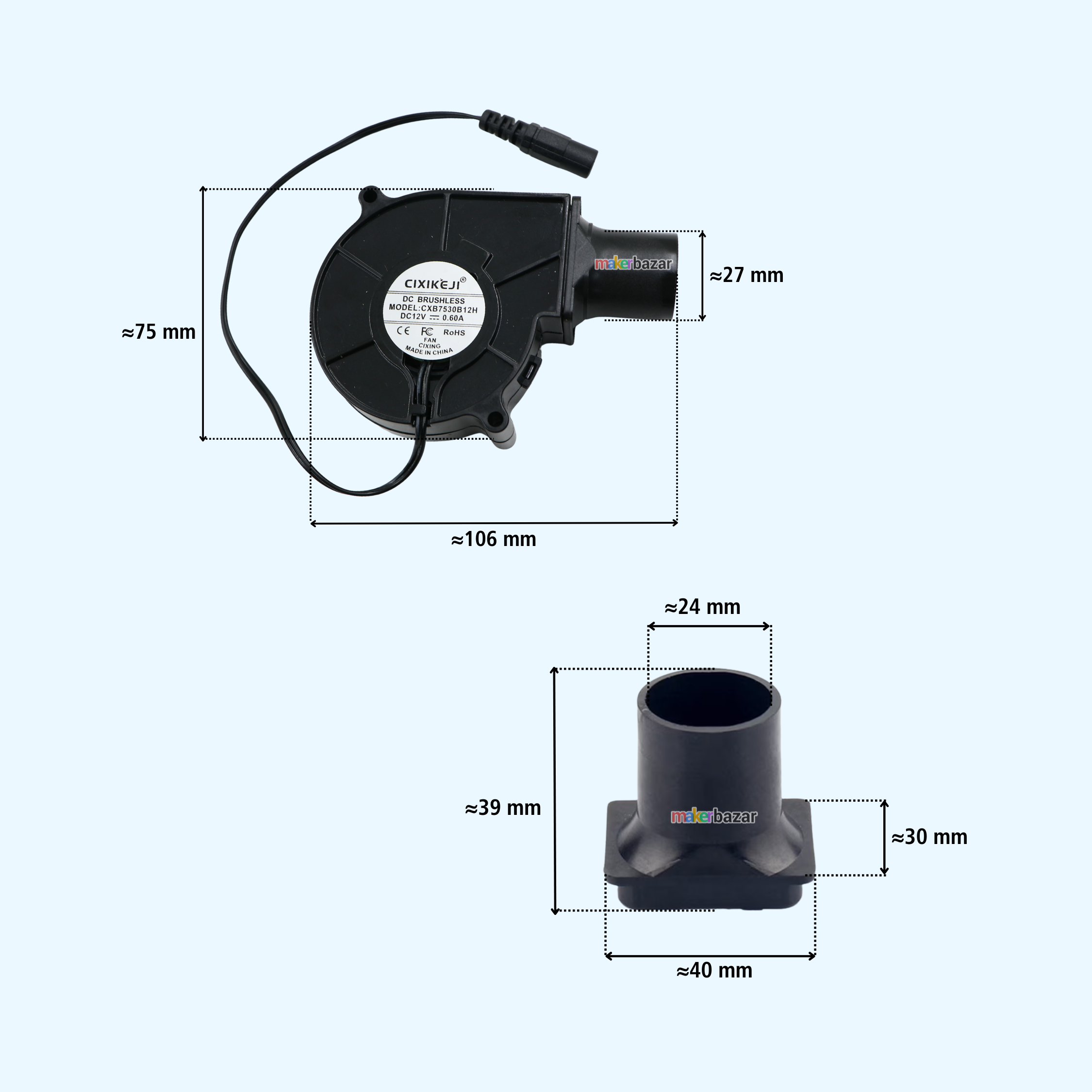

| Dimension | 75x75x30 |

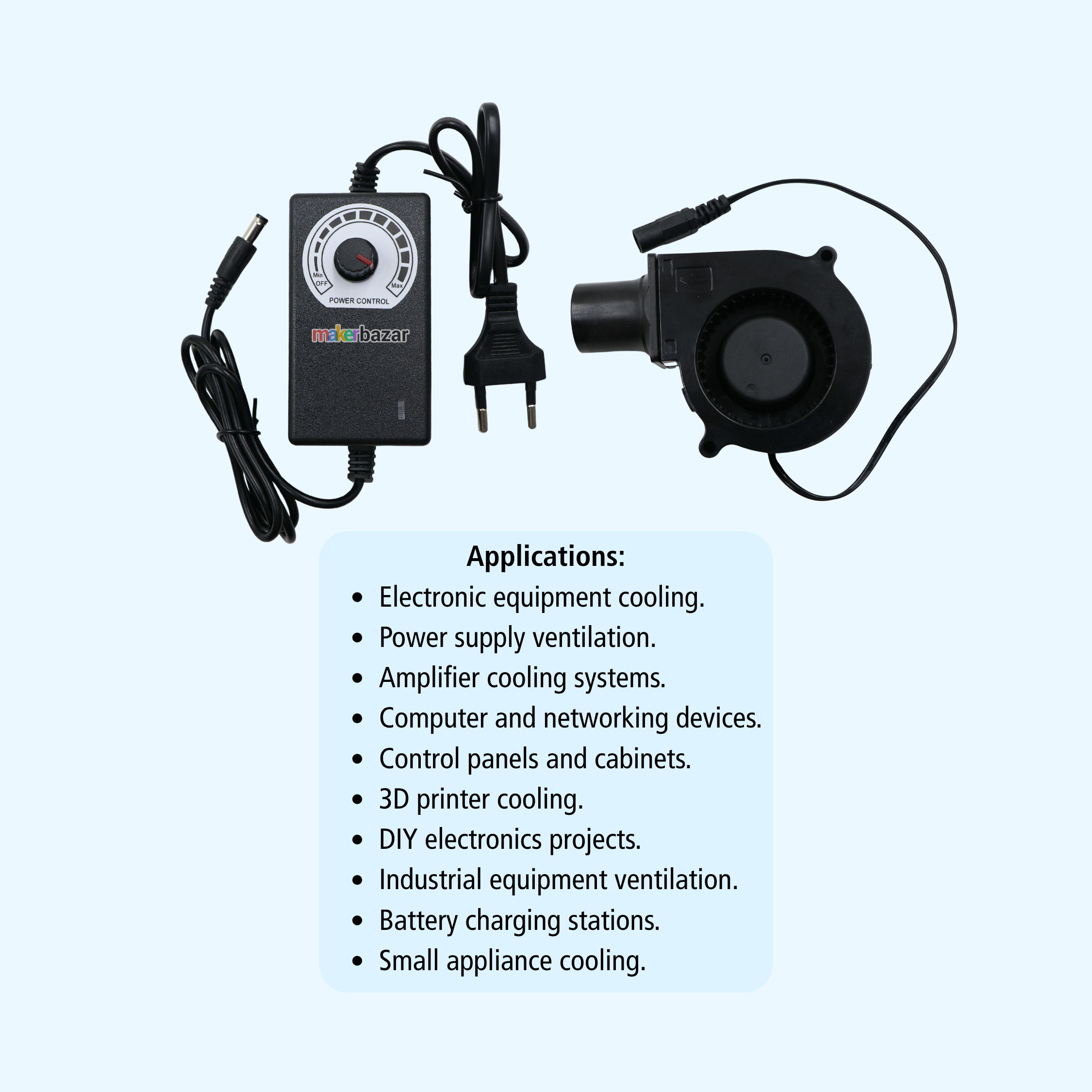

Applications
- Electronic equipment cooling.
- Power supply ventilation.
- Amplifier cooling systems.
- Computer and networking devices.
- Control panels and cabinets.
- 3D printer cooling.
- DIY electronics projects.
- Industrial equipment ventilation.
- Battery charging stations.
- Small appliance cooling.
Precautions
- Verify voltage settings before connecting the fan.
- Do not block airflow during operation.
- Keep away from water and excessive moisture.
- Ensure proper ventilation around the fan.
- Disconnect power before installation or maintenance.
- Avoid operating beyond rated voltage specifications.
