ADS1232 24-Bit Precision ADC Board for Load Cell and Sensors
The CJMCU-1232 ADS1232 24-bit Analog-to-Digital Converter Board is a high-precision signal acquisition module designed for bridge sensor applications such as weighing scales, strain gauges, and pressure sensors.
It integrates a low-noise programmable gain amplifier (PGA), a precision delta-sigma ADC, and an internal oscillator, delivering a complete front-end solution with minimal external components. With up to 23.5 effective bits of resolution, excellent 50Hz/60Hz noise rejection, and a simple pin-driven serial interface, this board is ideal for accurate and stable measurements in industrial and embedded systems.
The ADS1232 also includes an onboard temperature sensor to monitor ambient conditions, making it suitable for precision instrumentation and long-term measurements.

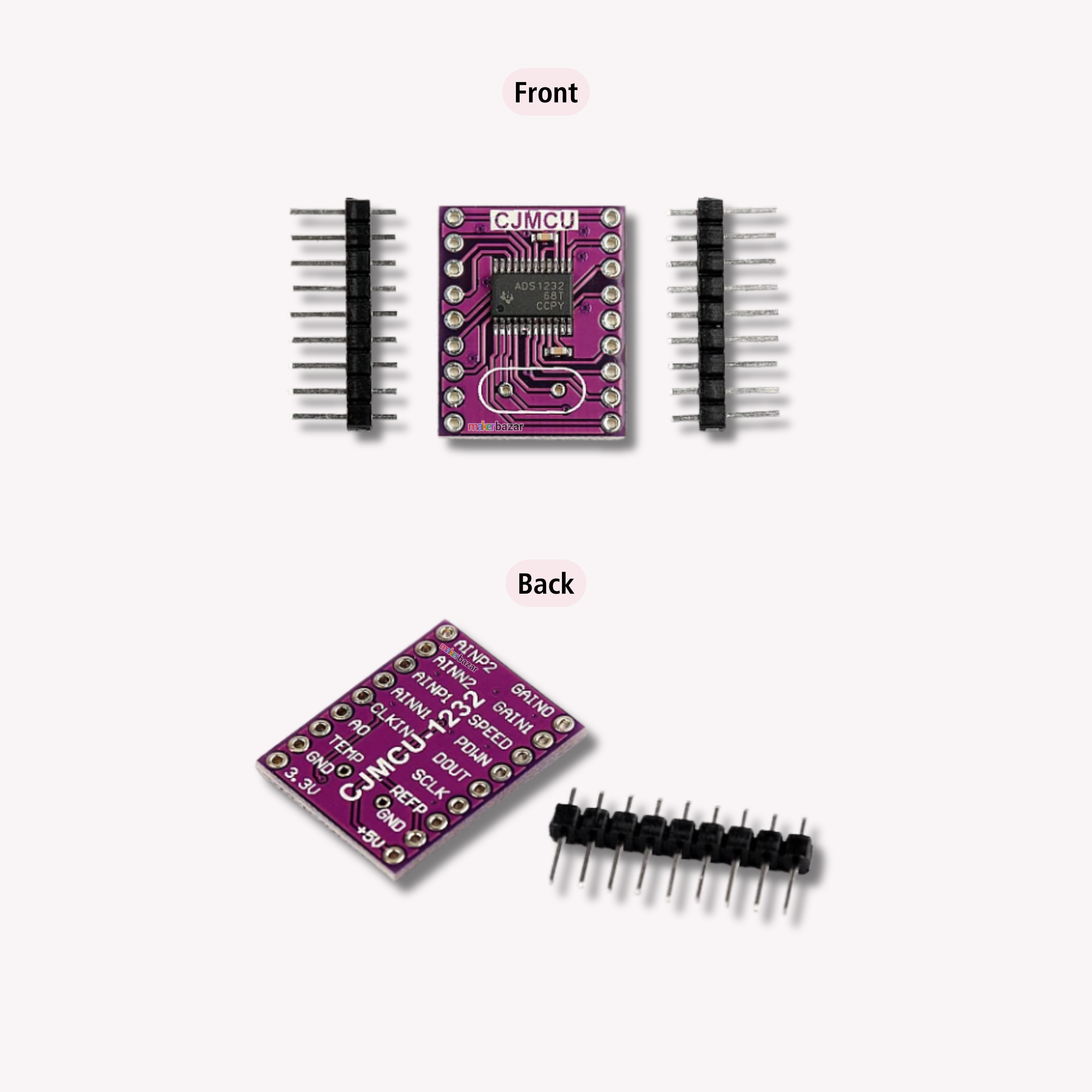

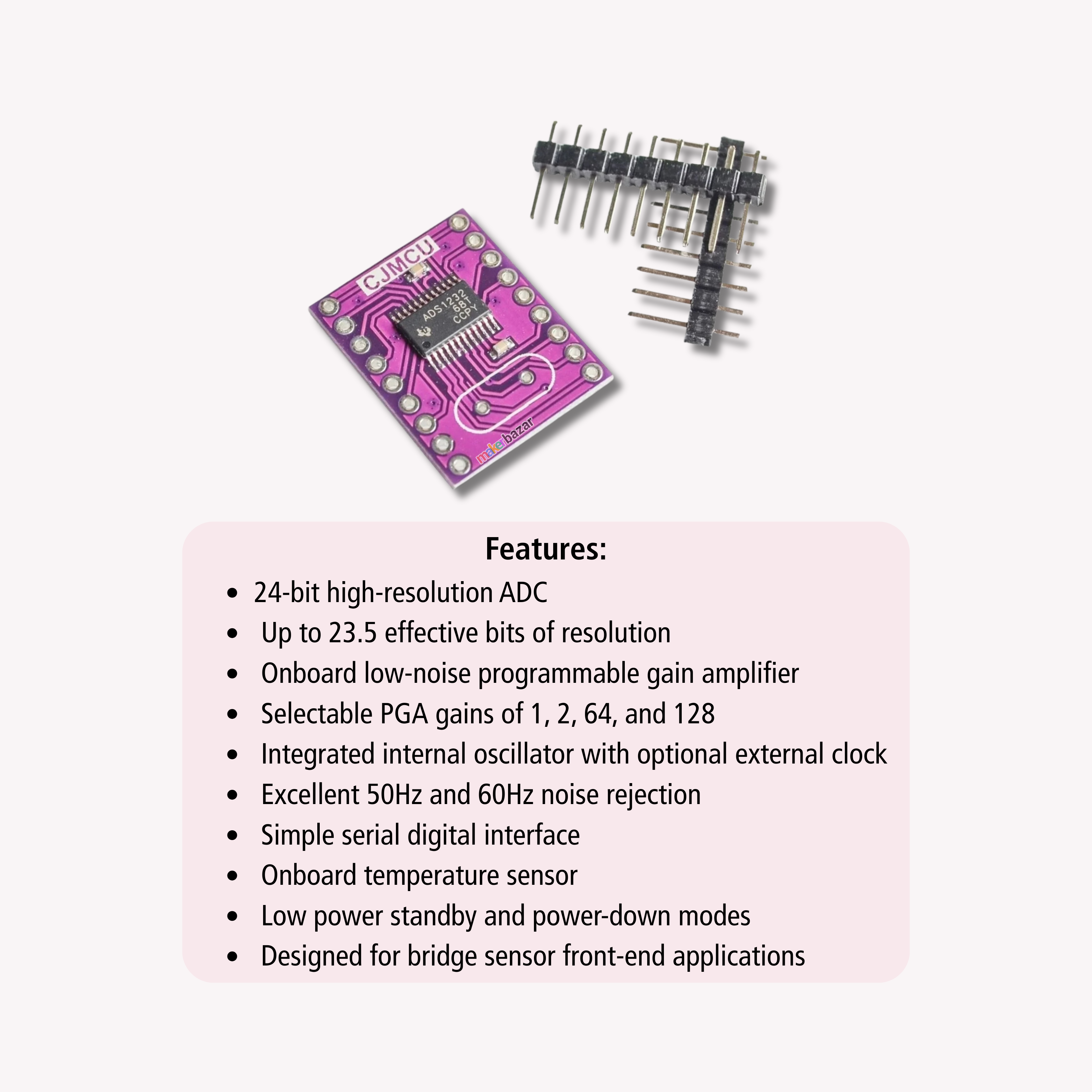

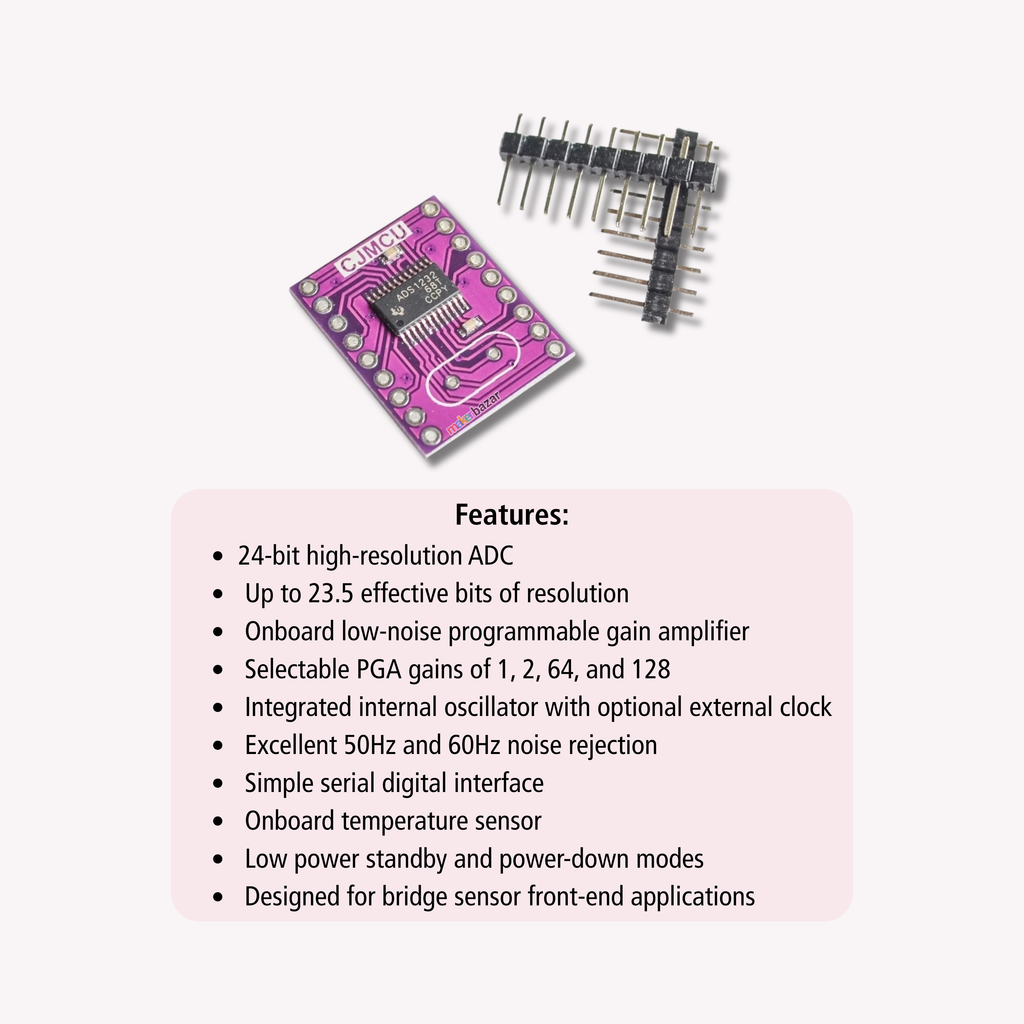

Key Features:
- 24-bit high-resolution ADC
- Up to 23.5 effective bits of resolution
- Onboard low-noise programmable gain amplifier
- Selectable PGA gains of 1, 2, 64, and 128
- Integrated internal oscillator with optional external clock
- Excellent 50Hz and 60Hz noise rejection
- Simple serial digital interface
- Onboard temperature sensor
- Low power standby and power-down modes
- Designed for bridge sensor front-end applications
Technical Specifications:

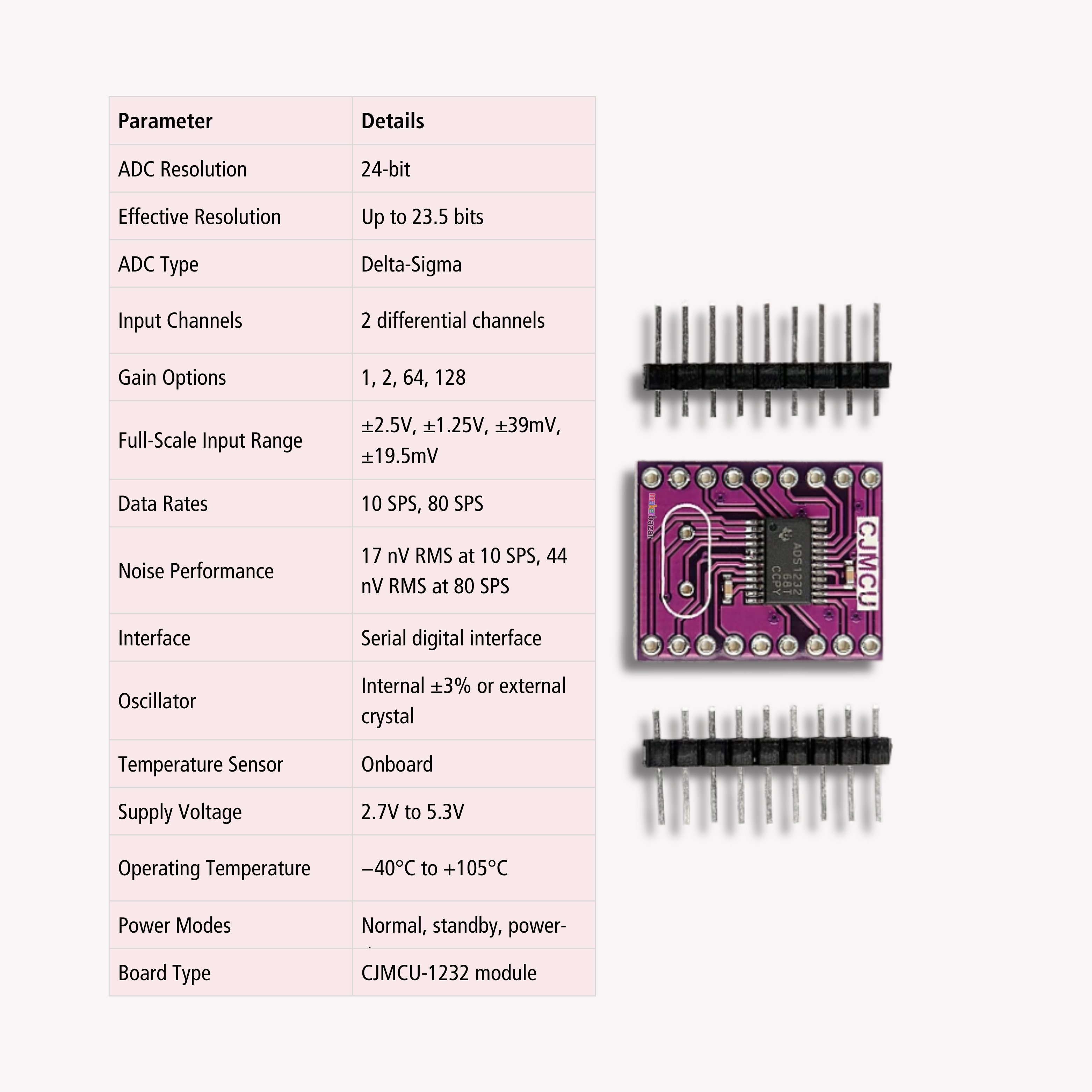

| Parameter | Details |
|---|---|
| Model | ADS1232 |
| ADC Resolution | 24-bit |
| Effective Resolution | Up to 23.5 bits |
| ADC Type | Delta-Sigma |
| Input Channels | 2 differential channels |
| Gain Options | 1, 2, 64, 128 |
| Full-Scale Input Range | ±2.5 V, ±1.25 V, ±39 mV, ±19.5 mV |
| Data Rates | 10 SPS, 80 SPS |
| Noise Performance | 17 nV RMS @ 10 SPS44 nV RMS @ 80 SPS |
| Interface | Serial digital interface |
| Oscillator | Internal ±3% or external crystal |
| Temperature Sensor | Onboard |
| Supply Voltage | 2.7 V to 5.3 V |
| Operating Temperature | −40 °C to +105 °C |
| Power Modes | Normal, Standby, Power-down |
| Board Type | CJMCU-1232 module |

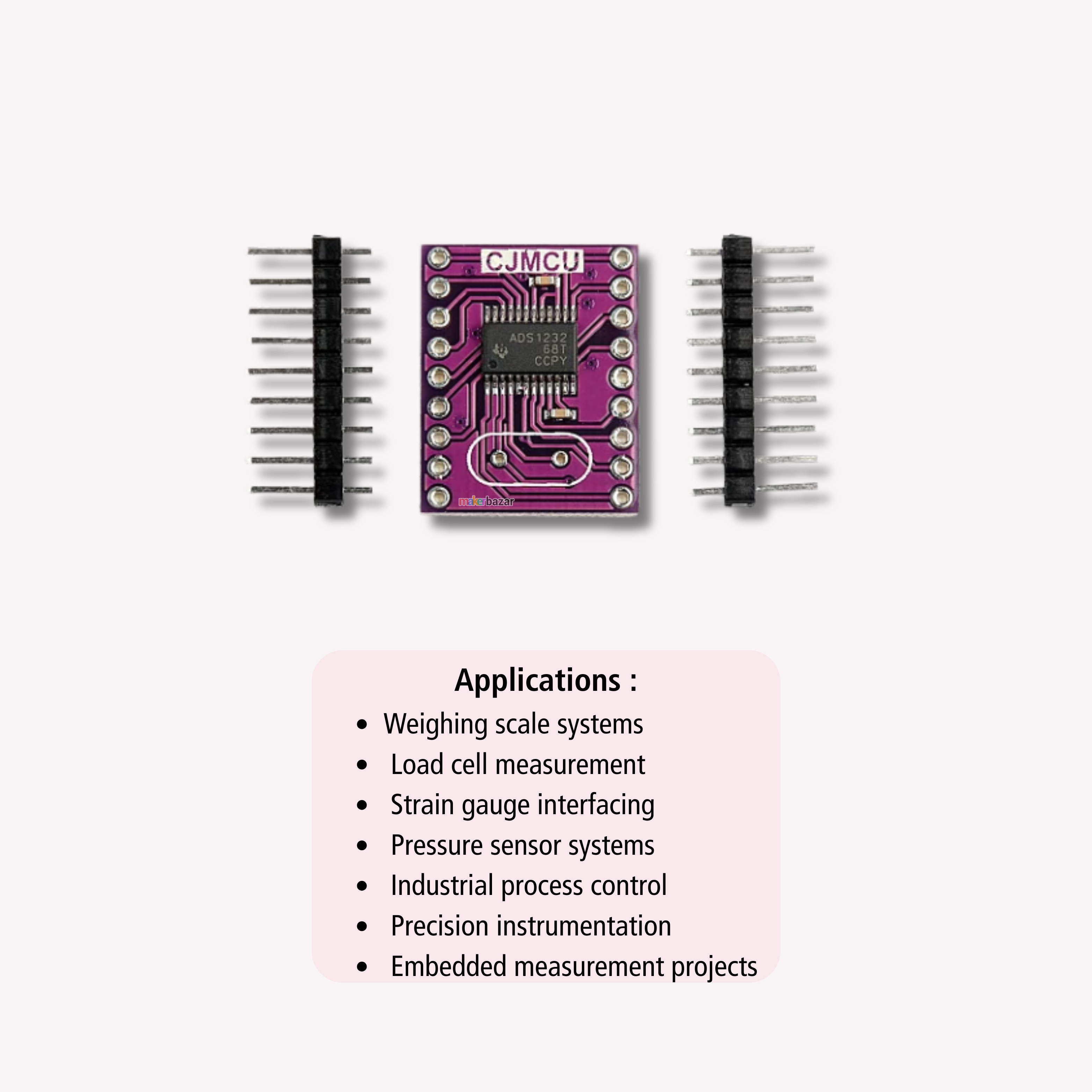

Applications:
- Weighing scale systems
- Load cell measurement
- Strain gauge interfacing
- Pressure sensor systems
- Industrial process control
- Precision instrumentation
- Embedded measurement projects
Precautions:
- Ensure correct supply voltage before powering the board
- Use proper grounding to minimise noise
- Avoid exceeding input voltage limits
- Use shielded cables for low-level sensor signals
- Handle the board with ESD protection
