Description

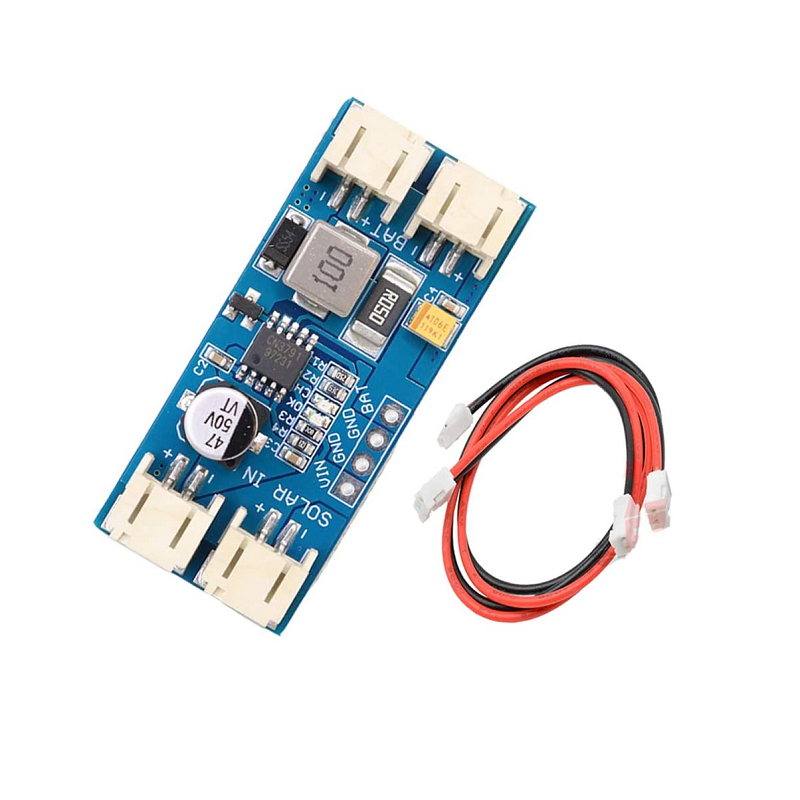

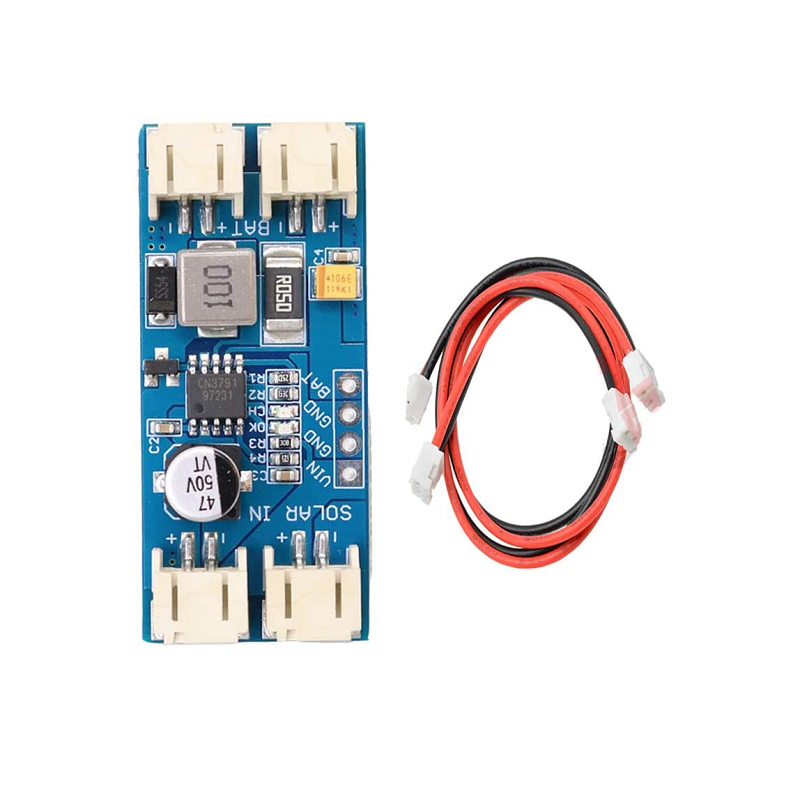

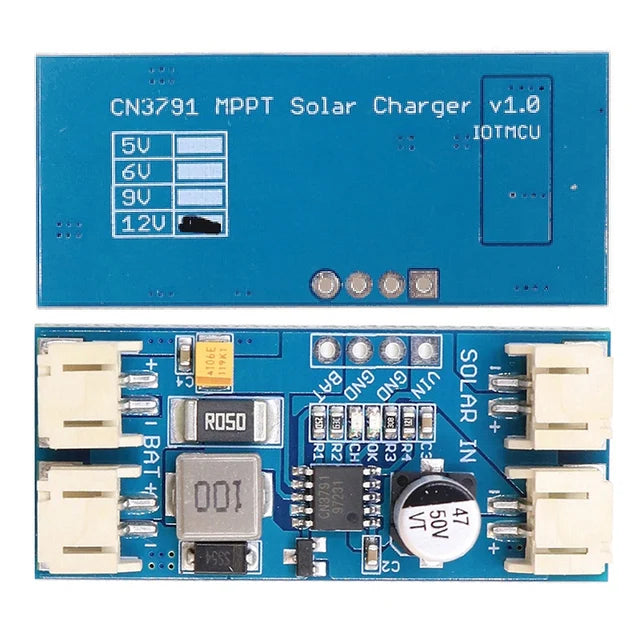

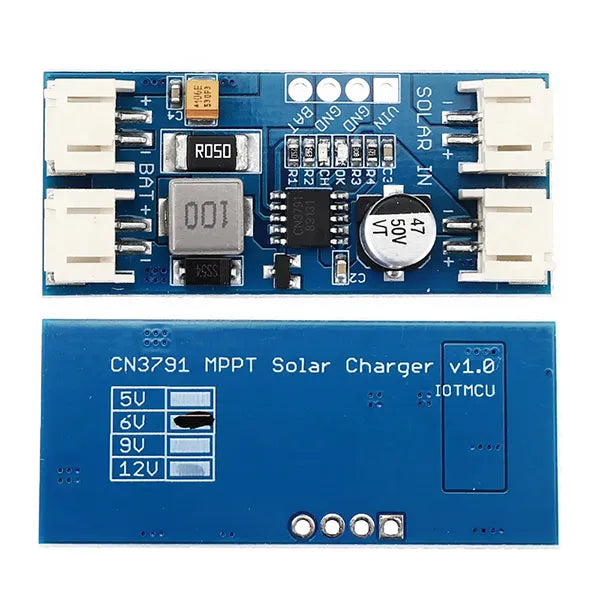

CN3791 MPPT Solar Panel Regulator Controller Lithium Battery Cell Charging

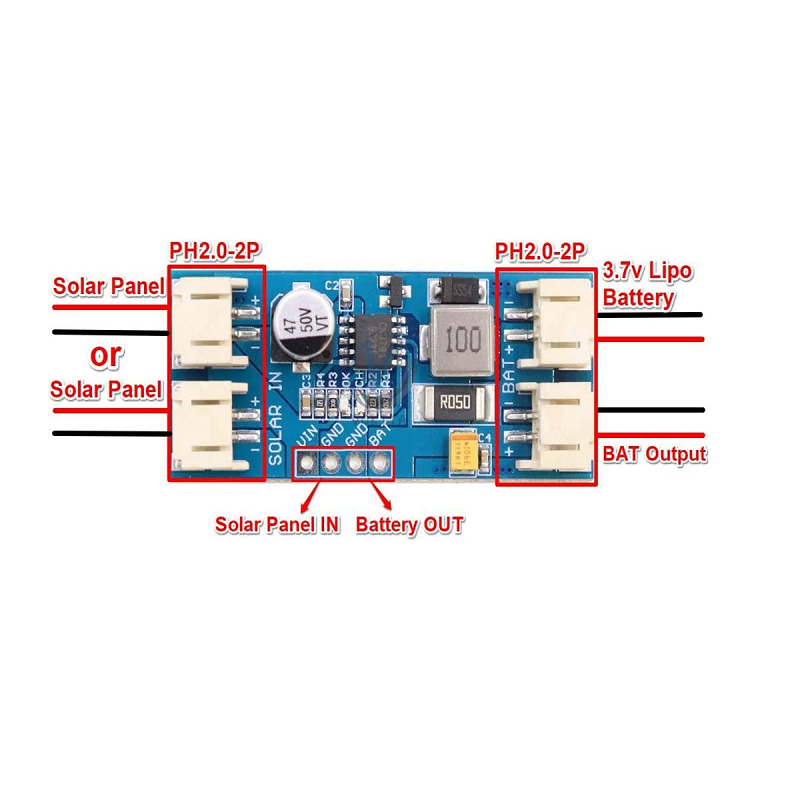

This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries. This MPPT solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging.
Features:
- Automatic recharge
- Charge status and charge end status indication
- Battery overvoltage protection
- Solar panel maximum power point tracking
- Complete charge management for single-cell lithium batteries.
Specifications:
| Model |
CN3791 |
| Connector |
2-pin JST |
| Operating Temperature (°C) |
-40 to 85 |
| Switching Frequency (kHz) |
300 |
| Maximum Charging Current (A) |
2 |
| Length (mm) |
45 |
| Width (mm) |
20 |
| Height (mm) |
9.5 |
| Weight (gm) |
10 |
Package includes:
1 x CN3791 12V MPPT Solar Charger Module.
