Description

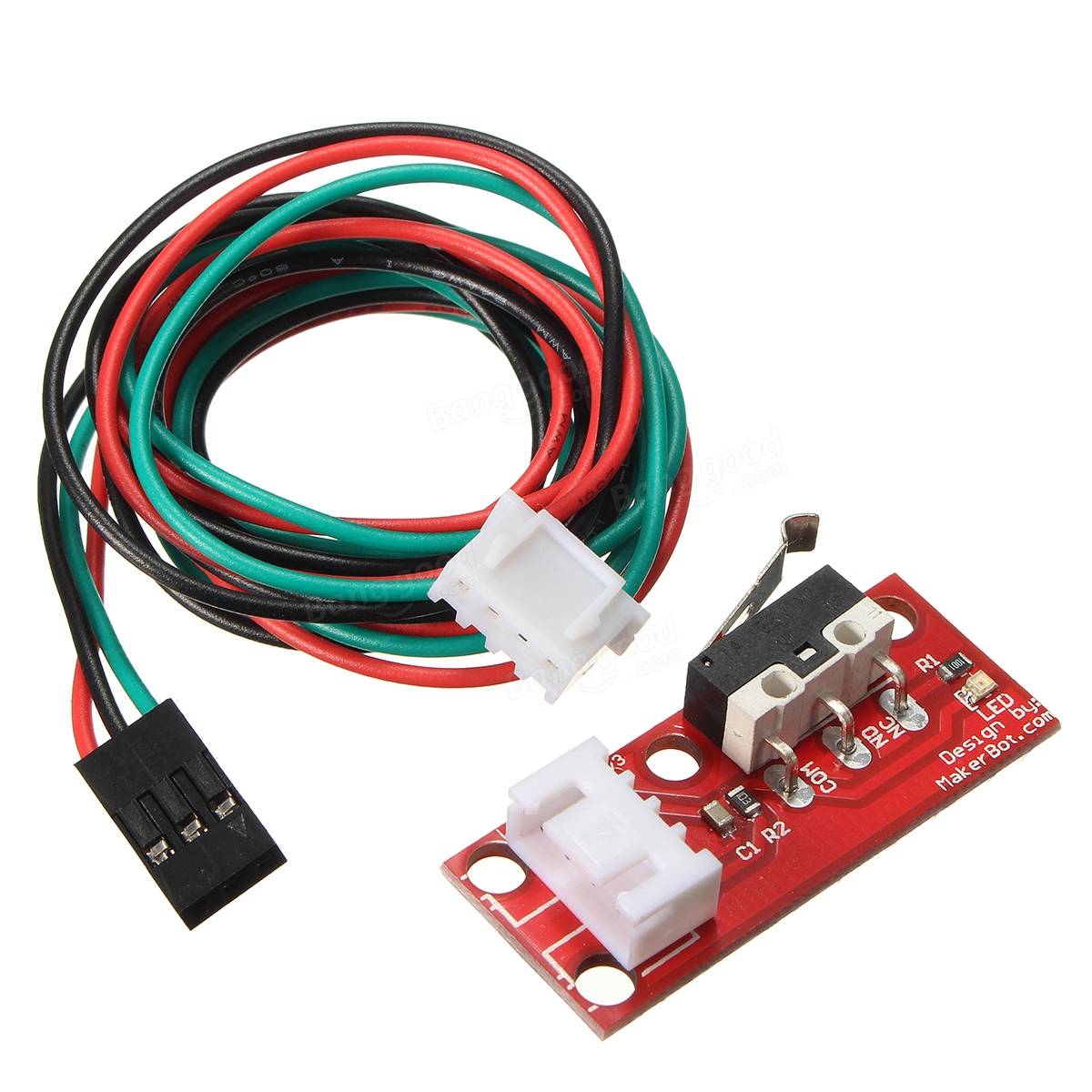

3D CNC Printer Mech EndStop Switch

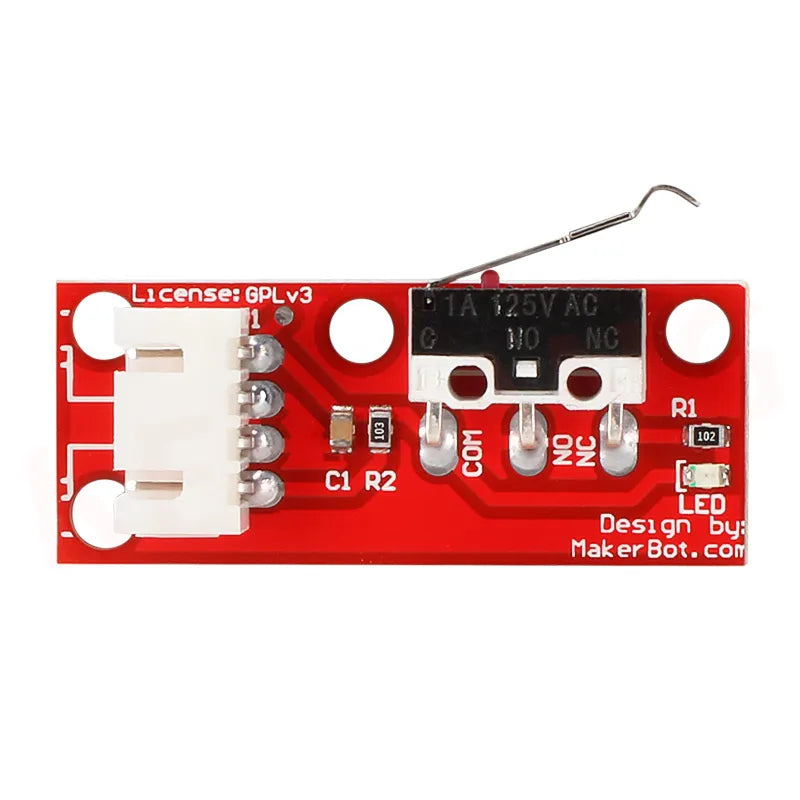

The CNC 3D Printer Mech Endstop Switch employs a lever switch for activation, pulling the signal to LOW upon activation. Featuring an LED indicator, it illuminates when activated. With a standard 4-pin 0.1" pitch header, it's compatible with old-style CD-ROM audio connector cables. This mechanical endstop simplifies dethe tection of X/Y/Z stage limits without complex setups like flags or light beam interruption. Placing the switch in the stage's path allows it to trigger upon contact without stage modifications. Rated for 1 million operations, these switches ensure reliability and longevity, requiring replacement only after a million prints.

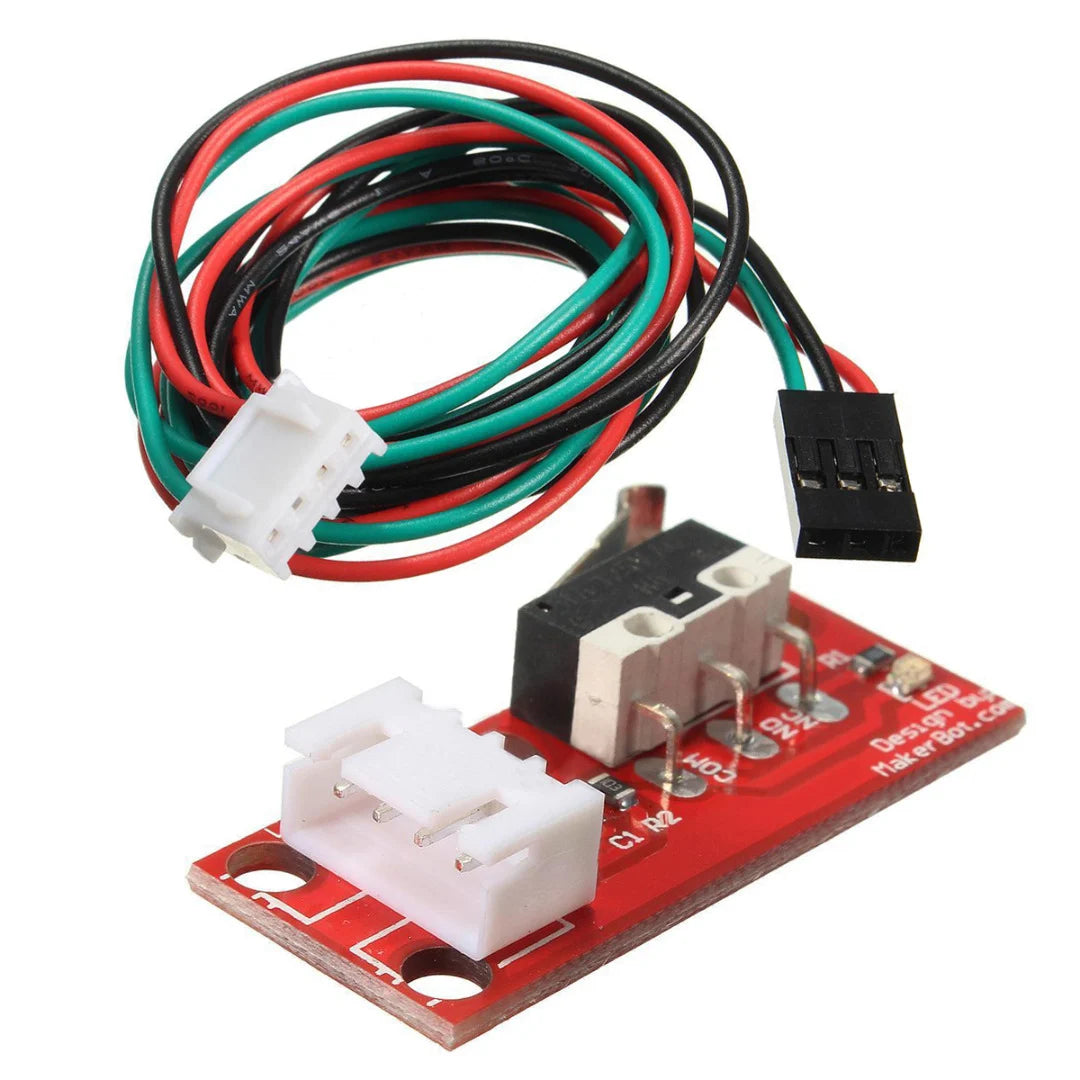

Connection description:
- Redline: connecting VCC (ramps of +)
- Black line: connecting GND (ramps of -)
- Green Line: connecting SIGNAL (ramps in s)
Features:-
- Secure plug design ensures it's not easy to dislodge, offering convenience during use.
- High-quality switching elements ensure reliable performance.
- Customized connection wires crafted from 22AWG copper wire, capable of handling currents up to 2A and voltages up to 300V.
- Insulating layer withstands temperatures up to 80 degrees Celsius, ensuring durability across a wide range of conditions.
Specifications:-
| Item Type: |
General Limit Switch |
|---|---|
| Voltage Rating: |
300V (operating) |
| Current Rating: |
2A |
| With Cable (Y/N): |
Yes |
| Cable Length (m): |
0.7 |
| Operating Voltage (V) |
300 |
| Operating Current (A): |
2 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
