Description

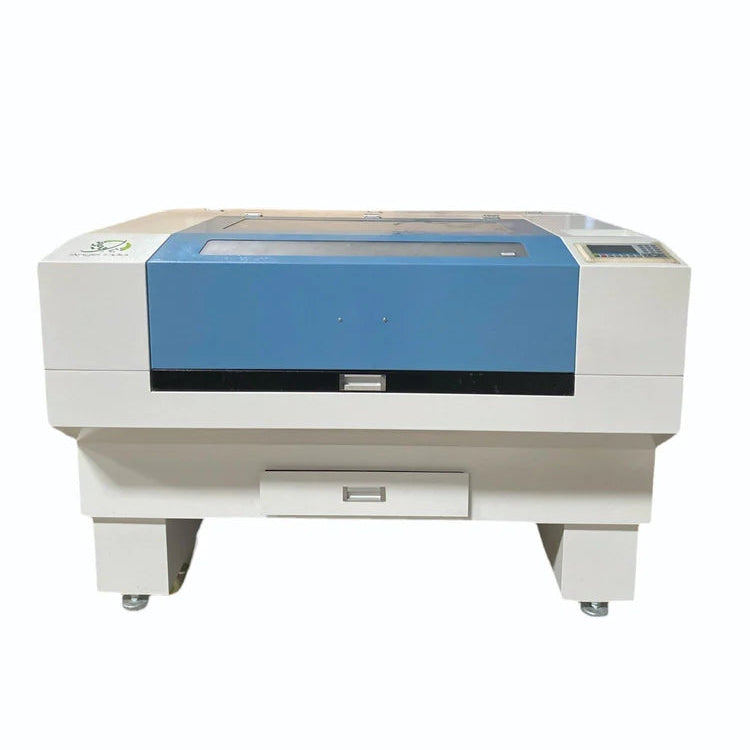

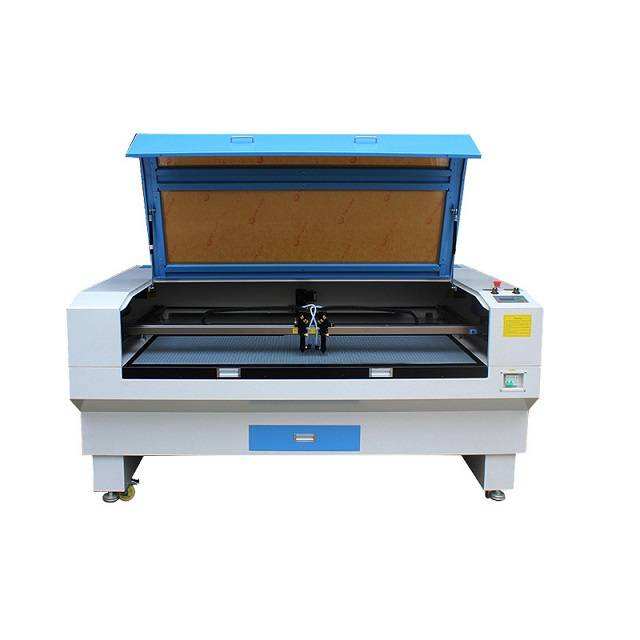

CO₂ Laser Cutting & Engraving Machine | High-Precision CNC Laser Cutter for Acrylic, Wood, MDF, Leather & Non-Metal Materials
The CO₂ Laser Cutting & Engraving Machine is a professional CNC laser system designed for precision cutting and engraving of a wide range of non-metallic materials including acrylic, MDF, wood, plywood, leather, fabric, paper, rubber, cardboard, bamboo, and plastics. Equipped with a high-performance CO₂ laser tube, precision motion system, DSP controller, and water-cooling system, it delivers clean cuts, detailed engraving, and reliable performance for commercial and industrial applications.
Available in multiple laser power options from 60W to 150W and various working area configurations, these machines are ideal for signage manufacturing, gift production, packaging, advertising, furniture, textile processing, educational labs, and prototype development. They typically support design software such as CorelDRAW, AutoCAD, RDWorks, and LightBurn (controller dependent).
Key Features
- High-precision CO₂ laser cutting and engraving
- Suitable for a wide range of non-metal materials
- Available in 60W, 80W, 100W, 130W, and 150W laser power options
- High-speed CNC motion system
- DSP controller with offline operation
- Auto focus (selected models)
- Water cooling system for stable laser performance
- Air assist for cleaner cuts
- Honeycomb or knife-blade working table (model dependent)
- USB and Ethernet connectivity
- Compatible with CorelDRAW, AutoCAD, RDWorks, and LightBurn (controller dependent)
- Emergency stop and safety protection features
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | CO₂ Laser Cutting & Engraving Machine |
| Laser Type | Sealed CO₂ Glass Tube / Optional RF Metal Tube |
| Laser Power | 60W / 80W / 100W / 130W / 150W |
| Working Area | 600×400 mm, 900×600 mm, 1300×900 mm, 1200×2500 mm (Model Dependent) |
| Cutting Thickness | Up to 20 mm (Material & Power Dependent) |
| Engraving Speed | Up to 500 mm/s |
| Cutting Speed | Up to 300–600 mm/s |
| Positioning Accuracy | ±0.025 mm |
| Minimum Line Width | 0.1 mm |
| Cooling System | Water Cooling |
| Air Assist | Yes |
| Controller | DSP Controller |
| File Formats | AI, DXF, PLT, BMP, CDR and More |
| Connectivity | USB / Ethernet |
| Power Supply | AC 220V, 50/60Hz |
