Description

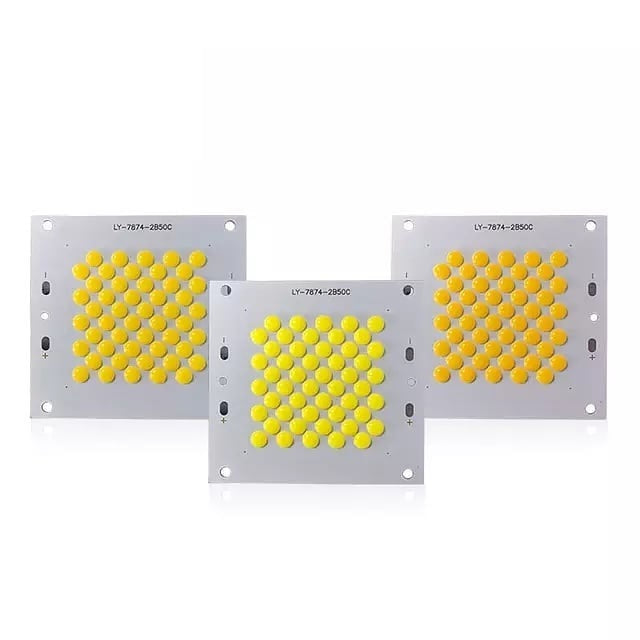

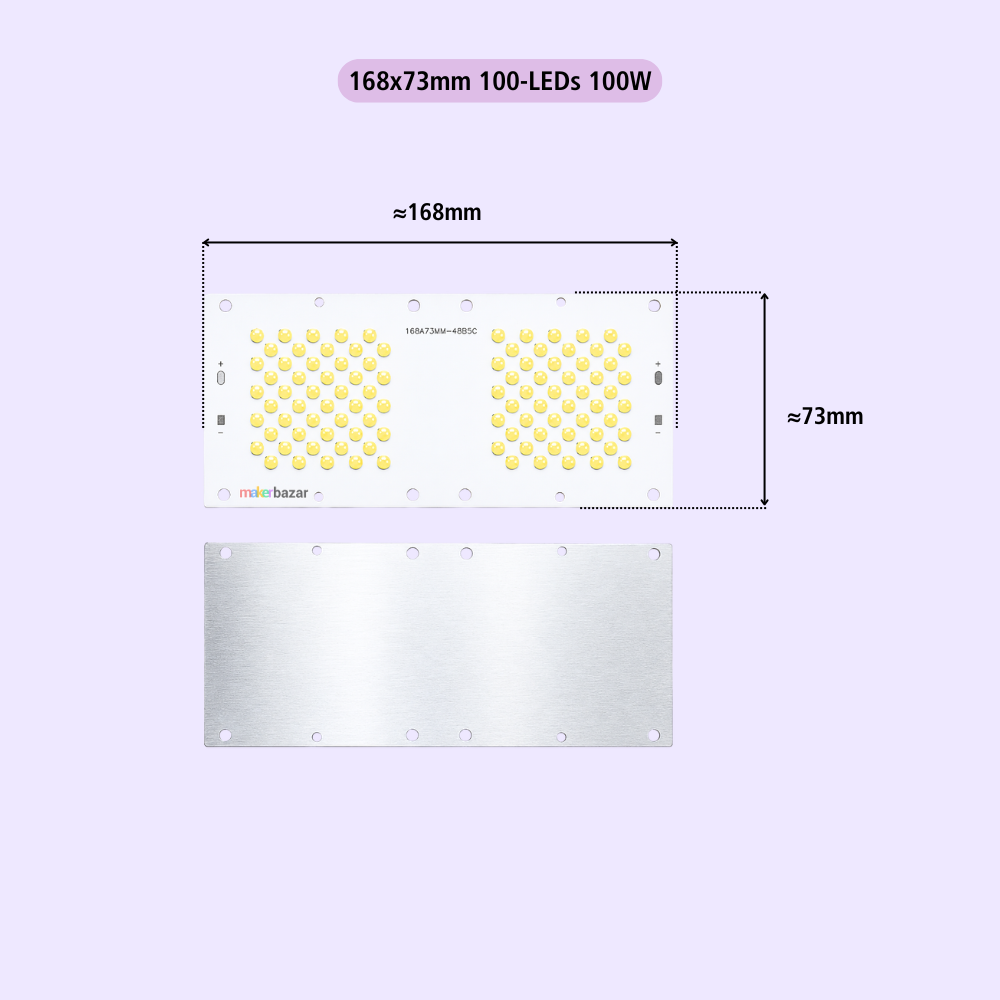

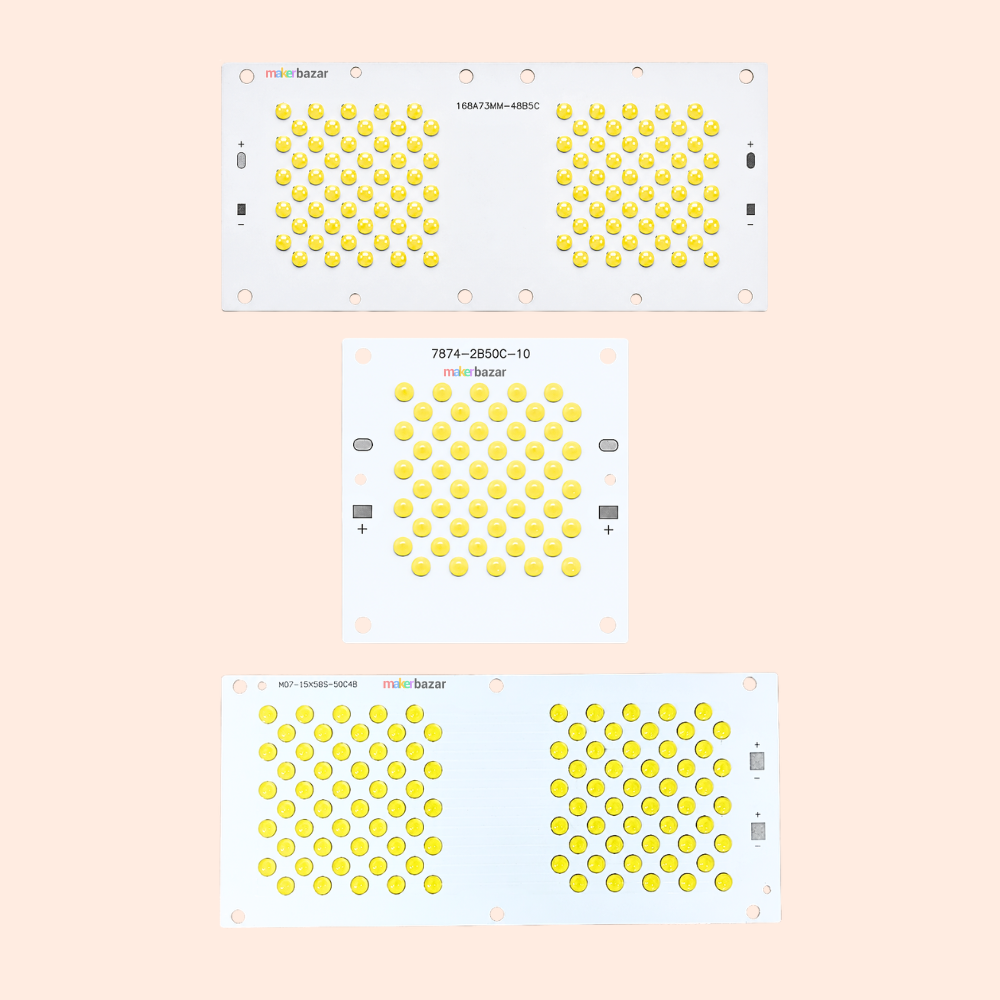

2B50C 4B50C Warm White COB LED Dot Matrix PCB
The 2B50C / 4B50C Warm White COB LED Dot Matrix PCB is a compact and efficient LED lighting module designed to deliver bright, smooth, and uniform illumination. It uses COB (Chip-on-Board) LED technology to provide a dense LED arrangement in a compact form factor. The warm white light output makes this LED PCB suitable for a wide range of residential, commercial, decorative, and custom lighting applications where a comfortable and uniform illumination effect is required. The compact dot-matrix arrangement allows the PCB to be integrated into custom lighting assemblies, LED fixtures, strip-light projects, and other DIY lighting solutions. The available 2B50C and 4B50C variants can be selected according to the required application and compatible electrical configuration.
Key Features
- COB LED Technology: Compact chip-on-board LED arrangement for efficient illumination.
- Warm White Light: Provides a comfortable warm white lighting effect.
- Dot Matrix Design: Dense LED arrangement helps produce smooth and uniform light output.
- High Brightness: Suitable for applications requiring strong illumination.
- Compact PCB: Designed for easy integration into custom lighting assemblies.
- Energy Efficient: Designed for efficient LED lighting applications.

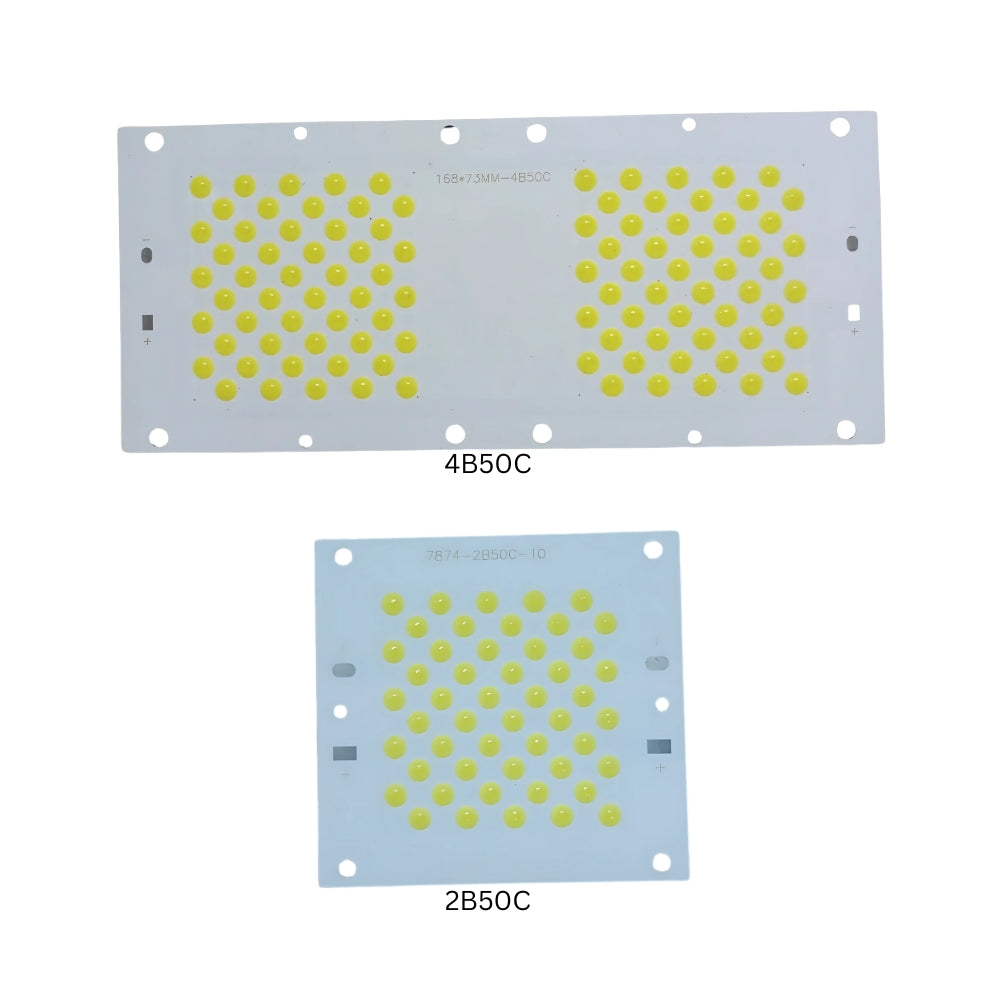

- Multiple Variants: Available in 2B50C and 4B50C configurations.
- Versatile Applications: Suitable for residential, commercial, decorative, and DIY lighting.
- Long-Lasting Performance: COB LED construction supports reliable operation when operated with a suitable driver.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | COB LED Dot Matrix PCB |
| Model | 2B50C / 4B50C |
| LED Technology | COB (Chip-on-Board) |
| LED Colour | Warm White |
| LED Configuration | Dot Matrix |
| Light Output | Bright & Uniform |
| PCB Type | LED PCB |
| Application | LED Lighting |
| Variant | 2B50C / 4B50C |
| Power Supply | Constant-Current LED Driver Required |

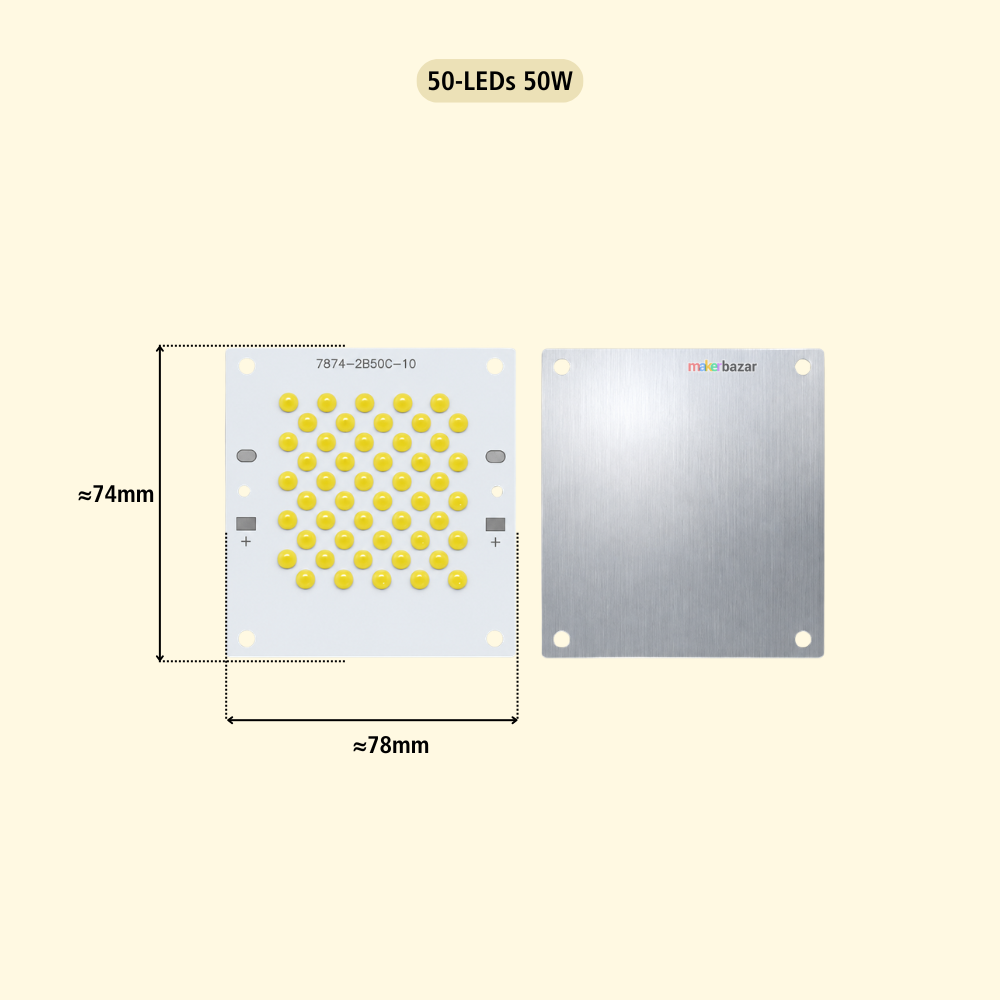

| 50W 50-LED Variant Driver | 100–175V DC, 300mA |
| Mounting | Suitable for Custom Lighting Assemblies |
| Quantity | 1 Piece |
Note: Exact voltage, current, wattage, LED count, dimensions, and electrical characteristics may vary between the 2B50C and 4B50C variants. Please verify the selected variant before installation.
Applications
- Residential lighting
- Commercial lighting
- Decorative lighting
- Custom LED fixtures
- LED strip-light projects
- DIY lighting projects
- Ceiling lighting
- Cabinet lighting
- Sign and display lighting
- Architectural lighting
- Custom lamp projects
- Replacement LED modules
- Indoor illumination
- Electronics lighting projects
Precautions
- Use only a compatible constant-current LED driver.
- For the 50W 50-LED PCB, use a 100–175V DC, 300mA power supply as specified.
- Do not connect the PCB directly to a standard DC power adapter.
- Verify the polarity before connecting the LED PCB.
- Do not exceed the specified LED current.
- Provide adequate heat dissipation during operation.
- Use a suitable heatsink or thermal management solution where required.
- Disconnect the power supply before installation or wiring changes.
- Do not touch the LED surface while powered.
- Keep the PCB away from water and excessive moisture unless installed inside a properly protected fixture.
- Confirm the exact electrical specifications of the selected variant before connecting the driver.
Note:-

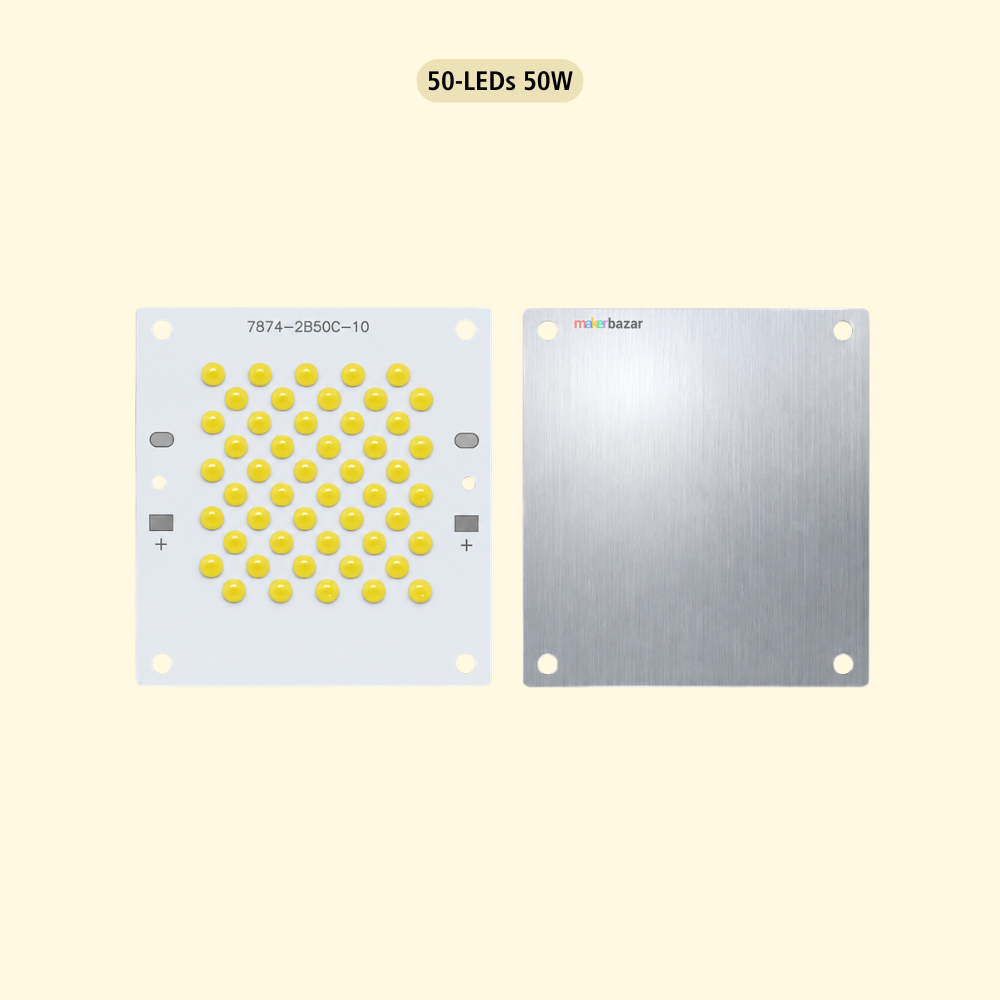

- For a 50-watt 50-LED PCB, use a 100-175V 300mA power supply.
