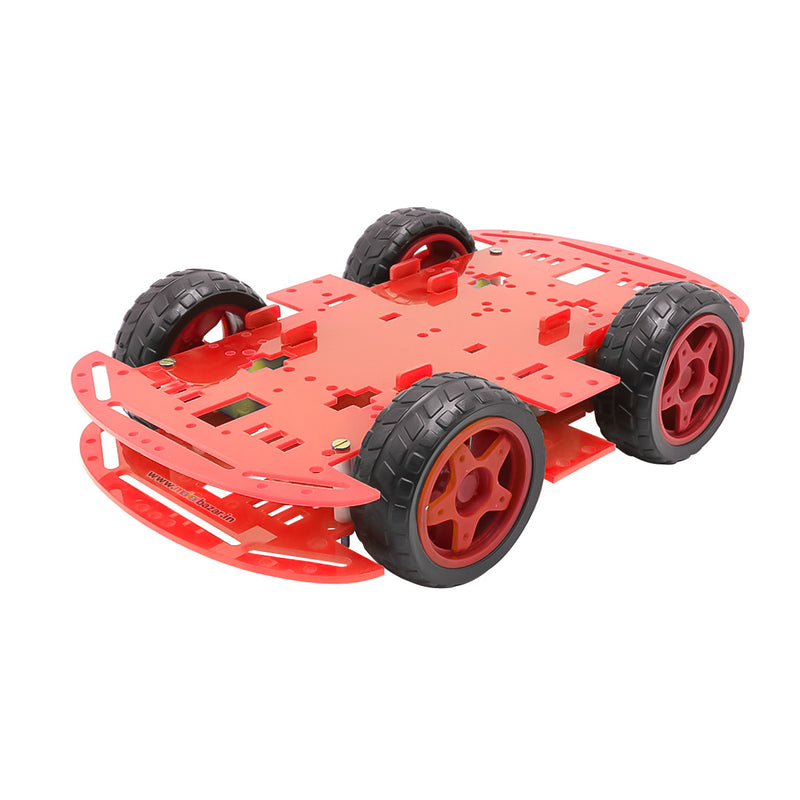

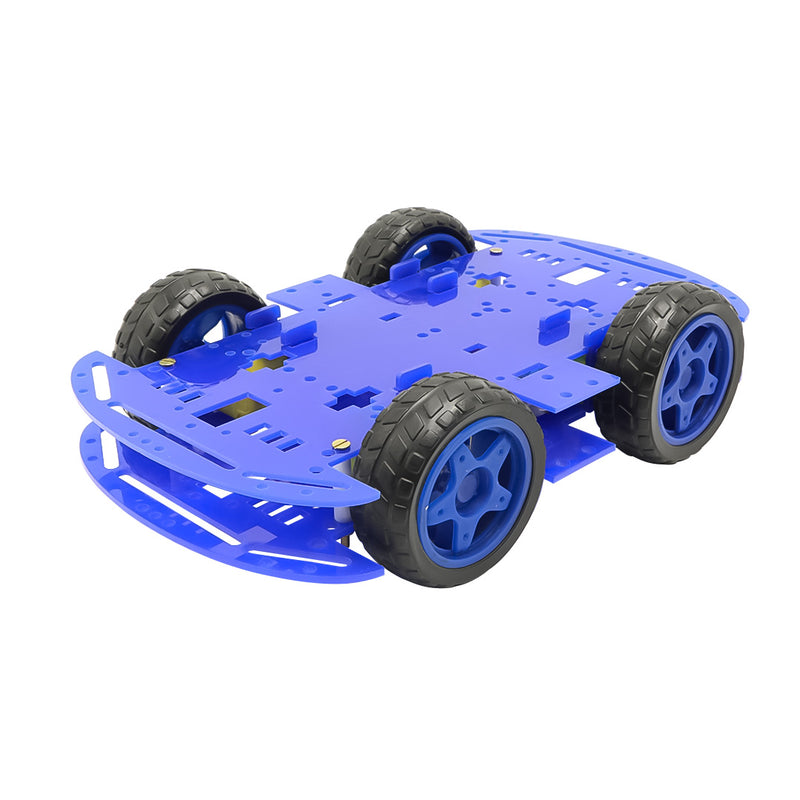

Colored Longer version of 4 WD Double Layer Smart Car Chassis Kit

This is a Longer version of 4 wd double-layer smart car chassis. It comes with four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle.

---

Features :

1. Very handy and simple in assembling/disassembling.
2. Strong components to withstand extreme terrain conditions.
3. Coloured Car Chassis.
4. Attractive design.
5. Double-layer structure, many mounting holes, enough space
6. Easy to install a variety of control panels, sensors
7. Educational toys, Ideal for the DIY platform

---

Specifications:

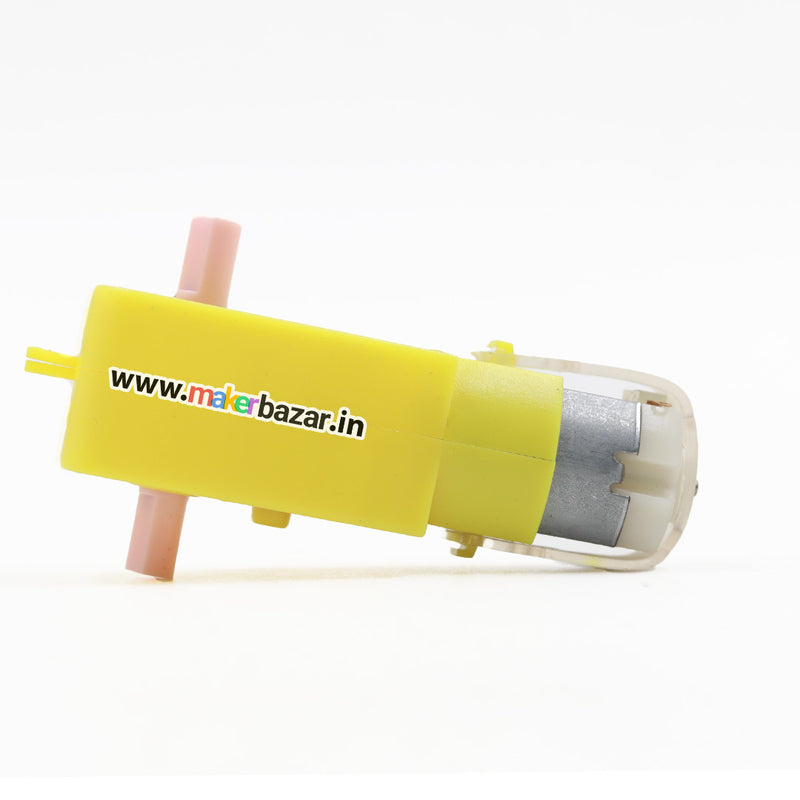

For BO Motor:

1. Operating Voltage: 3V~6V DC
2. Gear Ratio 1:48
3. No-load speed(5V): about 208RPM
4. Rated Torque: 0.8 Kg.cm @ 5V
5. Load current: 170mA (when it is 4.5V)
6. Size: 70 x 23  x 18 mm
7. Weight:28g
8. Shaft Length: 10 mm
9. Shaft Type: 6 mm, Double-D

For Wheel:

1. Loading Capacity: Max 2.5Kg
2. Double D-hole For BO Motor: 6 mm
3. Weight: 34g
4. Wheel Diameter: 65 mm
5. Color: Black (Tyre), Yellow (Rim)
6. Wheel width: 27 mm
7. Body Material: Plastic
8. Grip Material: Rubber

---

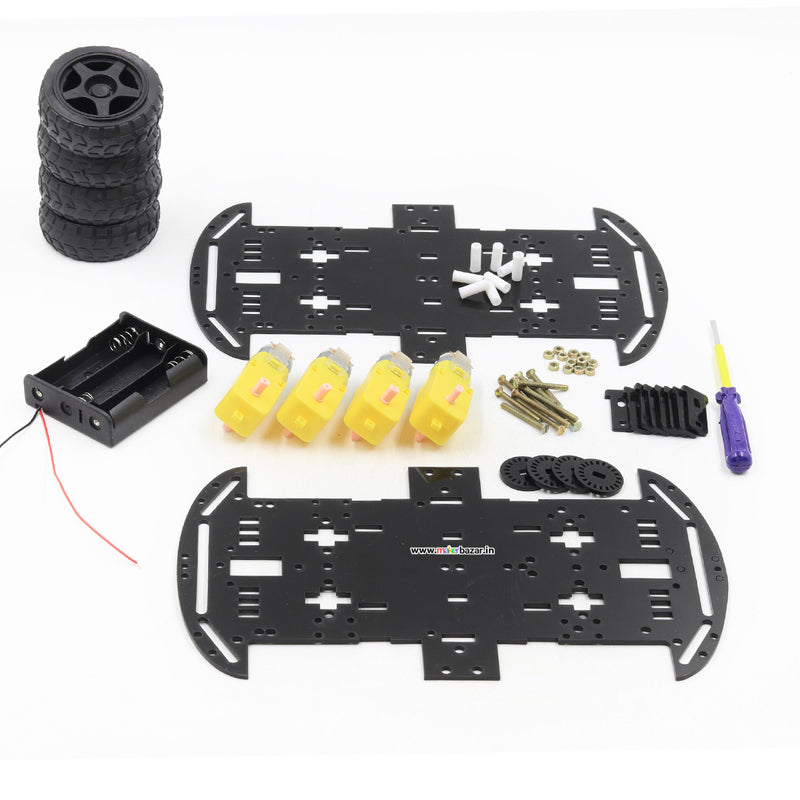

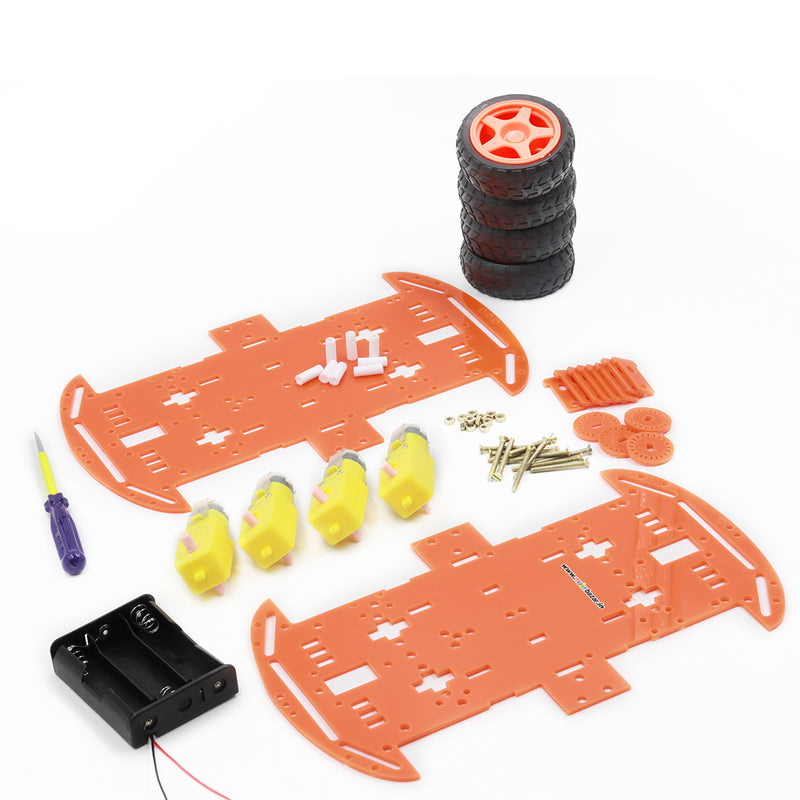

Package includes:

2 x Acrylic Transparent car floor
4 x High-Quality 65-mm Plastic wheels with Rubber Grip
4 x Dual shaft 200 RPM BO Gear Motor

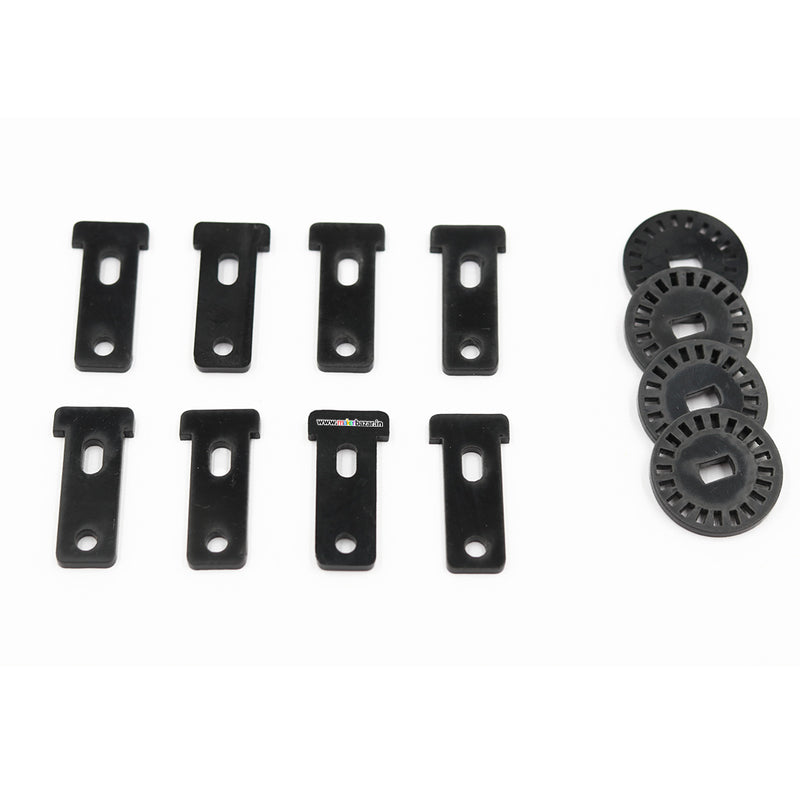

4 x Coded Disk
1 x Battery Holder
1 X Required Nut, Bolts and Spacers
