433 MHz Four Channel RF Transmitter Receiver Remote Control Switch

• 100% New and High-Quality RF Wireless Remote Control Set
• 433MHz 4 Buttons RF Remote Control Transmitter with Battery
• 433MHz 4 Channels Wireless Receiver Module
• EV1527 Learning code Remote Control Receiver + Transmitter

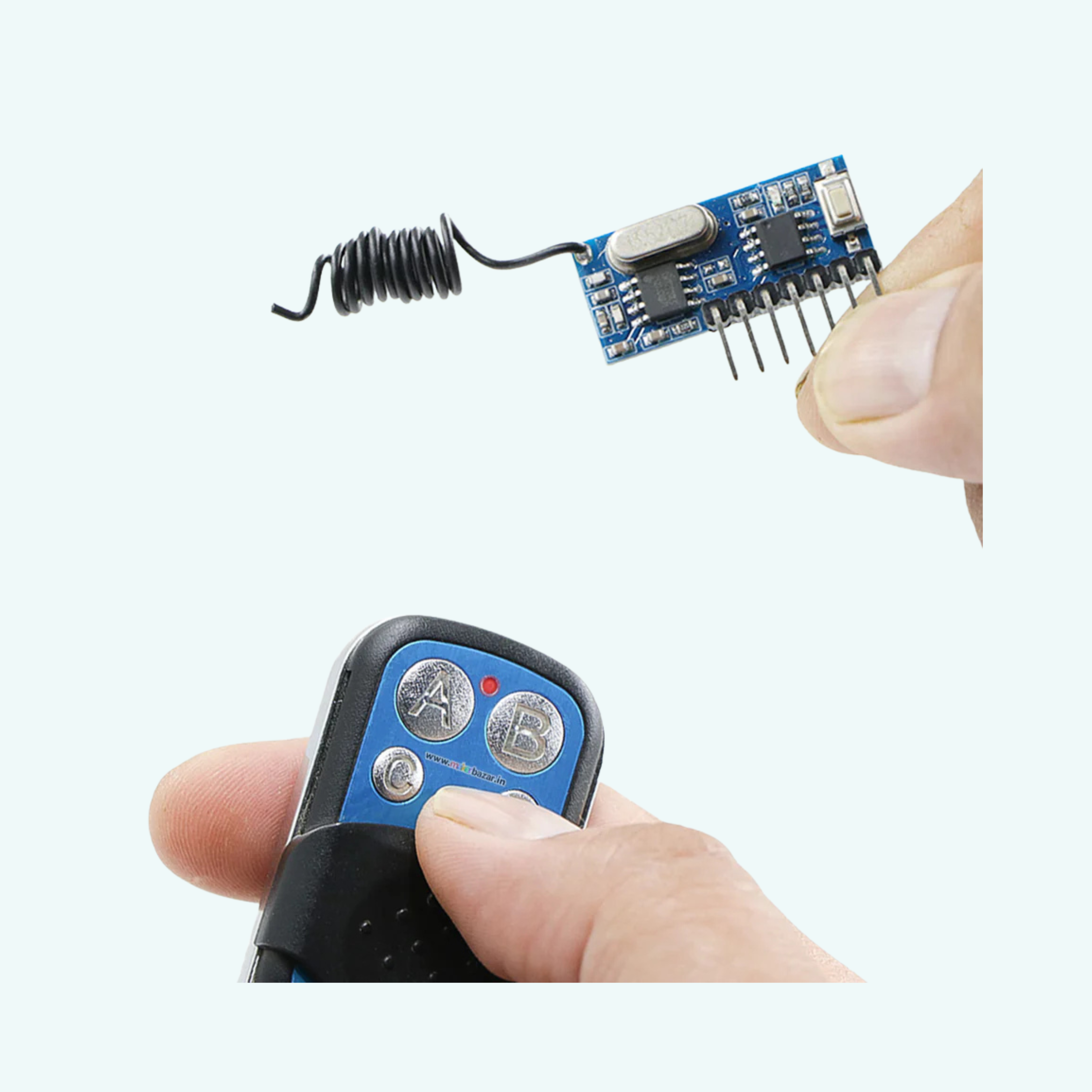

• Complete Set 1x Remote Receiver + 1x Remote Controller
• Note: The installation and usage of these modules require some basic knowledge of electronics, if you do not know how to install them, please don’t buy it.

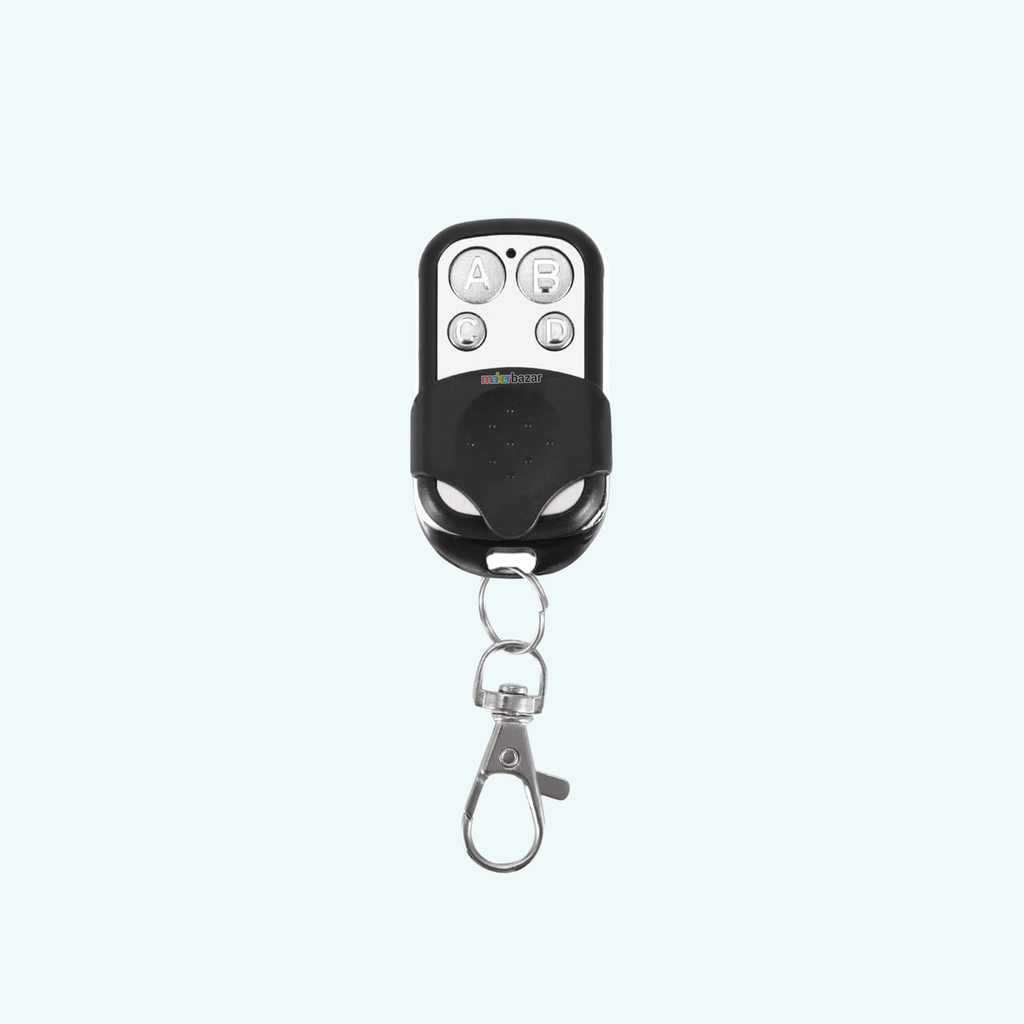

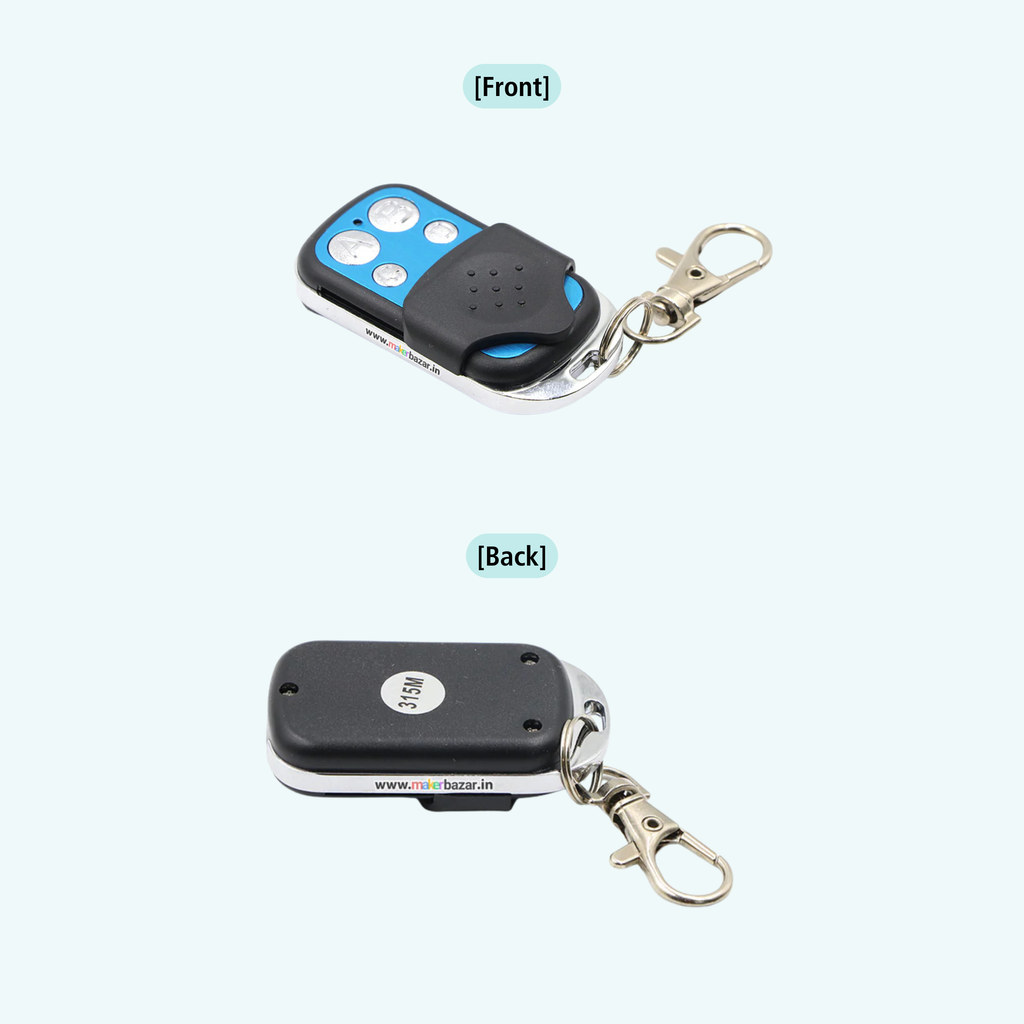

Remote Control Transmitter

• 100% brand new, high quality.
• Size: 58.7*30*13.5 (mm)
• Working frequency: 433MHZ
• Remote control distance: 50-100m (in an open environment)
• Working mode: fixed welding code type, learning type, copy type optional Working voltage: DC 12V
• Working current: 11mA
• Working environment: -15*75 degrees Celsius
• Application: Suitable for electric door remote control, telescopic door remote control, garage door remote control, motor control remote control, curtain control remote control, car motorcycle remote control, etc.

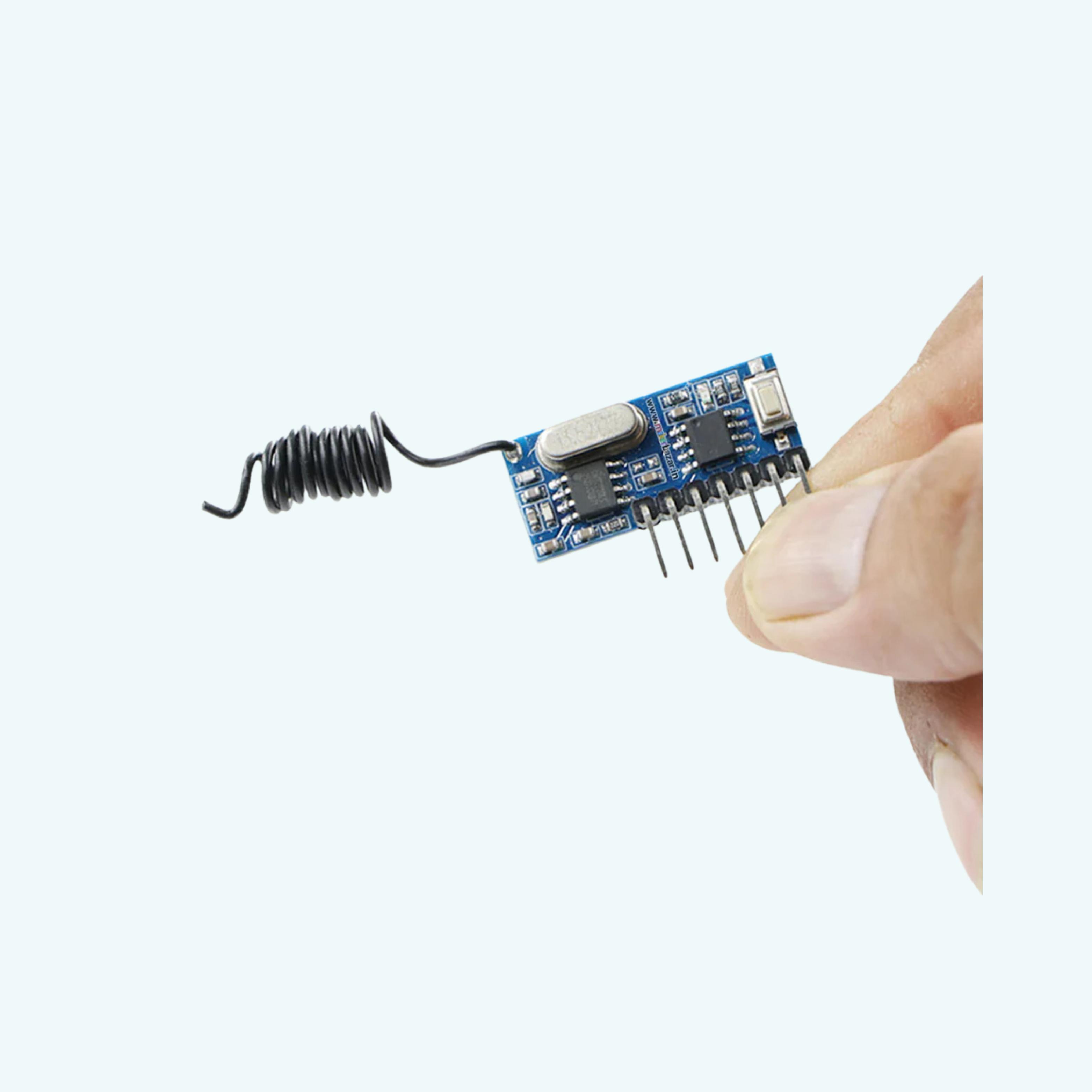

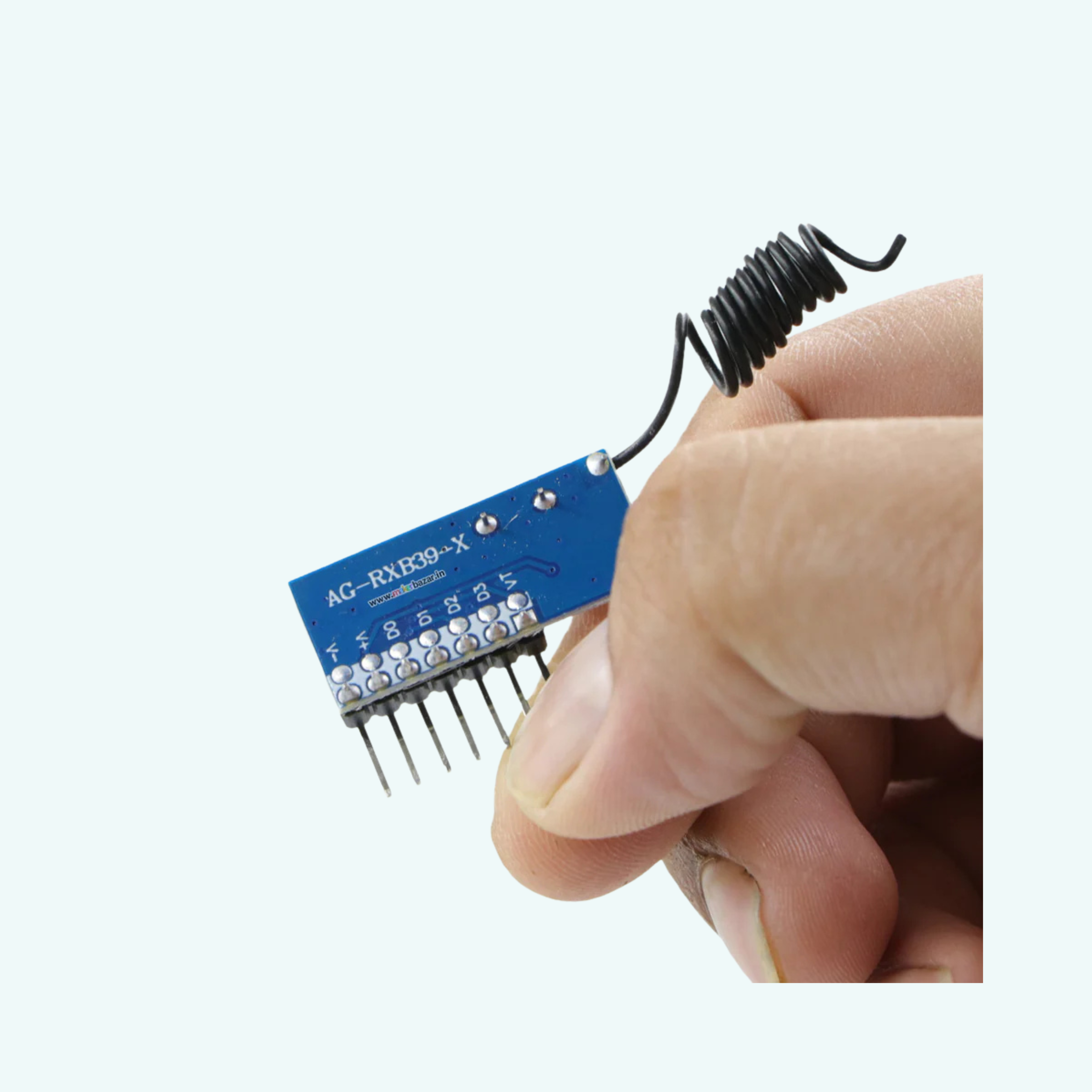

Receiver Module RX480-E4

• Working Voltage : DC3.3~5V
• Quiescent Current : Less than 5mA
• Output current: 10 mA
• Working Frequency: 433MHz ( Others can be customized )
• Receive Sensitivity: -108dB
• Receive Distance:15 meters above
• Frequency band: ±0.2MHz
• Working Temperature : -25~75
