Description

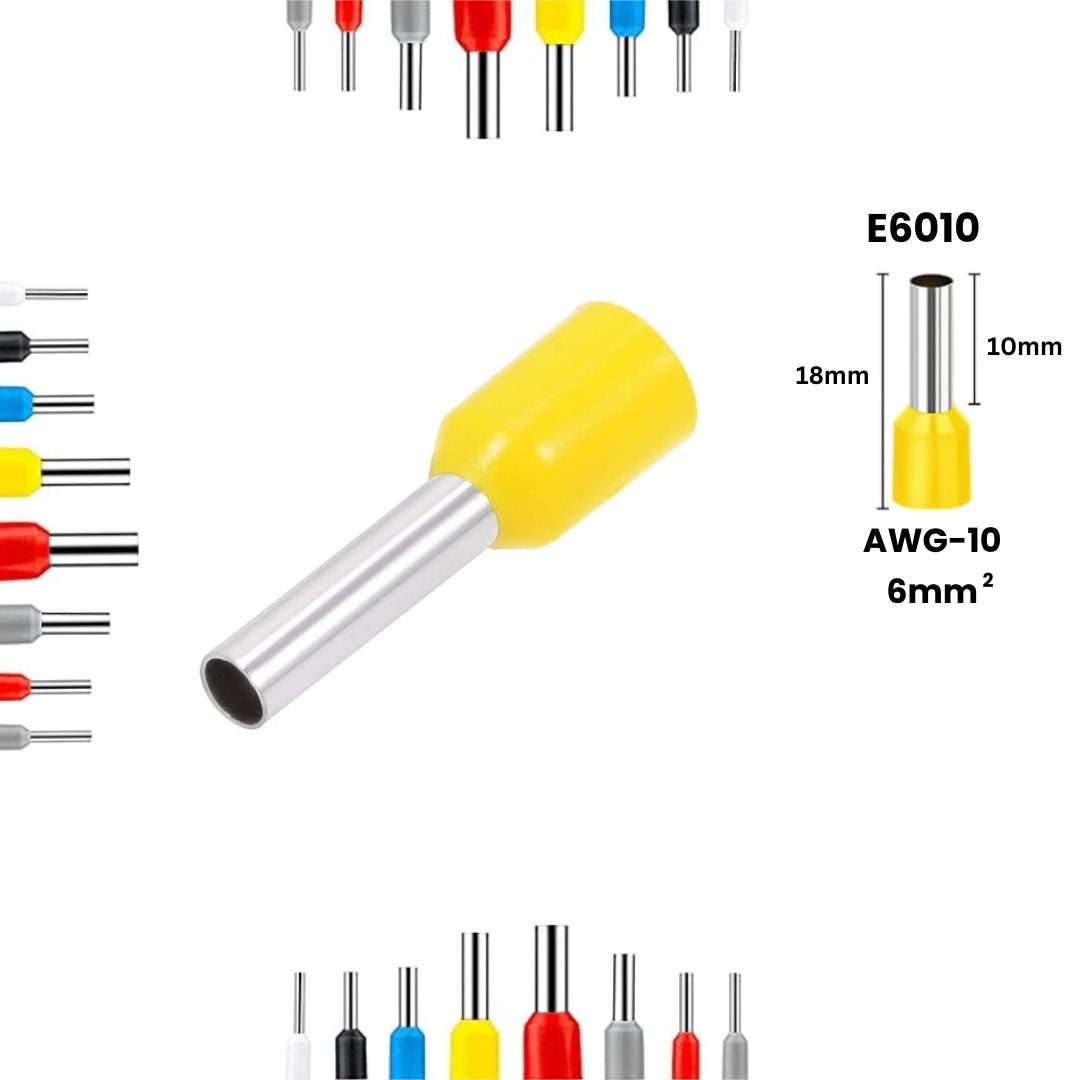

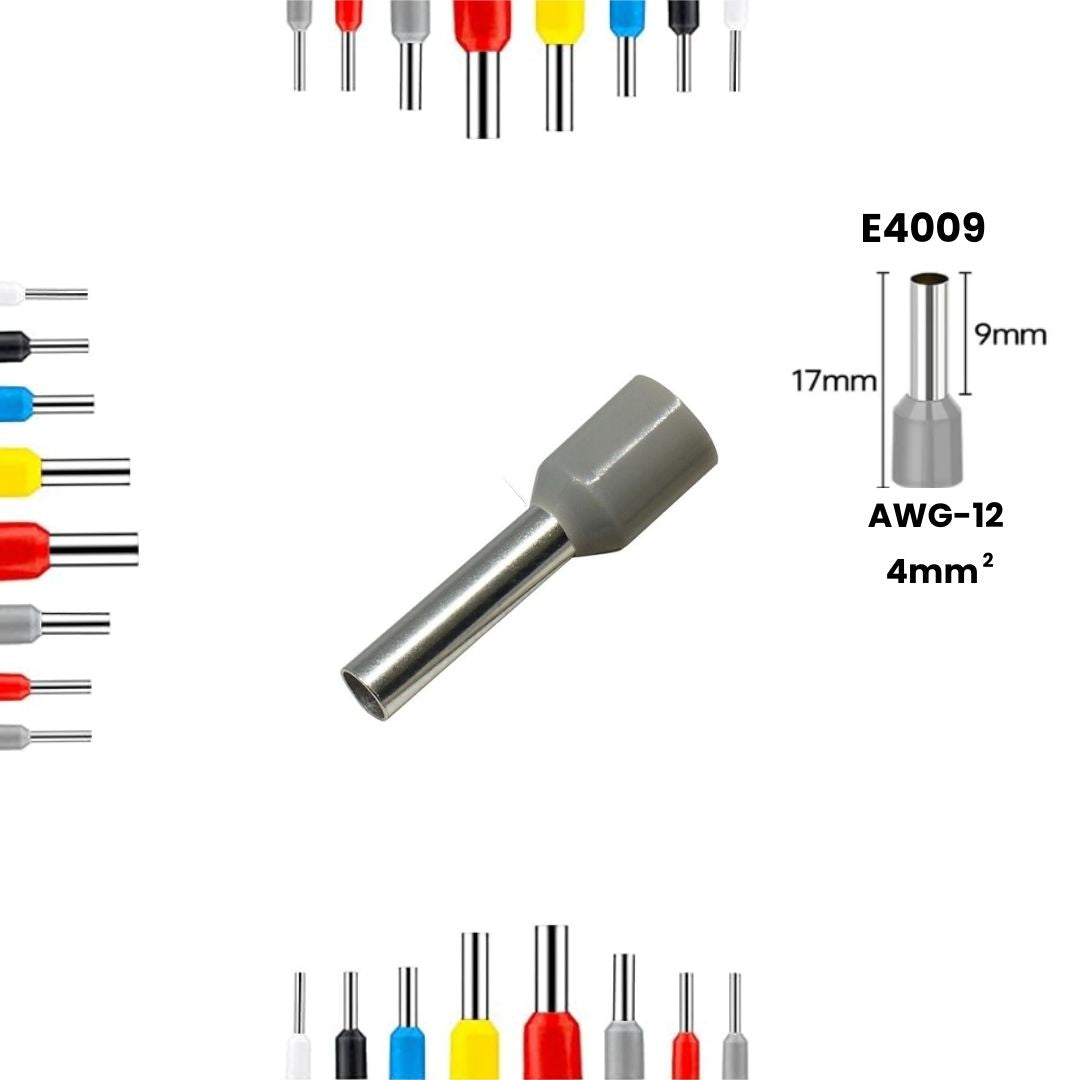

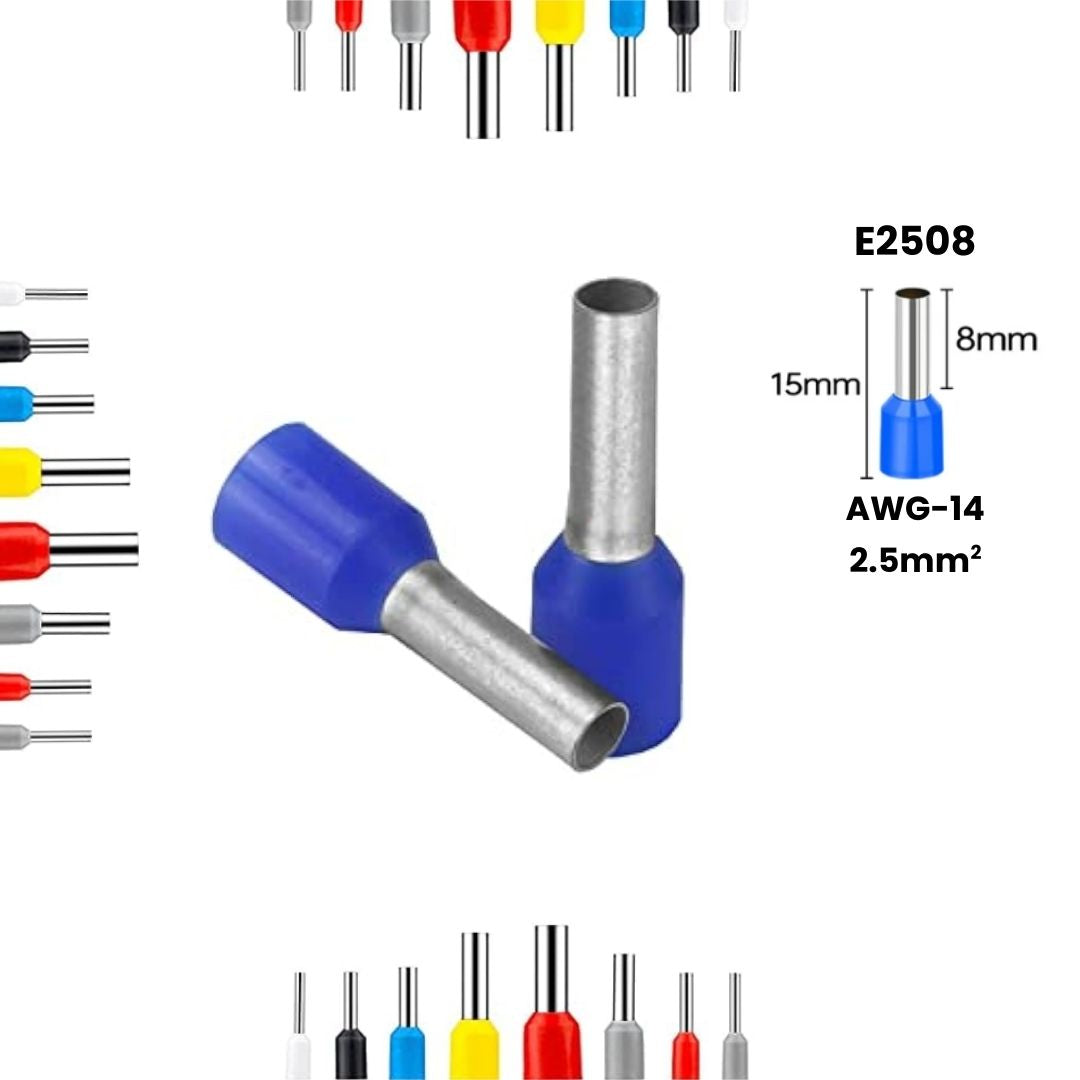

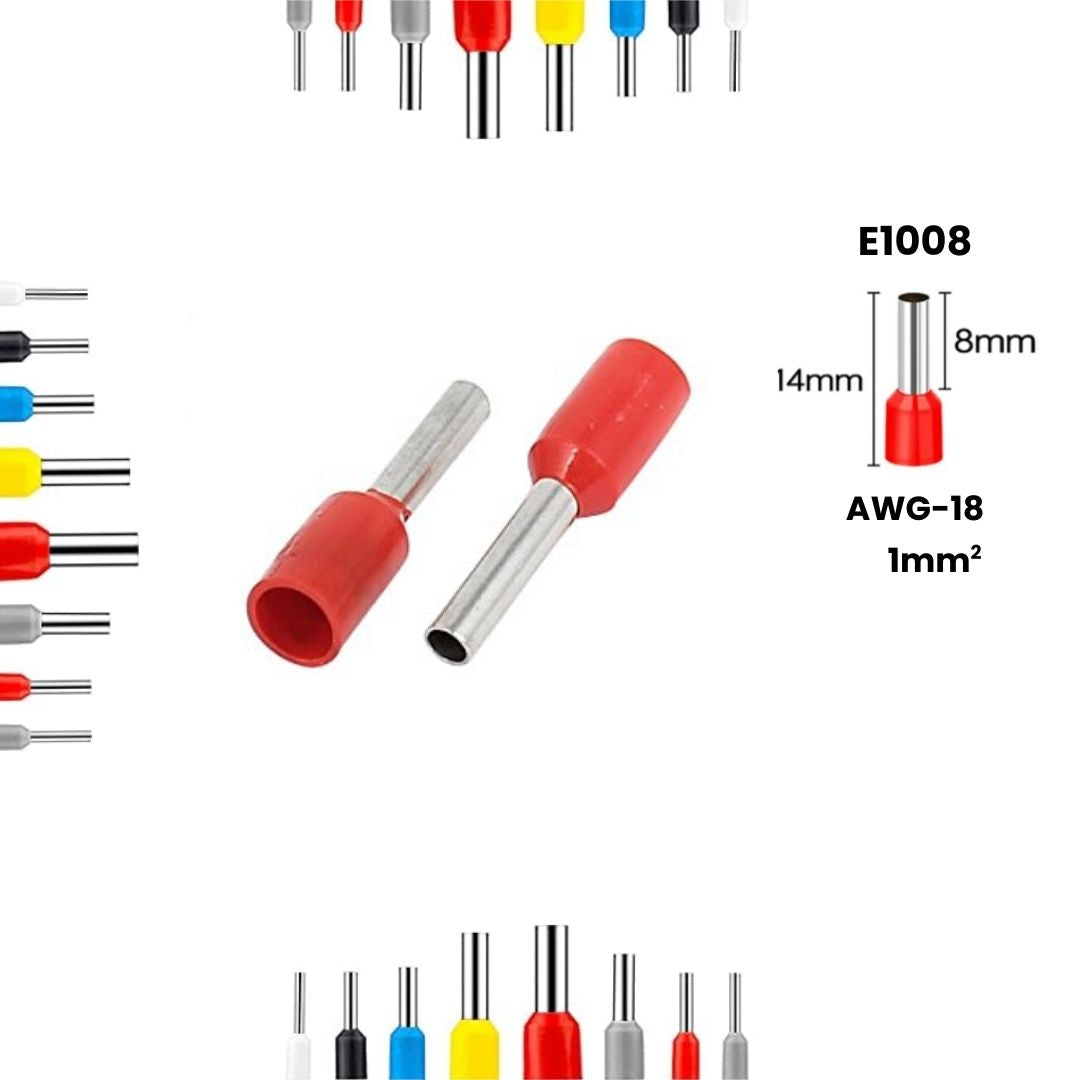

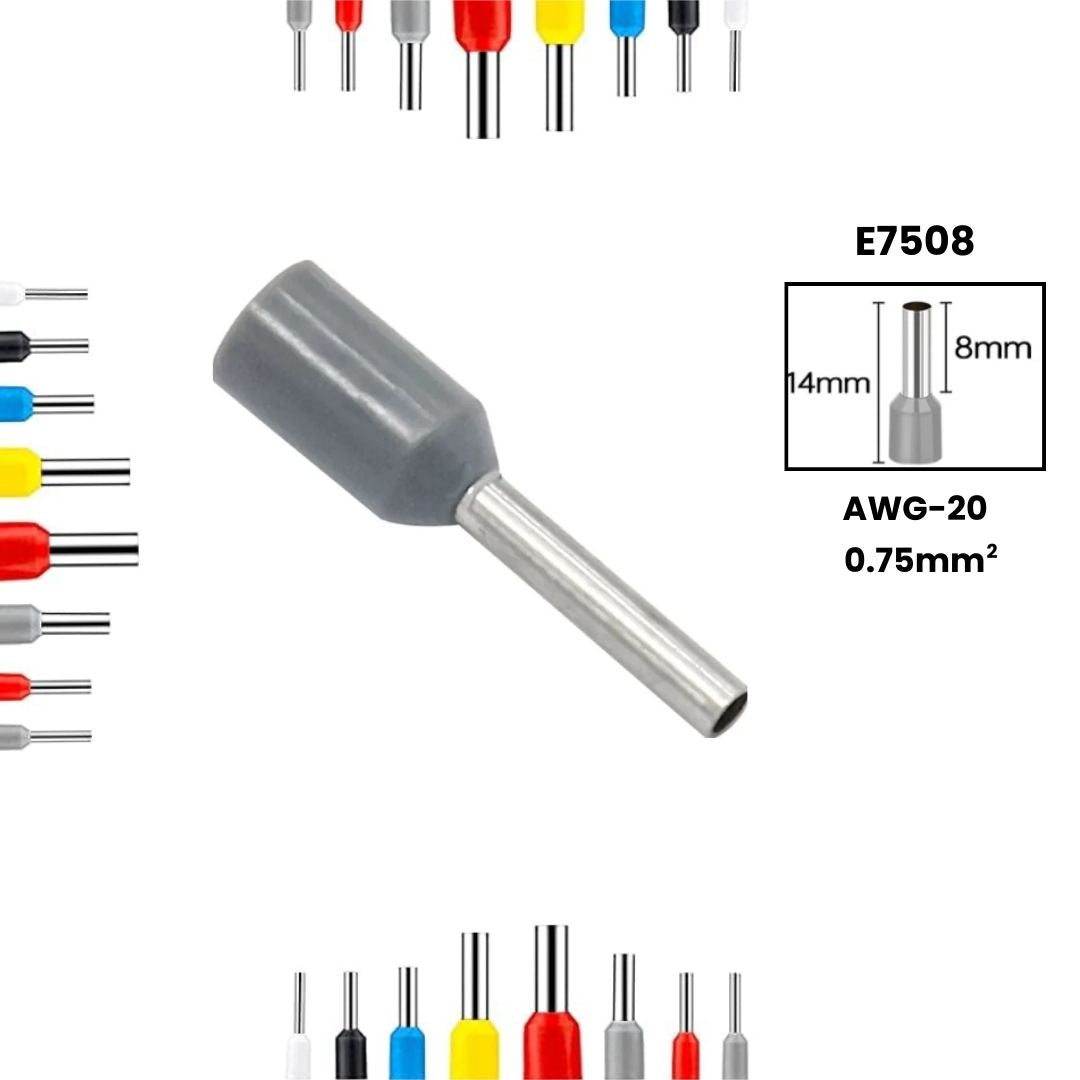

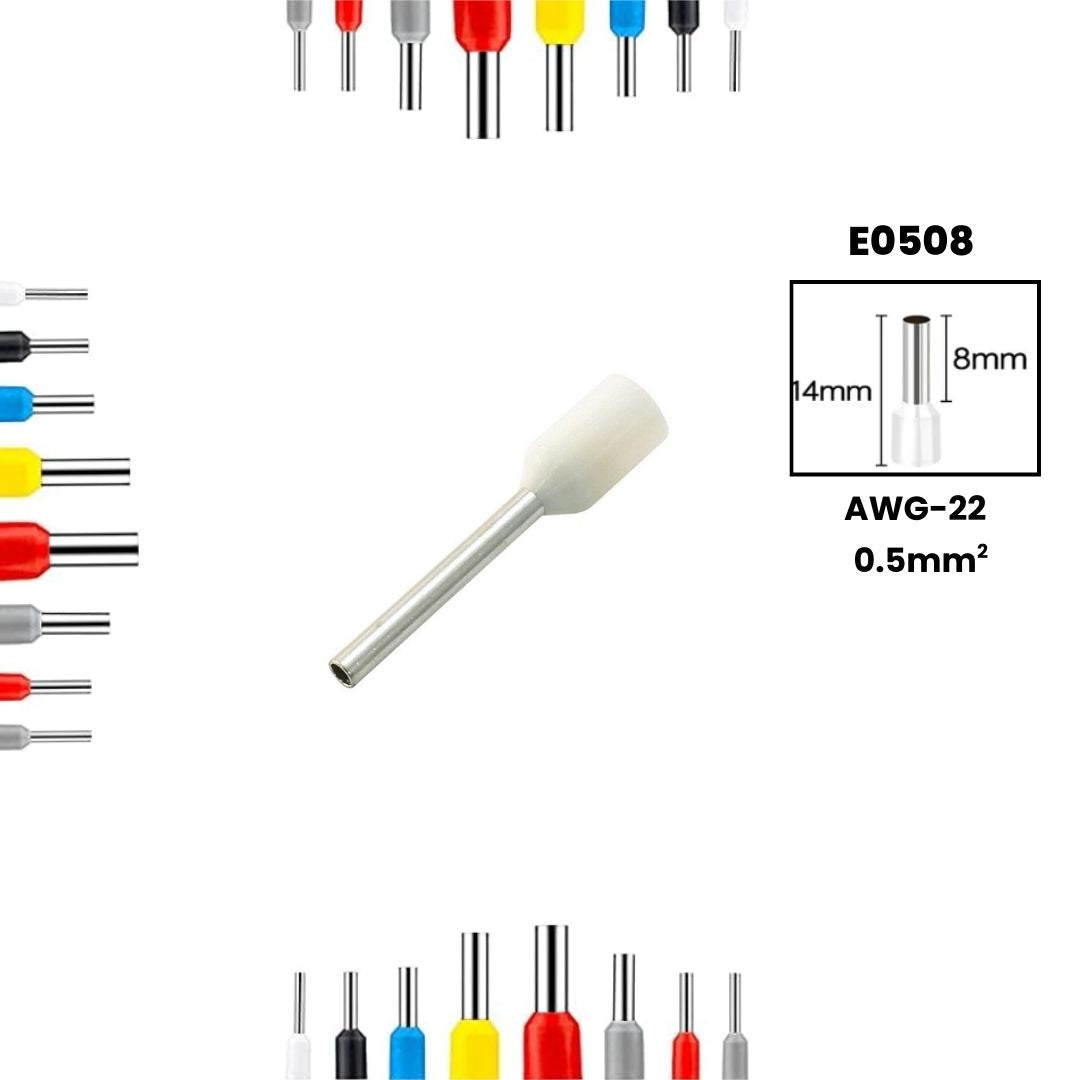

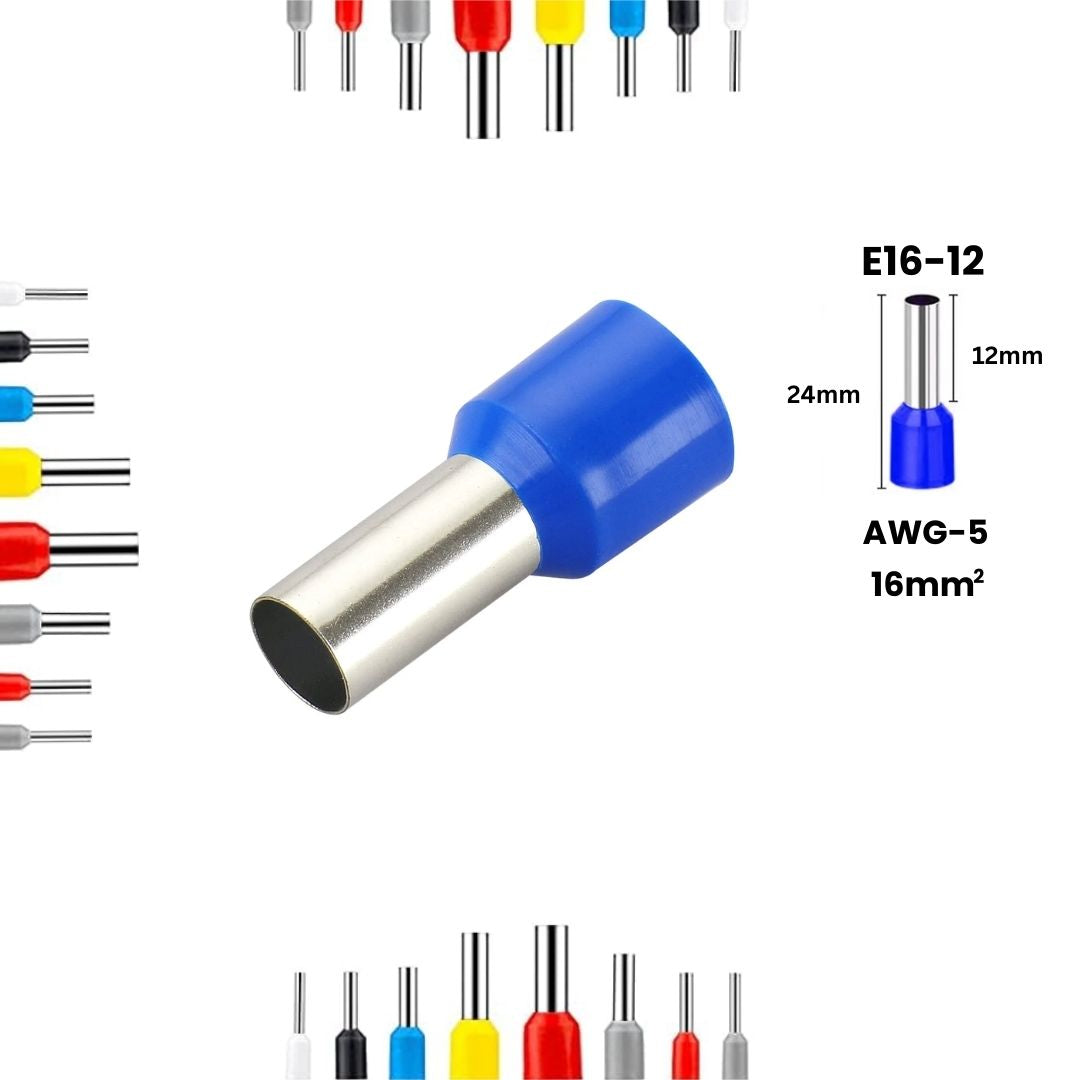

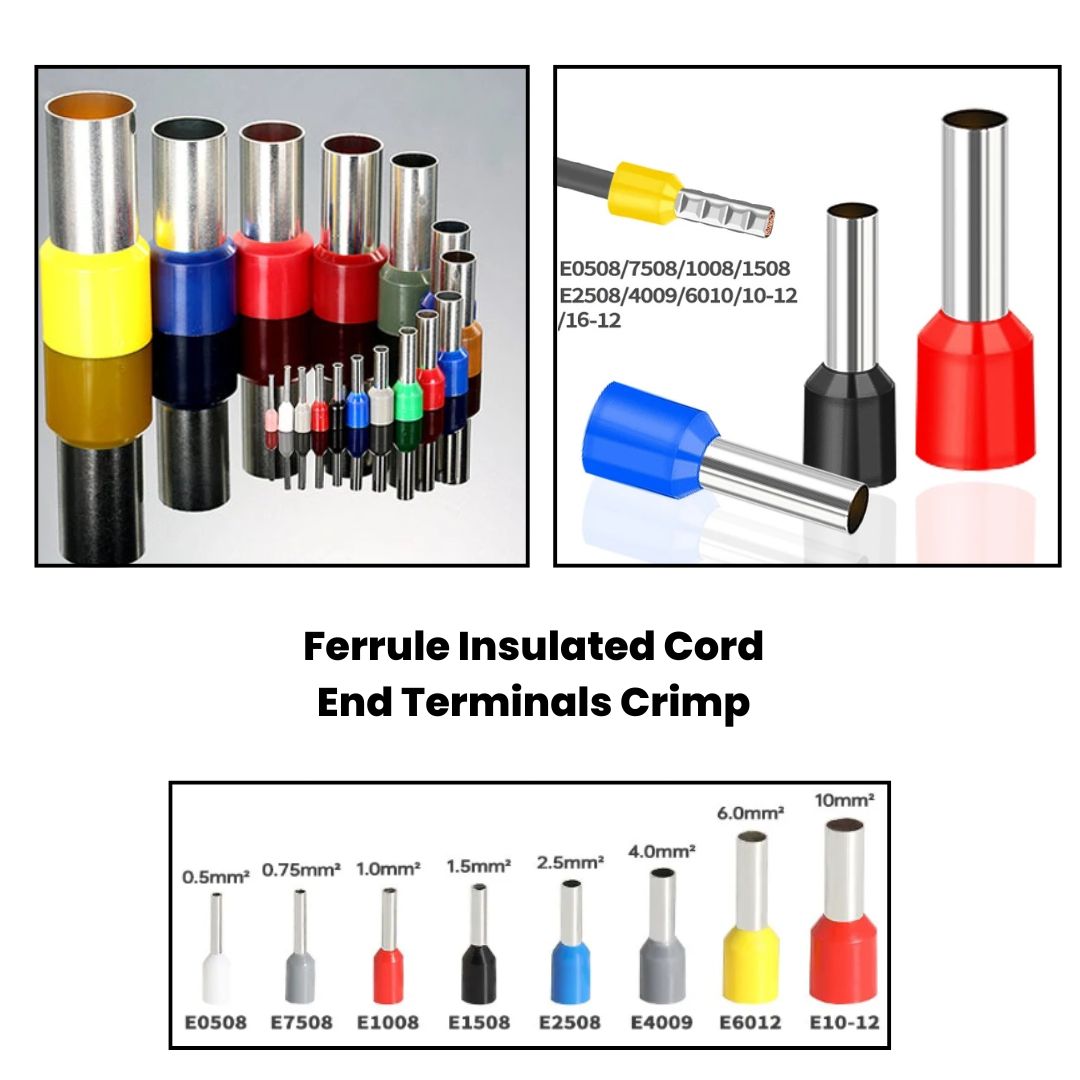

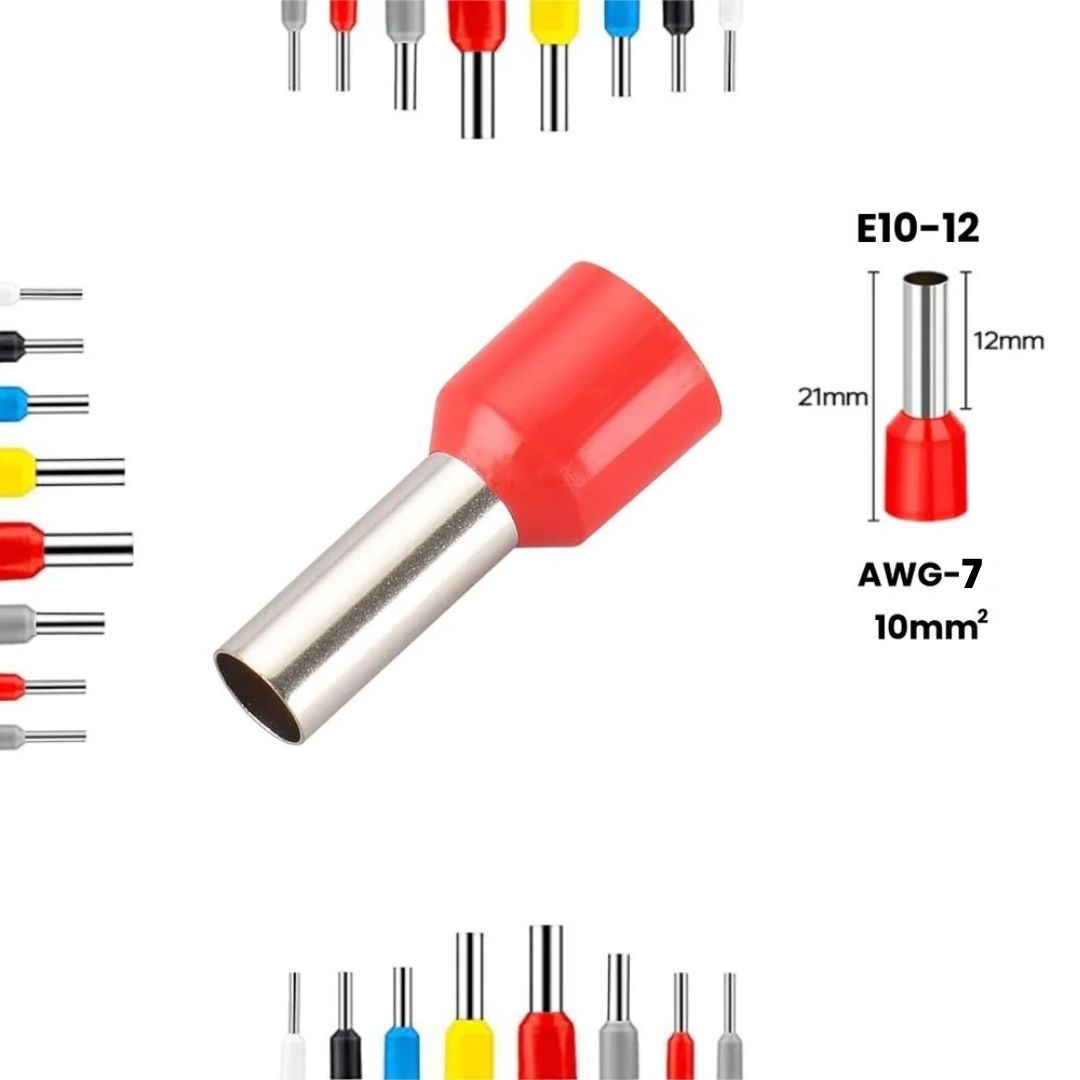

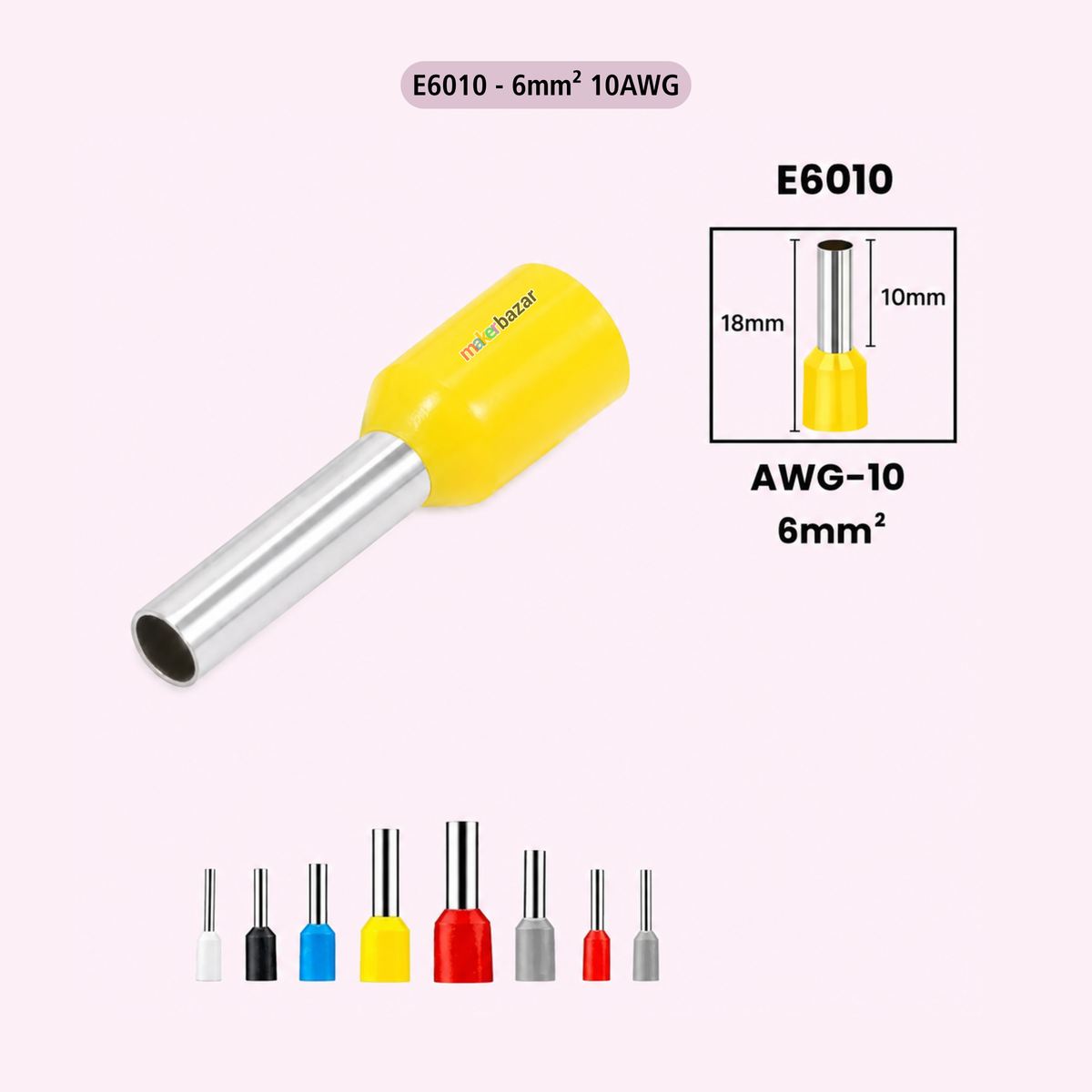

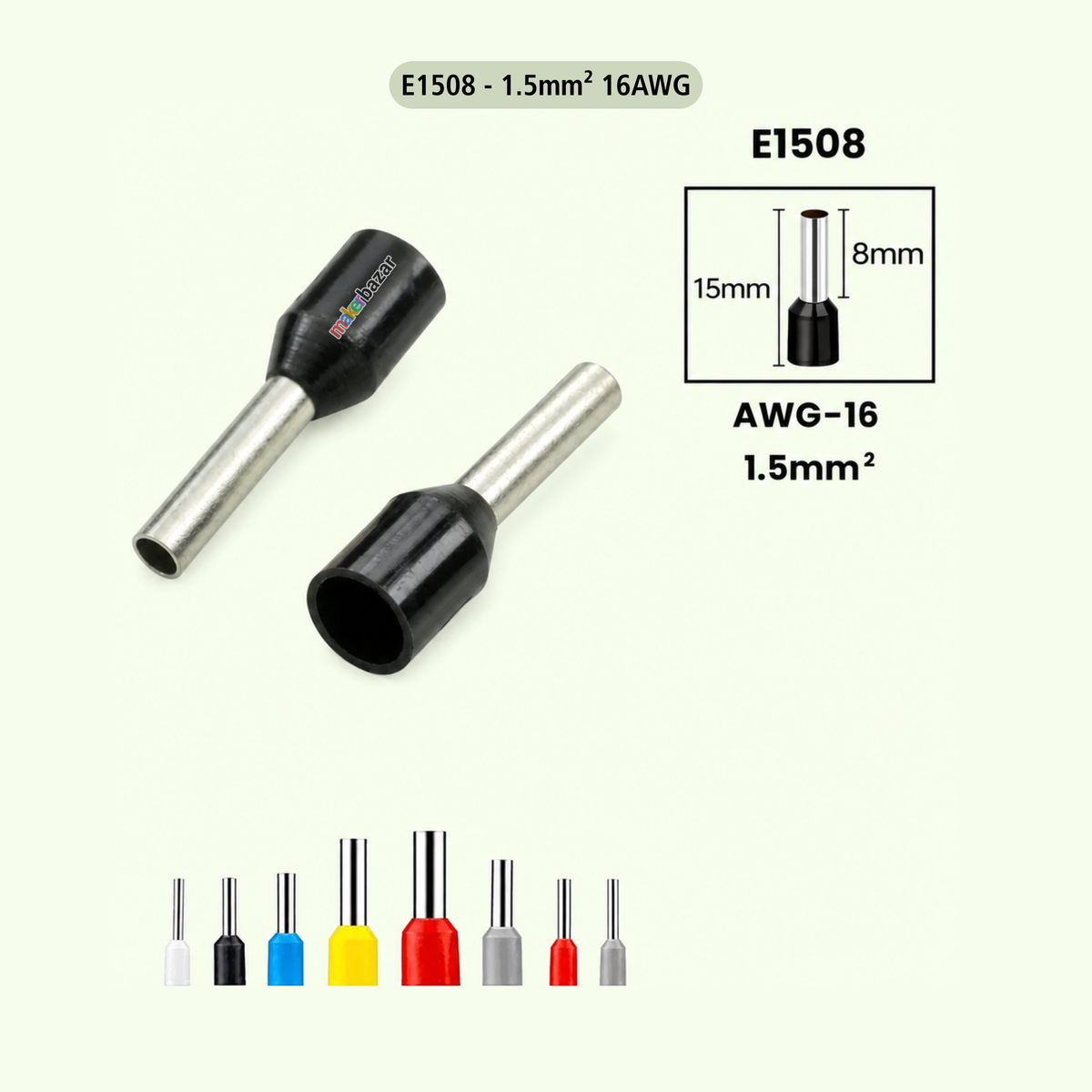

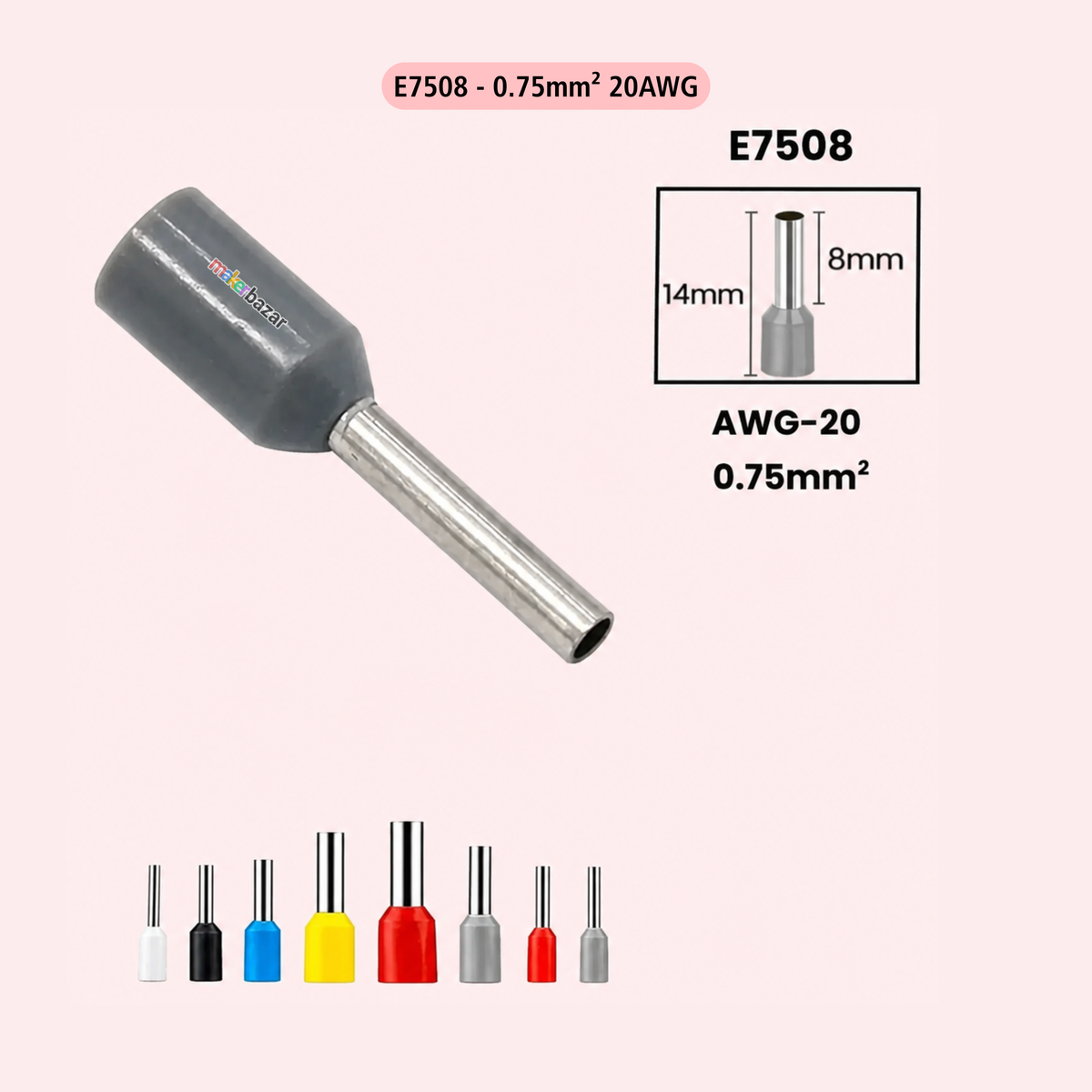

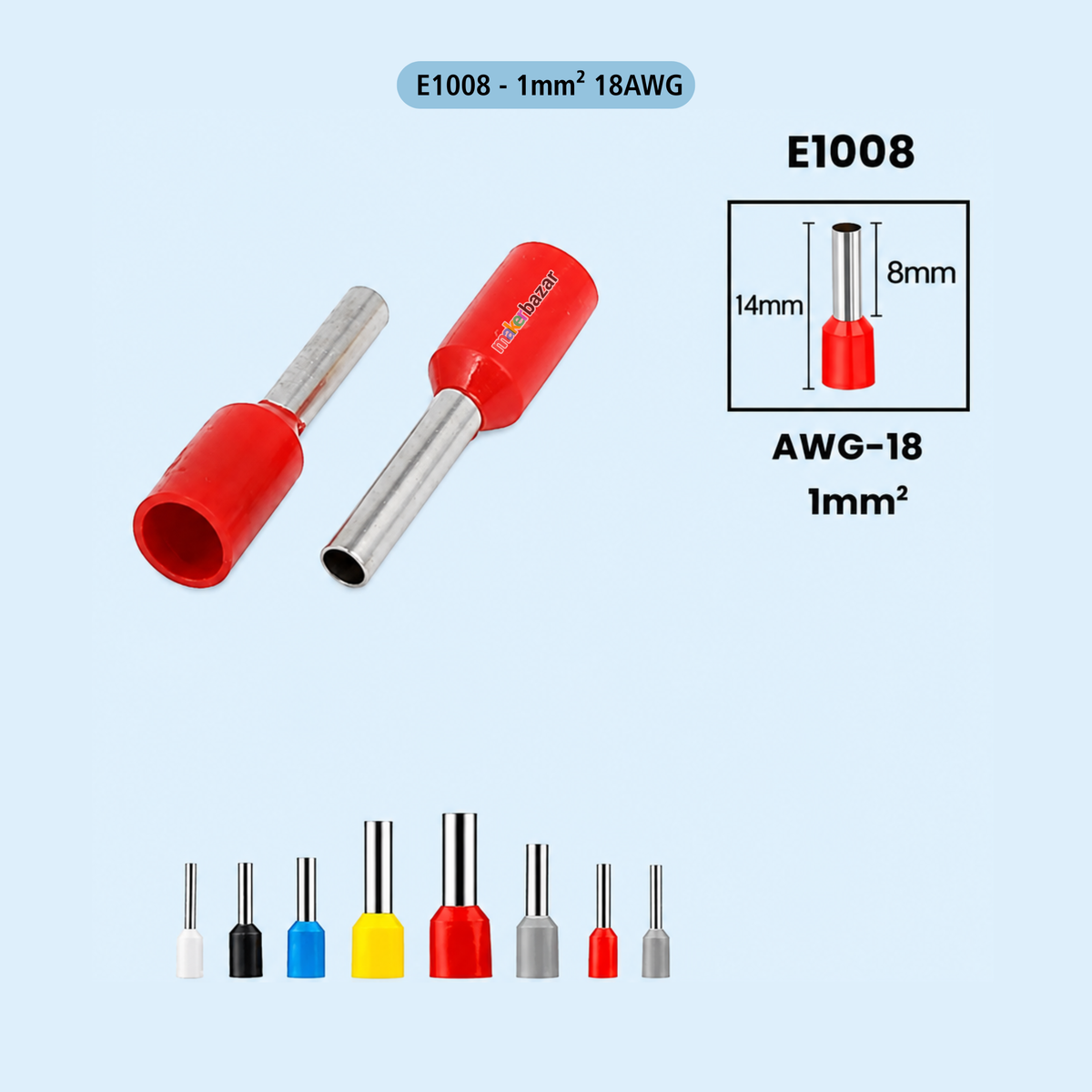

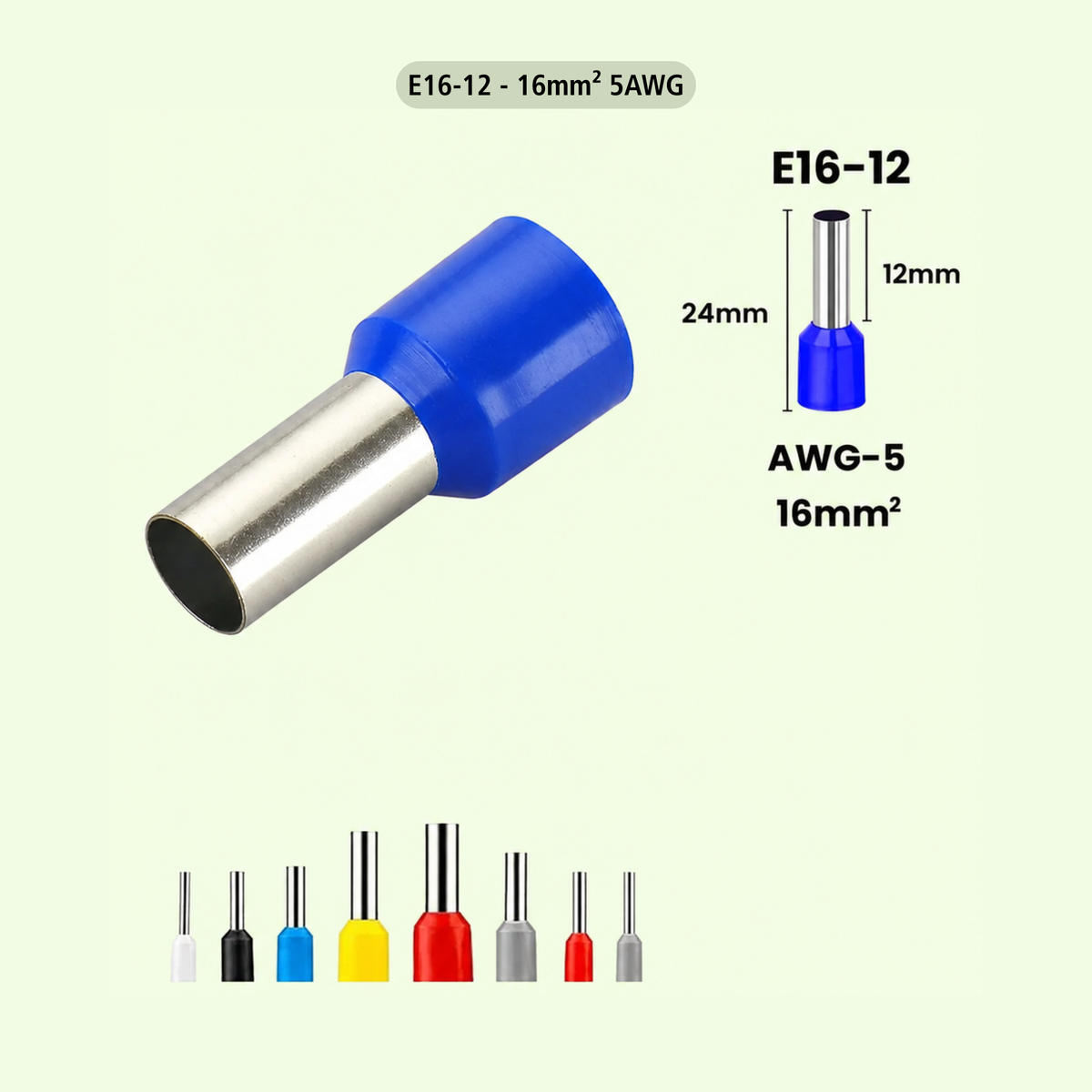

E Series 0508/ 7508/ 1008/ 1508/ 2508/ 4009/ 6010/ 10-12/ 16-12 Copper Tube Wire Electrical Pin Terminals (Random Color)
Ensure safe, reliable, and professional electrical wire terminations with the E Series Copper Tube Wire Electrical Pin Ferrule Terminals. Designed for stranded wires, these ferrules provide a secure connection while preventing wire strand damage during installation. Manufactured from high-quality electro-tinned copper with durable PVC/Nylon insulation, they offer excellent conductivity, corrosion resistance, and long-lasting performance.
Available in multiple sizes including 0508, 7508, 1008, 1508, 2508, 4009, 6010, 10-12, and 16-12, these ferrules are suitable for control panels, industrial automation, electrical cabinets, automotive wiring, robotics, DIY electronics, and household electrical installations. The random color insulation allows quick wire size identification while maintaining neat and organized wiring.
Key Features
- Premium electro-tinned copper tube for excellent conductivity.
- Durable PVC/Nylon insulated sleeve.
- Prevents wire strand fraying during installation.
- Provides secure and vibration-resistant electrical connections.
- Reduces contact resistance and heat generation.
- Easy to crimp using ferrule crimping tools.
- Suitable for stranded copper wires.
- Corrosion-resistant tin-plated finish.
- Available in multiple E-Series sizes.
- Random insulation colors for easy wire identification.
- Ideal for industrial and domestic electrical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wire Ferrule / Electrical Pin Terminal |
| Series | E Series |

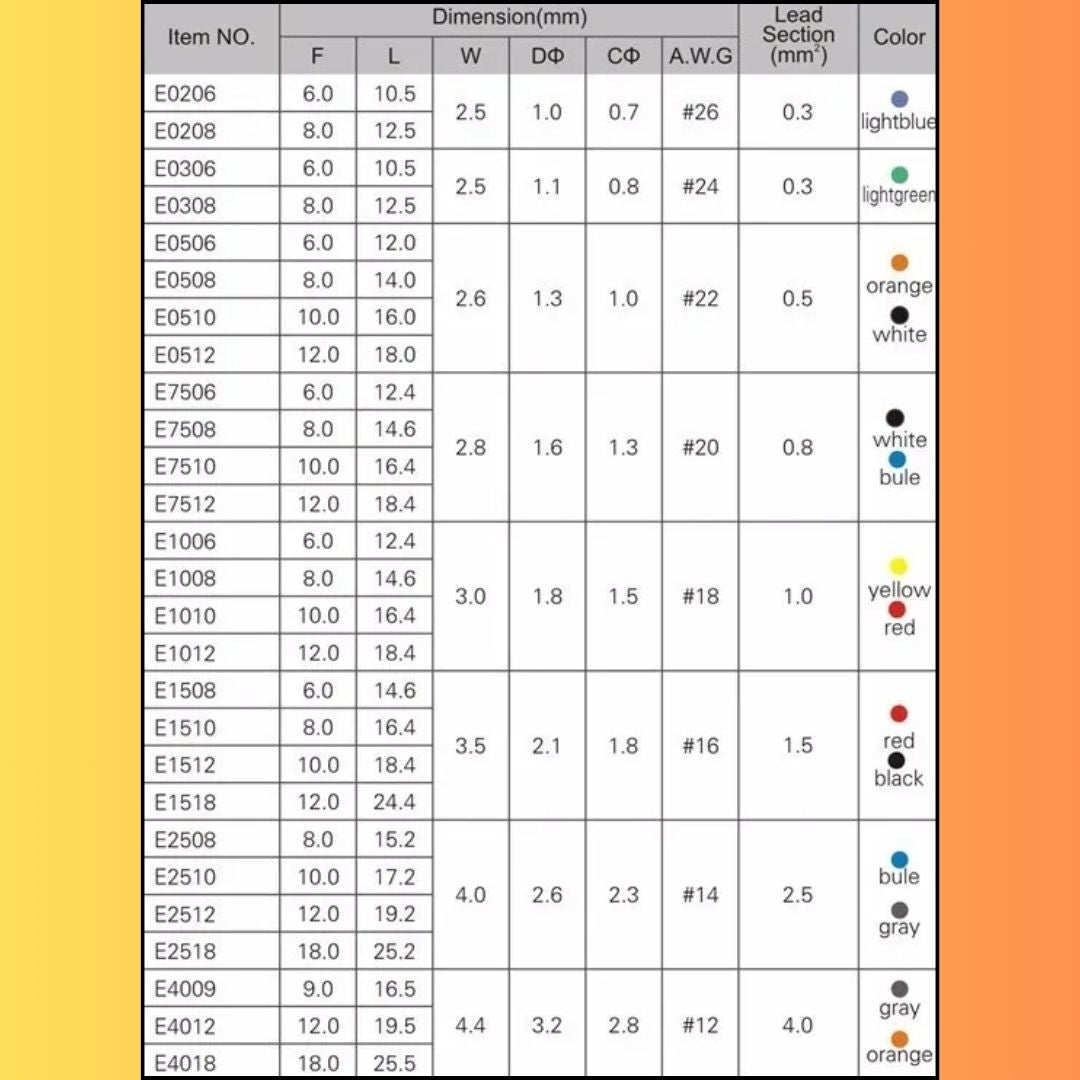

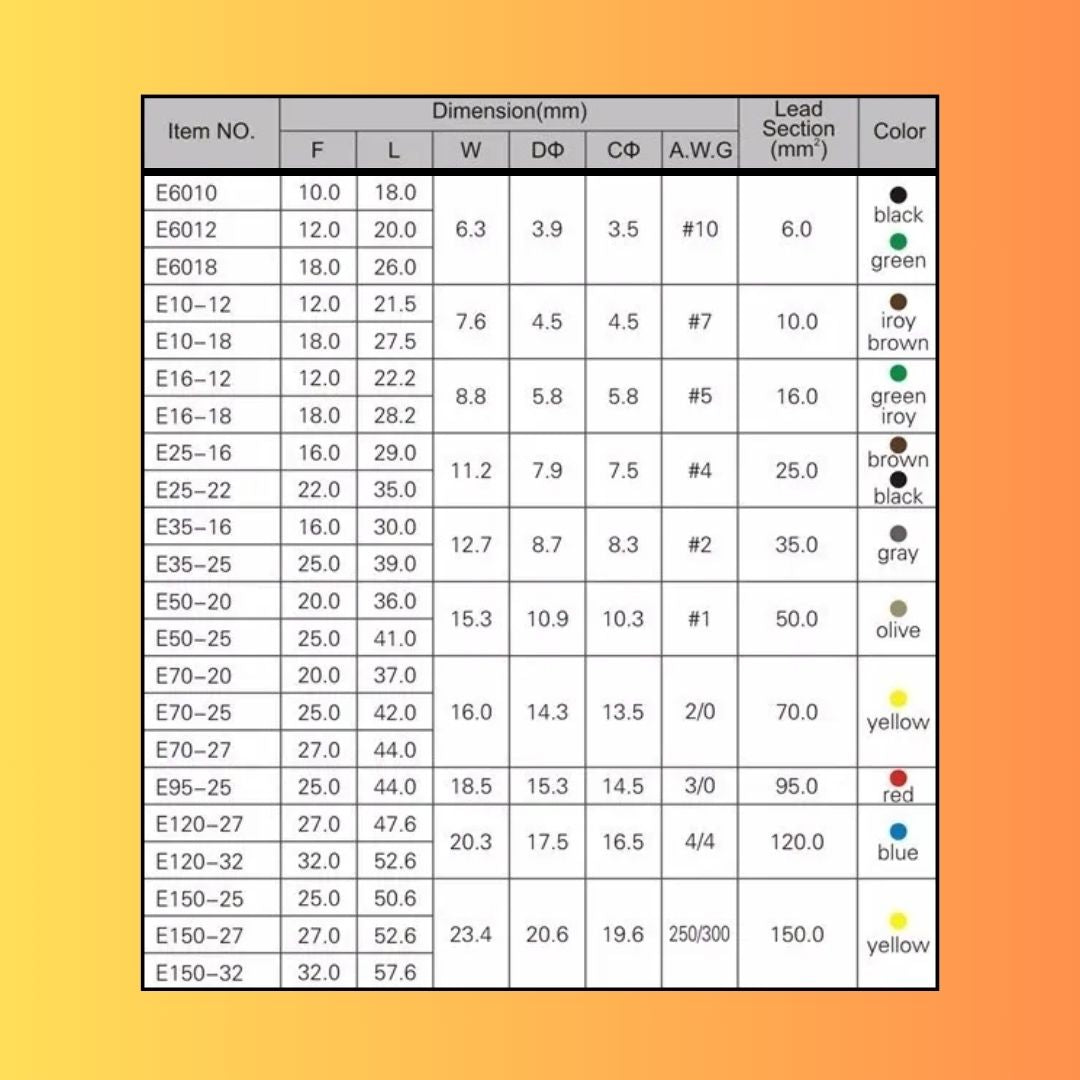

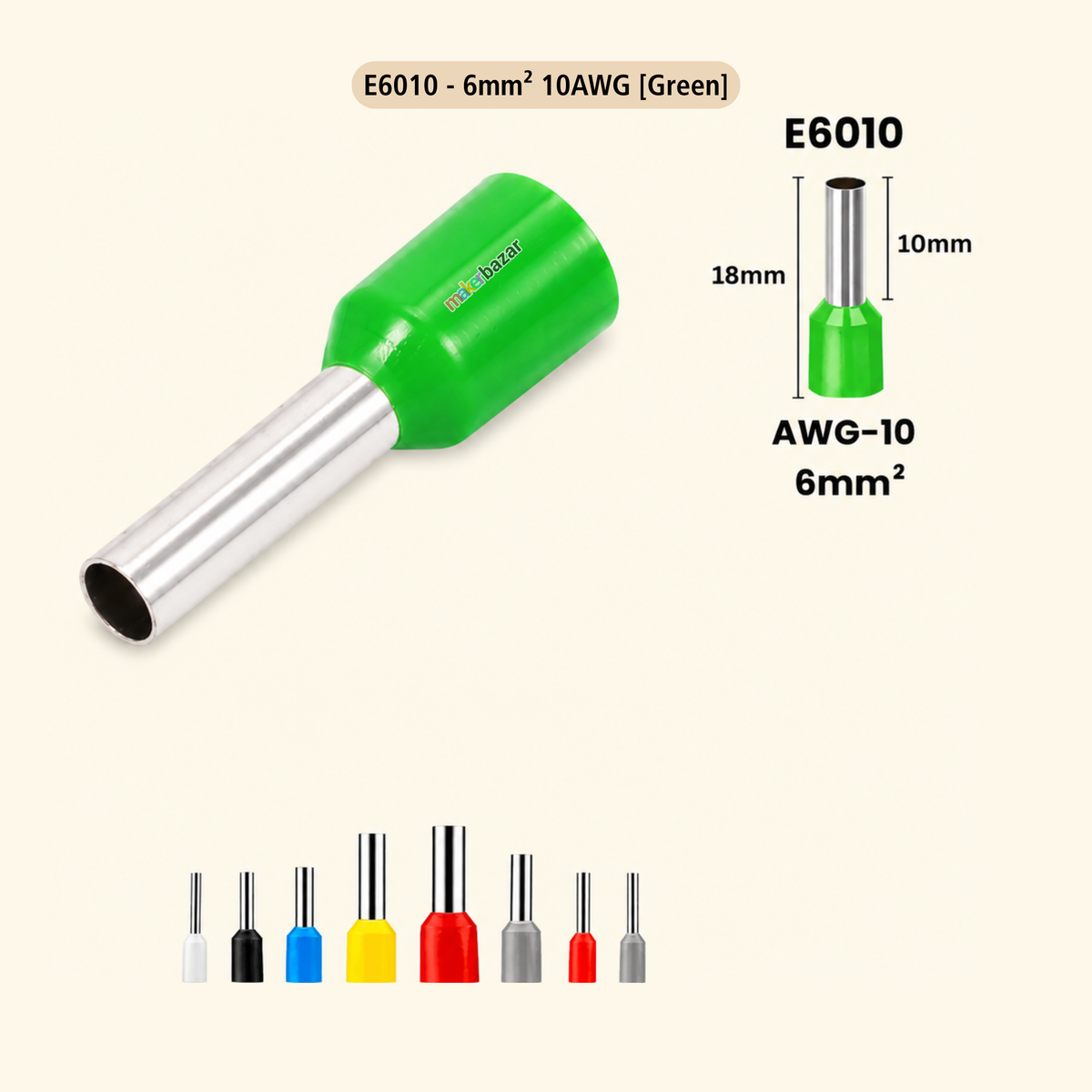

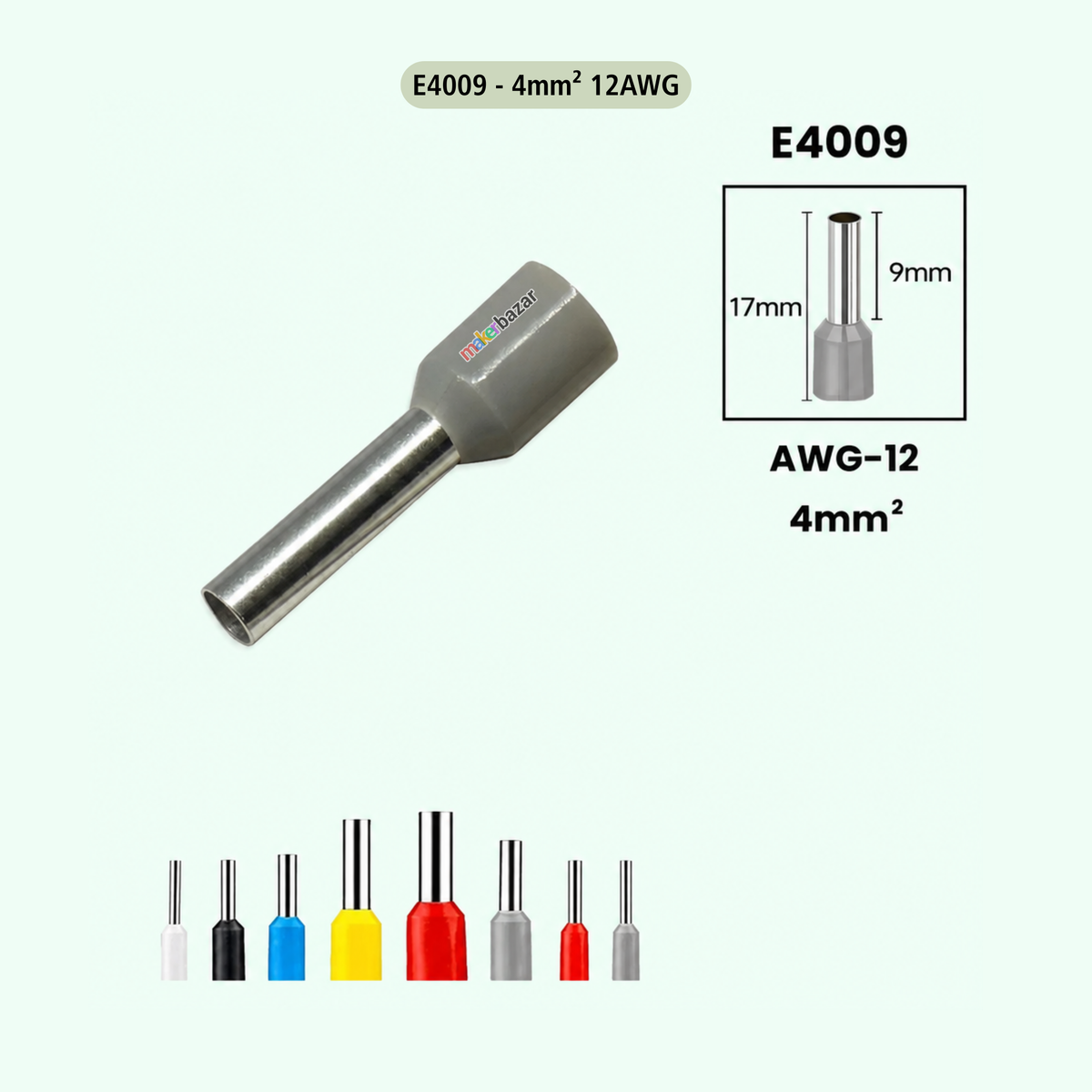

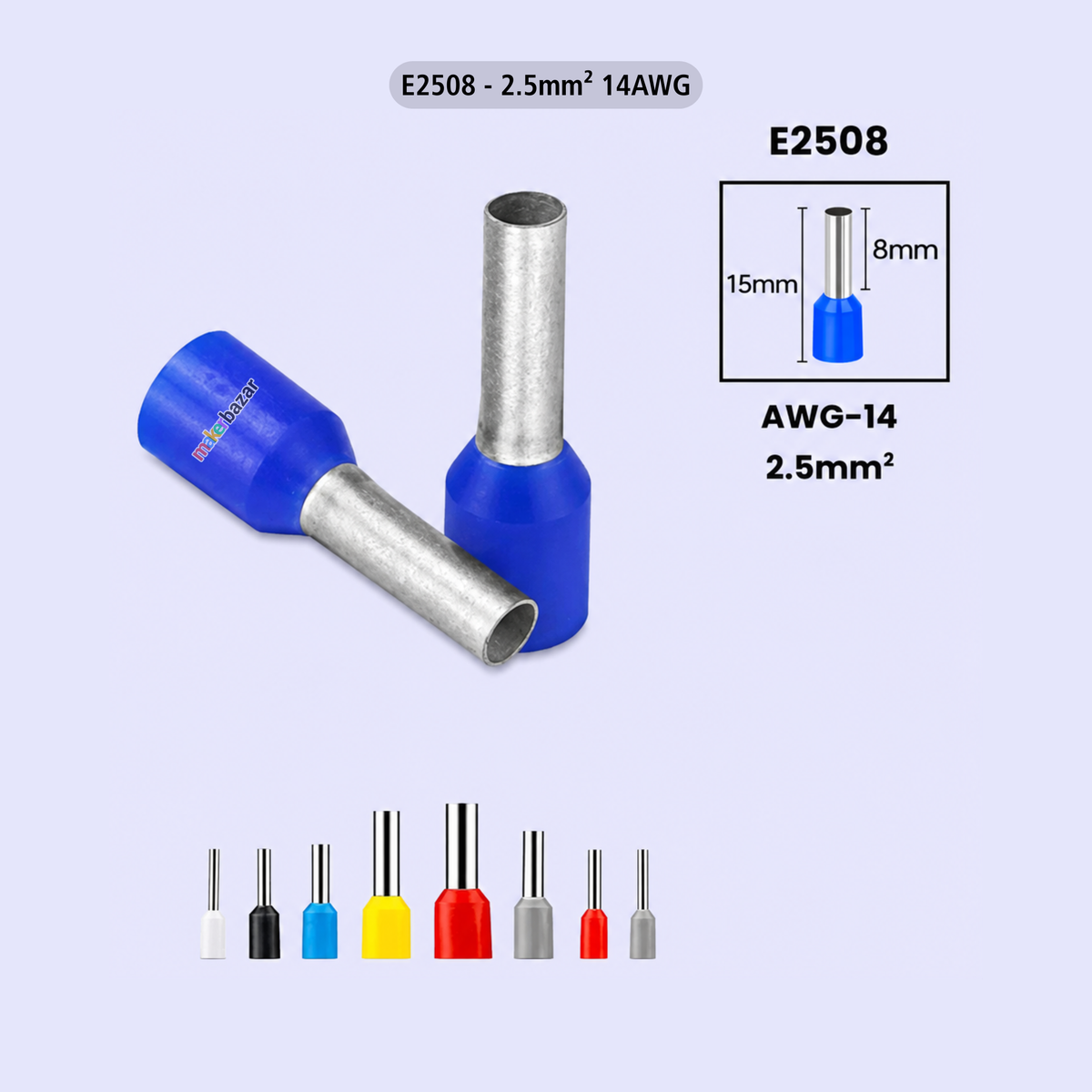

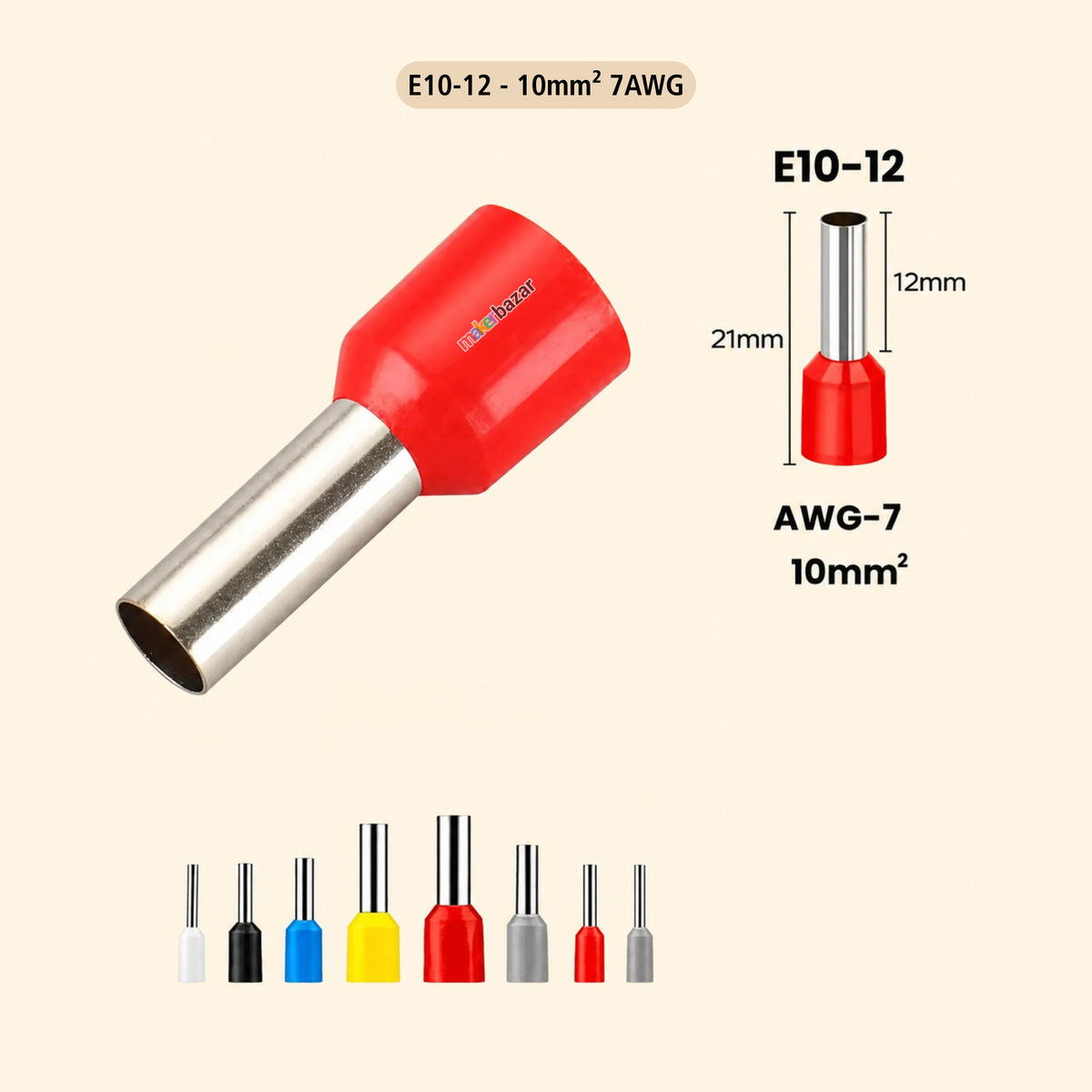

| Available Sizes | 0508, 7508, 1008, 1508, 2508, 4009, 6010, 10-12, 16-12 |
| Conductor Material | Copper |
| Surface Finish | Electro-plated Tin |
| Insulation Material | PVC / Nylon |
| Color | Random Color |
| Maximum Voltage | 300V AC/DC |
| Temperature Rating | Up to 150°C |
| Wire Gauge | AWG 22–5 |
| Connection Type | Crimp |
| Wire Type | Stranded Copper Wire |
| Corrosion Resistance | Yes |
Applications
- Electrical Control Panels
- Distribution Boards
- PLC Wiring
- Industrial Automation
- Home Electrical Wiring
- Automotive Electrical Systems
- Robotics Projects
- Solar Power Systems
- Battery Connections
- DIY Electronics
- Machine Wiring
- Terminal Block Connections
Precautions
- Use the correct ferrule size for the wire gauge.
- Crimp only with a suitable ferrule crimping tool.
- Ensure the wire is fully inserted before crimping.
- Do not exceed the rated voltage and temperature limits.
- Verify the crimp connection before powering the circuit.
- Store in a dry place away from moisture and chemicals.
- Colors are supplied randomly and may vary from images.
Click here to buy Ferrule Terminal Assorted Kits
- Max Voltage: 300V AC/DC
- Temperature Rating: Up to 150°C
- Material: Copper
- Insulating Material: PVC, Nylon
- AWG Range: 22-5
- Plating: Electro-plated tin
- Color Options: Red, Yellow, Blue, Black, Green, White, Gray, Brown, Orange
