The 3 Series 6A 18650 Lithium Battery Protection Board 11.1V/12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 6A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use)
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 12.6V to 13V. The board operates smoothly with a Continuous charge current of (upper limit): 6A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
Specifications and Features:
- Charging Voltage: 12.6V-13V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 5A-6A
- Upper Limit Instantaneous Current: 10A
- Quiescent Current: less than 30uA
- Internal Resistance: less than 45mohm
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- +50 degrees
- Storage Conditions: -40- +80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
- Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
- Continuous charge current (upper limit): 6A.

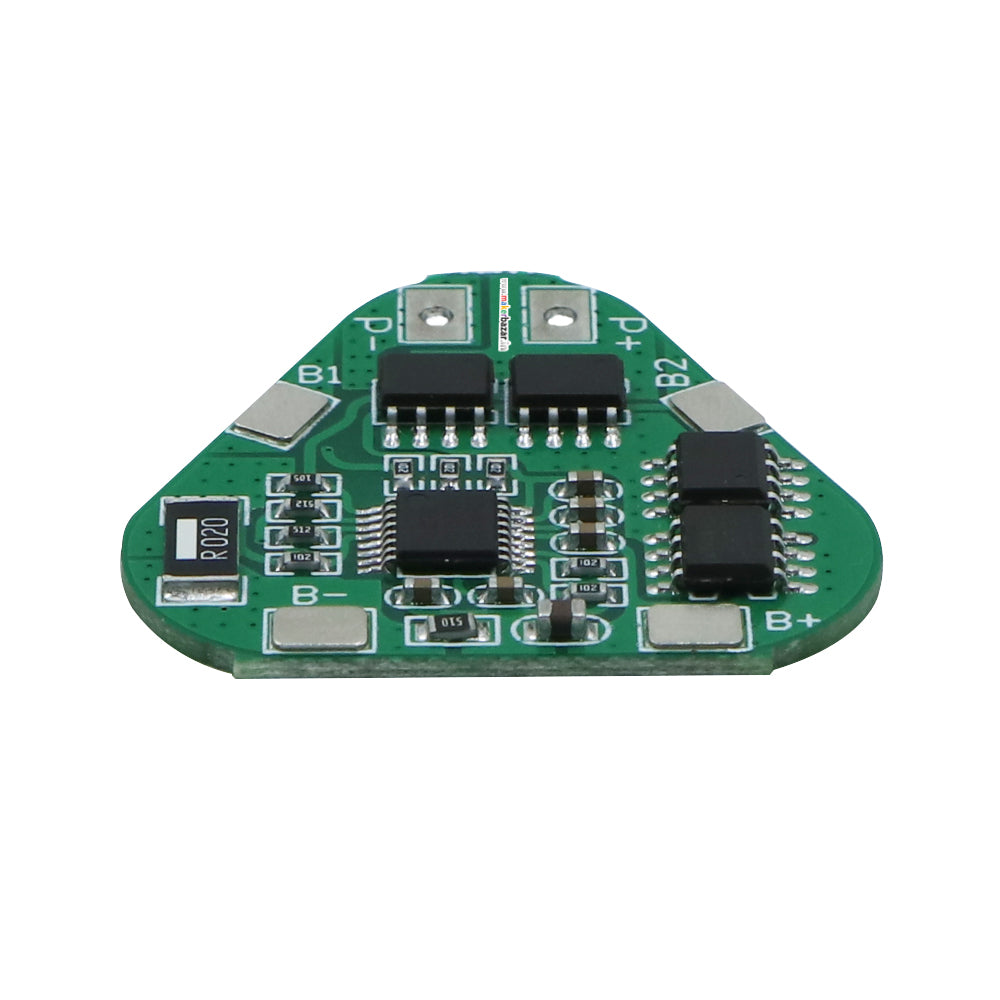

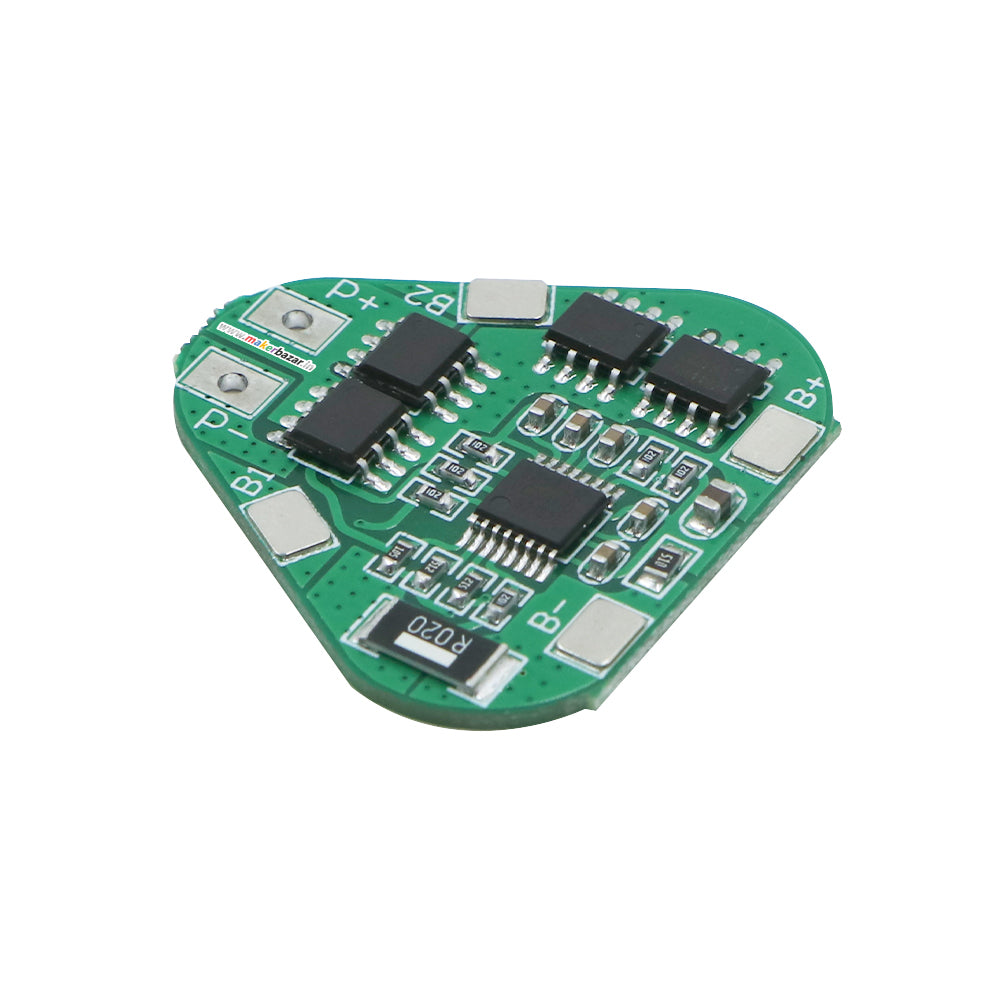

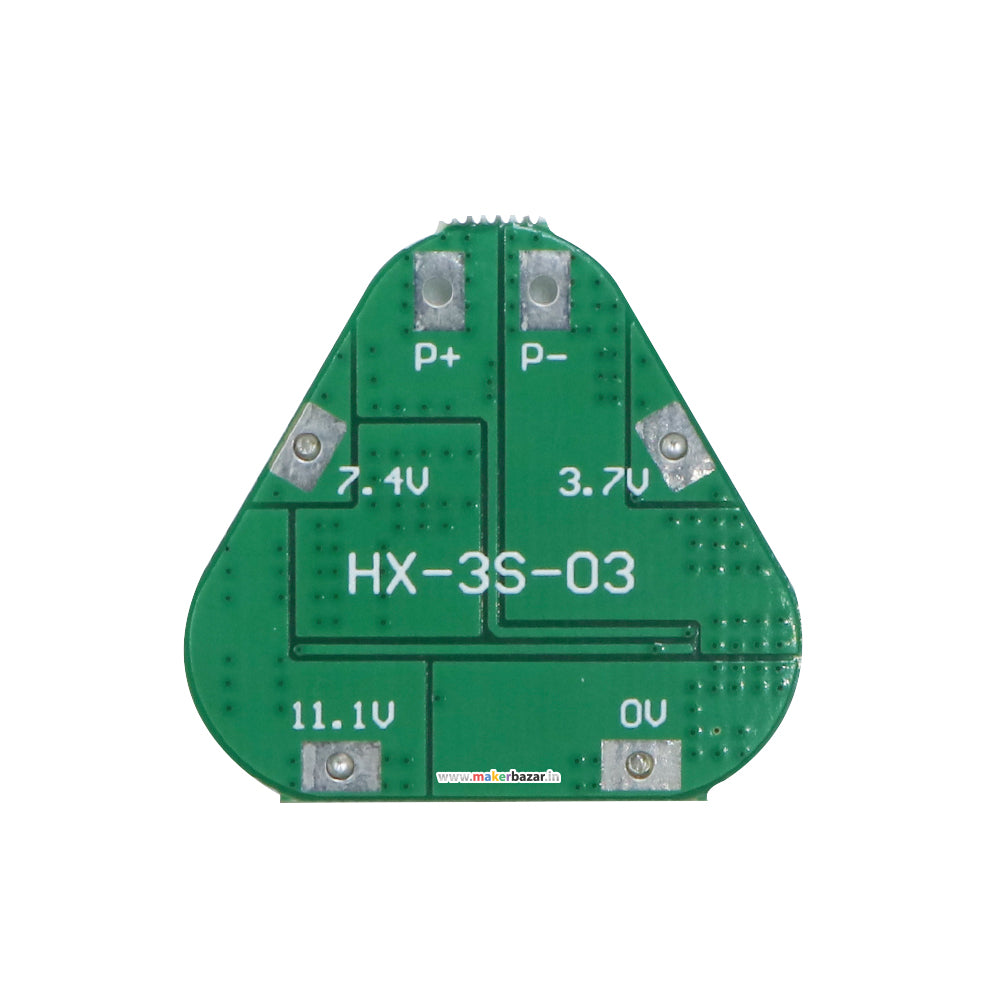

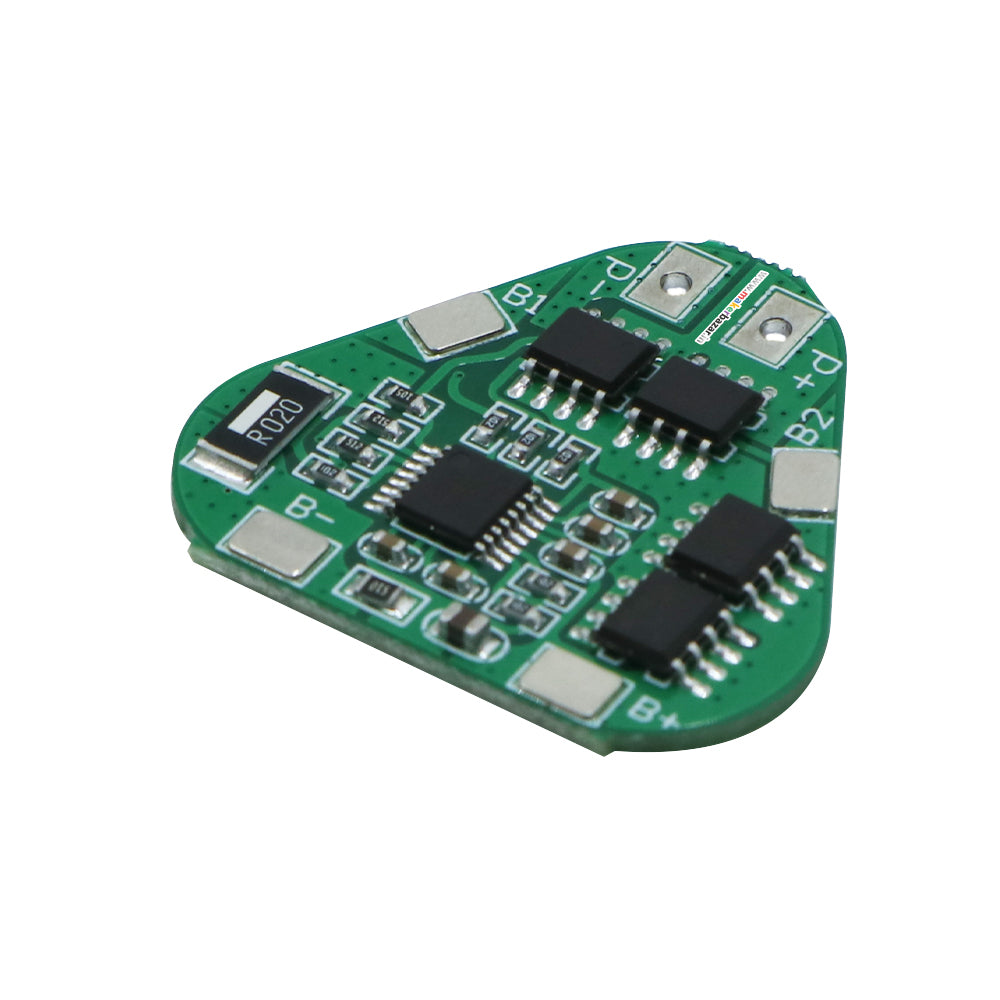

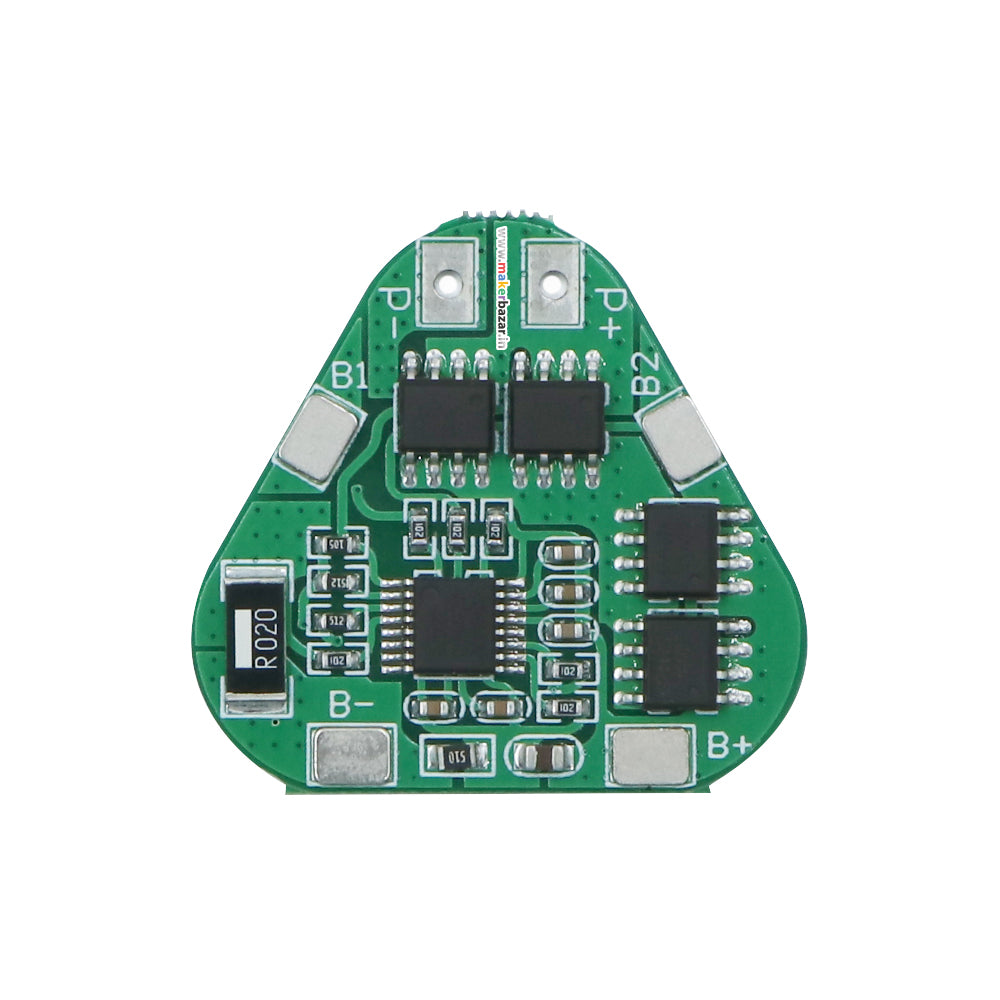

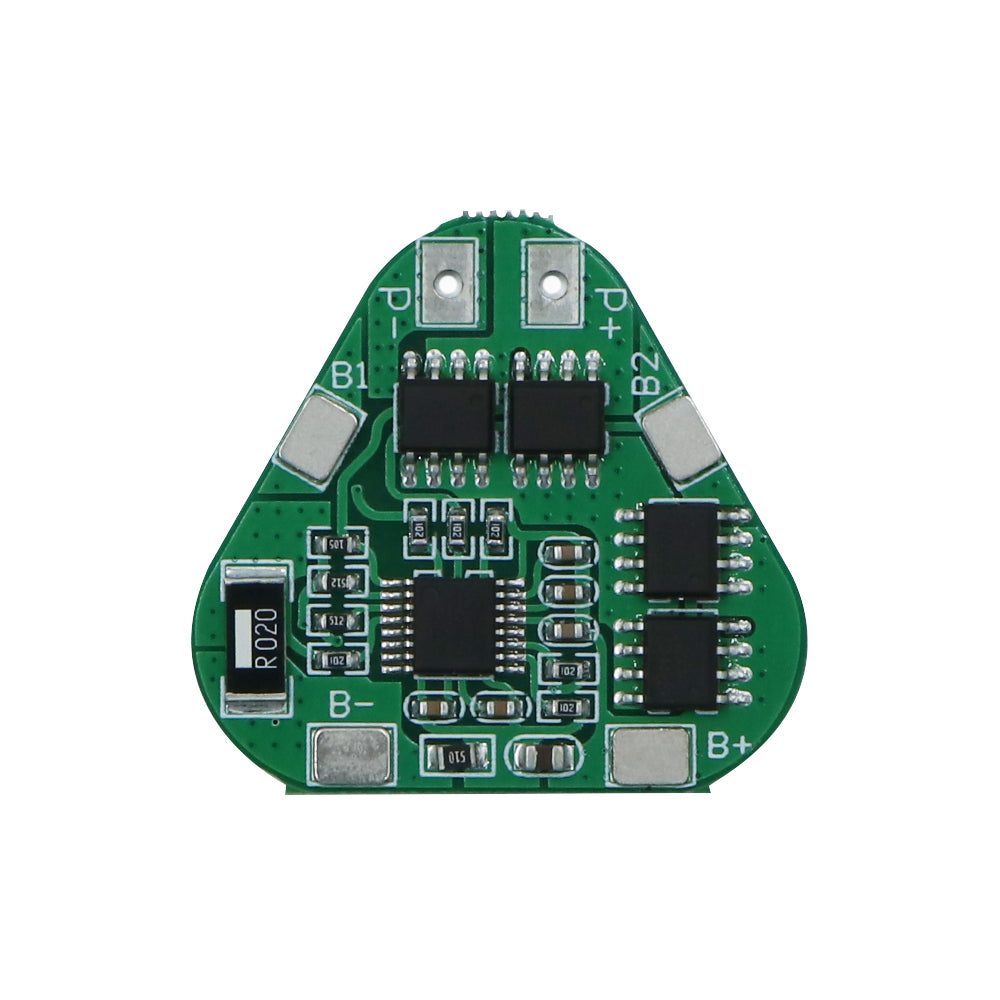

1 x 12.6V BMS 3S 6A 18650 Lithium Battery Protection Board

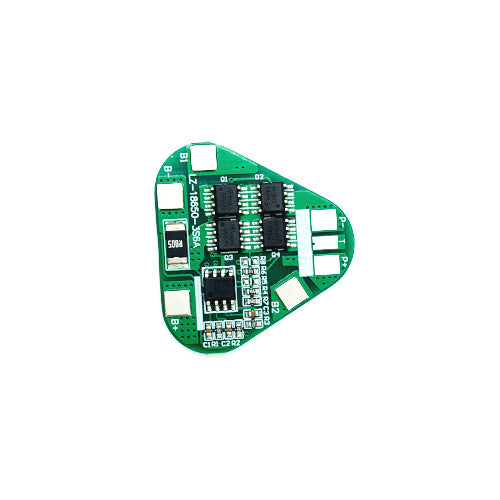

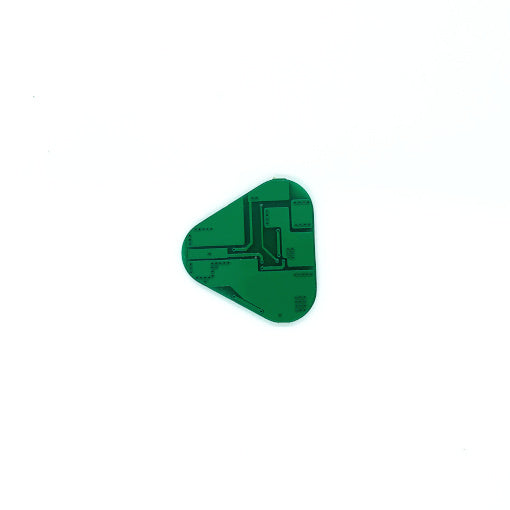

Note: This product has two variants please check the images for more clarity.
