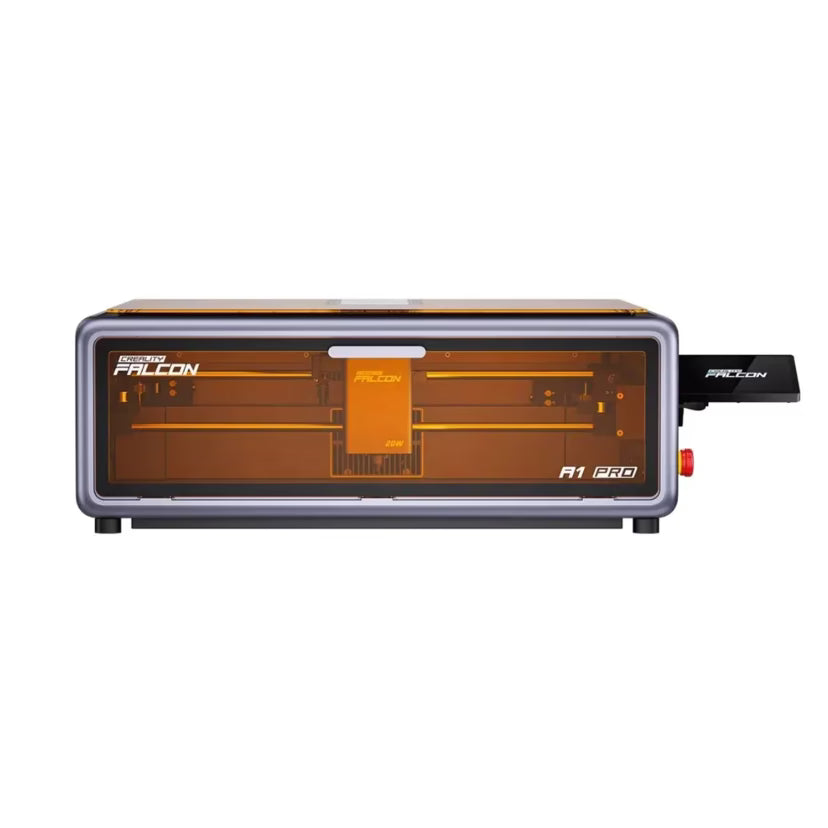

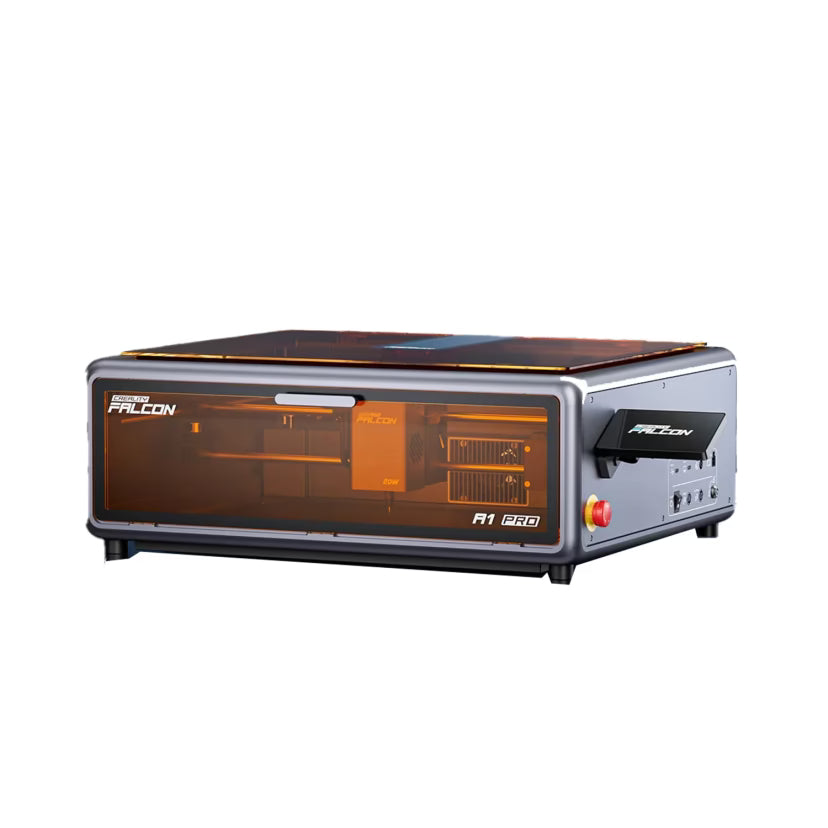

Creality Falcon A1 Pro 20W Laser Engraver and Cutter

Creality Falcon A1 Pro 20W Laser Engraver and Cutter | Fully Enclosed Smart Laser Engraving Machine | Auto Focus | AI Camera | 600mm/s

The Creality Falcon A1 Pro 20W Laser Engraver and Cutter is a professional-grade fully enclosed desktop laser engraving and cutting machine designed for makers, hobbyists, educators, and small businesses. Equipped with a powerful 20W blue diode laser, intelligent AI vision system, automatic focus, touchscreen control, and app connectivity, it delivers fast, accurate, and safe engraving on over 350 materials.

The Falcon A1 Pro features a CoreXY motion system capable of speeds up to 600mm/s, smart HD camera positioning, batch engraving, real-time monitoring, and compatibility with Falcon Design Space, LightBurn, and LaserGRBL. An optional 2W infrared laser module is available for high-detail engraving on metals such as gold, silver, brass, titanium, and stainless steel.

Its fully enclosed Class 1 laser safety design, integrated exhaust system, flame detection, emergency stop, and laser leak protection make it suitable for workshops, studios, educational environments, and home use.

Features:

1. 20W High-Power Diode Laser for fast engraving and deep cutting.
2. Optional 2W IR Laser Module for engraving on metals and specialty materials.
3. FDA Class 1 Fully Enclosed Design for maximum operator safety by containing laser exposure, smoke, and dust.
4. CoreXY Motion System enabling engraving speeds of up to 600 mm/s with excellent precision.
5. Built-in HD Smart Camera with real-time preview and accurate positioning to reduce setup time and material waste.

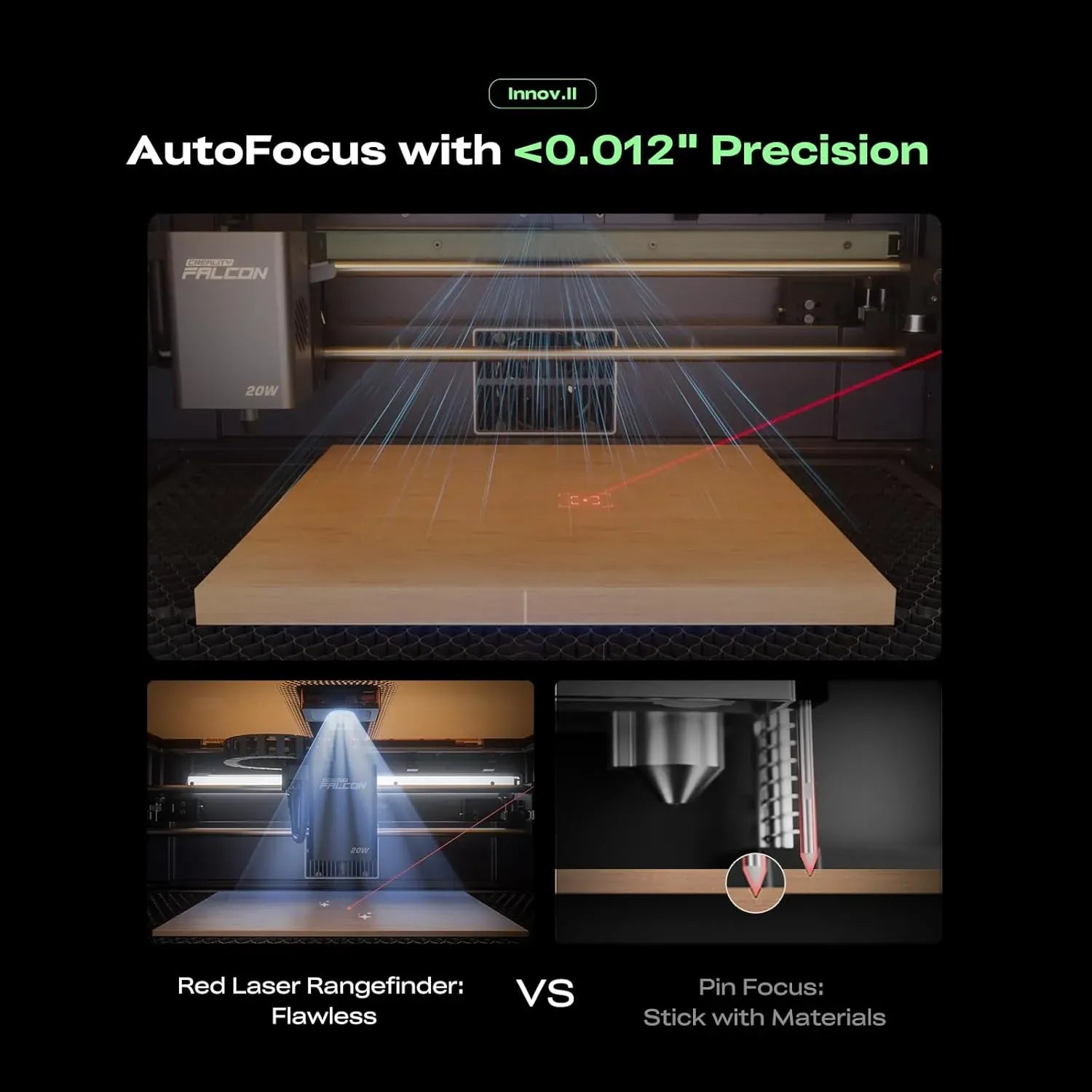

6. AI Auto-Focus with precision better than 0.012 in (0.3 mm) for consistent engraving quality.
7. Integrated Air Assist for cleaner cuts, improved engraving quality, and reduced burn marks.
8. Advanced Safety Protection including flame detection and airflow monitoring.
9. Multiple Connectivity Options including USB, Wi-Fi, and TF card support.

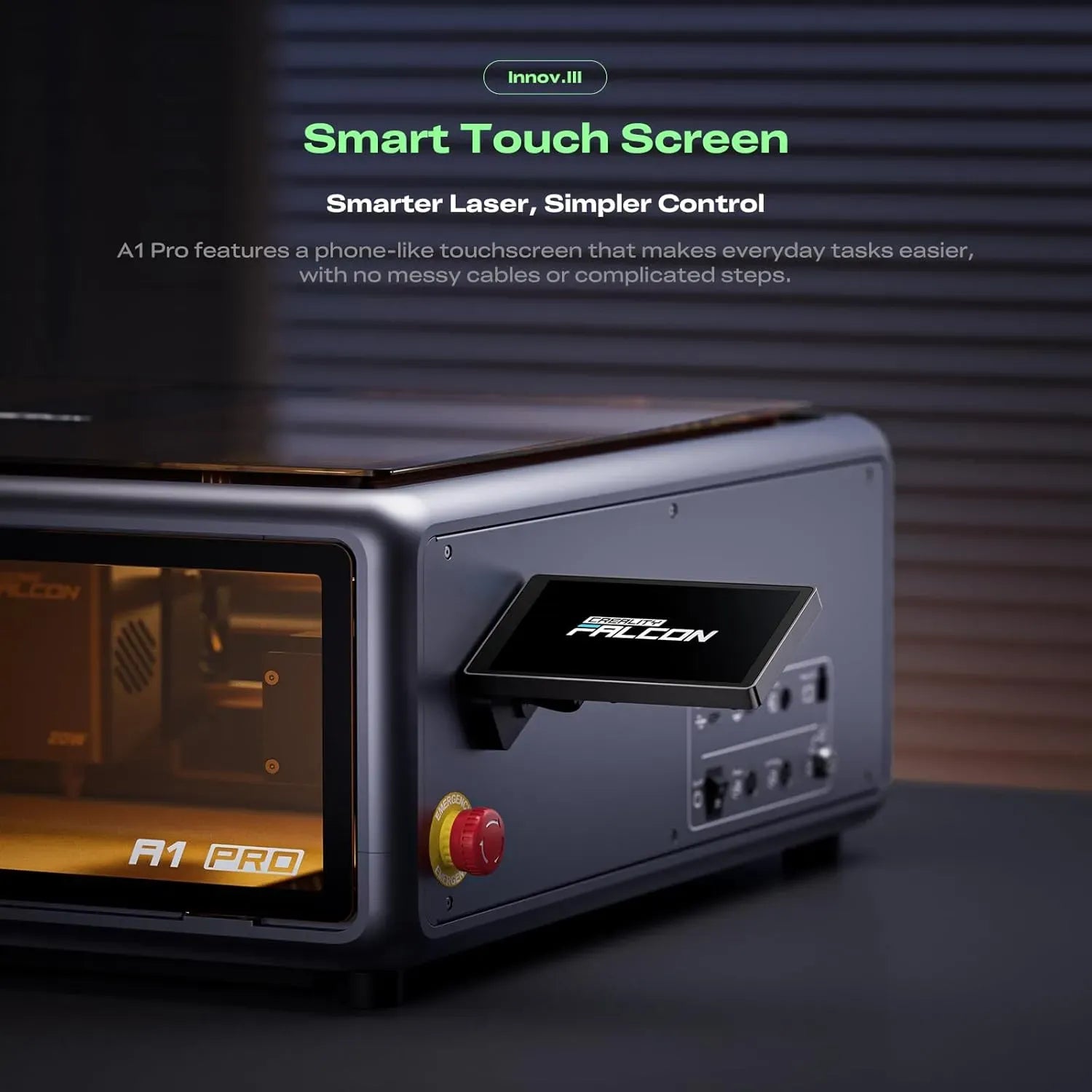

10. Touchscreen Interface for intuitive operation.
11. Compatible with Falcon Design Space, LightBurn, and LaserGRBL software.
12. Supports mobile app control for convenient wireless operation.

Specifications:

1. Item Type : Creality Falcon A1 Pro Laser Engraver
2. Model : Falcon A1 Pro
3. Laser Source : Semiconductor Laser
4. Laser Type : 20W Diode Laser
5. Optical Power : 20W
6. Optional Laser Module : 2W IR Laser (For Metal Engraving)
7. Laser Wavelength : 455 ± 5 nm
8. Motion System : CoreXY High-Speed Motion System
9. Working Area : 268 × 358 mm
10.  Maximum Engraving Speed : Up to 600 mm/s
11.  Built-in Camera : HD Smart Camera
12.  Camera Function : Real-Time Preview and Precise Positioning
13.  Safety Class : FDA Class 1
14.  Safety Features : Flame Detection, Airflow Monitoring, Fully Enclosed Safety Design
15.  Safety Certifications : FDA, CE, RoHS, FCC, PSE
16.   Control System : Touchscreen Interface
17.   Connectivity : USB, Wi-Fi, TF Card
18.   Input Voltage : 100–240V AC, 50–60Hz
19.   Output Voltage : DC 24V, 7.5A
20.   Operating System Compatibility : Windows, macOS
21.   Laser Engraving Software : Falcon Design Space, LightBurn, LaserGRBL
22.   Supported File Formats : JPEG, JPG, PNG, BMP, SVG, DXF, and More
23.   Supported Materials : Cardboard, Wood, Bamboo, Rubber, Leather, Fabric, Acrylic, Plastic, Coated Metals
24.   Product Dimensions : 567 × 468 × 211 mm
25.   Net Weight : 16.8 kg
