Description

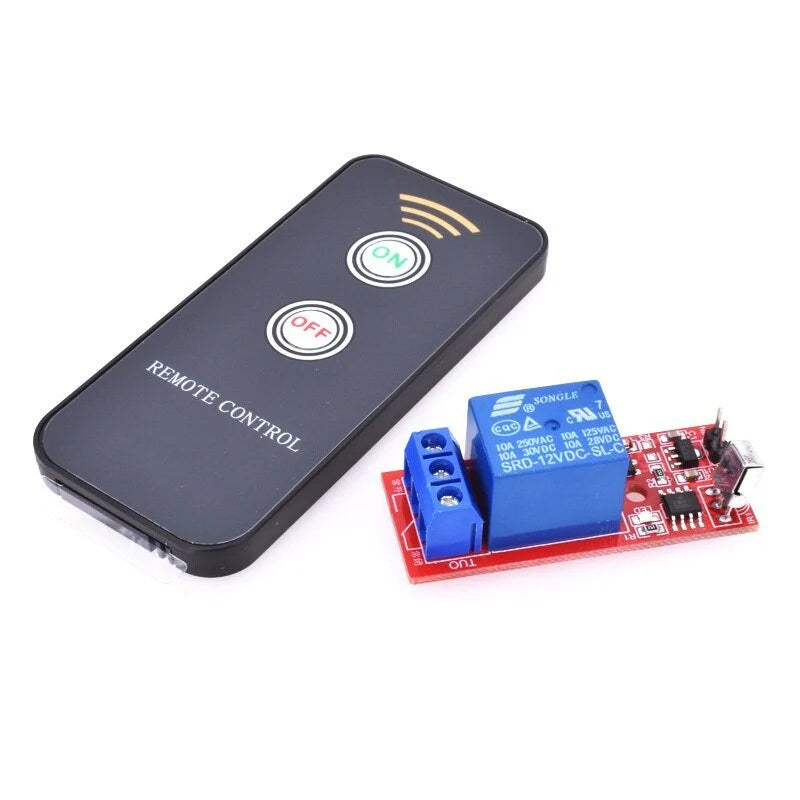

IR Remote Controlled 1-Channel Relay Module 5V/12V
The DC 1-Channel Infrared Relay Module with IR Remote Control provides a simple and cost-effective solution for remotely switching electrical loads. The module receives commands from the included infrared remote and activates or deactivates the onboard relay accordingly.
Designed for hobbyists, automation enthusiasts, and embedded system developers, the module supports direct control of AC and DC loads through a relay rated up to 10A. Its compact PCB design allows easy integration into automation systems, smart home projects, robotics, and industrial control applications.
The module is available in 5V and 12V operating voltage variants, making it suitable for a wide range of applications.
Key Features
- Infrared remote-controlled relay switching
- Single-channel relay output
- Available in 5V and 12V versions
- ON/OFF remote control operation
- High-quality relay rated up to 10A
- Easy screw terminal connections
- LED status indication
- Compact PCB design
- Low power consumption
- Plug-and-play operation
- Suitable for AC and DC load control

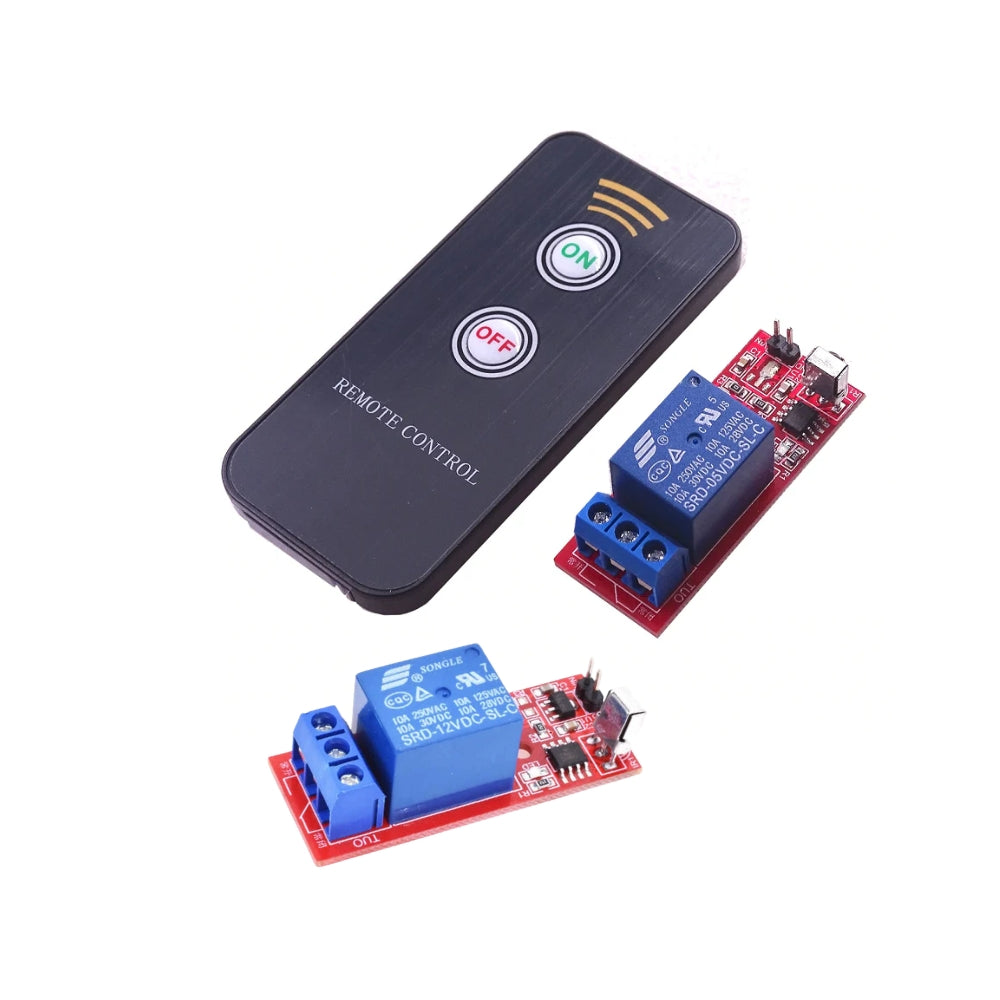

Variants
| Model | Operating Voltage |
|---|---|
| IR Relay Module 5V | DC 5V |
| IR Relay Module 12V | DC 12V |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Infrared Relay Module |
| Relay Channels | 1 Channel |
| Control Method | Infrared Remote |
| Operating Voltage | 5V DC / 12V DC |
| Relay Type | SPDT Relay |
| Relay Contact Rating | 10A 250VAC / 10A 30VDC |
| Output Contacts | NO / COM / NC |
| Remote Functions | ON / OFF |
| Receiver Type | Infrared |
| Status Indicator | LED |
| Mounting Type | PCB Mount |
| Operating Temperature | -20°C to +70°C |
Applications
- Home Automation
- Wireless Appliance Control
- Lighting Control Systems
- Fan Switching
- Smart DIY Projects
- Robotics Projects
- Electronic Equipment Control
- Security Systems
- Educational Projects
- Industrial Automation Prototypes
