Description
DC-DC Boost Converter Module 1200W/1500W/1800W | 10-60V to 12-97V Adjustable Power Supply | 20A–40A Output for Battery, Solar & LED Projects
This high-performance DC-DC Boost Converter Module is designed for a wide range of power supply and charging applications. Available in 1200W, 1500W, and 1800W variants, it converts 10V–60V input to an adjustable 12V–97V output, making it ideal for solar charging systems, battery charging, LED drivers, DIY regulated power supplies, and more. Featuring smart temperature-controlled fans, advanced safety protections, and high conversion efficiency (up to 97%), this module offers both reliability and flexibility for hobbyists and professionals alike.
Common Features Across All Variants:
-
Adjustable Output Voltage: 12V – 97V (model-dependent)
-
Input Voltage: 10V – 60V DC
-
Cooling: Built-in temperature-controlled fan with heatsink
-
Conversion Efficiency: Up to 97%
-
Protection Features:
-
Overcurrent Protection
-
Short Circuit Protection (Fused)
-
Reverse Polarity Protection (150A MOS)
-
Input Overcurrent & Undervoltage Protection
-
Constant Current Control (adjustable)
-
Reverse Filling Protection for Charging
-

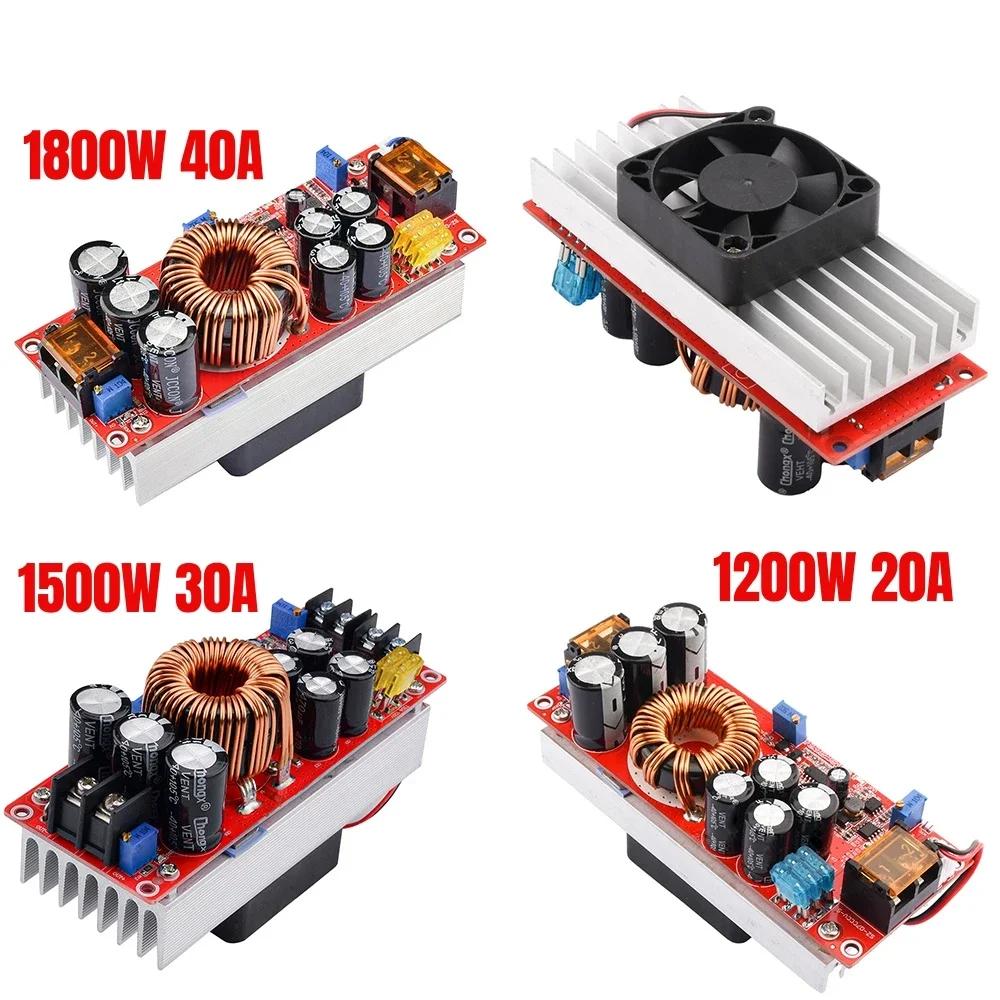

Available Variants:

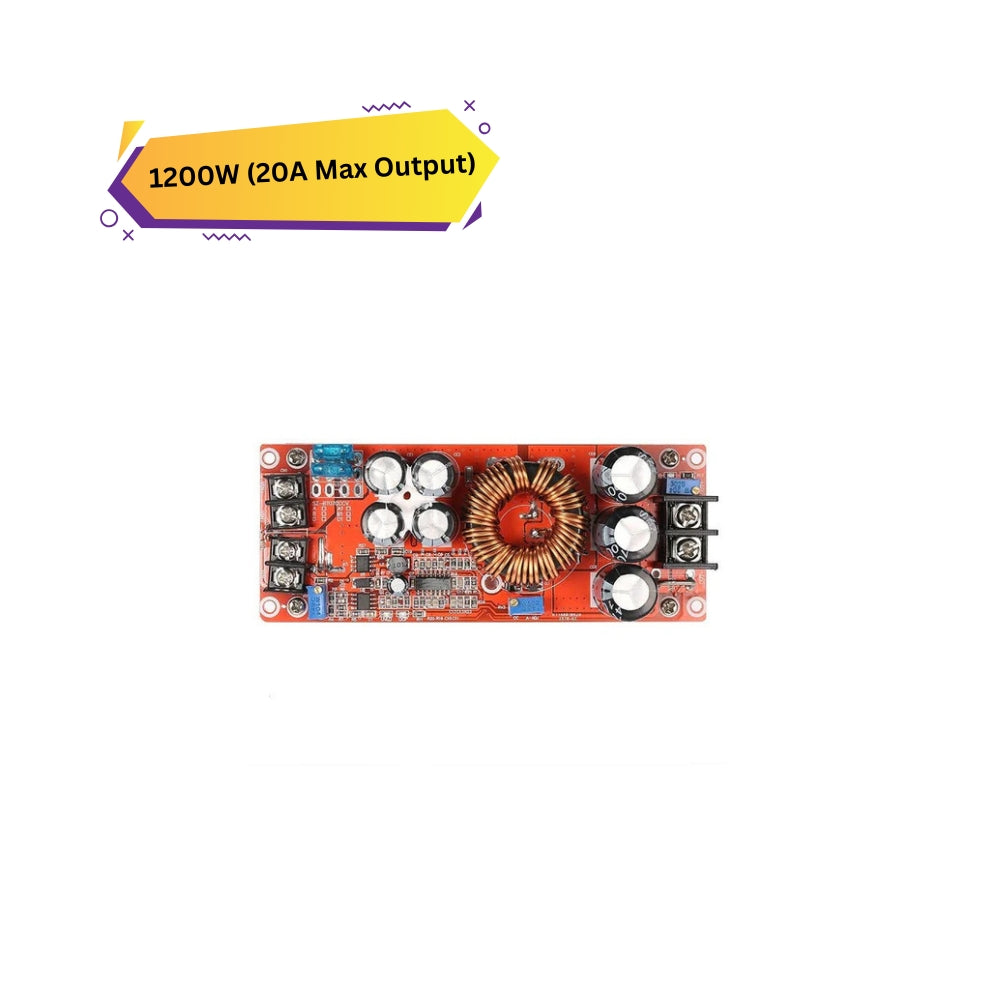

Variant 1: 1200W (20A Max Output)
-
Output Voltage: 12V–83V
-
Output Current: Up to 20A
-
Cooling: Large heatsink + optional external fan
-
Ideal For: LED drivers, solar boost regulators, battery chargers

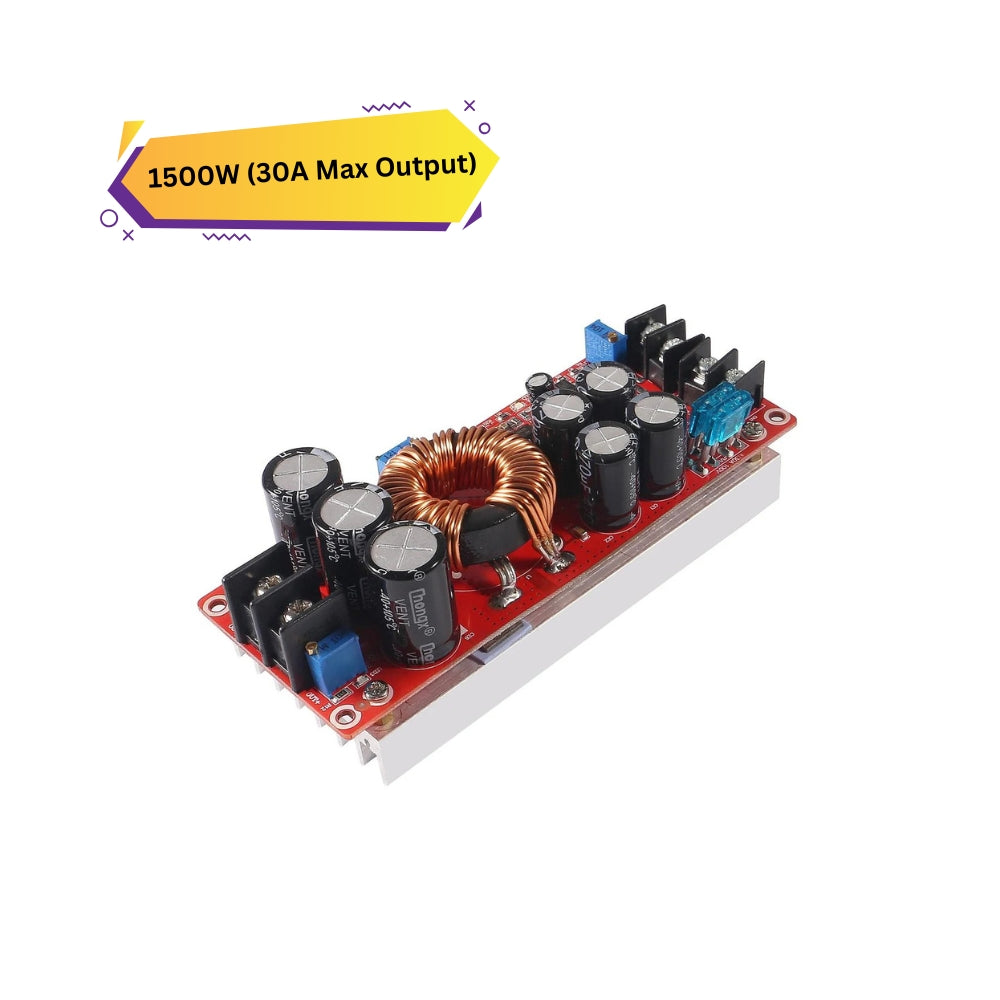

Variant 2: 1500W (30A Max Output)
-
Output Voltage: 12V–90V
-
Output Current: Up to 30A
-
Default Output: Pre-set to 19V
-
Ideal For: Electric bikes, vehicle power supplies, laptop charging

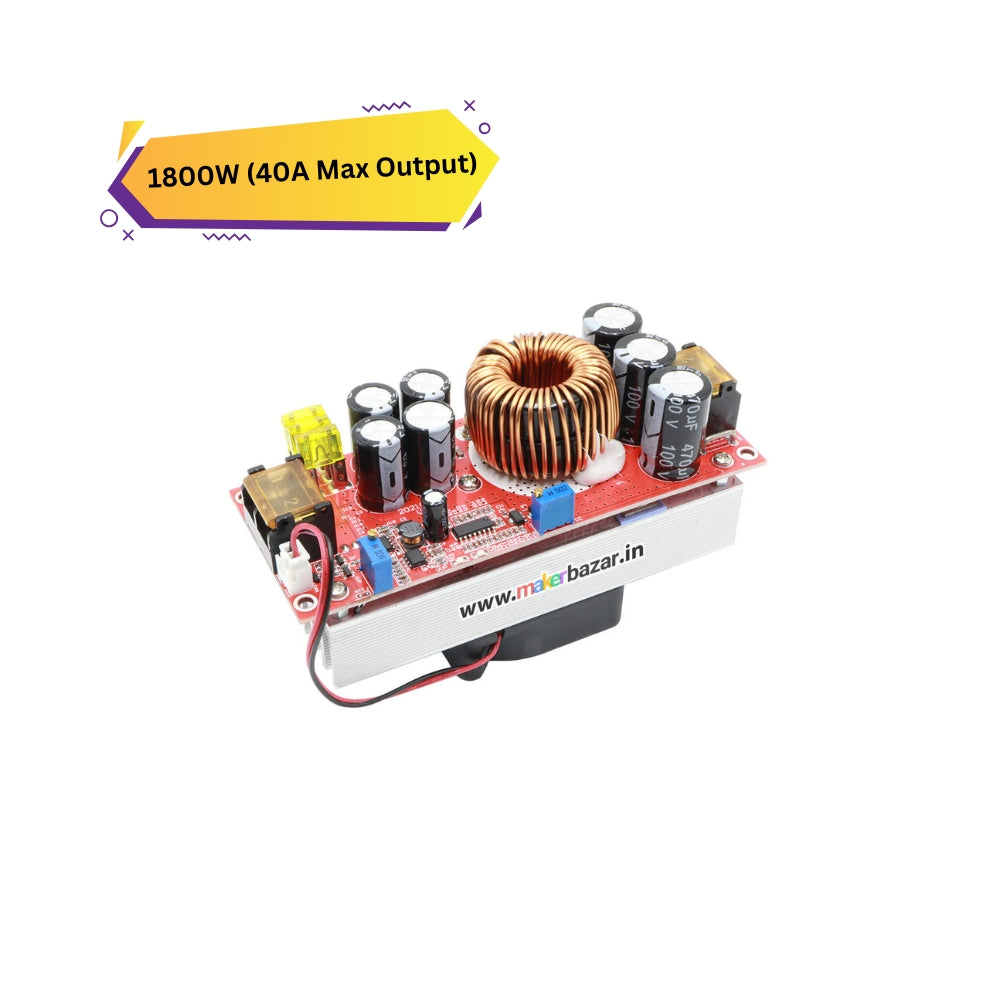

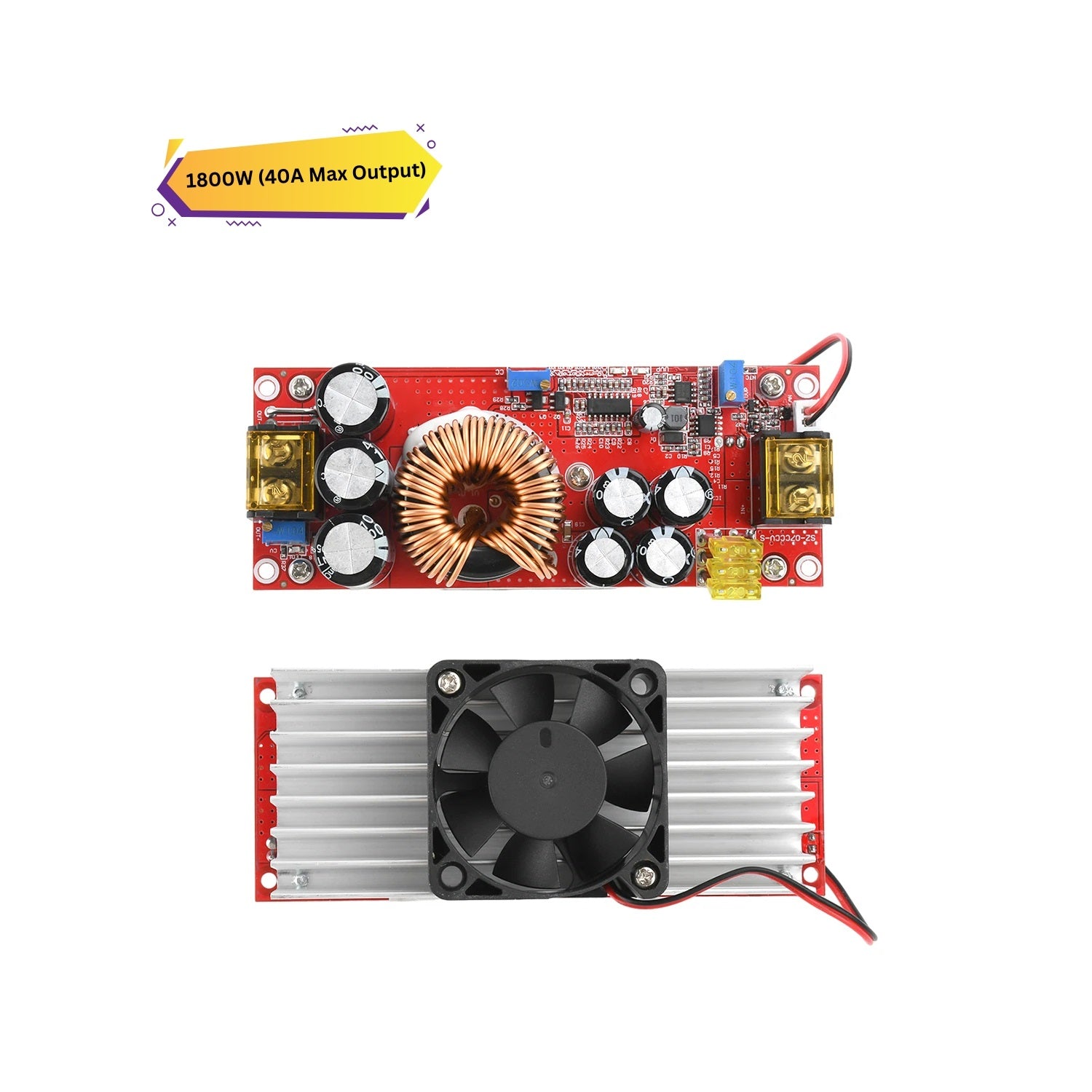

Variant 3: 1800W (40A Max Output)
-
Output Voltage: 12V–97V
-
Output Current: Up to 40A (requires additional cooling above 15A)
-
Advanced Control: MLCC ceramic capacitors for low ripple
-
Ideal For: High-power battery packs, industrial equipment, street lighting
