Description

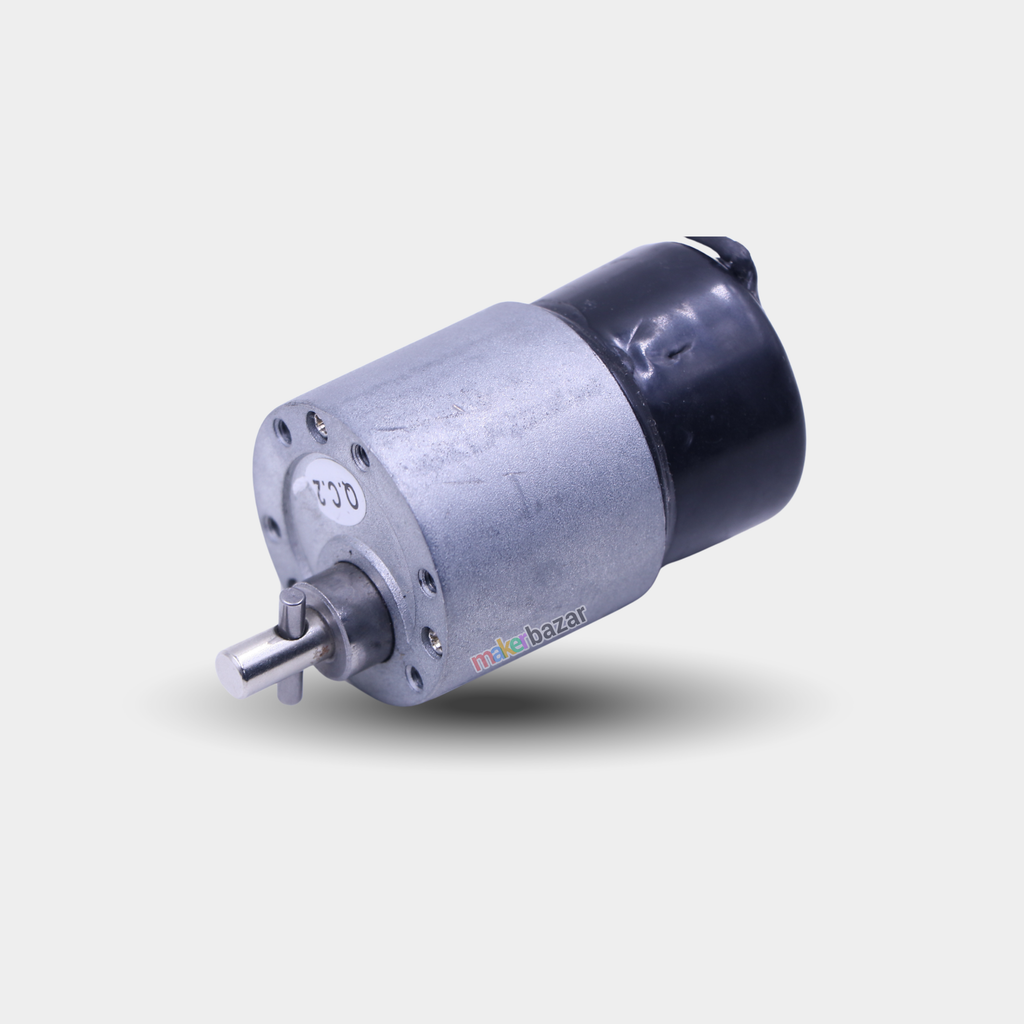

High Torque DC Gear Motor with Gear Reduction
The DC Electric Motor with Gear Reduction is designed to deliver high torque at low speed, making it ideal for robotics, automation, and mechanical drive applications. The integrated gearbox reduces speed while significantly increasing torque, allowing the motor to handle heavy loads efficiently.
This motor provides stable performance across varying loads and is suitable for continuous operation in DIY projects, educational kits, and industrial prototypes. Its compact design and reliable torque output make it a versatile choice for motion control systems.

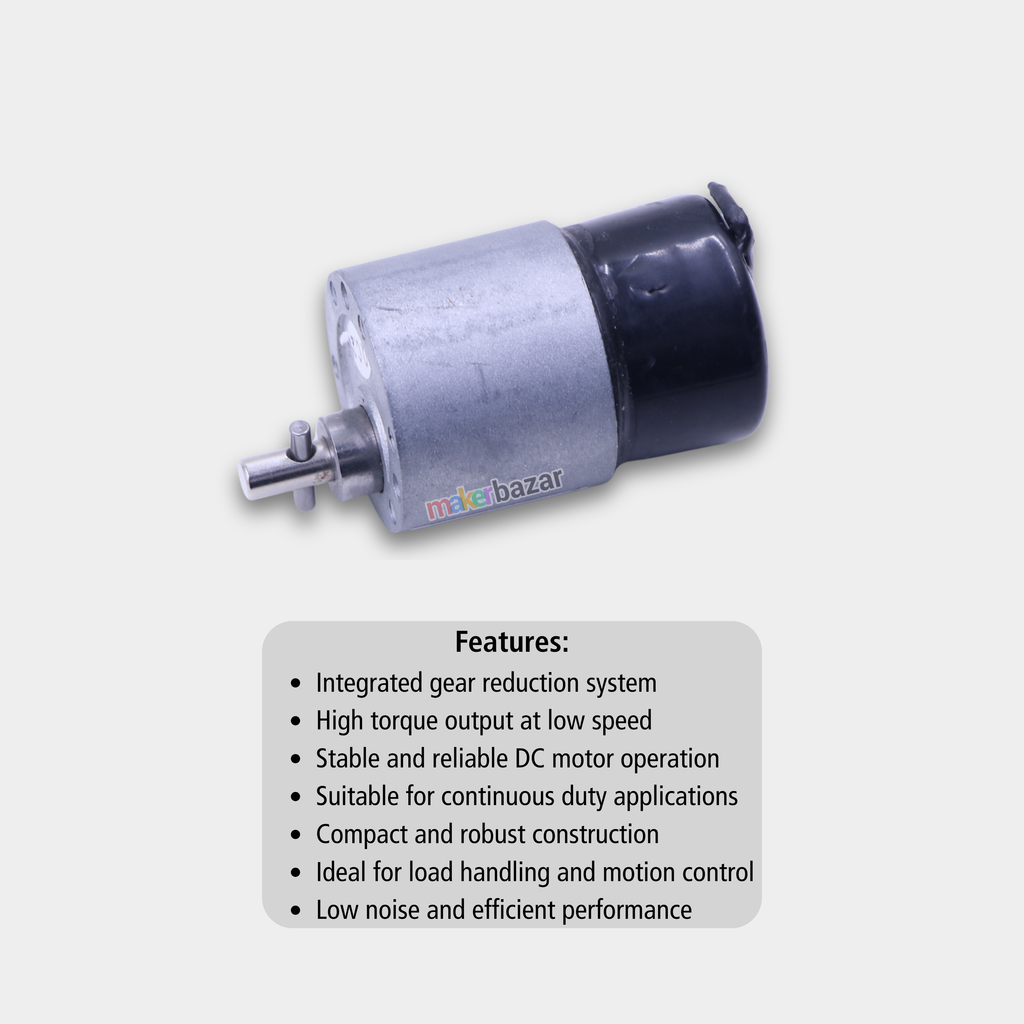

Key Features
- Integrated gear reduction system
- High torque output at low speed
- Stable and reliable DC motor operation
- Suitable for continuous duty applications
- Compact and robust construction
- Ideal for load handling and motion control
- Low noise and efficient performance

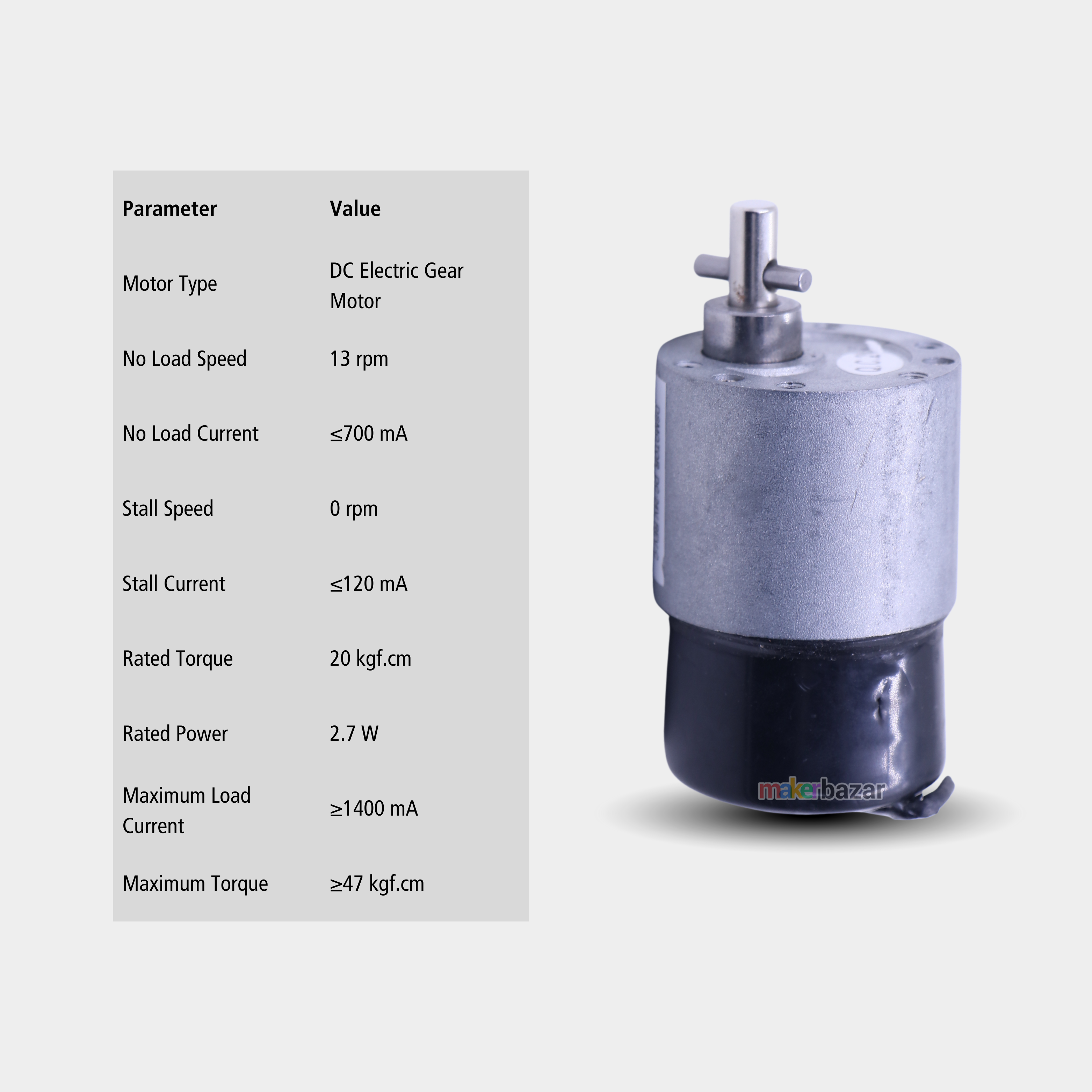

Technical Specifications
| Parameter | Value |
|---|---|
| Motor Type | DC Electric Gear Motor |
| No Load Speed | 13 rpm |
| No Load Current | ≤700 mA |
| Stall Speed | 0 rpm |
| Stall Current | ≤120 mA |
| Rated Torque | 20 kgf.cm |
| Rated Power | 2.7 W |
| Maximum Load Current | ≥1400 mA |
| Maximum Torque | ≥47 kgf.cm |

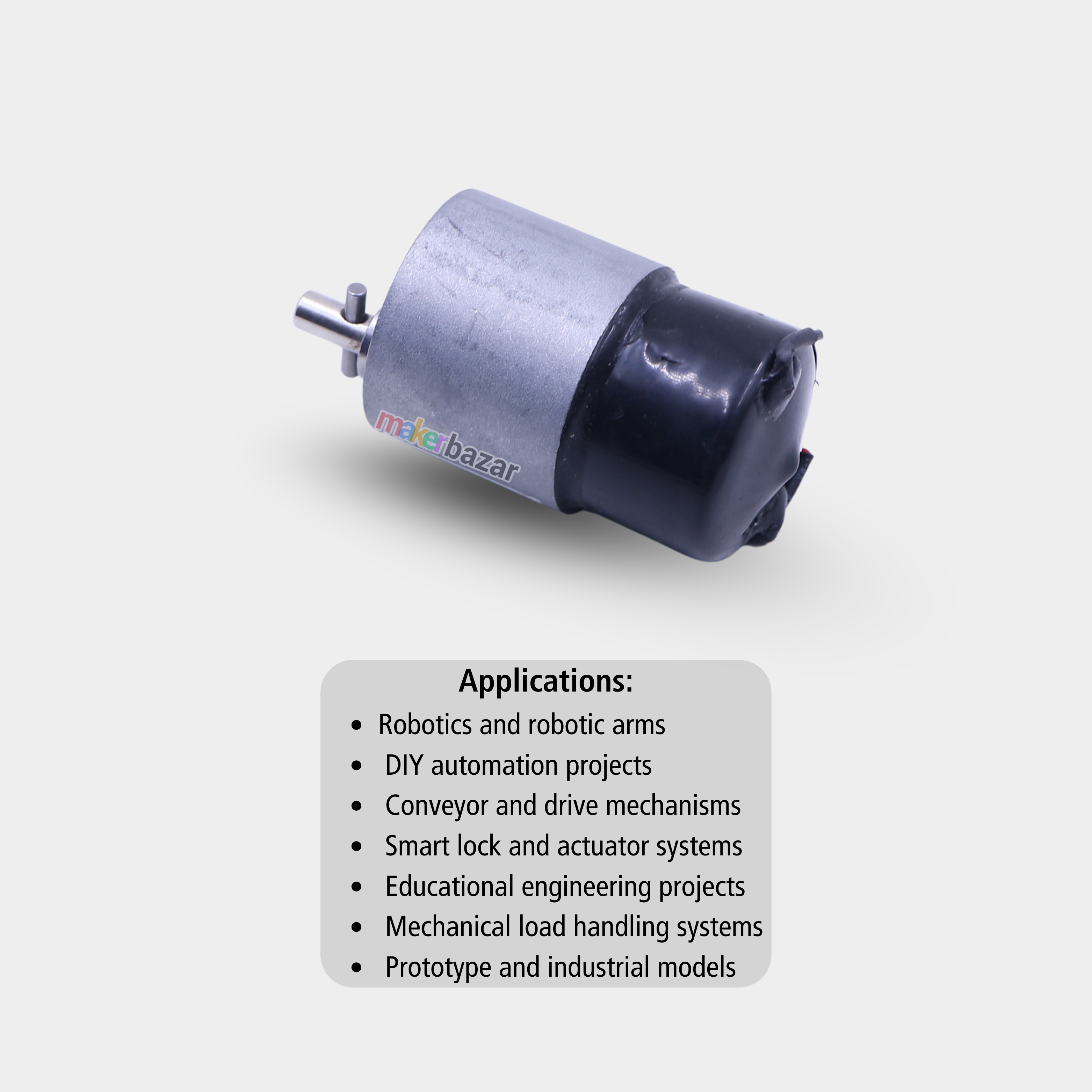

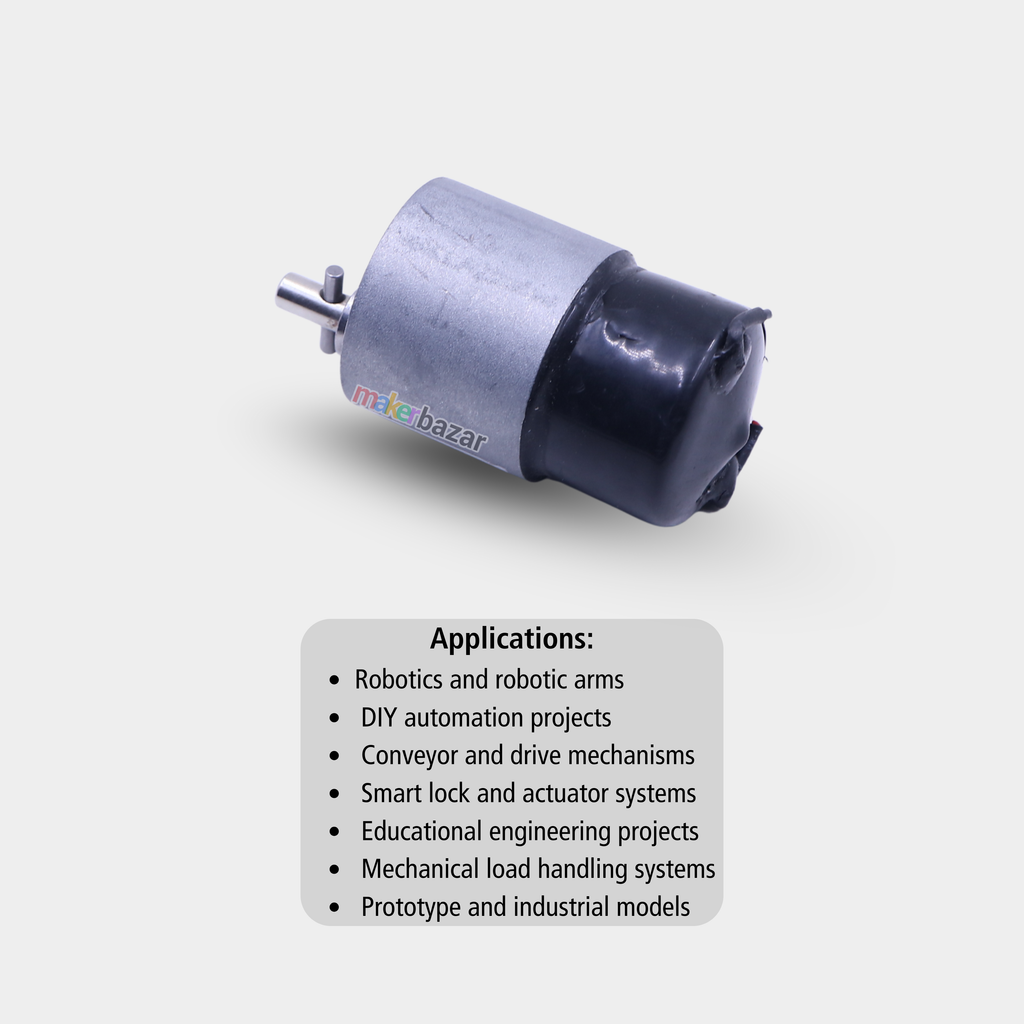

Applications
Robotics and robotic arms
DIY automation projects
Conveyor and drive mechanisms
Smart lock and actuator systems
Educational engineering projects
Mechanical load handling systems
Prototype and industrial models
Precautions
Do not exceed rated voltage and current
Avoid prolonged stall conditions
Ensure proper mounting to reduce vibration
Use appropriate motor driver or controller
Avoid exposure to moisture and dust
Allow sufficient cooling during operation
