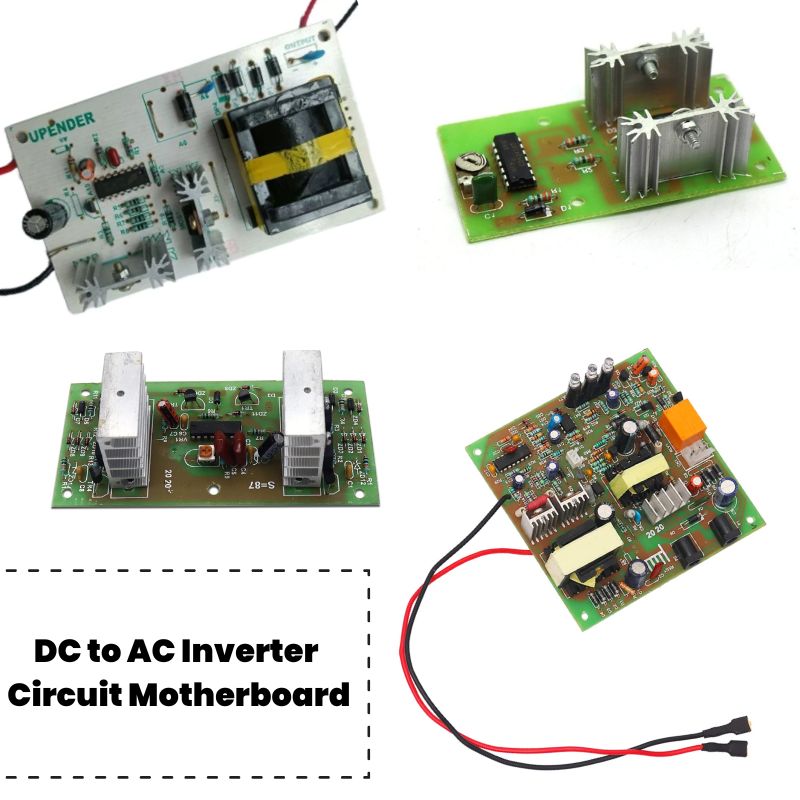

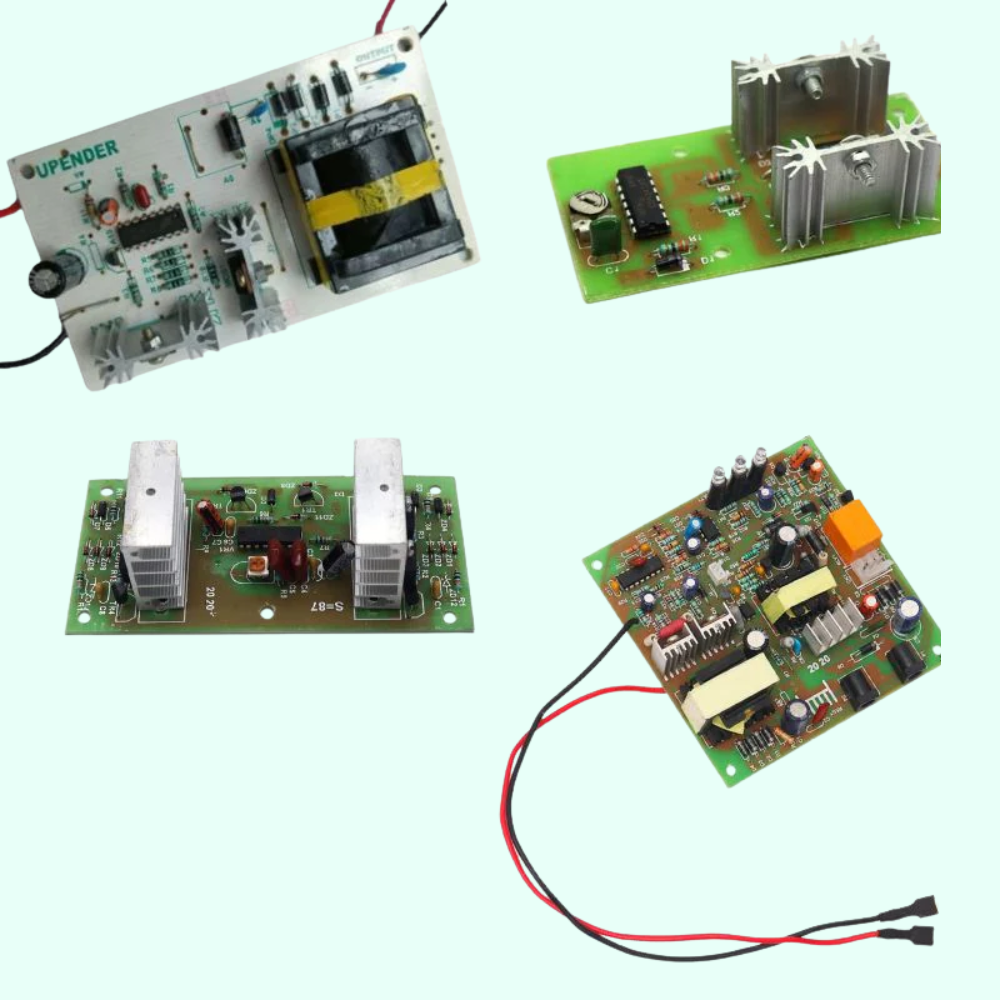

12VDC to 220VAC Inverter Circuit Motherboard

A Mini Inverter Circuit with a Microcontroller Board Converts DC to AC Power Efficiently- Manage Smart features like remote Monitoring and Power Control

A DC-to-AC inverter circuit motherboard is a sophisticated electronic board designed to convert direct current (DC) into alternating current (AC). It typically includes a power conversion stage, such as a switching circuit, and may feature additional components like transformers and filters to stabilize and shape the output AC voltage. Integrated with a microcontroller, the motherboard can manage and optimize the inverter's performance, implementing features like pulse-width modulation (PWM) for efficient power conversion, monitoring battery health, and enabling smart functionalities such as remote control and automated responses to power fluctuations. This makes it ideal for applications ranging from portable power systems to renewable energy solutions.

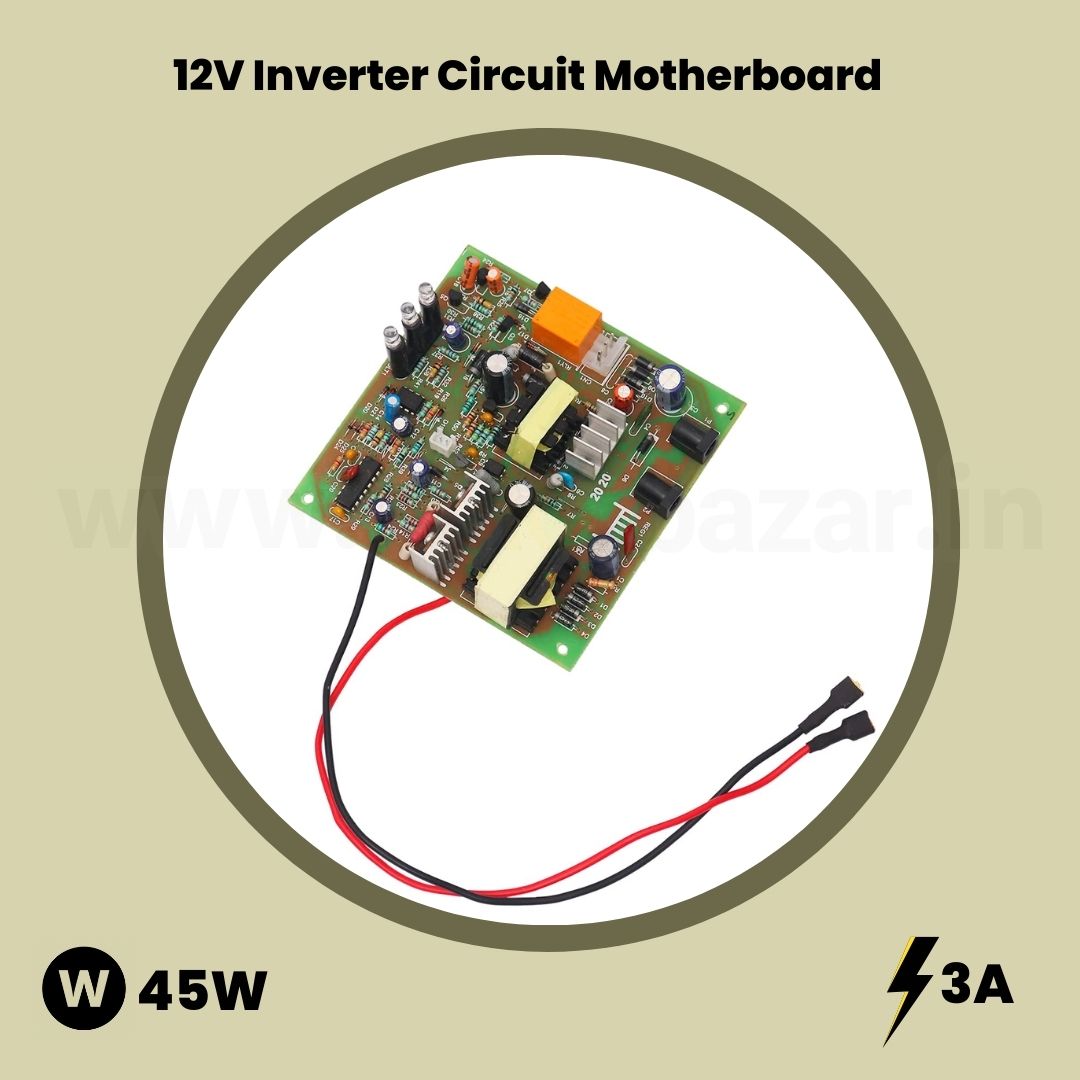

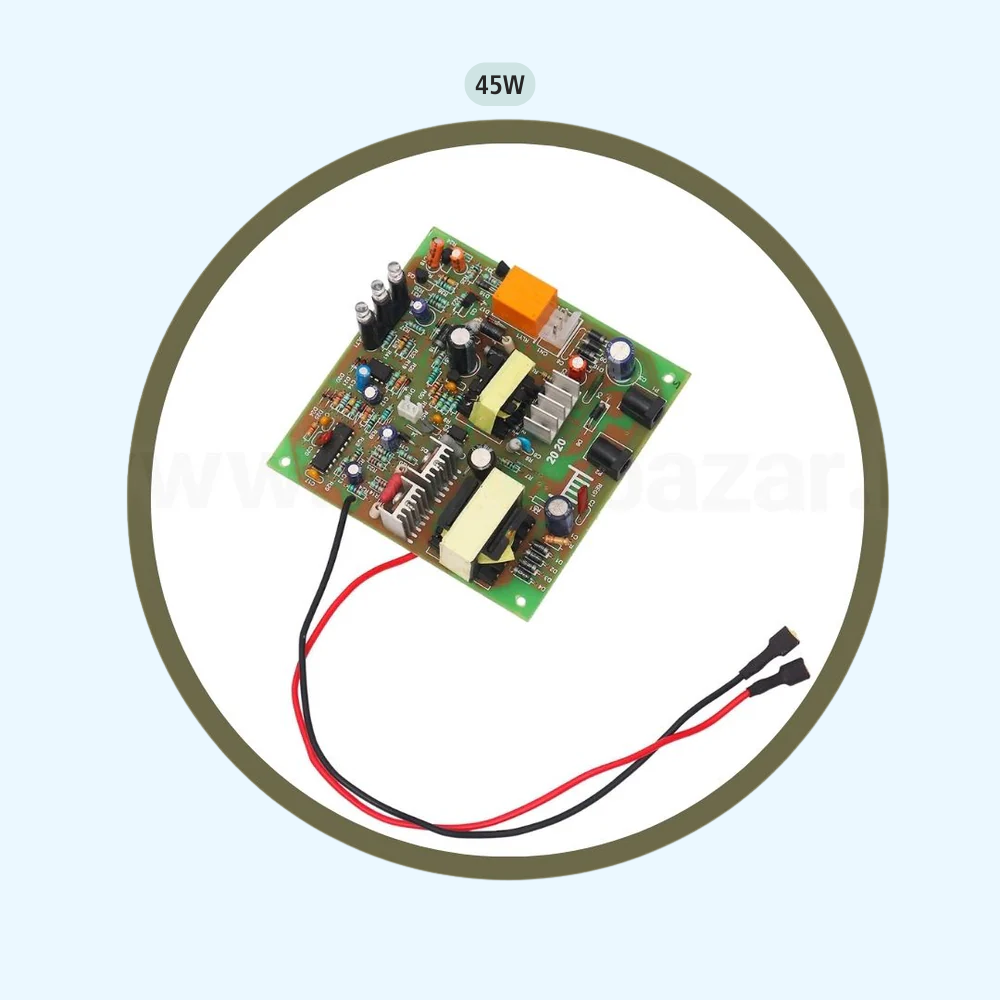

45-watt complete inverter circuit motherboard with inbuilt battery charging module

• Input Voltage: 12V DC
• Output Voltage: 220V AC
• Power Rating: 45 Watts
• Frequency: 50Hz/60Hz
• Battery Charging Module: Can charge batteries up to 10 amps
• Protection Features: Includes over-voltage, over-current, and short-circuit protection
• Design: Simple and easy to use
• Transient Response: Fast
• Capable of Operating: CFL bulbs, LED bulbs, light chargers, etc.
• Not Suitable for: Electromagnetic transformer devices

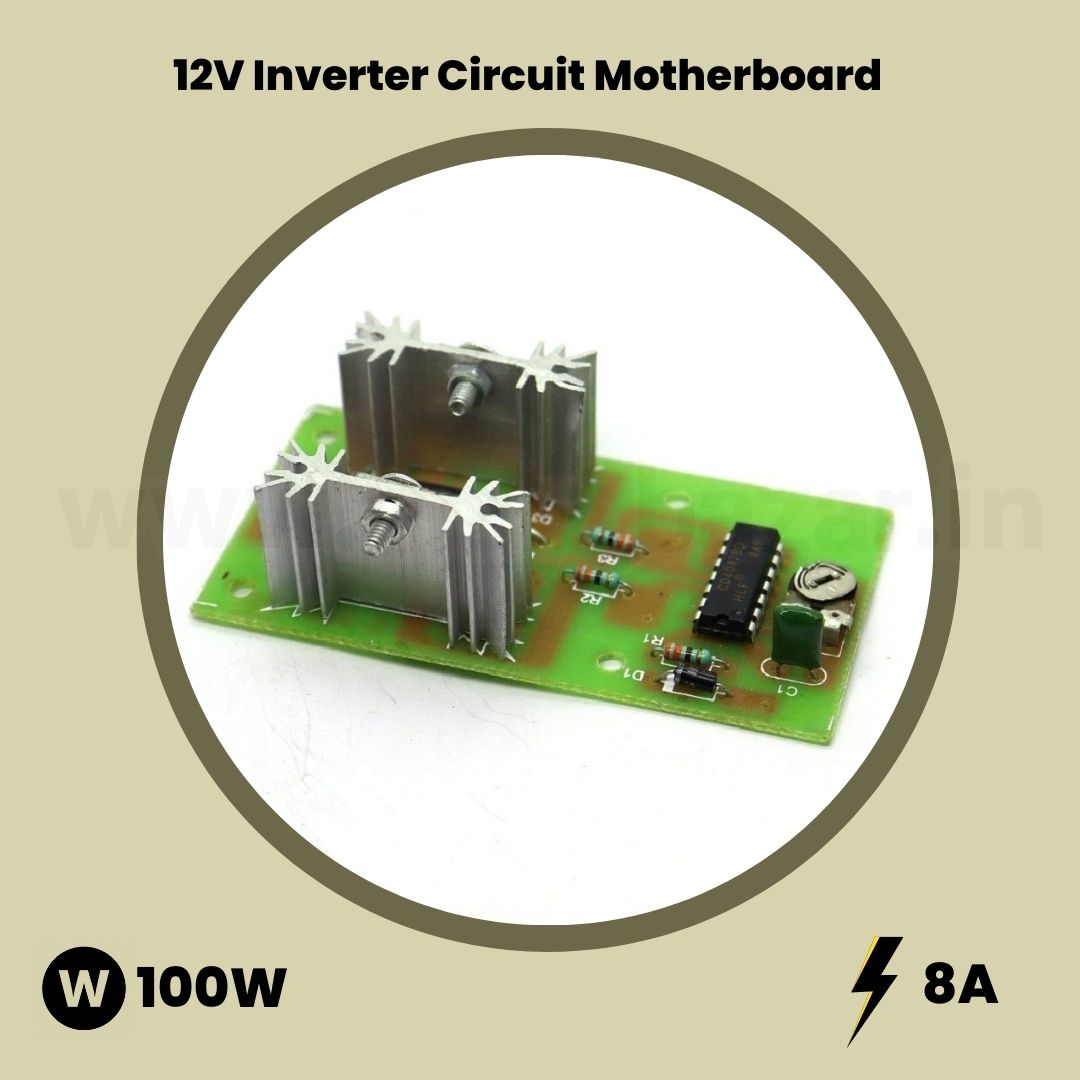

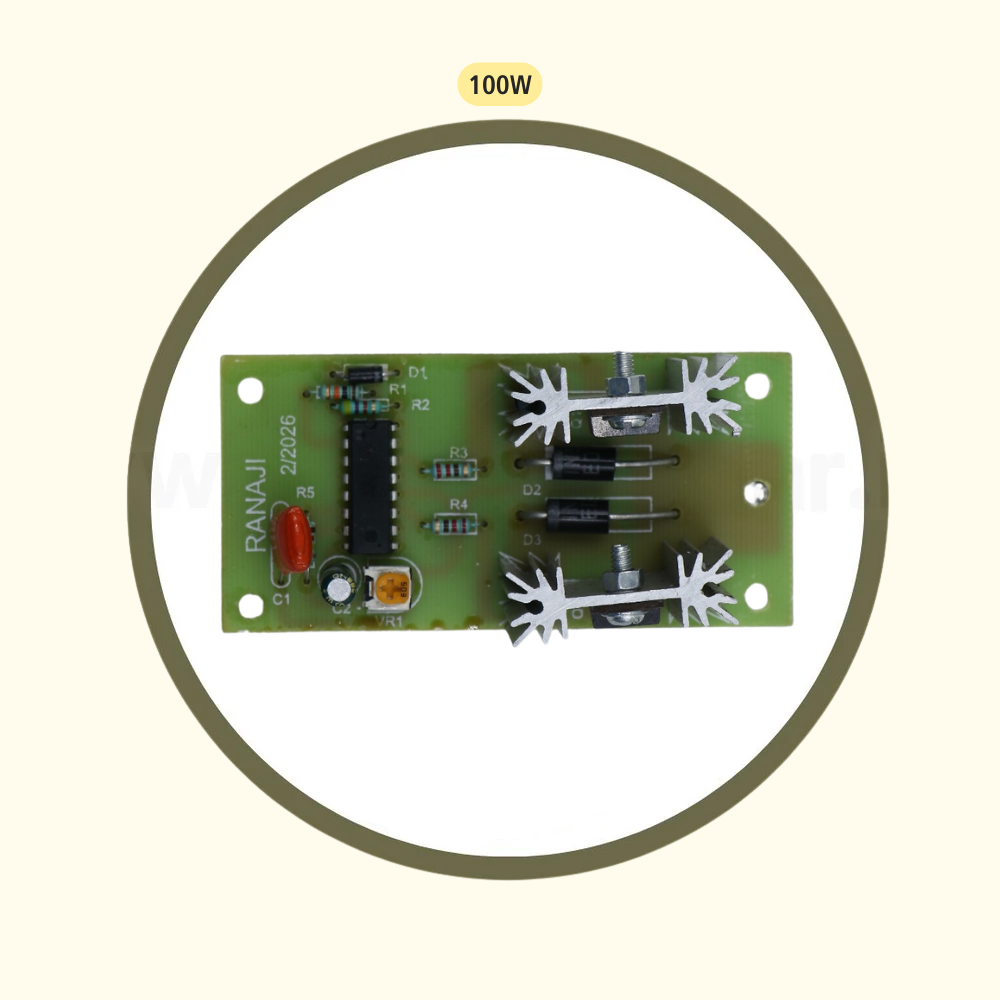

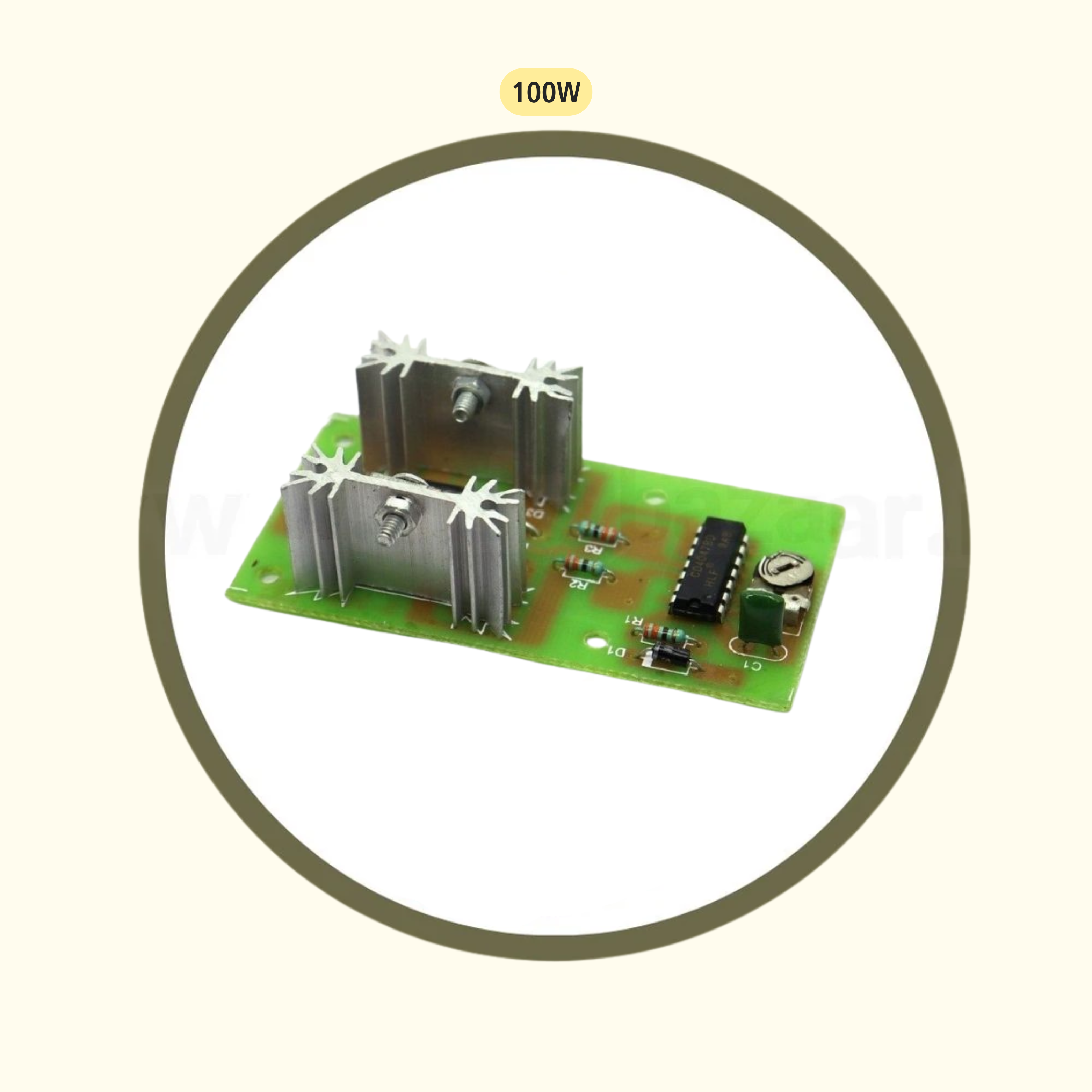

100 watt inverter circuit motherboard

• Input Voltage: 12V DC
• Output Voltage: 220V AC
• Power Rating: 100 Watts
• Frequency: 50Hz/60Hz
• Transformer Requirement: Connect a 12-0-12 12V transformer for proper supply
• Protection Features: Over-voltage, over-current, and short-circuit protection
• Design: Simple and easy to use
• Transient Response: Fast

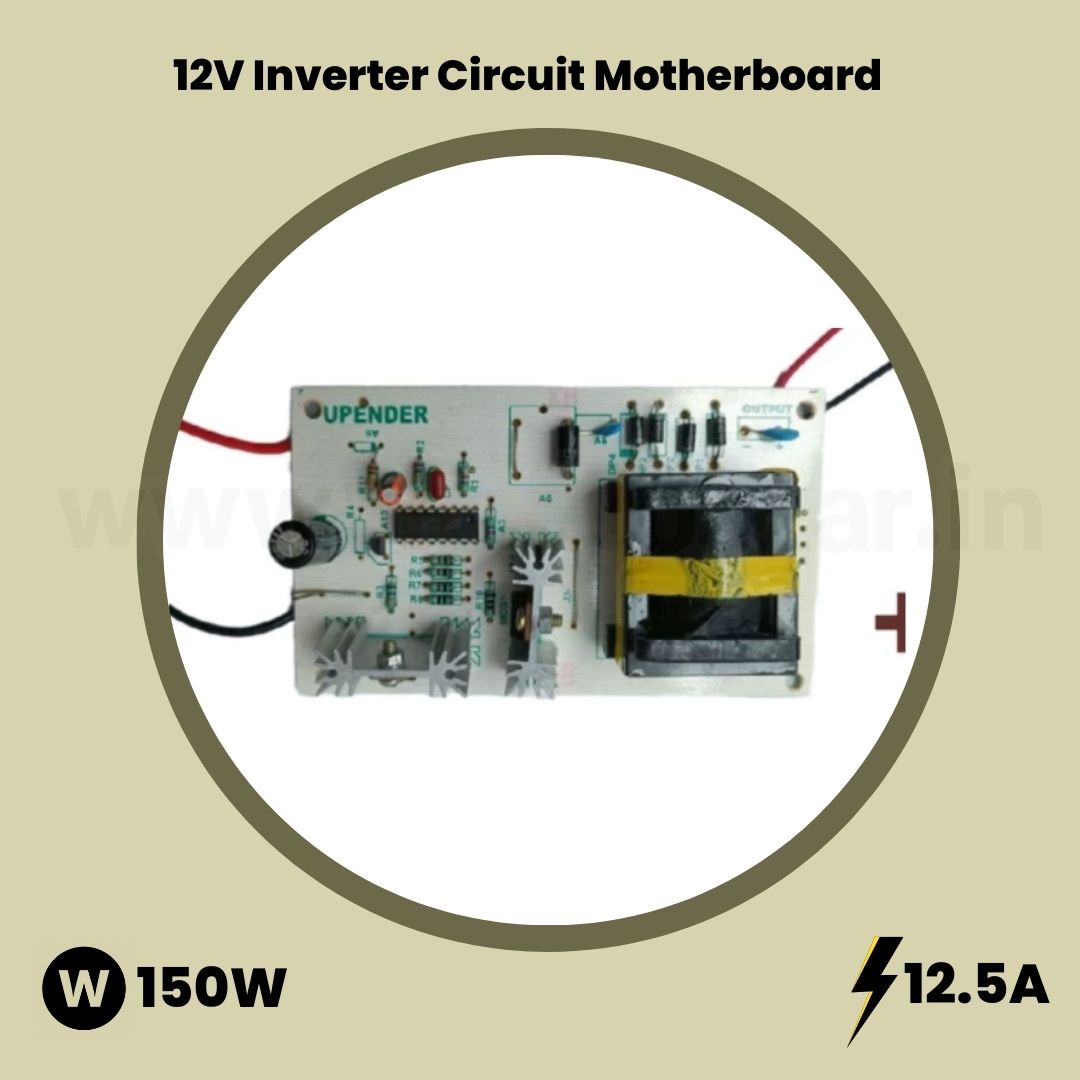

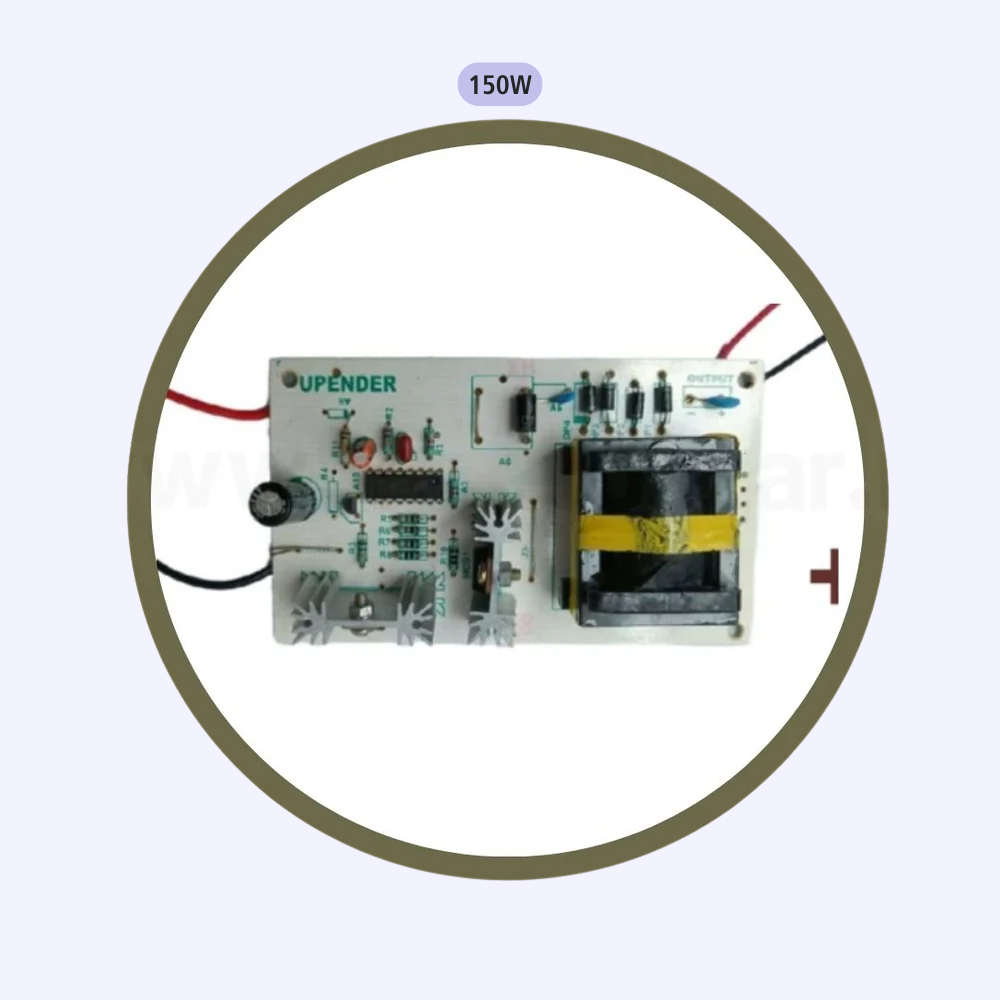

150 watt inverter circuit motherboard

• Input Voltage: 12V DC
• Output Voltage: 220V AC
• Power Rating: 150 Watts
• Frequency: 50Hz/60Hz
• Protection Features: Over-voltage, over-current, and short-circuit protection
• Design: Simple and easy to use
• Transient Response: Fast
• Capable of Operating: CFL bulbs, LED bulbs, light chargers, etc.
• Not Suitable for: Electromagnetic transformer devices

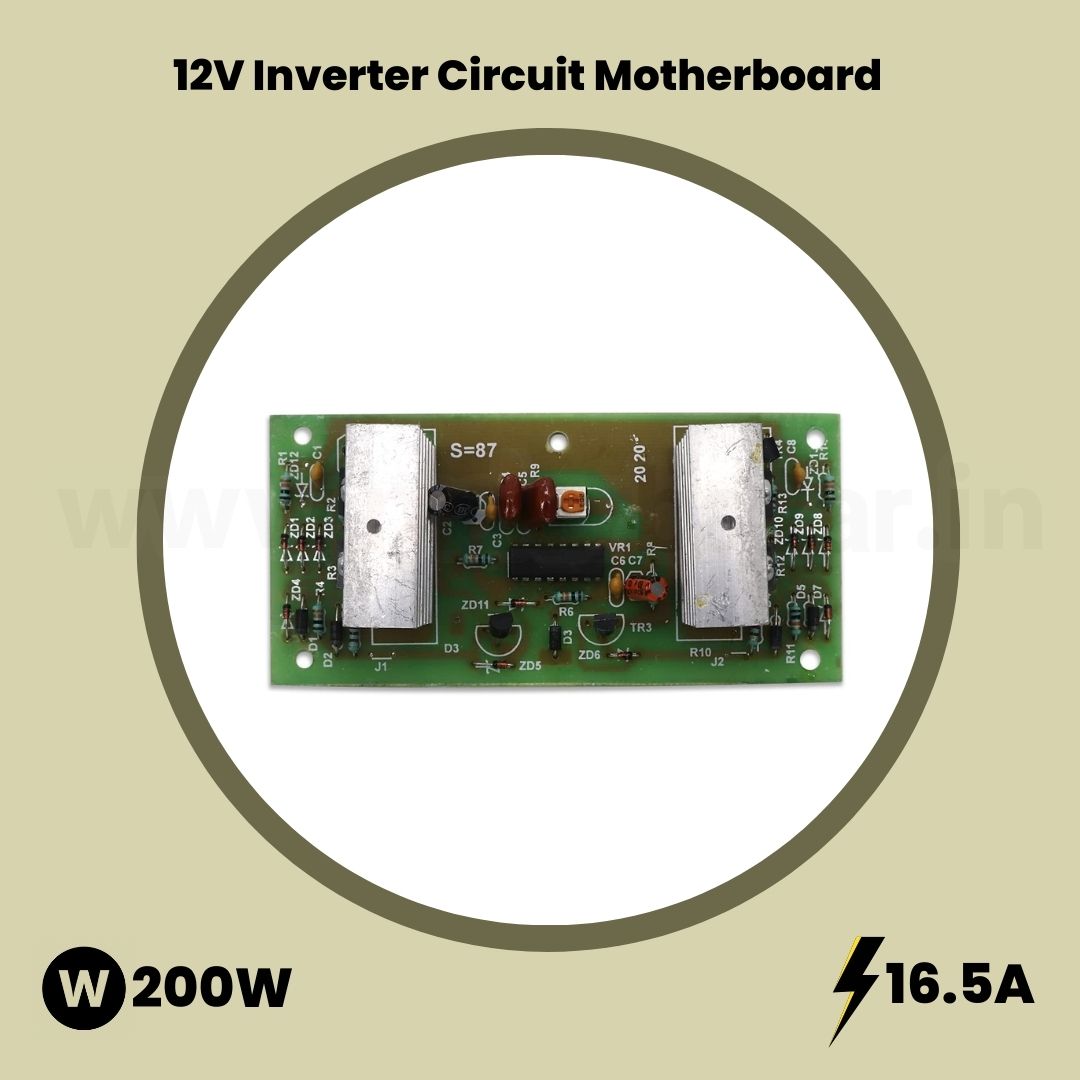

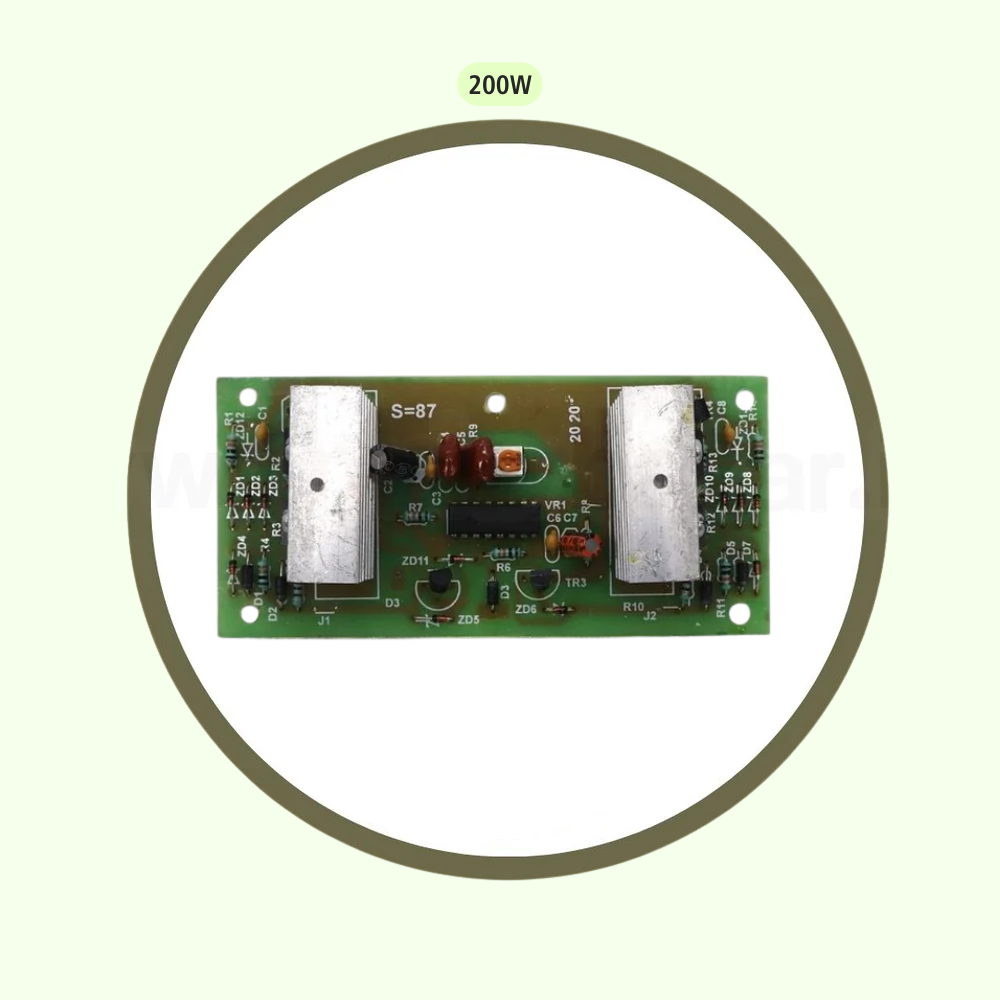

200 watt inverter circuit motherboard

• Input Voltage: 12V DC
• Output Voltage: 220V AC
• Power Rating: 200 Watts
• Frequency: 50Hz/60Hz
• Transformer Requirement: Connect a 12-0-12 12V transformer for proper supply
• Protection Features: Over-voltage, over-current, and short-circuit protection
• Design: Simple and easy-to-use
• Transient Response: Fast
