DC-DC Adjustable Step-Up and step-down Power Supply Module boost and buck voltage converter

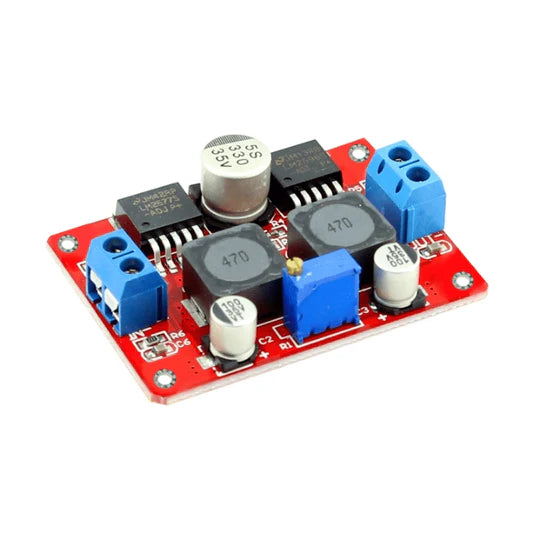

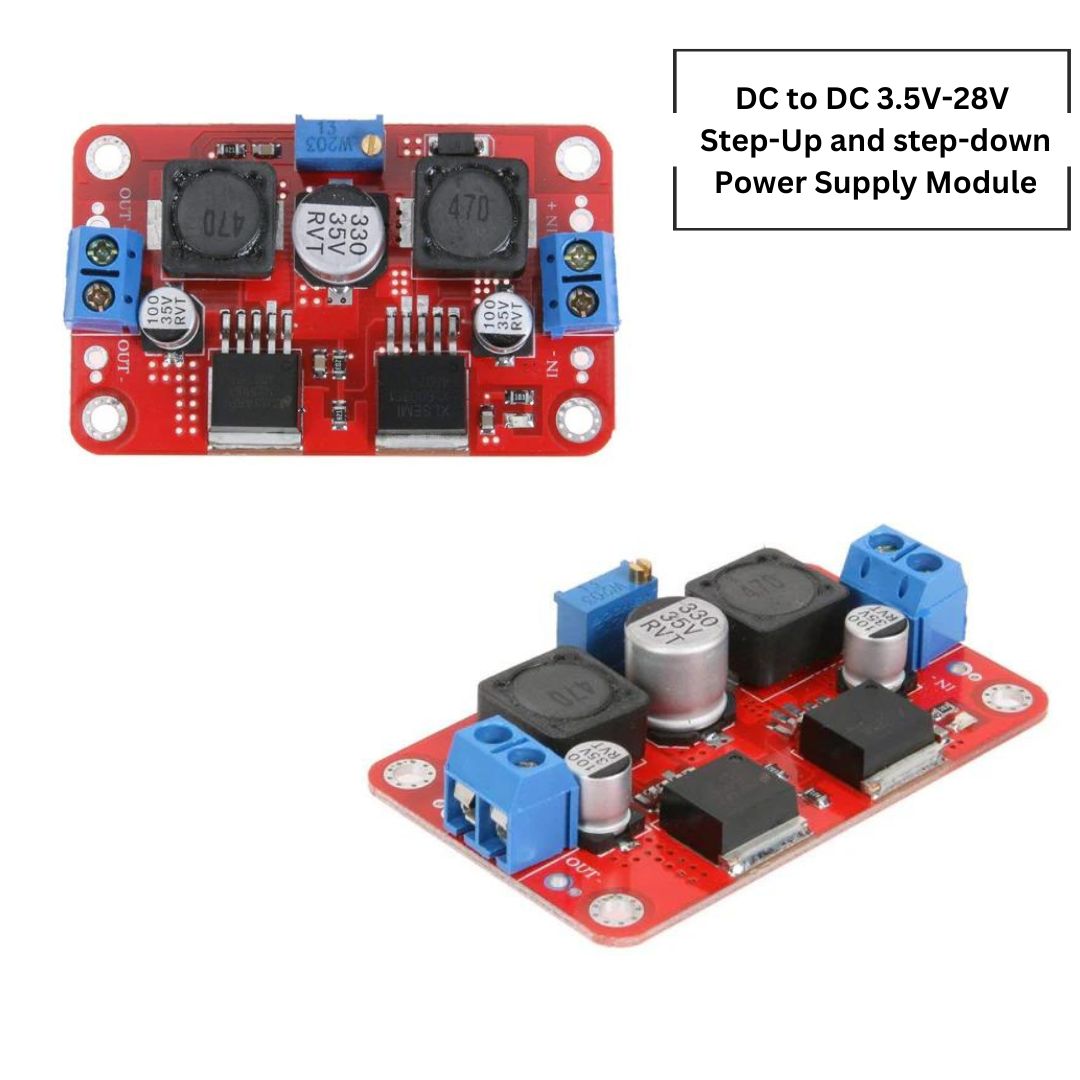

XL6009 LM2596 DC-DC Step Up Down Boost Buck Voltage Power Converter Module is a non-isolated Step up and step down ( boost as well as buck) constant voltage (CV) DC-DC converter Module. The main advantage of using this module is the output voltage remains fixed even if the input voltage goes below or above the set voltage. This module has an Output voltage independent of input voltage (3.5V-28V input, any value output 1.25V-26V).
In this, you can set the output voltage anywhere from 1.25 volts to 26 volts and even if the input voltage varies from 3.5 volts to 28 volts the output voltage will remain fixed as per the set voltage (which can be adjusted using an on-board trim pot).
This module is perfect for solar applications where you want to give a constant 12 to 14 volts to charge your battery but the output of the solar panel varies according to the sunlight.
Specifications:
|
Input Voltage |
DC 3.5-28 V |
|
Output Voltage |
1.25-26 V |
|
Maximum Input / Output Current |
3A |
|
Rated Input / Output Current |
1A |
Advantages:-
-
Versatility: These modules can operate in both step-up (boost) and step-down (buck) modes, allowing for flexible voltage conversion in various applications.
-
Wide Input Voltage Range: They can accept a wide range of input voltages, from 3V to 40V, making them suitable for use with different power sources.
-
Adjustable Output Voltage: Both modules feature adjustable output voltage, allowing for precise control over the voltage level according to the requirements of the application.
-
High Efficiency: With efficiency levels of up to 92%, these modules minimize power loss during voltage conversion, resulting in improved overall energy efficiency.
-
Compact Size: The modules are compact and lightweight, making them easy to integrate into electronic projects with limited space constraints.
-
Wide Operating Temperature Range: They can operate effectively across a wide temperature range, from -40°C to +85°C, ensuring reliable performance in various environmental conditions.
-
Simple to Use: These modules are relatively easy to use and require minimal external components for operation, simplifying the design process for DIY enthusiasts and engineers alike.
-
Cost-Effective: They offer cost-effective solutions for voltage regulation and conversion compared to traditional linear regulators, making them ideal for budget-conscious projects.
-
Overcurrent and Overheat Protection: Many variants of these modules come with built-in protection features such as overcurrent and overheat protection, enhancing the safety and longevity of connected devices.
-
Wide Application Range: Due to their versatile nature and robust performance, these modules are suitable for a wide range of applications, including robotics, automotive electronics, portable devices, LED lighting, and more.
