Adjustable DC-DC Buck-Boost Converter Module 1.25V–26V Output
The Boost + Buck DC-DC Power Supply Module is a versatile voltage regulator designed to both step-up (boost) and step-down (buck) input voltage to a stable, adjustable output. Built using reliable IC combinations like LM2596, XL6009, and LM2577, this module ensures efficient power conversion for a wide range of electronics applications.
With a broad input voltage range and adjustable output, it is ideal for powering Arduino, ESP32, Raspberry Pi, LED drivers, motors, and battery-powered systems. The onboard multi-turn potentiometer allows precise voltage adjustment, while high-efficiency switching ensures minimal power loss.
This module is perfect for DIY electronics, robotics, IoT projects, and embedded systems, where flexible voltage regulation is required.
Key Features
-
Buck + Boost Functionality – Both step-up and step-down capability
-
Adjustable Output Voltage – Fine-tuning via onboard potentiometer
-
Wide Input Range – Supports multiple power sources
-
High Efficiency Conversion – Reduced heat and power loss
-
Multiple IC Variants – LM2596, XL6009, LM2577 combinations
-
Compact PCB Design – Easy integration into projects
Variants – Available Options

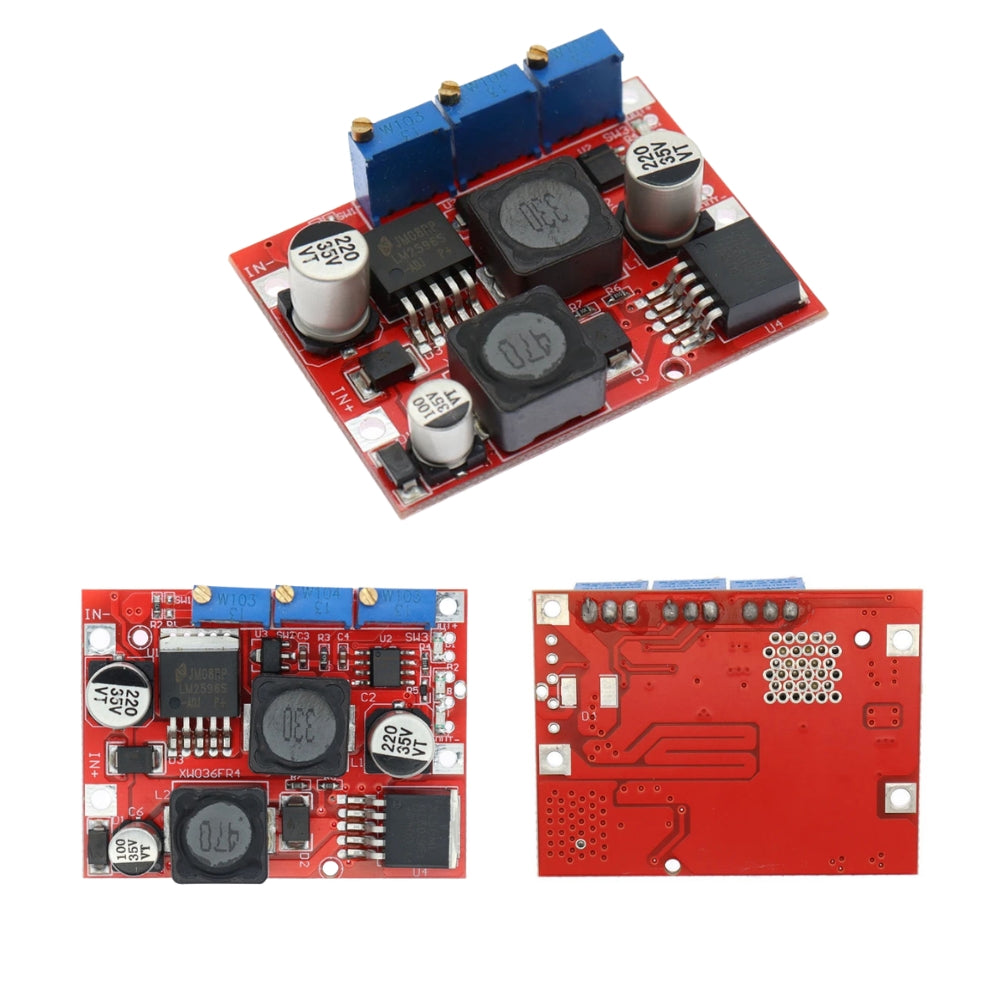

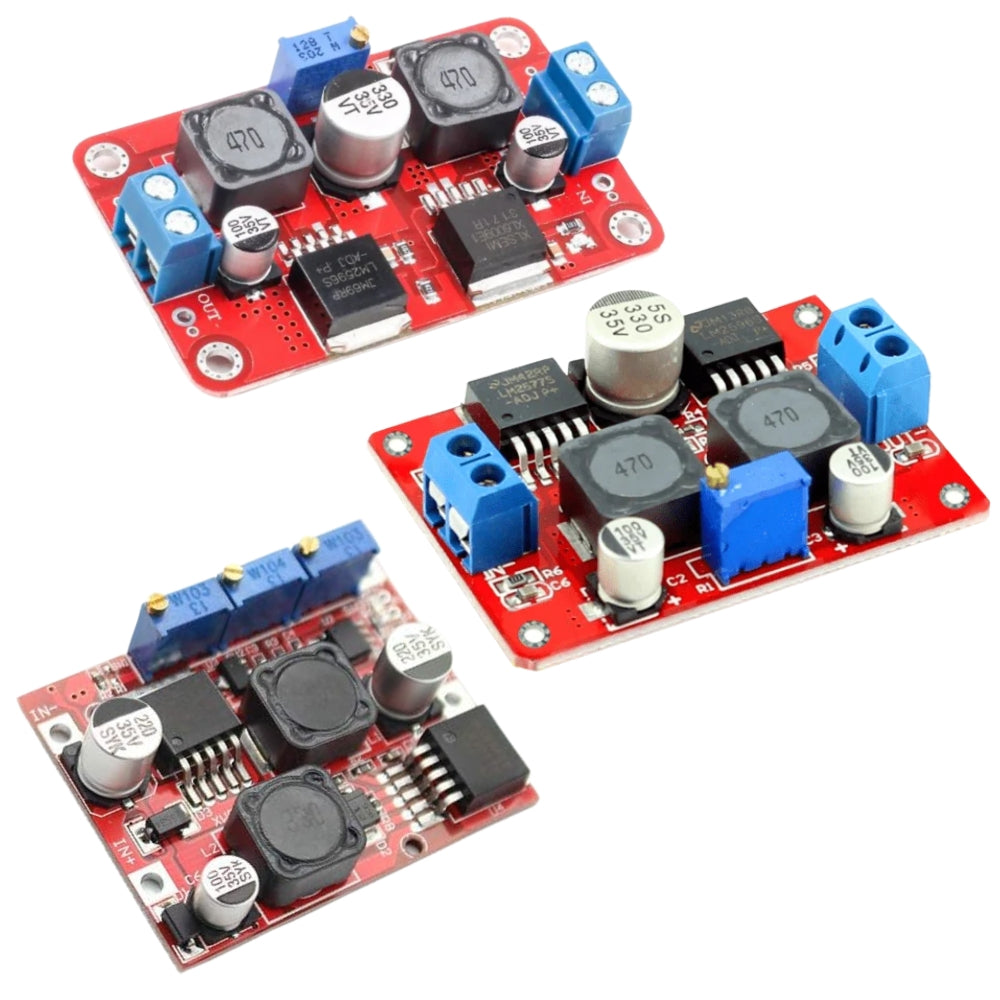

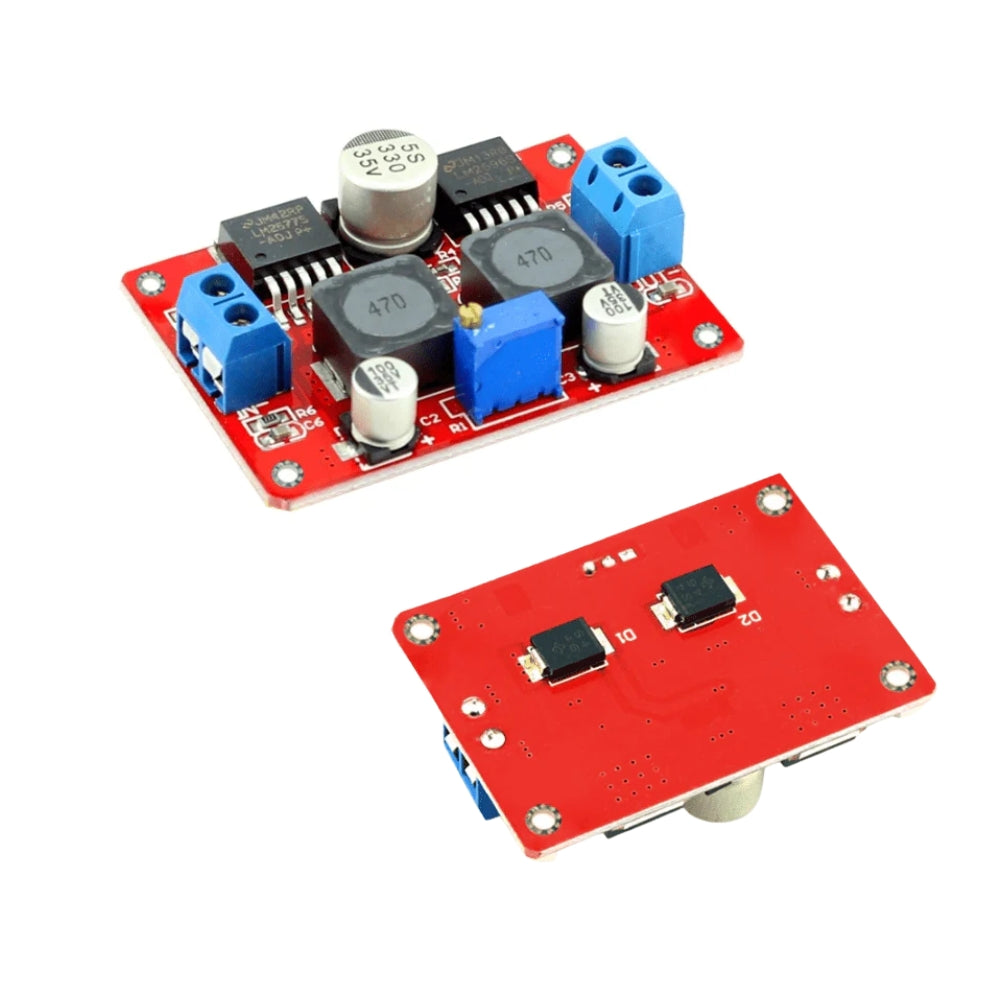

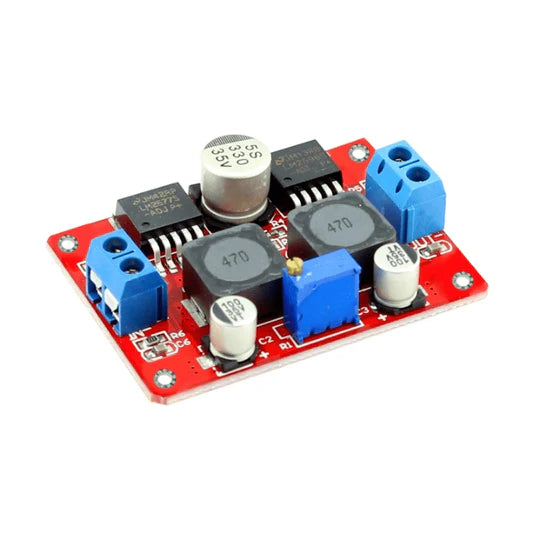

| Variant | IC Combination | Input Voltage | Output Voltage |
|---|---|---|---|
| Variant 1 | LM2596 + XL6009 1-Pot | 3.5V – 28V | 1.25V – 26V |
| Variant 2 | LM2577 + LM2596 1-Pot | 3.5V – 28V | 1.25V – 26V |
| Variant 3 | LM2577 + LM2596 3-Pots | 4V – 35V | 1.25V – 26V |
Specifications
-
Type: DC-DC Buck-Boost Converter
-
Output Type: Adjustable DC
-
Efficiency: Up to ~90% (typical)
-
Control: Multi-turn potentiometer
-
Mounting: PCB module
-
Protection: Basic overcurrent / thermal (variant dependent)
Applications
-
Arduino / ESP32 / Raspberry Pi power supply
-
Battery-powered devices
-
LED drivers and lighting systems
-
Robotics and motor control
-
DIY electronics projects
-
Adjustable lab power modules
