Description
DC5-24V SP110E SP105E SP107E Bluetooth Music Controller SP108E SP801E WIFI Controller For WS2811 WS2812B SK6812 APA102 LED Strip
Note: Pls select the model carefully after reading the details. Not every model supports Music/Wifi/Bluetooth

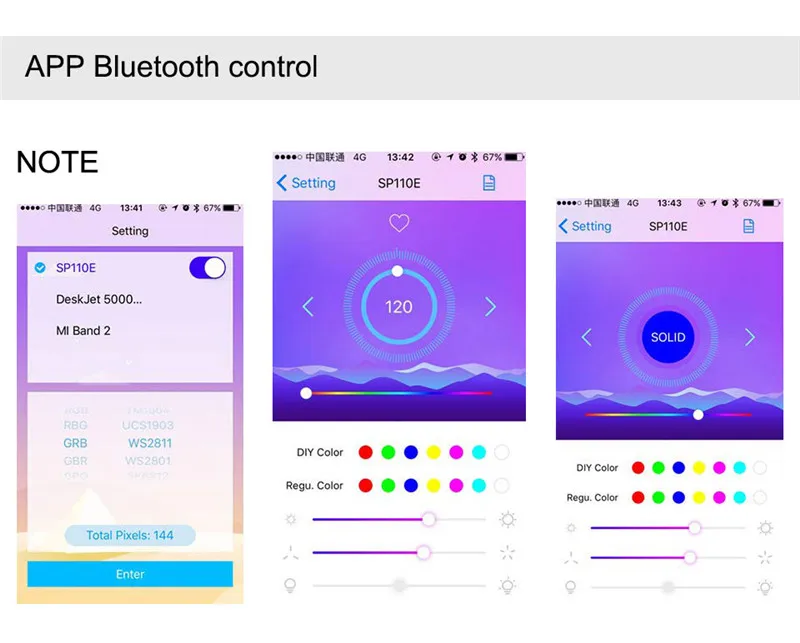

SP110E
Working temperature: 20℃~60℃;
Working Voltage: DC5V~12V;
Working Current : 20mA~40mA;
Remote distance: 20 Meters;
Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;
SP105E
Working temperature : -20~60;
Working Voltage : DC5V~24V;
Working Current : 28mA~40mA;
Remote distance : 20 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;

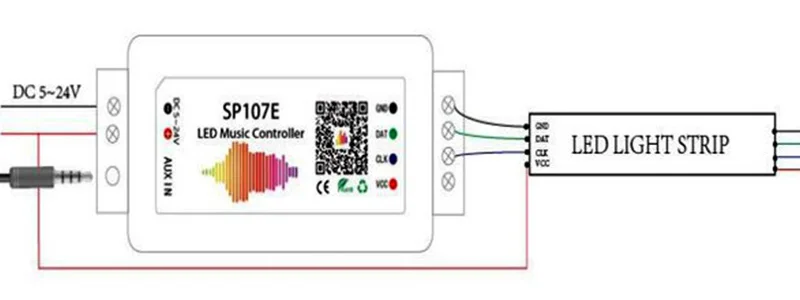

4.Wire Connection
SP107E
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
SP108E
Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v
