Development Kit Cmod S7 Breadboardable Spartan-7 FPGA Module for use with XC7S25 Spartan-7

The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.

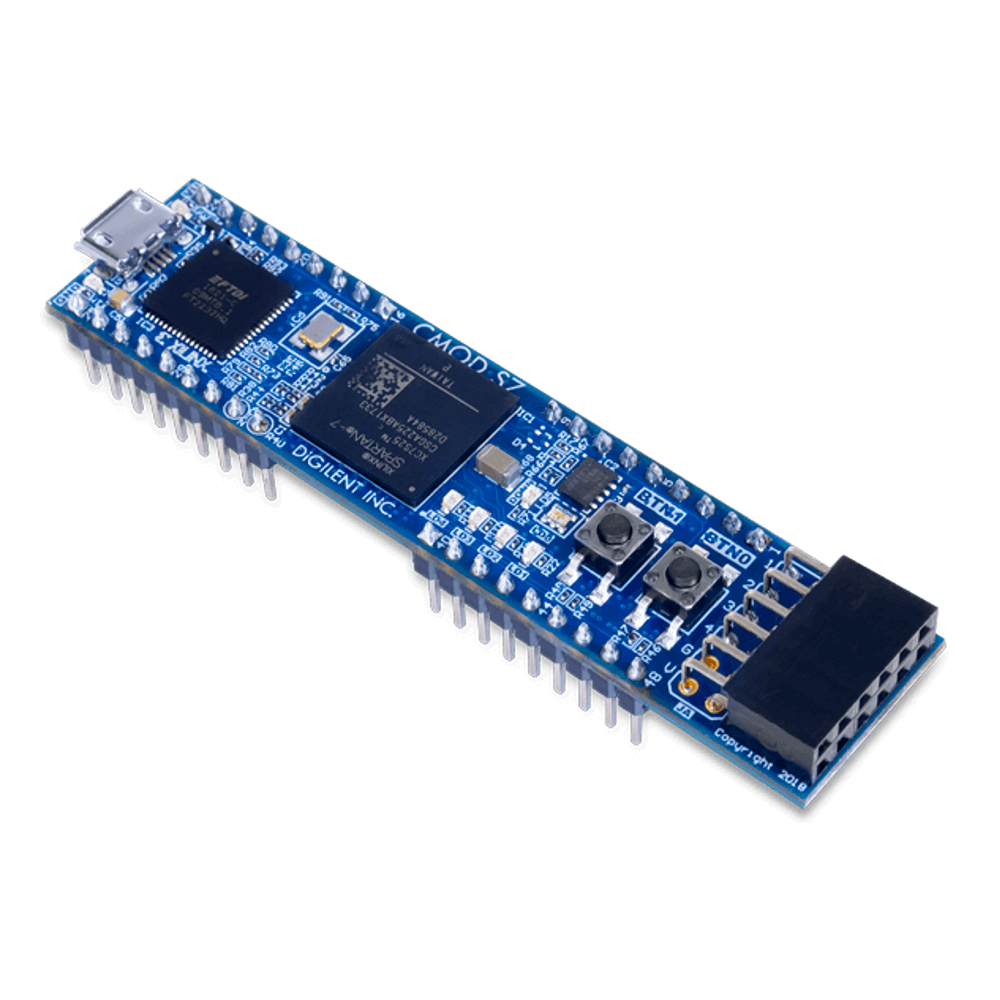

The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx® Spartan®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.

The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7″ by 3.05″, it can also be loaded in a standard socket and used in embedded systems.

The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.

The Cmod S7 can be programmed with Digilent’s Adept software. Digilent Adept is a unique and powerful solution that allows you to communicate with Digilent system boards and a wide assortment of logic devices.

Features:

1. Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C)
   1. 3,650 slices containing four 6-input LUTs and 8 flip-flops
   2. 1,620 Kbits of fast block RAM

   3. Three clock management tiles, each with a phase-locked loop and mixed-mode clock manager
   4. 80 DSP slices
   5. Internal clock speeds exceeding 450 MHz

   6. On-chip analog-to-digital converter (XADC)
   7. Programmable over JTAG and Quad-SPI Flash
2. Memory
   1. 4 MB Quad-SPI Flash
3. Power
   1. Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cable NOT included)
4. USB
   1. USB-JTAG programming circuitry
   2. USB-UART bridge
5. Push-buttons and LEDs
   1. 2 Buttons
   2. 4 LEDs
   3. 1 RGB LED

6. Expansion Connectors
   1. 1 Pmod connector
      1. 8 total FPGA I/O
   2. 48-pin DIP form-factor headers
      1. 36 populated pins
         1. 32 total FPGA I/O
         2. 2 Single-ended 0-3.3V analog inputs to XADC

1. Product Compliance:
   1. HTC: 8473301180
   2. ECCN: EAR99
