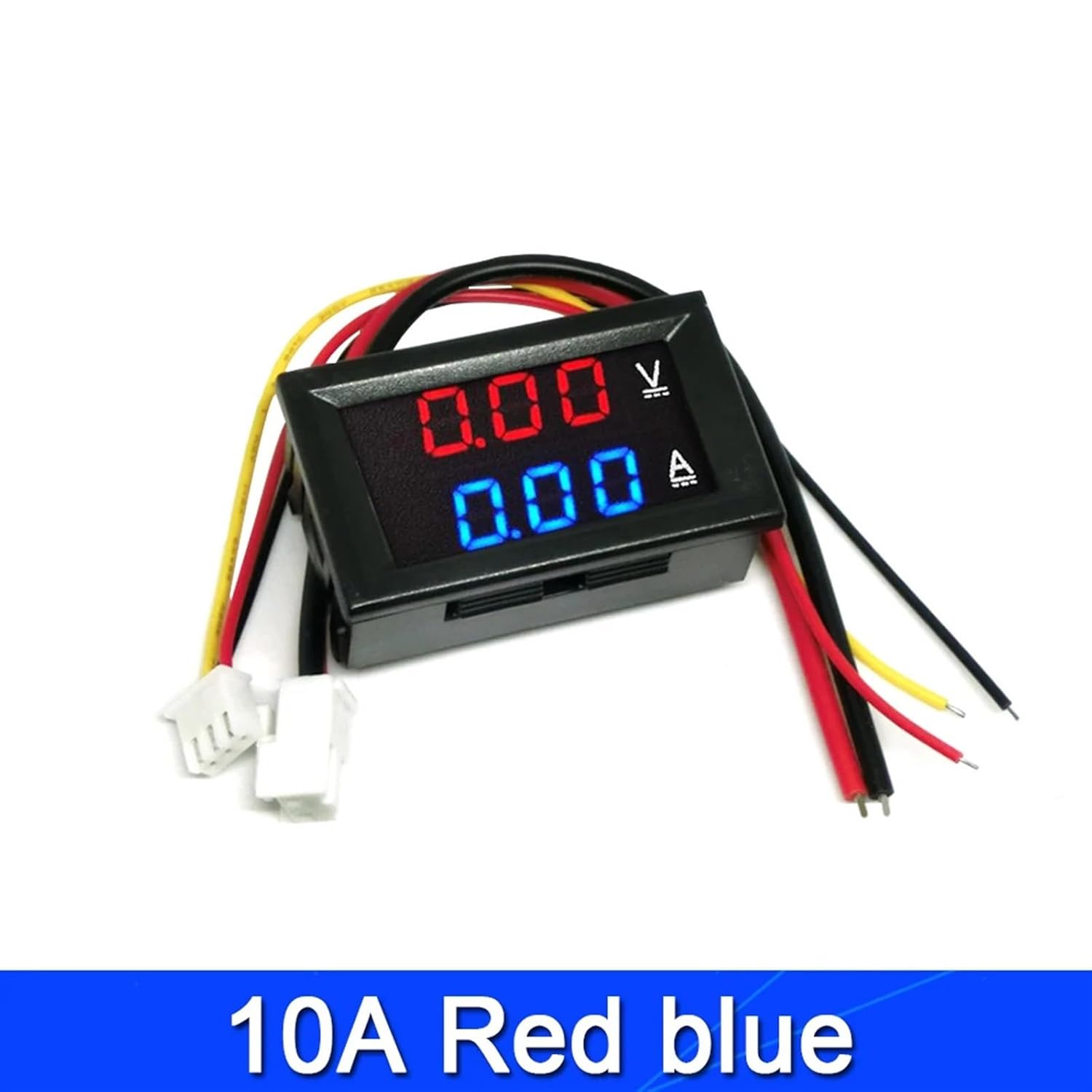

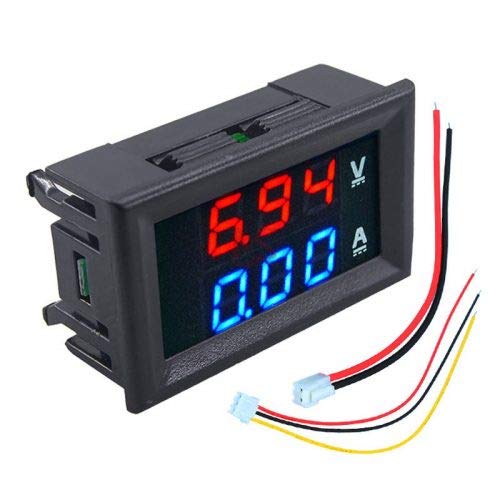

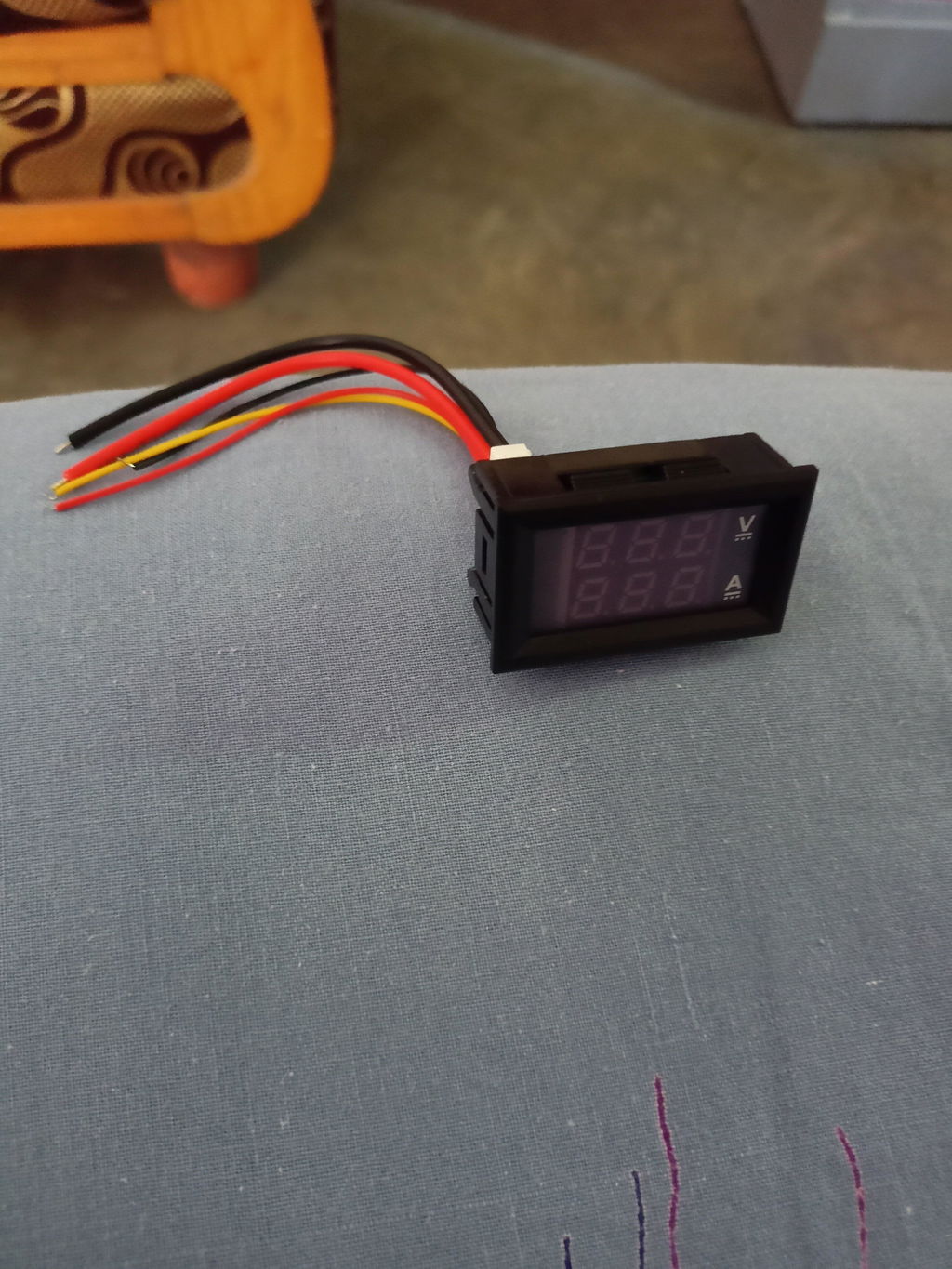

Digital Voltmeter (0-100V) and Ammeter Dual Led Voltage Current Measurement Module

So a digital voltage is a voltage that can be in only 1 of 2 states. The voltage can either be entirely off or LOW at 0V. Or the voltage can be entirely ON or HIGH at the peak voltage. Let’s say the voltage of the signal goes to 5V. This means the digital voltage can either be 5V or 0V.

The working of a digital voltmeter is converting an analog signal into a train of pulses. The number of pulses is proportional to the input signal. Therefore, a digital voltmeter can be made by using any A/D conversion method. Initially, a voltage signal is introduced to the pulse generator.

1. Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail).

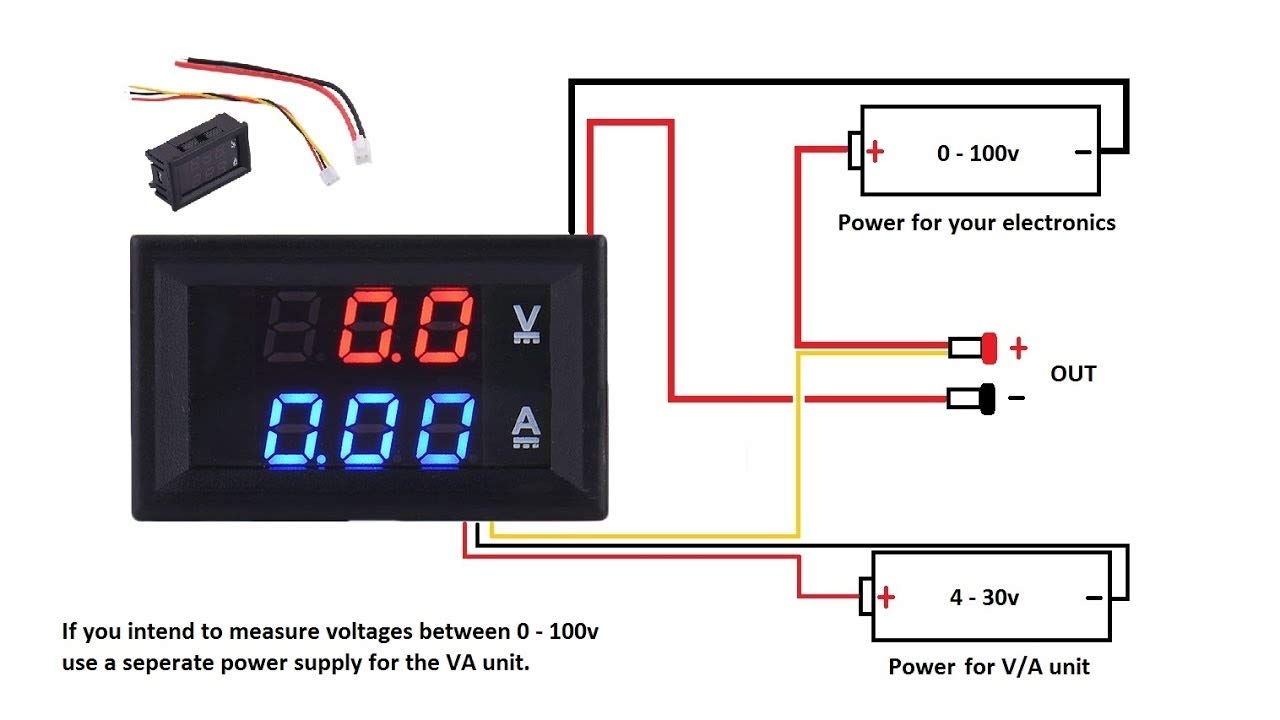

2.  Require external power supply; with reversed connection protection.
3. Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time.

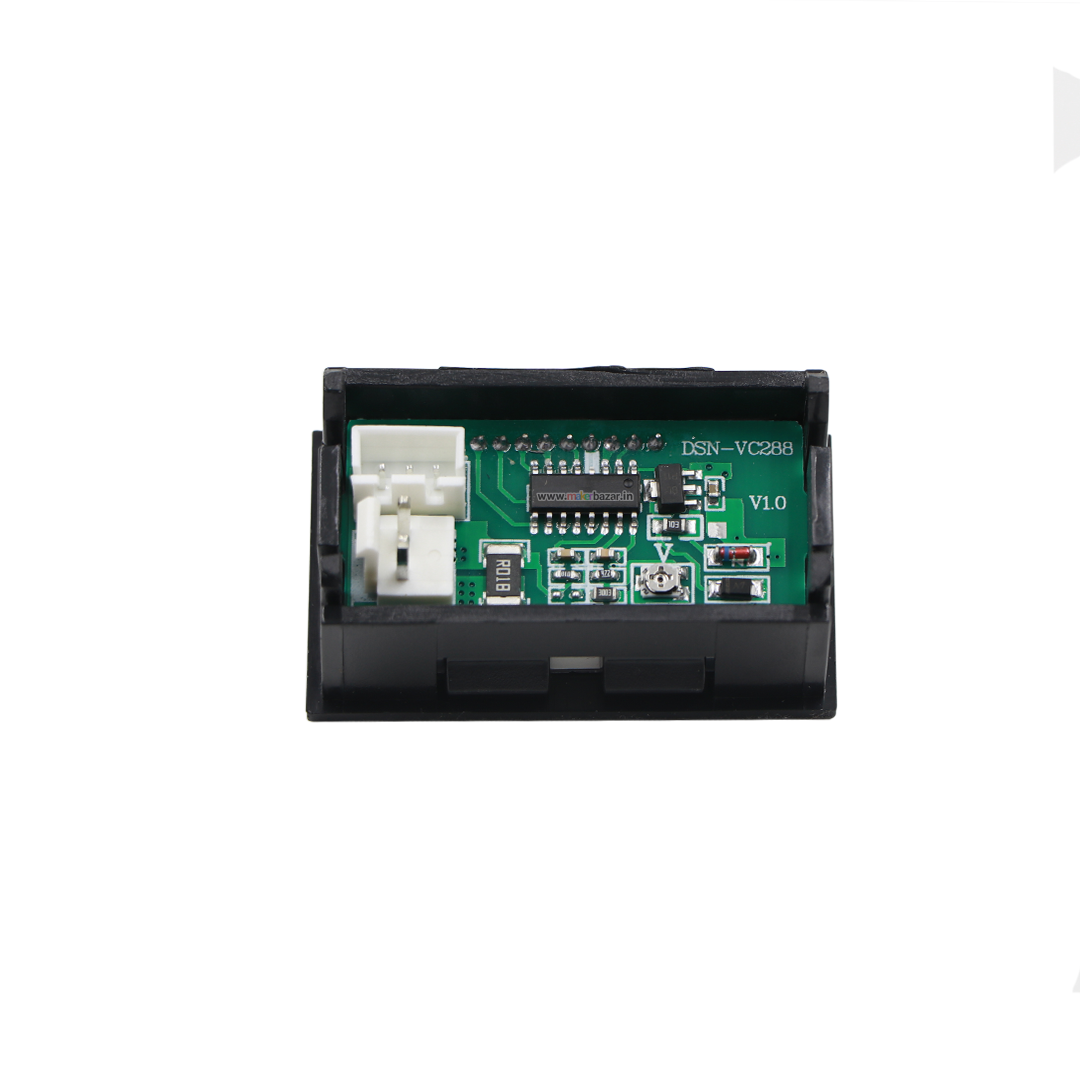

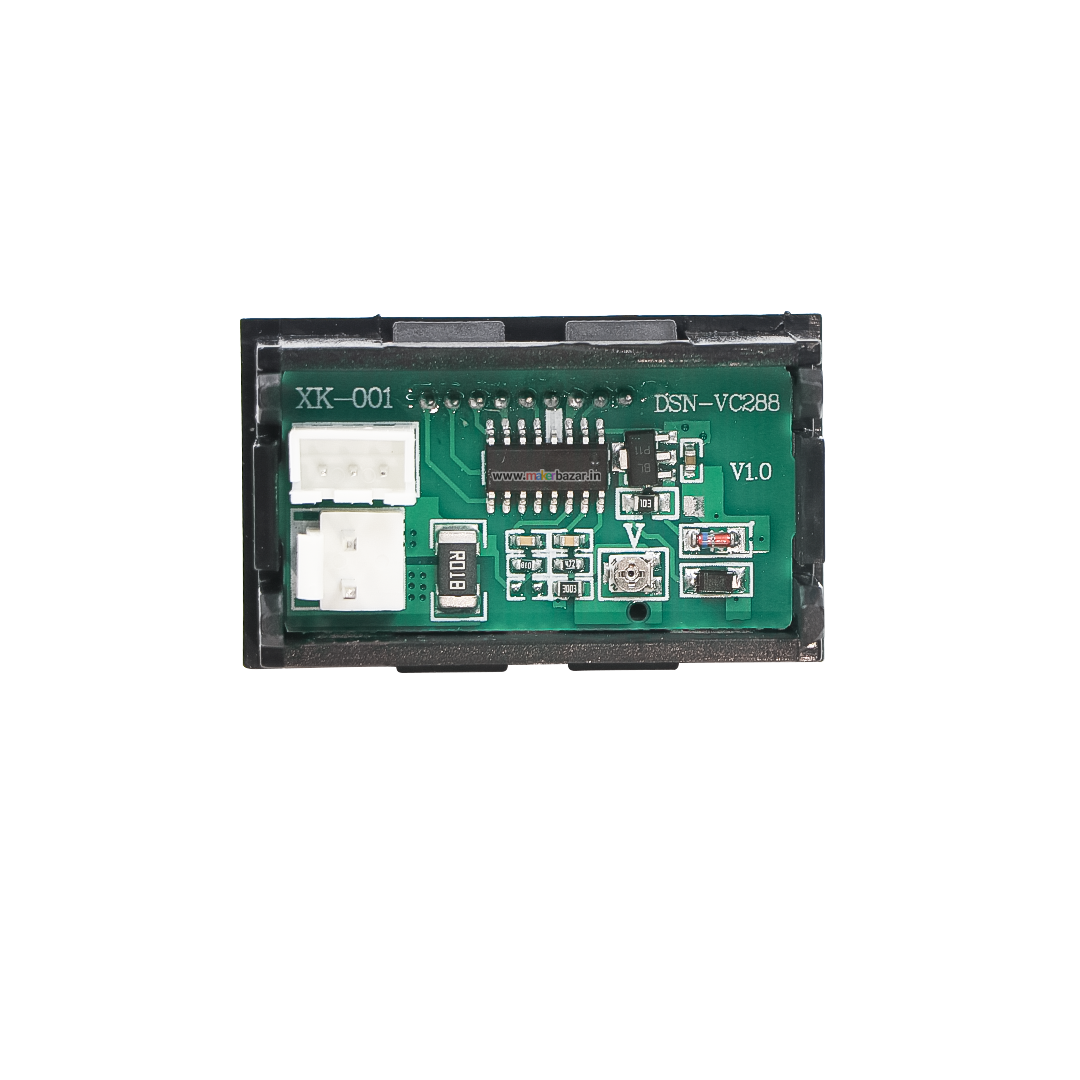

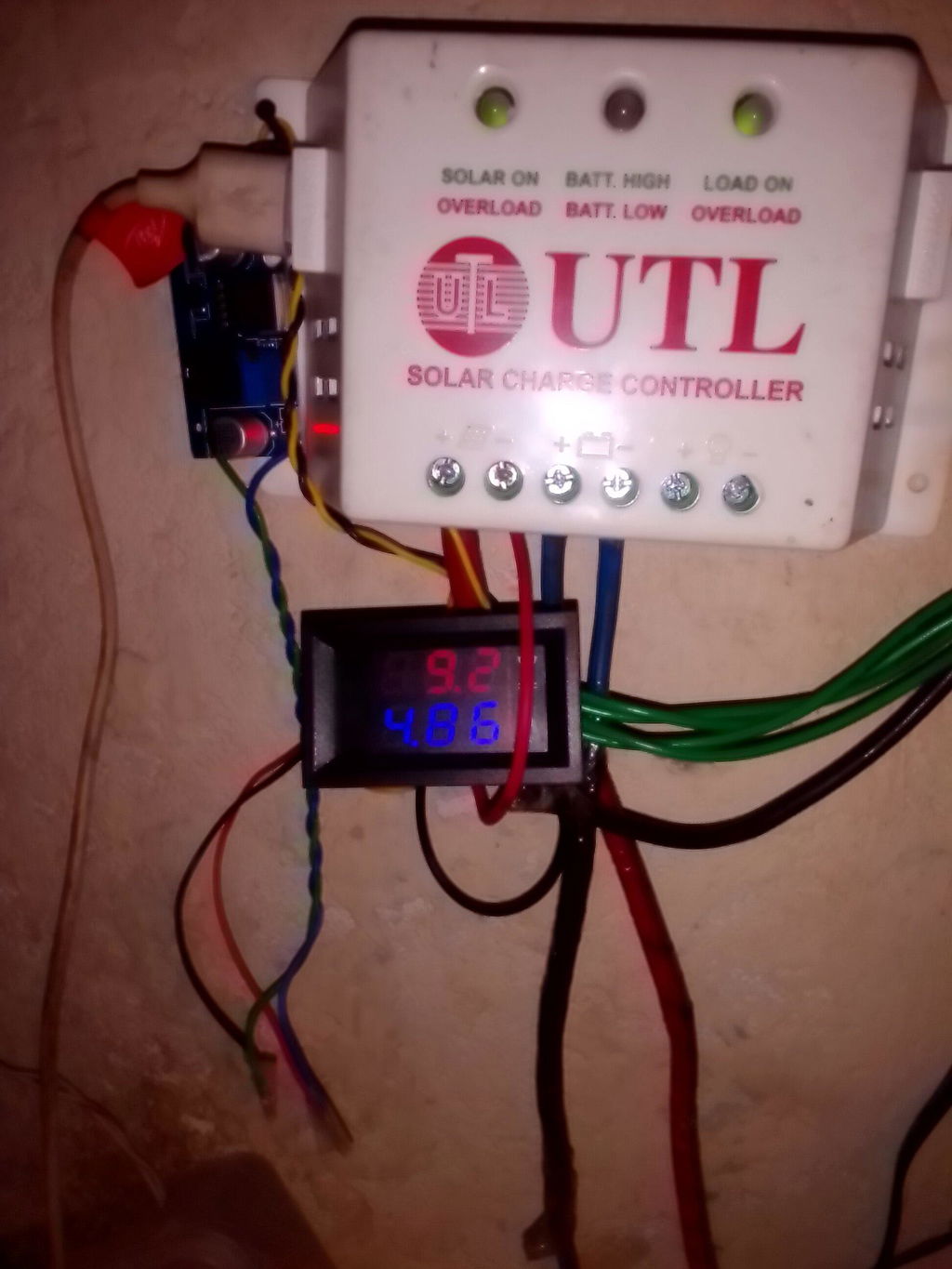

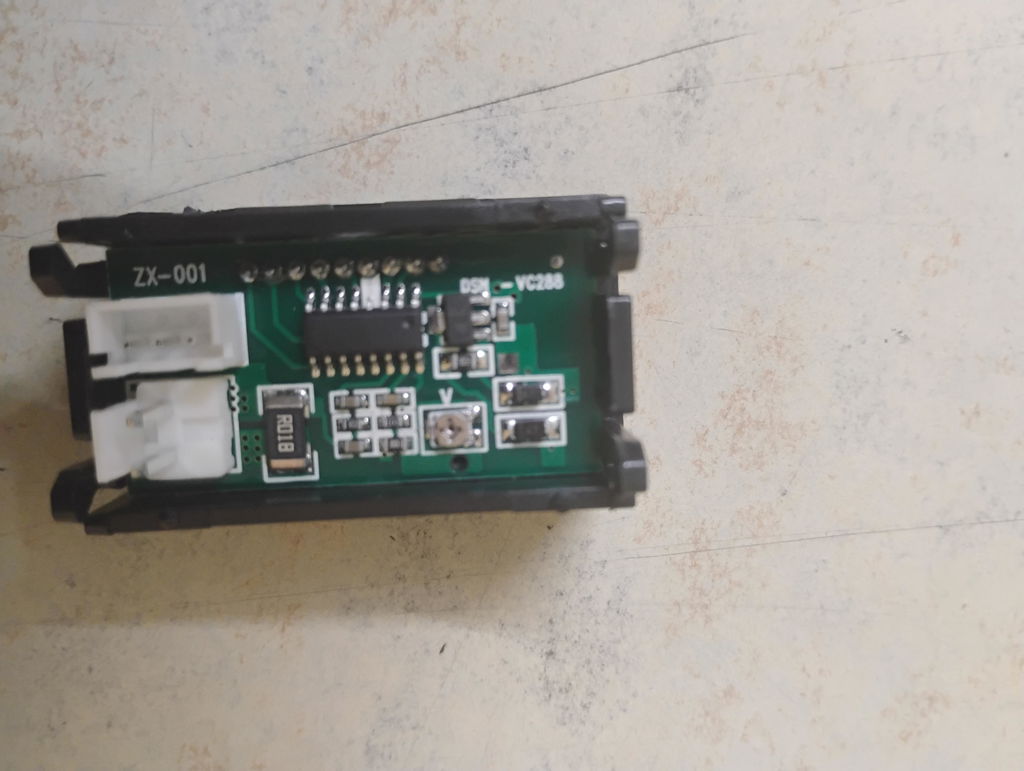

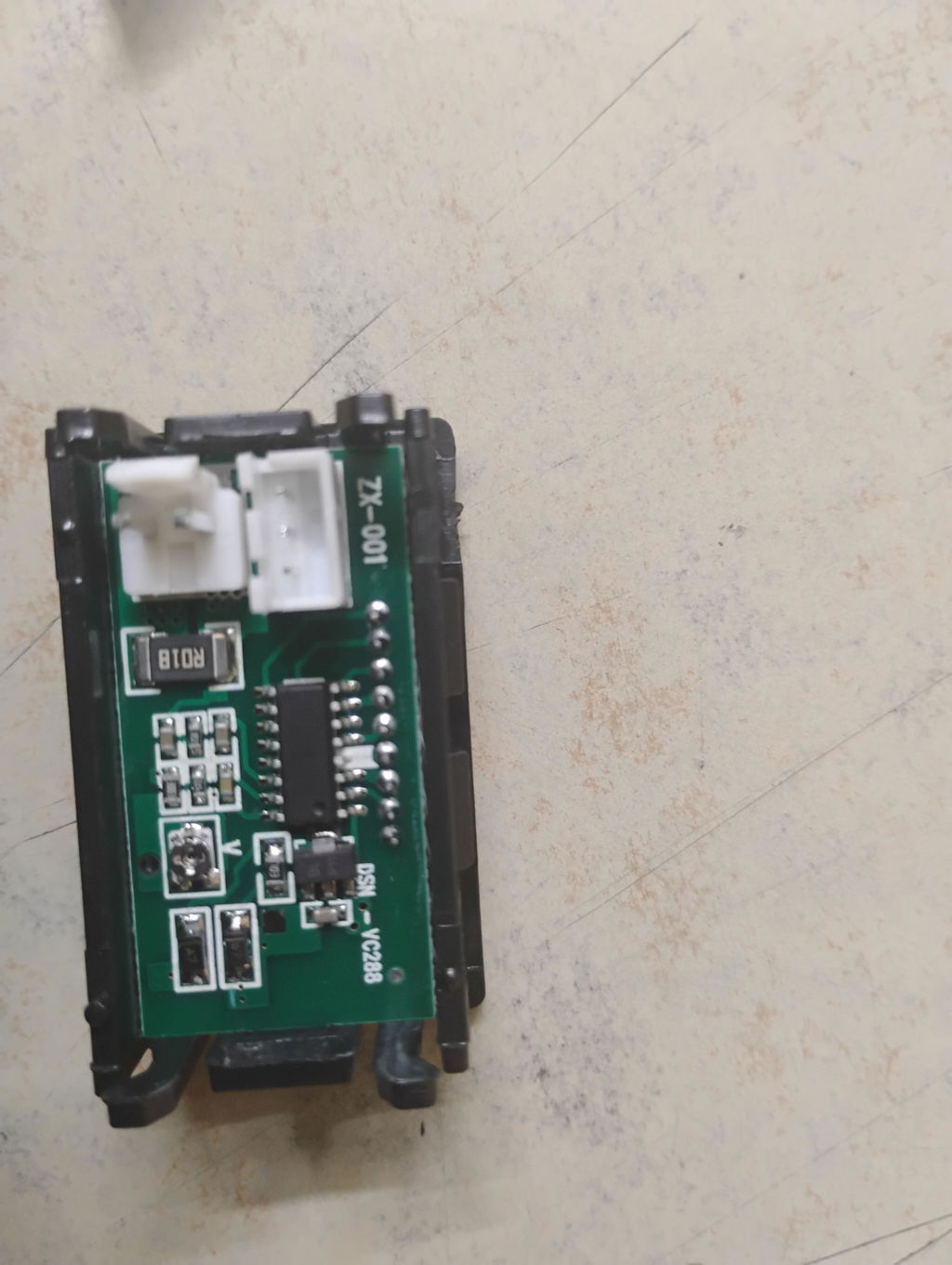

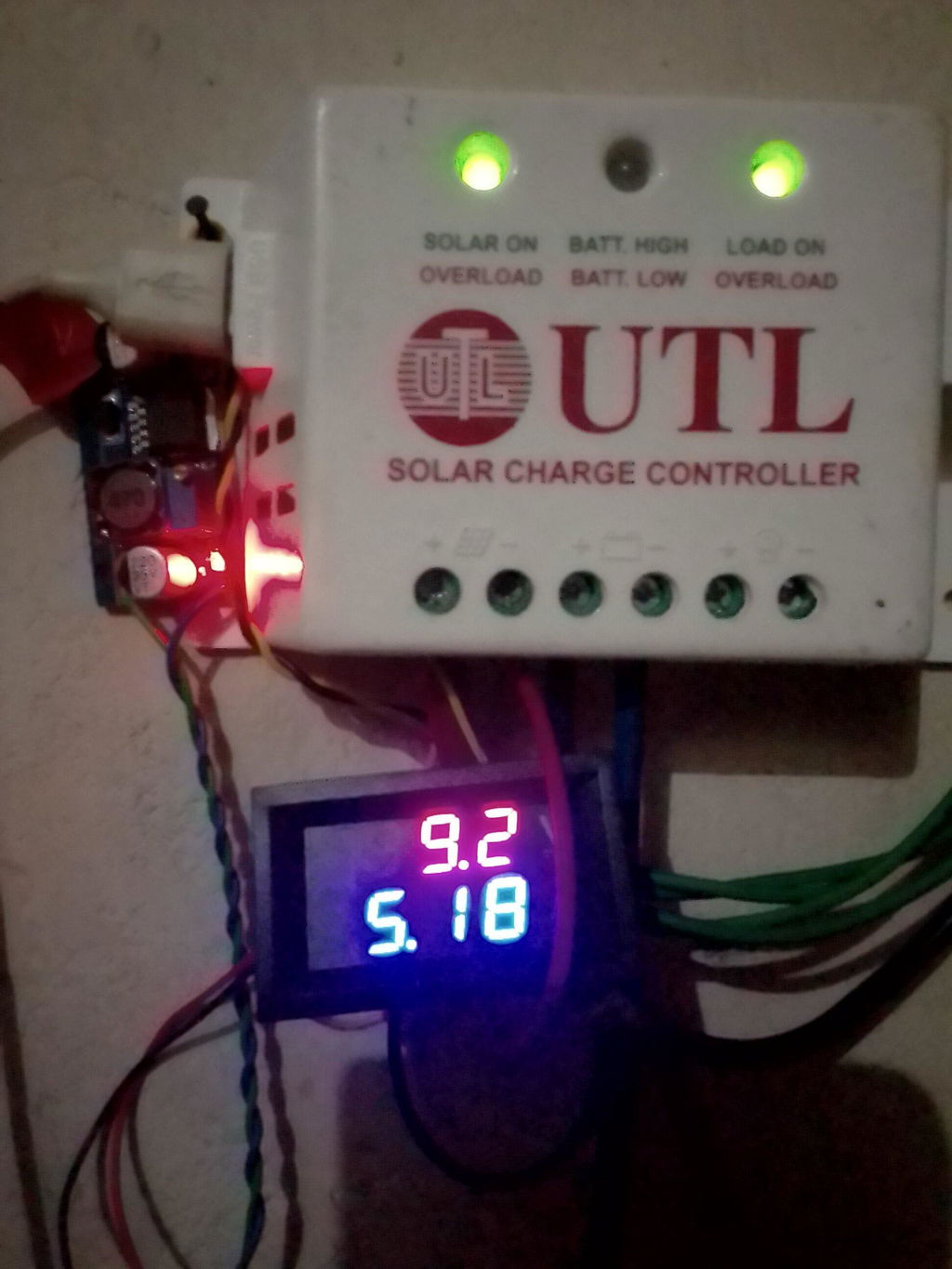

4. With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Features:

1. Measure voltage: DC 0 ~ 100V
2. Operating voltage: DC 4.5 ~ 30V
3. Minimum resolution(V): 0.1V

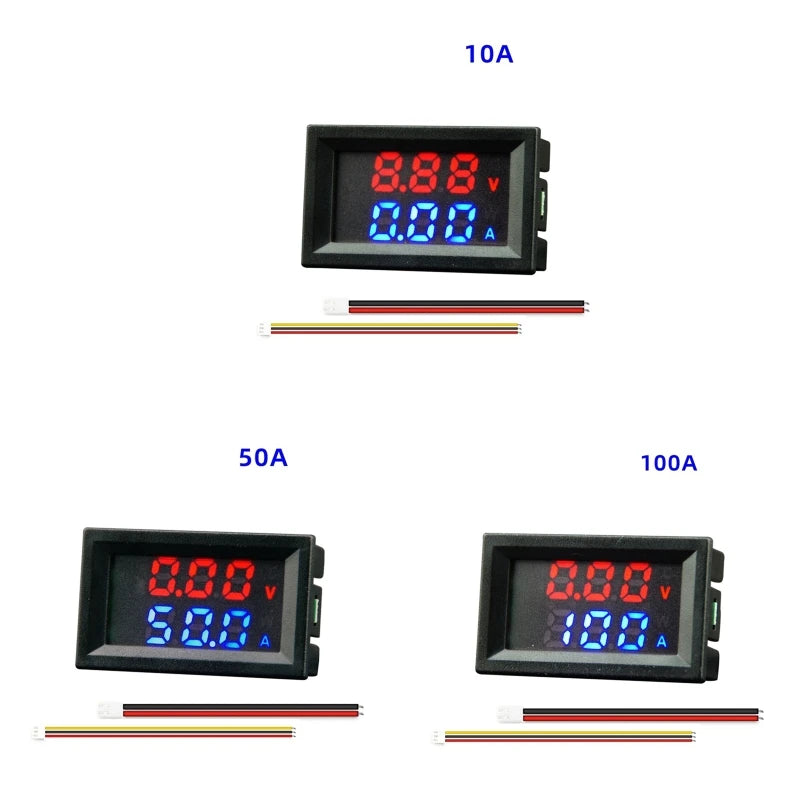

4. Minimum resolution(A): 10A/50A/100A
5. Operating current: 20mA
6. Display: three 0.28″ LED digital tube
7. Display color: Red and Blue (two-color display)
8. Dimensions: 48 x 29 x 21mm
9. Mounting cutout: 45.5 x 26.5mm
10. Refresh rate: about 500mS / times
11. Measure accuracy: 1%
12. Operating temperature: -10 to 65ºc
13. Operating Humidity: 10 to 80% (non-condensing)
14. Working pressure: 80 to 106 kPa

Specification:

1.  100% Brand New!!!
2. Color: Like the picture show
3. Rapid response recovery characteristics.
4. It Has a long life and reliable stability.
5. Quantity: 1 pc.
6. High precision, four digital displays.
7. Working voltage: DC 4V-28V.
8. Working current: 20mA.
9. Display: 0.28″ Two-color blue and red.
10. Measuring range: DC 0-100V 10A  .
11. Operating temperature: -10 to 65° c.
12. Working pressure: 80 to 106 kPa.
13. Size: 48×25×20 mm.
14. Current: Range x 0.08%+Two digits.
15. Voltage: Range x 0.08%+Two digits.

    Note:
    1. The 50 amp and 100amp voltmeter Ammeter both require a shunt to measure high current .
    2. There is no guarantee of the Variable pot in the module; sometimes it comes with the module, and sometimes it does not .
