General Purpose Rectifier Diode – Through-Hole DIP Power Diode for AC/DC Circuits
The General Purpose Rectifier Diode (Through-Hole DIP Package) is a versatile semiconductor device designed for converting AC to DC in a wide range of electronic and electrical circuits.
Built with a silicon junction design, these diodes offer high surge capability, low forward voltage drop, and reliable reverse blocking performance. They are commonly used in power rectifiers, adapters, chargers, and protection circuits.

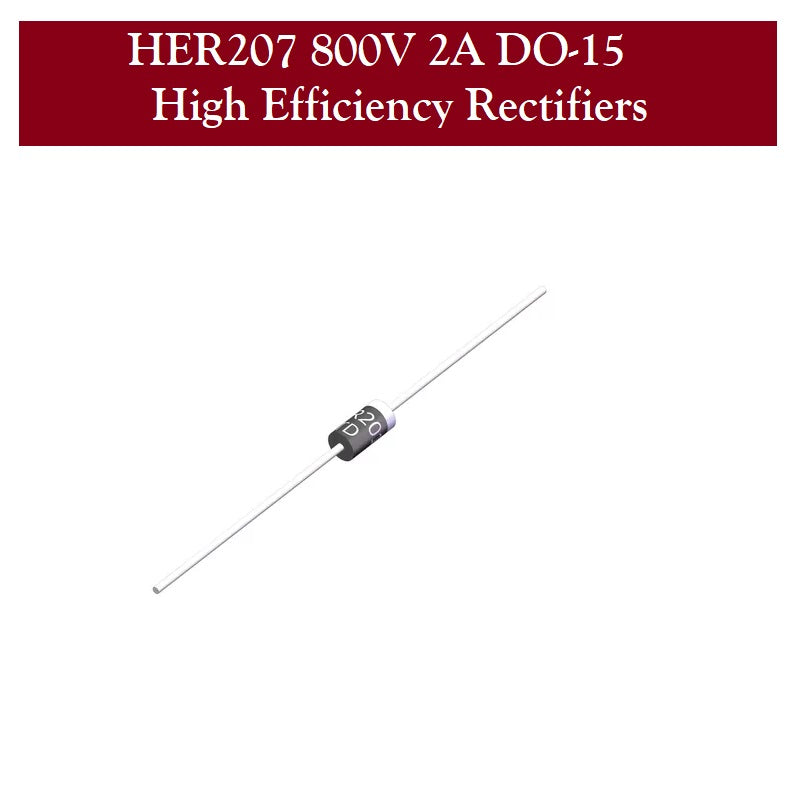

Available in standard through-hole DIP (DO-15, DO-41, or DO-201) packages, these diodes are ideal for prototyping, repair work, and circuit building in both industrial and hobby applications.
Key Features
-
General-purpose rectifier diode for AC to DC conversion.
-
Through-hole DIP package for easy soldering on PCBs or breadboards.
-
Low forward voltage drop ensures efficiency.
-
High surge current capability and fast recovery.
-
Reliable performance for low and medium power applications.
-
Available voltage ratings: 50V to 1000V (model-dependent).
-
Wide operating temperature range for durability.
-

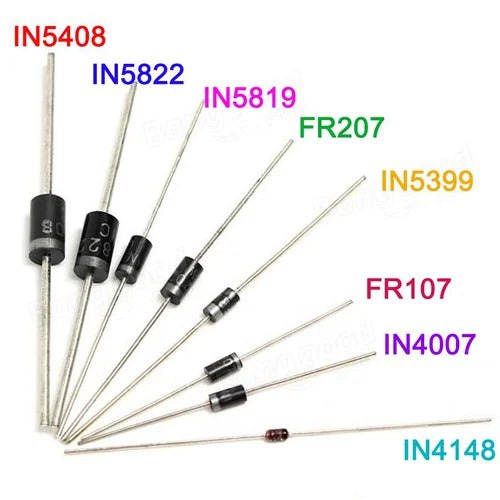

Compatible with 1N400x / 1N540x series and similar diodes.
Series |
Model |
Average Forward Current (IF) |
Peak Repetitive Reverse Voltage (VRRM) |
Non-Repetitive Surge Current (IFSM) |
Package Type |
Forward Voltage Drop (VF @ IF) |
Typical Use Case |
|---|---|---|---|---|---|---|---|
1N400x Series (Standard 1 A Diodes) |
1N4001 |
1 A |
50 V |
30 A |
DO-41 (Through-Hole) |
1.0 V @ 1 A |
Low-voltage rectification (5 V–12 V circuits) |
1N4002 |
1 A |
100 V |
30 A |
DO-41 |
1.0 V @ 1 A |
Rectifiers up to 12 V adapters |
|
1N4003 |
1 A |
200 V |
30 A |
DO-41 |
1.0 V @ 1 A |
Low-voltage power supplies |
|

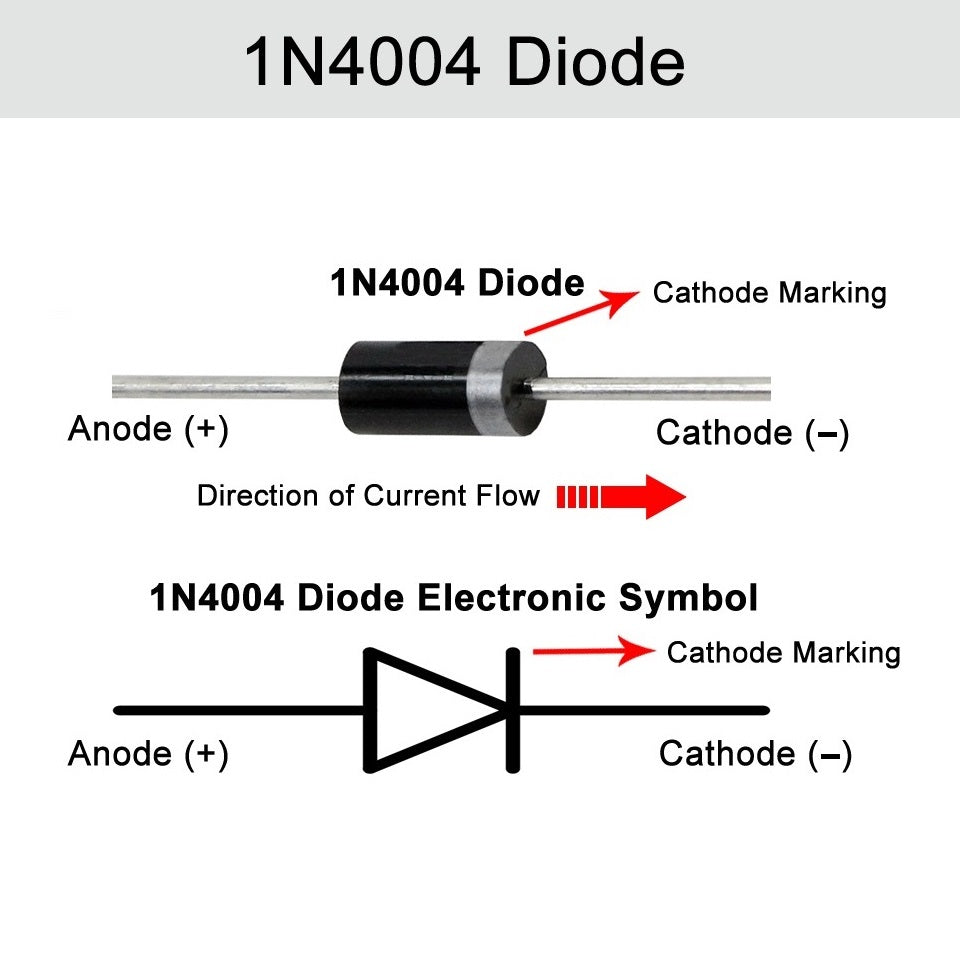

1N4004 |
1 A |
400 V |
30 A |
DO-41 |
1.0 V @ 1 A |
General-purpose rectifiers |
|
1N4005 |
1 A |
600 V |
30 A |
DO-41 |
1.0 V @ 1 A |
Power adapters / SMPS front ends |
|
1N4006 |
1 A |
800 V |
30 A |
DO-41 |
1.0 V @ 1 A |
Medium-voltage DC circuits |
|

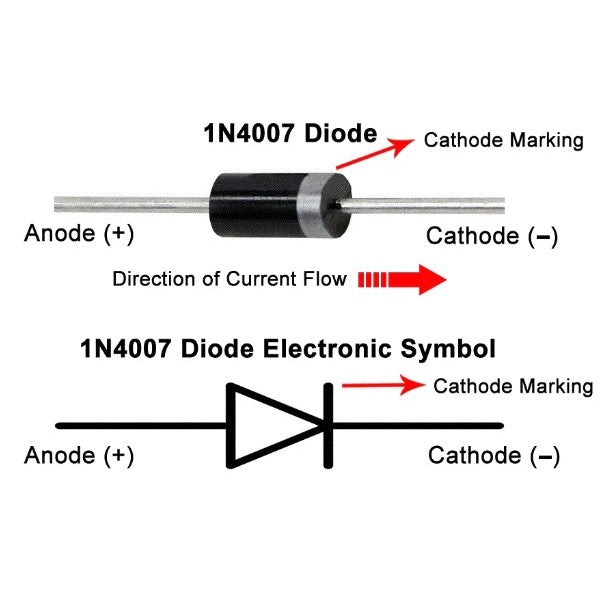

1N4007 |
1 A |
1000 V |
30 A |
DO-41 |
1.0 V @ 1 A |
Most popular — mains rectifiers up to 230 V AC |
|
1N540x Series (Heavy-Duty 3 A Diodes) |
1N5400 |
3 A |
50 V |
200 A |
DO-201AD (Through-Hole) |
1.1 V @ 3 A |
Low-voltage high-current rectification |
1N5401 |
3 A |
100 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
Power supplies up to 12 V |
|
1N5402 |
3 A |
200 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
Medium-voltage power supplies |
|
1N5404 |
3 A |
400 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
DC rectifiers for 24 V systems |
|
1N5406 |
3 A |
800 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
High-voltage rectifier |
|
1N5407 |
3 A |
1000 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
Industrial and mains rectification |
|

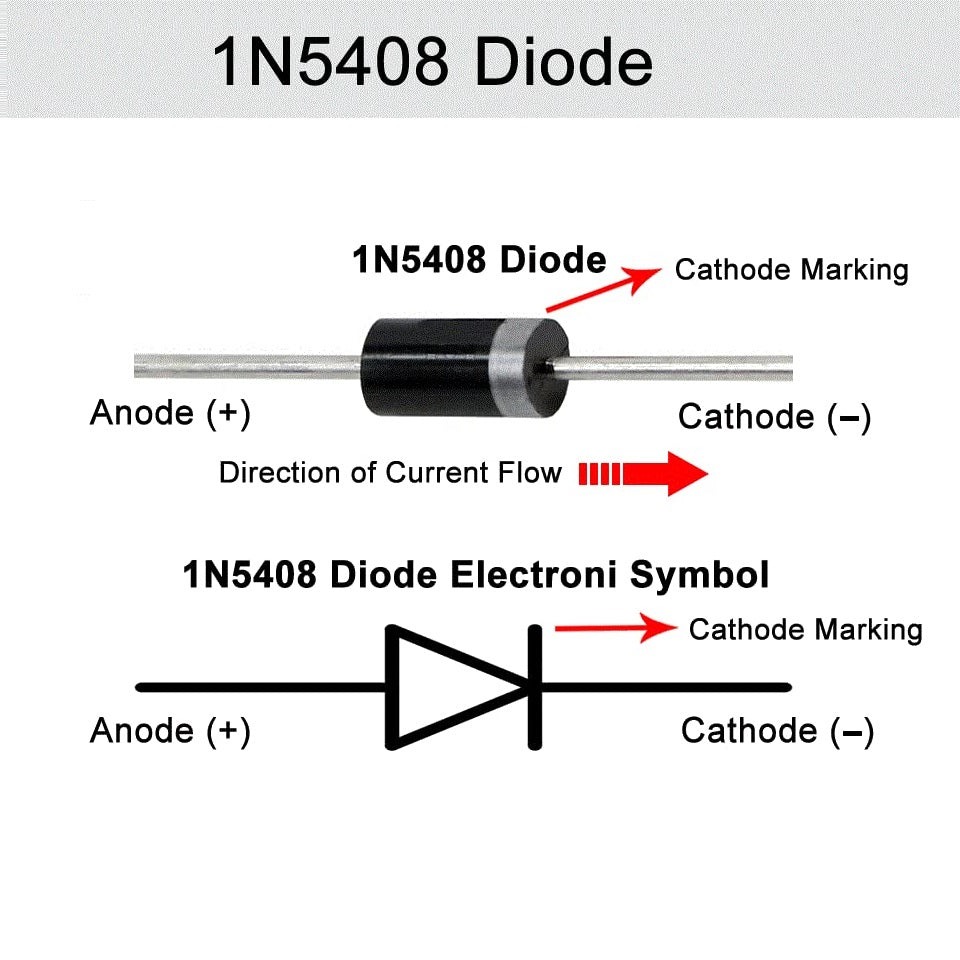

1N5408 |
3 A |
1000 V |
200 A |
DO-201AD |
1.1 V @ 3 A |
Most used high-current general diode |

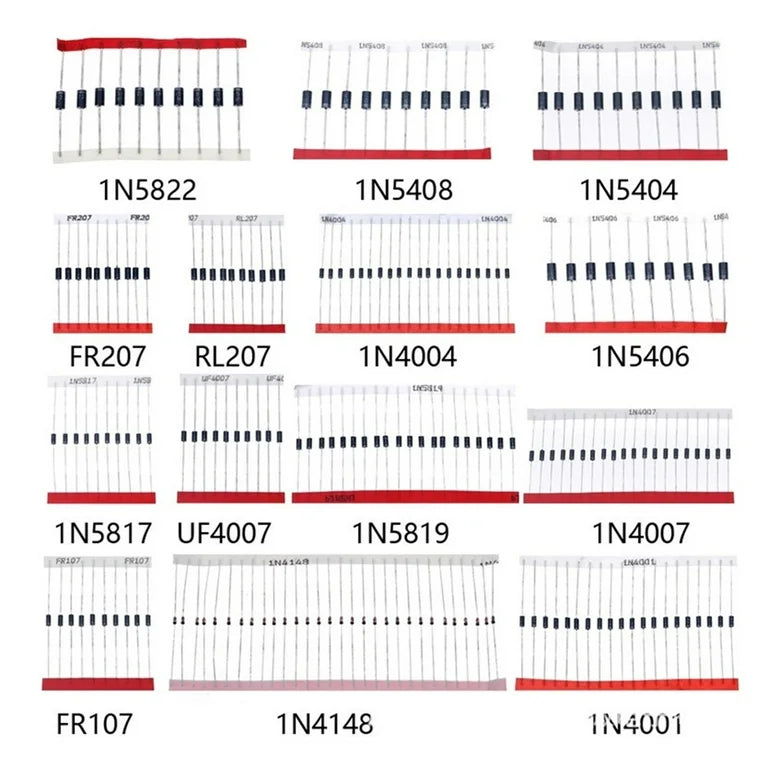

📦 Quick Reference Summary
| Series | Current Rating | Voltage Range | Package | Typical Use |
|---|---|---|---|---|
| 1N400x | 1 A | 50 V – 1000 V | DO-41 | Low-power circuits, chargers, adapters |
| 1N540x | 3 A | 50 V – 1000 V | DO-201AD | High-power rectification, transformers, SMPS |
